OPERATION MANUAL

Model No. WST-POT001

HDMI 4X4 Seamless Matrix with Videowall ＆ Multiviewer

Safety Instruction

Wavesplitter .com

TEL：1-510-0651-7800

MAIL：sales@wavesplitter.com

Table of Contents

Summary of Contents for WaveSplitter WST-POT001

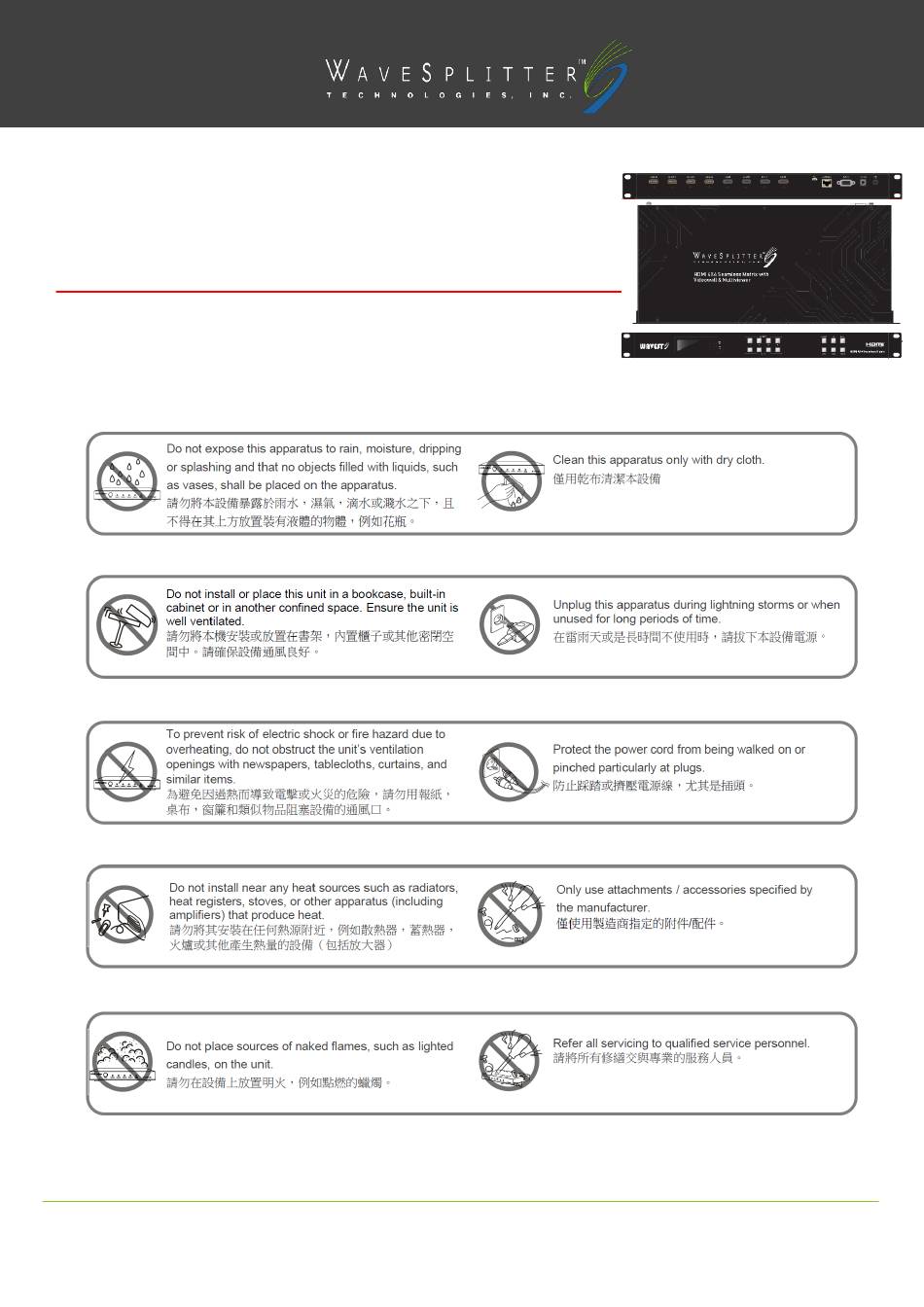

Page 1 OPERATION MANUAL Model No. WST-POT001 HDMI 4X4 Seamless Matrix with Videowall ＆ Multiviewer Safety Instruction Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 2: Key Feature
12V/2A Multi-Country Power adapter x 1 Table mount brackets with screws x 2 Panel Description Note： Lock/Unlock button：Press and hold on one second to lock and unlock the function of all the keys. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 3: Remote Control Description
14. The menu button that the scenario recalls and save. 15. Output 1 display input 1, Output 2 display input 2. Output 3 display input 3, Output 4 display input 4. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 4: Specification
Housing Material Metal W x H X D 205 x 44 x 438 mm Weight 2710g Country of Origin China Certification Safety & Emission CE / FCC / RoHS / REACH Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 5: Panel Control
3. Go directly into the video wall mode of input 2 signal source Operation：press the number "2" in Input to complete the switch. Video control There are five submenus in the Video interface： Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 6 Operation： ① In the main menu, select "Video" and press "OK". ② Press “up and down” button to select "Output1" (The fifth ALL option means that all outputs are selected). Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 7 2560x1440, 1920x1200, 1360x768 and AUTO, as shown in below picture. Default is Auto). The color of the selected output resolution become in white. ⑦ Click "OK" button to complete the output video resolution setting. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 8 ⑥ Press “up and down” button to select X and Y. X and Y have 301 sub-items, the minimum is 0, the maximum is 600, the number adjustment interval is 2. ⑦ Click "OK" button to complete the offset setting. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 9 ⑤ Click "OK" to enter the next submenu. ⑥ Press “up and down” button to select "Yes" to confirm or "No" to cancel. ⑦ Click "OK" button to complete the color setting. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 10 ④ Press “up and down” button to select "Top". ⑤ Click "OK" to enter the next submenu. ⑥ Press “up and down” button to select "CH0" or “CH1” to display. ⑦ Click "OK" button to complete the setting. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 11 ⑧ Press “up and down” button to select “Zoom”. There are four options under Zoom：Start X = 0, Start Y = 0, End X = 3000, End Y = 3000. ⑨ Click "OK" button to complete the setting. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 13 ⑩ When click "Mute", then close the CH1 image. After we select “Mute”, the CH1 screen will switch to black screen. 10). CH0, CH1 mirror Settings You can set CH0 or CH1 to mirror the X-axis or Y-axis image. Operation： ① In the main menu, select "Video" and press "OK". Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 14 Horizontal mirror diagram Mode 1). Seamless (Matrix Mode) “Seamless” is for matrix mode. Seamless can seamlessly switch all input signal source. It can choose 1~4 signal sources to 1-4 output displays. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 15 ① In the main menu, select "Video Wall" and press "OK". ② Press ”up and down” button to select the scene you want. ③ Click "OK" to complete the setting. -2x2 Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 17 The image segmentation can only display on one of the output. Operation： ① In the main menu, select "Multi-viewer" and press "OK". ② Press “up and down” button to select "Output". Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 18 When turn on Demo Mode, it’ll automatically display all the preset scenes (all scenes in Mode), including matrix, video wall, multi-viewer, mirror, etc. Each display playback can choose for the switching seconds, including: 2S, 5S, 10S, 30s, 60S, 180S, 600s. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 19 ⑤ Click "OK" to enter the next submenu, and select “10ms” (Factory default is 30ms). ⑥ Click "OK" to confirm. ⑦ The audio delay setting is complete, audio output will delay 10 mini seconds. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 20: Edid Settings
② Press “up and down” button to select "Intput1" (The fifth ALL option means that all intputs are selected). ③ Click "OK" to enter the next submenu. ④ Press “up and down” button to select the resolution. ⑤ Click "OK" to confirm. ⑥ EDID setup complete. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 21: Preset Settings
② Press “up and down” button to select "Save". ③ Click "OK" to enter the next submenu. ④ Press “up and down” button to select 1 ~ 8 saved scenes. ⑤ Click "OK" to confirm. ⑥ Scene saved. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 22: Setup Interface
On the DHCP interface, select "On" to set as dynamic and select "Off" to set as static. Default DHCP is static. Operation： ① In the main menu, select "Setup" and press "OK". ② Press ”up and down” button to select "DHCP". ③ Click "OK" to enter the next submenu. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 23 ② Click "OK" to enter the next submenu. ③ Press “up and down” button to select "Run" or “User. ④ Click "OK" to confirm. ⑤ Press “up and down” button to select "Yes" or “No”. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 24 ⑥ Click "OK" to confirm. Query information interface Inquiry for device information, such as system information and IP information. Each device has different MAC address. The default IP is 192.168.1.168 and Mask is 255.255.255.0. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 25 A=0: All output A=1-4: Output 1-4 #edid_d inA data=B EDID Setting B=0: 4K B=1: 1080p A=0: All output A=1-4: Output 1-4 #edid_1 inA data=B EDID Lock B=0: Unlock EDID B=1: Lock EDID Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 26 1). Default is “Static IP Address”. You can easily connect the unit to your computer through the Ethernet cable. 2). Make sure the IP address is in the same range with your PC. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 27 Default username: admin. Default password: 123456. Click Log in and the device controller page will be displayed. Switch setting The Video interface is divided into： 1). Seamless matrix mode. 2). Video wall mode. 3). Multi-viewer mode. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 28 In Video Output area, select Video Output that needs to be changed. The selected outputs will turn in blue. Click on the Format button to change Output resolution (it support single select, multiple select or all select). Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 29 There are eight scenario schemes, Preset1~ Preset8, which can save the current layout and recall it when it is used next time (the default 8 scenarios is shown in the figure). Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 30 Modify Port Name Click the Rename button to modify the port names of input and output (Chinese and spaces are not supported, only 15 characters are supported), and click Save button to save. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 31 In Audio operation interface, when having any action, all buttons are temporarily unavailable until the WEB receives feedback. If there is any special cases and no feedback is received, you can manually refresh the page. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 32 IP address information. ④ DHCP button is to switch DHCP On and DHCP Off. You can click the DHCP button to switch without clicking “Apply” button. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 33 ④ “Reboot” for reboot the device. ⑤ ”Factory-Run” for recovering data back to factory settings. ⑥ “Factory-User” for reset all settings. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
Page 34: Firmware Update
Open the software UART_ISP.exe, select the correct port. Baud rate is 115200. Type "C0" in PORT, and select the PATH (.vme format) of the program, and click “update” to complete the upgrade. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
Page 35 UART _ ISP. exe, select correct port. Baud rate is 115200 Type F0_01 in PORT (_ for space). Then select program (.html format) in PATH, click update to complete upgrade. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
