OPERATION MANUAL
Model No. WST-POT002
HDMI 9x9 Seamless Matrix with Video Wall & Multiviewer
Safety Instruction
Copyright © 2020 Wavesplitter AV Technology
|
Wavesplitter .com
TEL:1-510-0651-7800
MAIL:sales@wavesplitter.com
Table of
Contents
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Related Manuals for WaveSplitter WST-POT002
Matrix Switcher WaveSplitter WST-POT001 Operation Manual
Hdmi 4x4 seamless matrix with videowall & multiviewer (37 pages)
Matrix Switcher WaveSplitter WST-PMX001 Operation Manual
Hdmi 2.0 4k@60hz 4x2 matrix with audio extraction, pro (13 pages)
Matrix Switcher WaveSplitter WST-PIP001 Operation Manual
Sdvoe-seamless switching 4k 60hz hdr 10g av over ip-transmitter (35 pages)
Matrix Switcher WaveSplitter WST-PMX002 Operation Manual
Hdmi 4k@60hz 8x8 matrix with audio extraction, pro (15 pages)
Summary of Contents for WaveSplitter WST-POT002
Page 1

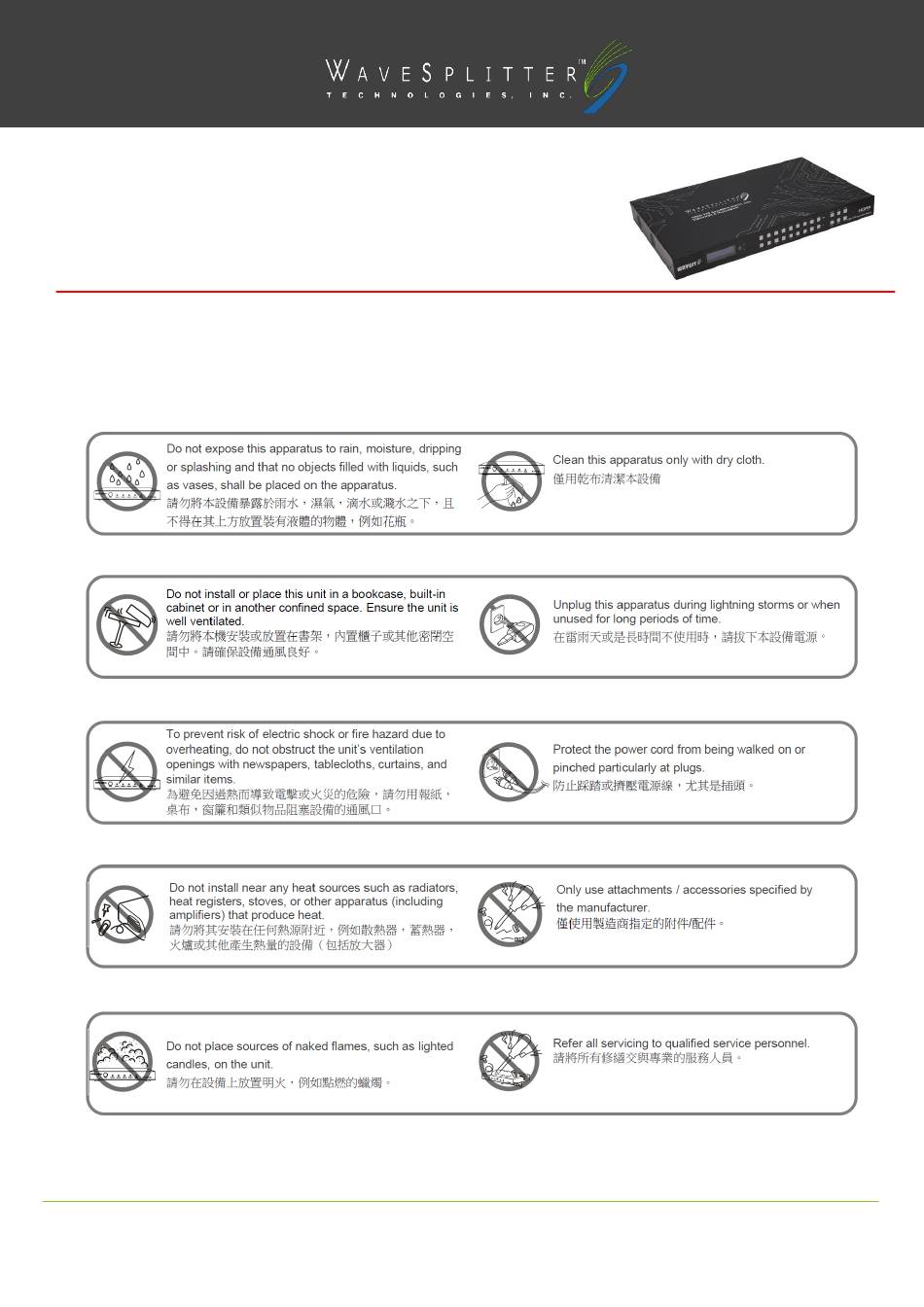

OPERATION MANUAL Model No. WST-POT002 HDMI 9x9 Seamless Matrix with Video Wall & Multiviewer Safety Instruction Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 2: Key Feature
Supports 1U rackmount. Package Content 9x9 Matrix x 1 Remote Control x 1 24V/4A Multi-Country Power adapter x 1 Table mount brackets with screws x 2 Panel Description Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 3: Remote Control Description
Output 3 display input 3, Output 4 display input 4. Output 5 display input 5, Output 6 display input 6. Output 7 display input 7, Output 8 display input 8. Output 9 display input 9. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 4: Specification
Housing Material Metal W x H X D 273.7 x 482.6 x 44mm Weight 4 KG Country of Origin China Certification Safety & Emission CE / FCC / RoHS / REACH Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 5: Panel Control
Operation: Long press the Input area’s number “3” to complete the switch. Video Setting The video interface has ten sub-menus: Output 1-9 and ALL. After selecting the “Output X”, there will have 7 sub-menus. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 6
❷ Press “UP” and “DOWN” to select Output 1 to 10, then press “OK”. ❸ Choose the Input signal by using “UP” and “ DOWN” under “Source” section, then press “OK” to complete the switching. Video On/Off control: Output resolution Selecting: Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 7
Note: “X”,“Y” have 301 sub-terms, MIN:0, MAX:6000. Stretch setting Adjust one or All output’s video screen size. Start from ( 0,0 ) End for ( 6000, 6000). Adjusting and cropping requires to set Start and End. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 8
Note: There are 61 sub-items in each coordinate, minimum is 0 and maximum is 6000. The interval of each value is 100. When selected, the bottom color will turn white. When selected, the default is upper left Start (0,0), lower right End (6000,6000), midpoint (3000,3000). Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800...
Page 9: Mode Setting
There are 20 preset layout in the Mode. 2x3 U means 2x3 Video wall on the Upper side. 2x2 LD means 2x2 Video wall is on the Left Down side. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 10
OPERATION MANUAL Video Wall Layout Multi-Viewer Mode There are 8 presets layout in the Mode. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 11: Audio Setting
2 Second, 5 Second, 10 Second, 30 Second, 60 Second, 180 Second, 600 Second, or select Off to turn it off. Audio Setting Audio Setting interface can set each or all outputs at the same time. Mute, Unmute or Delay, Rear Ports can be selected. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800...
Page 12: Edid Setting
OPERATION MANUAL EDID Setting Set each input ports’ EDID. There are three different built-in resolutions which are 4K@30Hz, 1080p@60Hz, and User defined. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 13
❷ Save: Save the preset setting ❸ Clear: Remove the setting It is available to save total 8 different video setting. You can modify the preset name by using Web control. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800...
Page 14: Setup Section
❷ Info time: It states for how long the Info OSD will show on the display. The Info OSD will show on the top left side of the display. “Never” means the Info OSD won’t be shown all the time. Baud Rate Note: Default baud rate is 115200. DHCP Setting Note: Default DHCP is Off. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 15
❶ Factory-Run: Reset all settings except preset settings. ❷ Factory-User: Reset all settings. Info Check for device information, such as IP information, system information. MAC address will be different for each device. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 16
B=0: Turn off the audio B=1: Turn on the audio A=0: All output #audio_d outA delay=B Audio Delay A=1-9: Output 1-9 B=0-250: 0-250 seconds #edid_d inA data=B EDID Setting A=0: All output Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 17: Web Control
❶ Default is “Static IP Address”. You can easily connect the unit to your computer through the Ethernet cable. ❷ Make sure the IP address is in the same range with your PC. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800...
Page 18
❸ Enter to the browser (it is recommended to use browsers like Google, Firefox and IE8), type in the default IP address:192.168.1.168. Default username: admin. Default password: admin. Click Log in and the device controller page will be displayed. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800...
Page 19
❹ Offset function: Adjust the Offset of the screen on X or Y axis for a single screen. The range is from 0-600, increasing by 2 each time. Default is 0 for both X-axis and Y-axis. Note: Offset setting is only available under Video Wall Mode. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800...
Page 20
❷ Audio Dec/Rotate/Audio HDMI: Analog Audio Extraction / 180° Rotation / HDMI Audio on and off. ❸ Audio Delay: The Audio delay can be set from 0 to 250. ❹ Resolution: 4K30, 1080P, 720P, 2560×1440, 1920×1200, 1360×768, Auto. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800...
Page 21
Input ❶ Rename: Double click to rename the input ports. ❷ Copy EDID: 4K30Hz & 1080P. Preset Network ❶ The MAC address can only be displayed and cannot be modified. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 22
❹ DHCP button is to switch DHCP On and DHCP Off. You can click the DHCP button to switch without clicking “Apply” button. System ❶“Reboot” for reboot the device. ❷“Factory-Run” for recovering data back to factory settings. ❸“Factory-User” for reset all settings. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 23: Firmware Updating
Open the software UART_ISP.exe, select the correct port. Baud rate is 115200. Type "C0" in PORT, and select the PATH (.vme format) of the program, and click “update” to complete the upgrade. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800...
Page 24
UART _ ISP. exe, select correct port. Baud rate is 115200 Type F0_01 in PORT (_ for space). Then select program (.html format) in PATH, click update to complete upgrade. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 25
OPERATION MANUAL Application 1:Matrix mode Application 2:Video Wall mode Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
Page 26
OPERATION MANUAL Application 3: Multiview mode Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL:1-510-0651-7800 MAIL:sales@wavesplitter.com...
