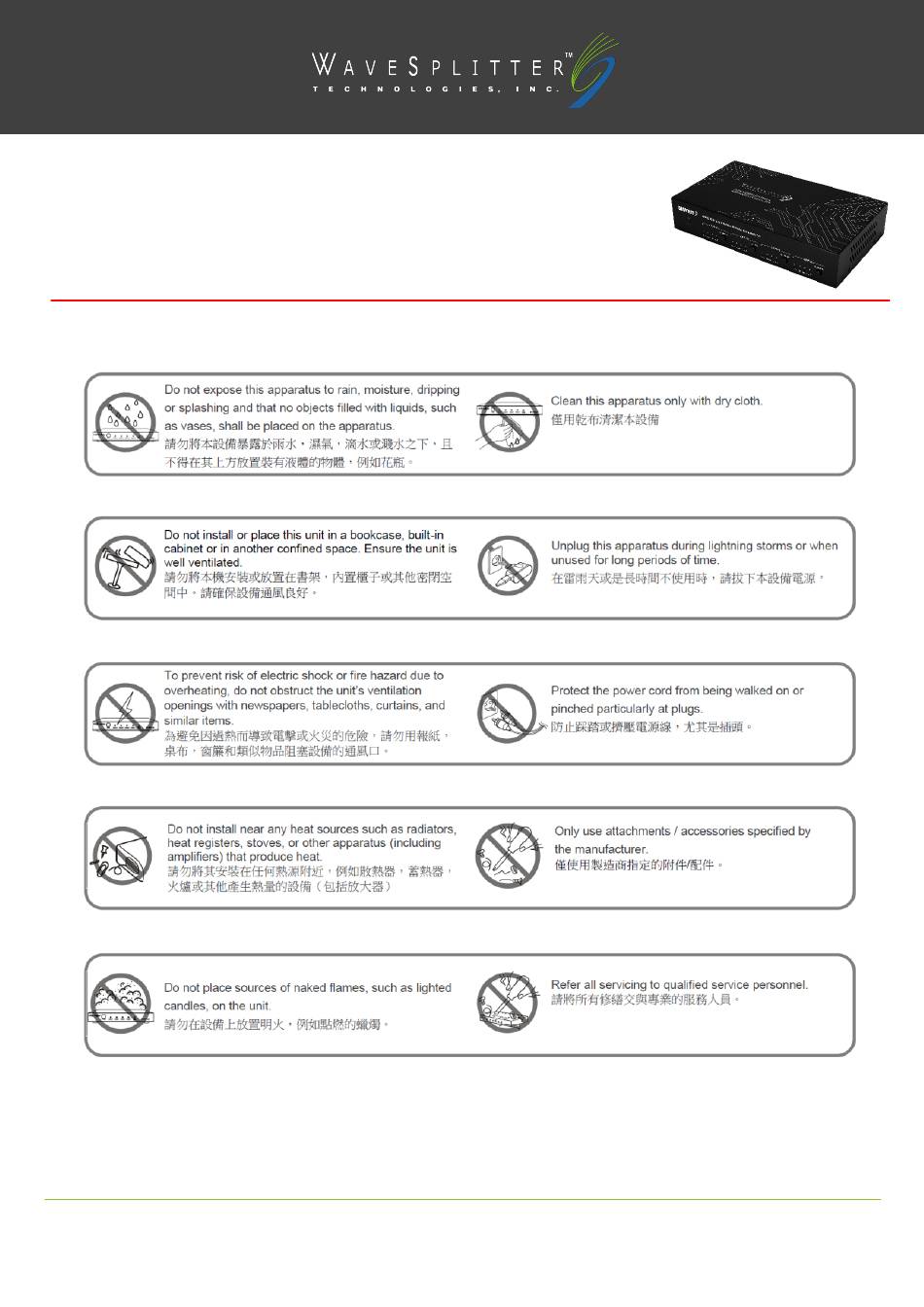

- Page 1 OPERATION MANUAL Model No. WST-PMX004 HDMI 4K60Hz 4x4 Matrix with Audio Extraction, Pro Safety Instruction Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
-
Page 2: Key Features
Introduction WST-PMX004 is a compact 4K HDR 4x4 HDMI2.0 matrix switcher which can switch four HDMI video inputs and four HDMI video outputs flexibly. The unit comes with full support for 18Gbps bandwidth, the resolution up to 4K@60Hz (4:4:4, 8-bits) and back compatible with 1080p@60Hz, it can also support HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0b specification. -
Page 3: Installation
Method B：IR Remote Control Point the matrix IR Remote directly at the IR window on front panel or at the IR receiver connected to the rear panel. As shown in the following picture: Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800... - Page 4 Input the device’s IP address in the browser and press Enter. Default：192.168.1.50 Subnet ：255.255.255.0 Gateway：192.168.1.254 Enter the username and password in the following login page, then click “Login”. The default username and password are both “admin” Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 5 ALL OUTPUTS： Click to route INPUT (n) for all OUTPUTs. ▼ EDID This section allows you to configure EDID settings of each input port. Select the item from the drop-down menu, then click “Apply” to take effect. Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
- Page 6 Save: Click to save the EDID of the Output as bin file to a desired location. Open: Click to open an EDID file. Then you can click "Write" to write the EDID information instead of Output port's EDID to corresponding Input. ▼ Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
-
Page 7: Audio Mute
This section allows you to set Audio output (1-4) mute/unmute. The default setting is unmute. ON：Select to enable HDCP encryption for the selected input port. OFF：Select to disable HDCP encryption for the selected input port. Default setting：ON Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com... -
Page 8: Source Naming
This section allows users to change output alias names. Save：Click to save the output names. Reset：Click to reset the names to default. Note： The alias name must be 1 to 15 characters long (letters, numbers, spaces, dashes, and underscores). Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com... -
Page 9: Login Password
Default password ：“admin”. Apply： Click to save the changes. Note：The new password must be 4 to 16 characters in length (alphanumeric only). ▼ WEB Firmware Upgrade Click “Browse” for the update file. Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com... - Page 10 This section allows you to reset the device to factory default settings or reboot the device Factory Default： Click the “Factory Default” icon, the following window will be popped up, click “Ok” to reset the device to factory default. Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
-
Page 11: Firmware Version
Note： Please wait about 30 seconds to re-access Web UI by refreshing the browser. ▼ Firmware Version This section allows you to obtain information of the current firmware in use. Method D：RS-232 Control Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com... - Page 12 Advanced users may need to control the matrix through RS-232 serial communication. Connect a control PC or control system to the RS-232 port of the receiver. API command for RS232 control is available in the separate document “WST-PMX004 Command lsit”. A professional RS232 serial interface software (e.g.
-
Page 13: Specifications
Main Material Iron Size W x D x H 215 x 120.2 x 42 mm Weight 540g Country of Origin Taiwan Certification Safety & Emission CE / FCC / RoHS / REACH Copyright ©2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 MAIL：sales@wavesplitter.com...
