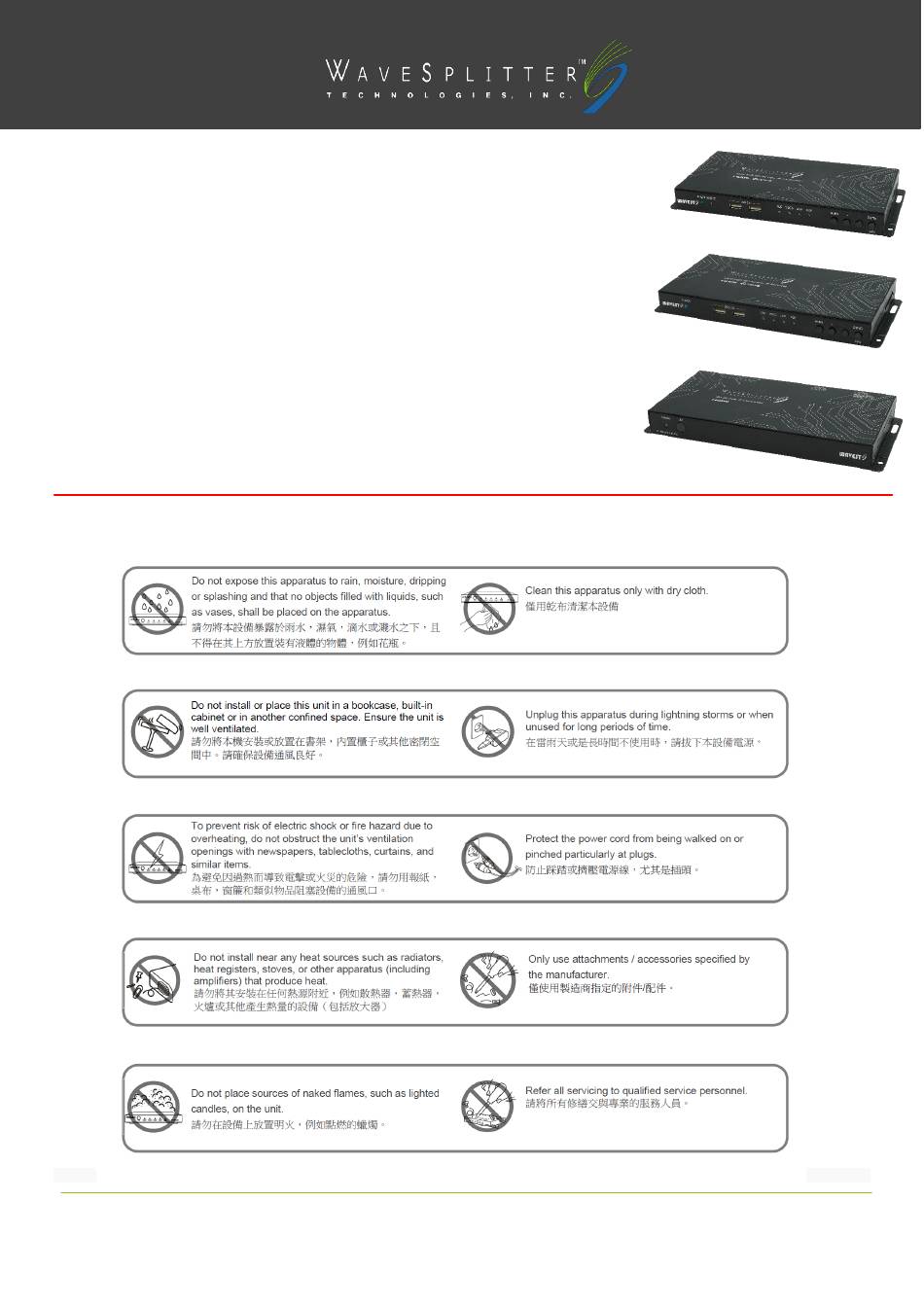

OPERATION MANUAL
Model No.
WST-PIP001 | SDVoE-Seamless Switching 4K@60Hz HDR 10G AV over IP-Transmitter
WST-PIP002 | SDVoE-Seamless Switching 4K@60Hz HDR 10G AV over IP-Receiver
WST-PIP003 | 4K@60Hz HDR 10G AV over IP Master Controller
Safety Instruction
Copyright © 2020 Wavesplitter AV Technology
|
Wavesplitter .com
TEL：1-510-0651-7800
Mail：sales@wavesplitter.com
Advertisement
Table of Contents
Related Manuals for WaveSplitter WST-PIP001
Summary of Contents for WaveSplitter WST-PIP001
- Page 1 OPERATION MANUAL Model No. WST-PIP001 | SDVoE-Seamless Switching 4K@60Hz HDR 10G AV over IP-Transmitter WST-PIP002 | SDVoE-Seamless Switching 4K@60Hz HDR 10G AV over IP-Receiver WST-PIP003 | 4K@60Hz HDR 10G AV over IP Master Controller Safety Instruction Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com...
-
Page 2: Key Feature
WST-PIP003 with live video previews of the media sources making it easy to route video to any display or video wall or multiview at the ⚫ flick of a finger. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 Mail：sales@wavesplitter.com... -
Page 3: Package Content
Terminal Block (3-pin) x 1 WST-PIP003：Controller x 1 5V/2.6A DC Power Adapter Terminal Block (3-pin) x 1 Terminal Block (5-pin) x 1 IR Extender Cable x 1 Remote Control x 1 Panel Description Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 Mail：sales@wavesplitter.com... -
Page 4: System Requirements
Please make sure that all the devices included in the installation are shut down Connect, as required, to WST-PIP001 (TX) to the sources by HDMI or DP cable and connect a standard RJ45 Cat.6a Ethernet cable to “10GbE”port of Transmitter to the RJ45 ports of 10G IP Switch. -
Page 5: Monitor & Control
Note： Units that were previously a part of the system, but are not currently detected will still be displayed, however they will have a disconnected icon ( ) and cannot be used for routing. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800... - Page 6 “Stop” button.“All Stop” stops all stream types from the selected source, “Native Stop” stops only the full resolution primary video stream, “Multiview Stop” stops only the secondary video stream used by multiviewer layouts. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 7 10Gbps. Displayed when a transmitter or receiver is offline or not currently detected by the IP Master Controller. Video Wall Routing：Provides drag-and-drop source selection for pre-defined video wall groups. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 Mail：sales@wavesplitter.com...
- Page 8 Transmitter：All sources are listed here with any currently unavailable sources displayed in red. To assign a new source to an existing multiview layout’s window, drag the source to the preferred window within the Multiviewer View. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 9 ● HDMI Audio Receiver：This section provides drag-and-drop buttons for all receivers detected by the system as well as a button target to stop one or all independent HDMI audio streams. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 Mail：sales@wavesplitter.com...
- Page 10 Group button or the “All” button on the right side, then release the mouse button. If the routing was completed successfully, the source’s name will appear within all appropriate buttons. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 11 USB host’s name will appear below the USB device’s name within the button. Clicking on any USB host button will change the color of itself, and all currently paired USB device endpoints. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 12 IR Output to IR Input Routing: To connect an IR output to an IR input, click and drag the IR output’s button on the right to the preferred IR input on the left side, then release the mouse button. If the routing was completed Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 13 RS-232 receiver’s button on the right to the preferred RS-232 sender on the left side, then release the mouse button. If the routing was completed successfully, the newly routed RS-232 receiver’s name will appear below Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 14 System ◼ This tab provides access to system configuration options including IP configuration for both LAN ports, interface language, login and user management, and firmware update functionality. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 Mail：sales@wavesplitter.com...
- Page 15 (*.bin format) located on your local PC. After selecting the file, click the “Upgrade” button to begin the firmware update process. Once the firmware update process has completed the unit will reboot. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
-
Page 16: Device Mgmt
To hide a device from this unit, click on the device’s button in the left panel and it will move to the right panel. Clicking on either respective “Remove All” button will move all transmitters or receivers into the right panel making them invisible to this unit after “Save” has been clicked. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800... - Page 17 Clicking on an endpoint will remove it from the group and place it back in the “Device” section. To remove all devices from the current group, click on the “Remove All” button. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 18 Once a command has been edited, click on the “Confirm/Add” button at the bottom of the page to store the command in the macro. To delete an existing Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 19 “Send” to transmit the command immediately. I/O Trigger： This section provides a way to assign macros to each of the 8 trigger inputs on the unit as well as to the 8 IR remote buttons Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 20 After selecting the file, click the “Open” button to copy the EDID to the IP Master Controller. After the EDID has been loaded, the details will be displayed in the Information window. Select the transmitter(s) to copy the EDID to, and Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 21 Execute：Click this button to assign the EDID currently displayed in the Information window to all currently selected transmitters. Time：This section provides a way to automatically set and sync the unit’s system clock using a standard internet NTP (Network Time Protocol) server. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 Mail：sales@wavesplitter.com...
- Page 22 Schedule：This section provides access to the settings and controls for configuring scheduled execution of macros. A macro can be scheduled to execute once at a specific time and date, on a periodic rotation, or at set times on specific days of the week. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 23 Note: Units that were previously a part of the system, but are not currently detected will still be displayed, however they will have a disconnected icon ( ) and cannot be used for routing. These units may be removed from the list using the “Remove” button. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 24 Network Settings：Clicking this button will display a pop-up window containing detailed information about the unit’s current network settings, including IP mode, and allow for those settings to be changed. To activate any Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 25 USB Settings：Clicking this button will display a pop-up window containing detailed information about the unit’s current USB settings, including enabling or disabling simultaneous mode support. To activate any changes made, please click on the “Save” button to close the window. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 26 The name can be changed within “Device Settings” ： ● IP Address：Displays each unit’s current IP address. ● Video Info：Clicking this button will display a pop-up window containing detailed information about the current video output. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 Mail：sales@wavesplitter.com...
- Page 27 This setting overrides any manual routing selections made from the HDMI Audio routing tab. ： Analog Audio Follow Mode：Use the dropdown to select the automatic audio follow behavior for this receiver’s Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 28 To change all receivers to the same resolution, drag the “Rx All” button to the preferred resolution on the right side. Selecting Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
-
Page 29: Video Wall
Fit” will maintain the aspect ratio of the original source while filling the video wall as much as possible and adding black bars where necessary. Selecting “Full Screen” will stretch the source to fit the video wall, regardless of the original source’s aspect ratio. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800... - Page 30 To add a new preset, click on the “Add” icon ( ) and then select the preferred options and window configuration. To edit an existing preset, click on the “Edit” icon ( ) Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
- Page 31 Save Preset：Click this button to save changes to the current multiview configuration without activating it. ● Execute：Click this button to save changes to the current Multiview configuration and then activate the preset on the display defined by the “Receiver” setting. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 Mail：sales@wavesplitter.com...
- Page 32 Note 2：This unit defaults to DHCP mode. The current IP address can be verified using the HDMI output or RS-232 if the Device Discovery software is not available. ● RS-232 & Telnet Commands Please download the Command list from Wavesplitter ‘s website. Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800...
-
Page 33: Connection Diagram
OPERATION MANUAL Connection Diagram ◼ Application Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 Mail：sales@wavesplitter.com... - Page 34 231 x 108 x 25 mm Weight 583g 555g Country of Origin Taiwan Taiwan Regulatory Safety & Emission CE / FCC / RoHS / REACH CE / FCC / RoHS / REACH Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 Mail：sales@wavesplitter.com...
- Page 35 Iron Size W x D X H 231 x 108 x 25 mm Weight 648g Country of Origin Taiwan Regulatory Safety & Emission CE / FCC / RoHS / REACH Copyright © 2020 Wavesplitter AV Technology Wavesplitter .com TEL：1-510-0651-7800 Mail：sales@wavesplitter.com...
