Classic Exhibits visionary DESIGNS VK-1321 Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Step 1
Order #XXXXX - VK-1321
866.652.2100
10'

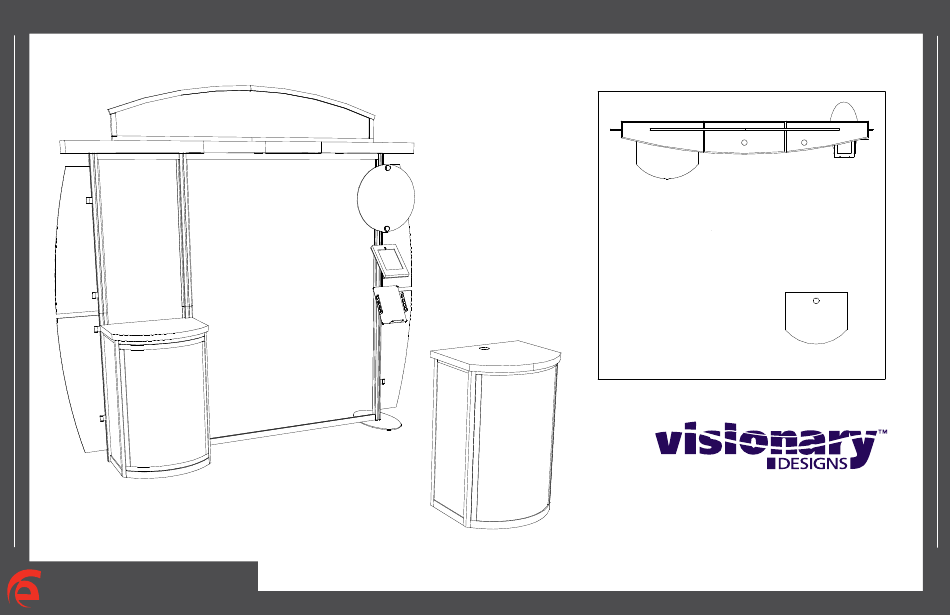

Plan View
10'
Perspective View
WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL
SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING
© 2014
w w w . c l a s s i c e x h i b i t s . c o m
Page 1 of 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the visionary DESIGNS VK-1321 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Classic Exhibits visionary DESIGNS VK-1321

Summary of Contents for Classic Exhibits visionary DESIGNS VK-1321

  • Page 1 Step 1 Order #XXXXX - VK-1321 866.652.2100 10’ Plan View 10’ Perspective View WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING © 2014 w w w . c l a s s i c e x h i b i t s . c o m Page 1 of 4...
  • Page 2 Step 2 Order #XXXXX - VK-1321 General Information 866.652.2100 Using Your Setup Instructions The Visionary Designs Setup Instructions are created specifically for your Detail A configuration. They are laid out sequentially, including an exploded view of the entire display, and then a logical series of detailed steps to assemble the main structure and components.

  • Page 3: Front View

    Step 1 Order #XXXXX - VK-1321 Backwall Assembly 866.652.2100 Item Qty. Description Steps: Oval Base Plate 1) Attach lower vertical extrusion [4] to oval base plate [1]. 2/2a 42” Square Vertical Extrusion 2) Attach upper vertical extrusions [2A,3A,4A] to lower vertical extrusions [2,3,4] 3/3A 42”...
  • Page 4 Step 2 Order #XXXXX - VK-1321 Pedestal Assembly 866.652.2100 Monitor Mount Attachment Steps Item Description 1) Attach horizontal extrusions [9,10] between vertical extrusions [2 & 8] and [3 & 8a] 8/8a 38” Vertical Extrusion inserting infills as shown. 12.5” Horizontal Extrusion 2) Attach door to hinges as shown in detail.
  • Page 5 Step 3 Order #XXXXX - VK-1321 Attachments 866.652.2100 Item Qty. Description Graphic Attachment 11/11A 5.862” Vertical Extrusion 12a/12b 40.319” Formed Horizontal Extrusion Attaching Graphics 13a/13b 39” Horizontal Extrusion Attach Header Graphic to Back of Graphic assembled header frame. Steps Standoff 1) Connect canopy pieces together using bolts and wing nuts provided, Barrel Secure with...
  • Page 6 Step 4 Order #XXXXX - VK-1321 Freestanding Pedestal Assembly 866.652.2100 Item Qty. Description Steps 38“ Vertical Extrusion w/ Door Hinges 1) Attach lower horizontal extrusions [18,19,20] between 38” Vertical Extrusion w/ Door Stop vertical extrusions [14,15,16,17] as shown. 38“ Vertical Extrusion 2) Attach door to back as shown.
  • Page 7 Order #XXXXX - Packing Instruction - Case 1 of 3 866.652.2100 Top View of Each Level Ceiling Pieces #10 (x2) Graphics Ceiling Piece Wings Setup Hardware Header Frame Level 2 Level 3 Level 4 Level 5 Level 1 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
  • Page 8 Order #XXXXX -Packing Instruction - Case 2 of 3 866.652.2100 Top View of Each Level 9 (x4) Counter Top Curved Infills Door Internal Shelf Level 1 Level 2 Level 3 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
  • Page 9 Order #XXXXX - Packing Instruction - Case 3 of 3 866.652.2100 Top View of Each Level Shelf Supports 20 (x2) Counter Top Infill Flat Door Internal Shelf Level 1 Level 2 Level 3 Level 4 Level 5 WHEN DISASSEMBLING ALUMINUM EXTRUSION, TIGHTEN ALL SETSCREWS AND LOCKS TO PREVENT LOSS DURING SHIPPING ©...
