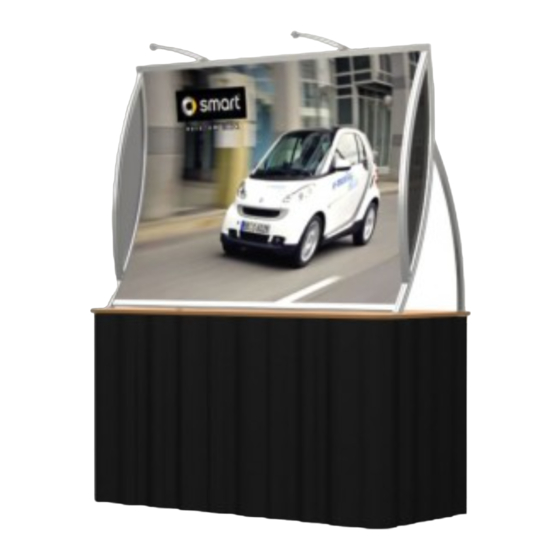

Classic Exhibits Perfect 10 VK-1402 Instructions

Order #XXXXX - VK-1402 Table Top -
Item Qty. Description
1
1 Left Leg Assembly
2 1 Right Leg Assembly
3 1 Hinged Horizontal
4 1 Hinged Horizontal
Steps:

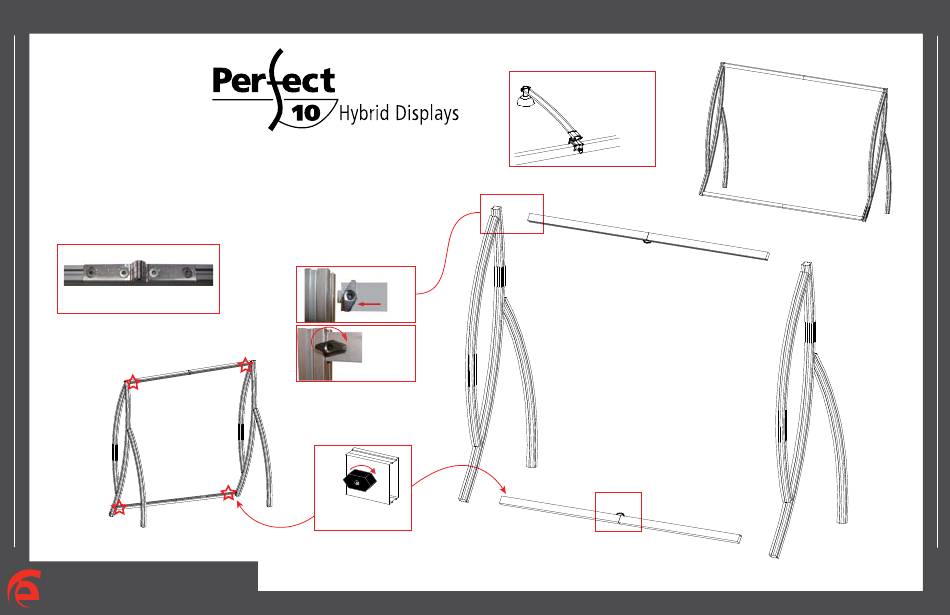

1) Attach lower and upper horizontal extrusions [3,4] between assemblies by slightly
tightening BLACK knobs on backside of extrusion as shown.
NOTE 1: Make sure velcro faces toward back and knobs face horizontally as shown in detail.
NOTE 2: Make sure the lock is flush with extrusion before tightening. If lock will not fully
engage, gently rock lock and extrusion while turning knob until lock fully opens.
** Various Accessories Available **
*
Hinge Extrusion
Top Horizontal Hinge faces DOWN.
Bottom Horizontal Hinge faces UP.
Rear View of Display
w w w . c l a s s i c e x h i b i t s . c o m
General Layout
NOTE: When assembling horizontals
they should be placed approximately
one inch from TOP and BOTTOM.
horizontal into groove
Assure
that a good
connection is made
and tighten to secure.
STAR indicates location of
knobs on BACKSIDE of unit.
Black
Knob
Turn Knob Clockwise
to Tighten Lock
WHEN DISASSEMBLING TIGHTEN ALL KNOBS TO PREVENT LOSS DURING SHIPPING
Light Connection
*
*
Slide
1
Attach lights to
backwall where
desired and
tighten in place.
4
*
When assembled
*
3
*
patent D599,121
Step 1
866.652.2100
*
*
2
© 2014
Page 1 of 3
