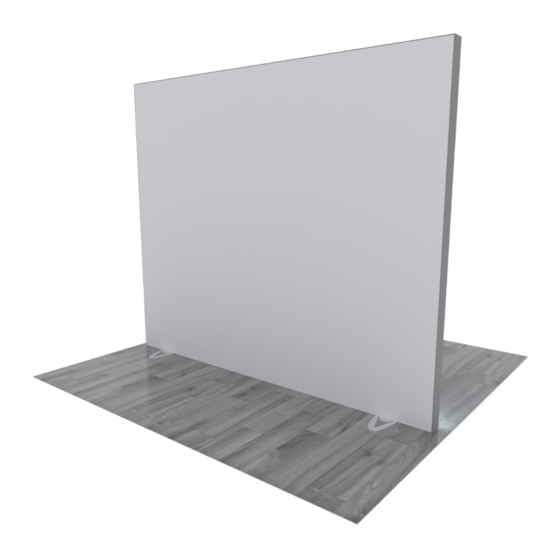

- Page 1 © 2019 Order #XXXXX VK-1968 Supernova Top View Perspective View SETUP INSTRUCTIONS If you would like to tell us about your experience with your setup instructions please email us at info@classicexhibits.com...
-
Page 2: General Setup Instructions
© 2019 Order #XXXXX General Information General Setup Instructions - Read entire setup instruction manual prior to WARNING unpacking parts and pieces. - The setup instructions are created specifically for this configuration. - Setup instructions are laid out sequentially in steps, including exploded views with detailed explanation for assembly. - Page 3 © 2019 Order #XXXXX CEI110 Frame Assembly Disassembly Slide both connectors across seam of extrusions. Tighten all knobs. Straight Connection 1) Loosen all knobs. Straight Connector When assembling frame, first attach all straight 2) Slide connectors off of one extrusion. connectors, then attach corner connectors.
- Page 4 © 2019 Order #XXXXX SEG Installation 1) Locate channels along the edges of extrusions Channel Fold edges over. 2) Insert graphic corners first into channels then center point of graphic into channels. Allows for proportional fit around the perimeter of the extrusion. 3) Working from center to corner, slide silicon edge Insert into on graphic into channel.
- Page 5 © 2019 Order #XXXXX Case Packing Top View of Each Level Graphics Setup Hardware Level 1 (Bottom Level) Level 2 Level 3 Level 4 Case 1 of 1...
-
Page 6: Front View
© 2019 Order #XXXXX VK-1968 Supernova Assembly Item Qty. Description Steps: 1,1A 38” CEI110 Horizontal Extrusion 1) Assemble CEI110 extrusions together, flat on floor, as shown. See CEI110 Frame 2,2A 38” CEI110 Horizontal Extrusion Assembly sheet for instruction. 3,3A 38” CEI110 Horizontal Extrusion 2) Attach base plates [7] to horizontals [1] and [3], using bolts, washers, and nuts, then 4,4A 47.5”...
