FORMING FUNCTION 4181502202 User Manual

Hold dual monitor arm 22

Advertisement

Quick Links

USER MANUAL
Hold Dual Monitor Arm
PARTS AND TOOLS PART 1
x1 PCE
A
x1 PCE
B
C
×1 PCE
D
×4 PCS
M6x12
E
×1 PCE
F
×1 PCE
G
×1 PCE
H
×4 PCS
M4x10
I
×2 PCS
K
×1 PCE
L
×1 PCE
2mm
M
×1 PCE
4mm
N
×1 PCE
5mm
OPTIONAL
In order to achieve a correct mounting of Hold Dual Monitor Arm, you are advised to read and follow the
instructions step by step. If there are incomprehensible steps, please let us know and we will get back to you.
4181502202
ART. NO
4181502209
4181502201
22
1
STEP 4
STEP 1
STEP 1
STEP 1

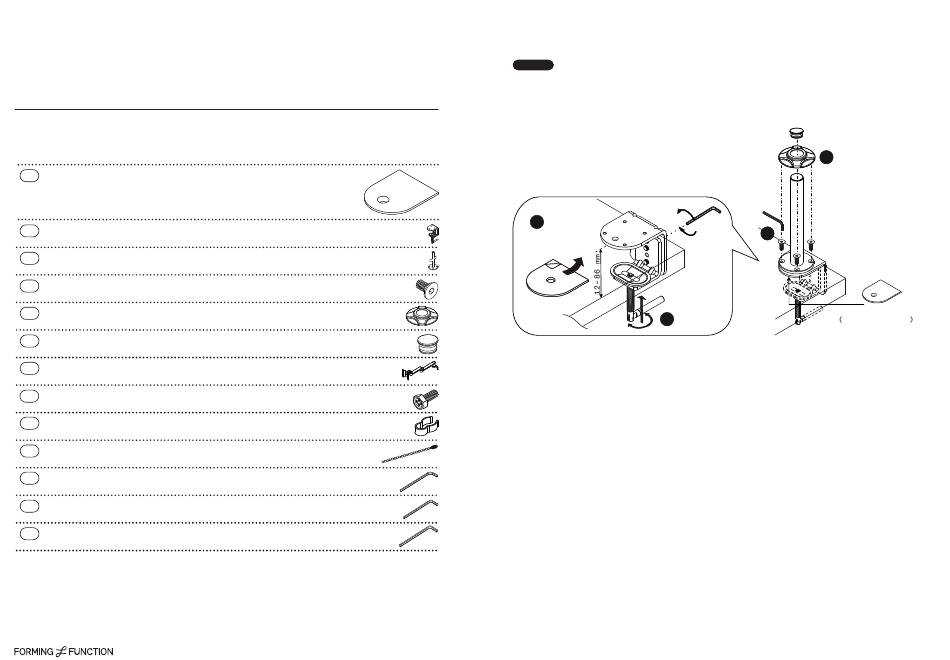

Adhere pad (A) To the bottom side of the clamp (B). Fasten clamp to
the table using the handle. Mount the pole (C) on top, using the screws
(D) and Allen key (E). Complete assembly with plastic covers (E) & (F)
ADHERE
1
PAD
2
FASTEN
Once the pole is fastened,
4
attach both plastic covers
(E) & (F) to the pole.
OPTIONAL
3
1 MM
PAD THICKNESS
FORMINGFUNCTION.SE
