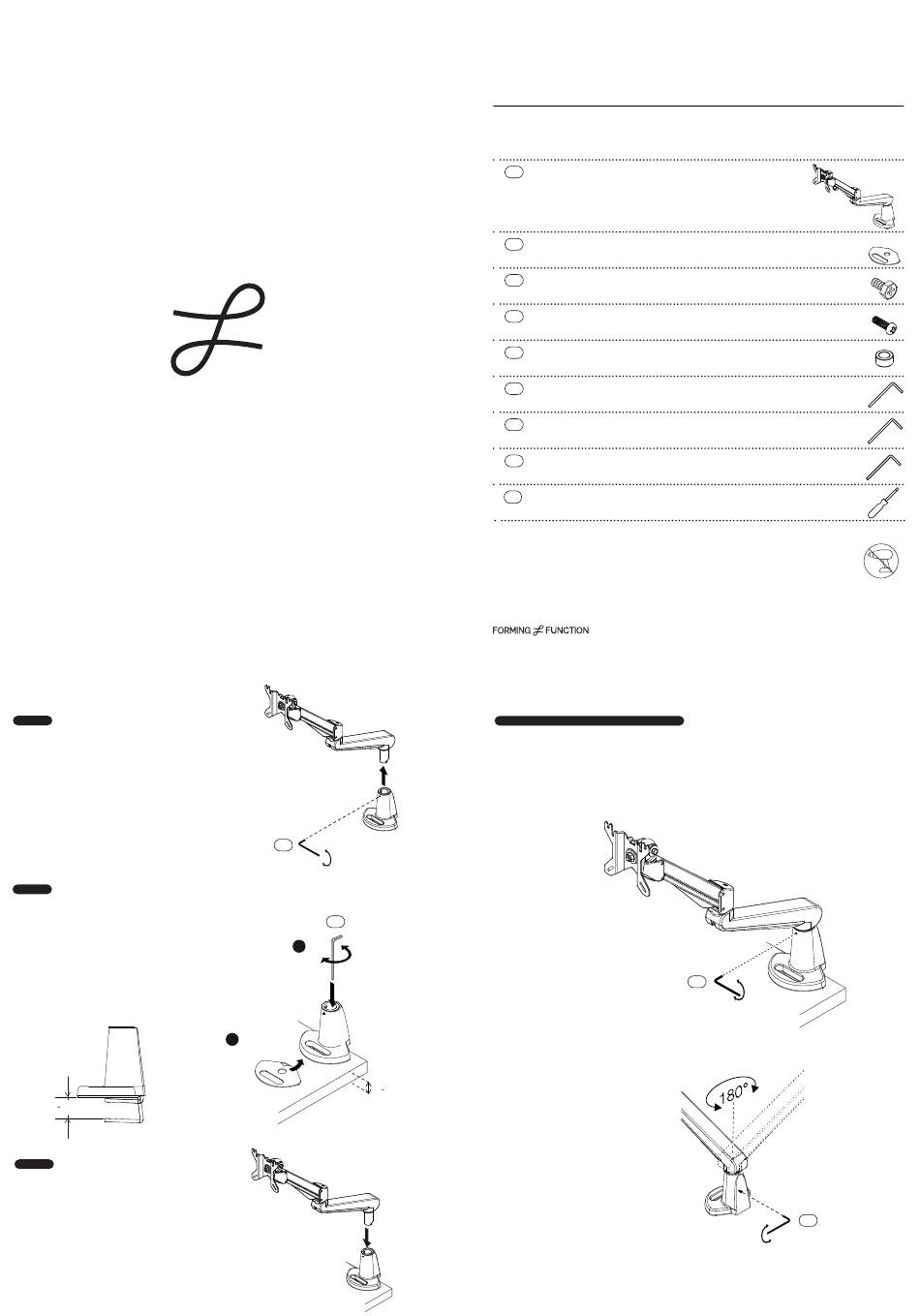

FORMING FUNCTION 4385605802 User Manual

STEP 1
Use the 2 mm Allen key (F) to loosen the screw
that is keeping the arms of the monitor arm (A)
in the clamp and remove it as seen in the
illustration. Put the arm and hexagon cup point
screw (B) aside somewhere close as it will
bere-inserted for step 3.
Note! If the hexagon cup point screw (C) is not
mounted to the monitor arm, then remove the
arm and put aside for STEP 3.
STEP 2
Turn the table clamp upside down, and adhere the
rubber pad (B).
Turn the table clamp over again. Loosen the center bolt
enough so that the clamp fits around the edge of your
table.
Once in place around the edge of your table, tighten the
center bolt using Allen Key (H) until you feel resistance.
8 30
mm
STEP 3
Reinsert the arm in the table clamp and
reattach the set screw from STEP 1.
ELEVATE DUAL MONITOR ARM 58
F
LOOSEN
TIGHTEN
H
2
LOOSEN
TIGHTEN
ADHERE
1
PAD
8 30
mm
USER MANUAL
Elevate Dual Monitor Arm
PARTS AND TOOLS PART 1
x1 PCE
A
B x1 PCE
C ×4 PCS M4x10
NOT NEEDED FOR DUAL MONITOR ARM
D ×4 PCS NOT NEEDED FOR DUAL MONITOR ARM
E ×4 PCS NOT NEEDED FOR DUAL MONITOR ARM
F ×1 PCE 2mm
G ×1 PCE
5mm
H ×1 PCE 6mm
I ×1 PCE
NOT INCLUDED
Before installation: Please follow the instructions. If there is a
step you don't understand, please contact your sales
representative. Note that all measurements and conditions
must be verified on site. Neither Forming Function nor any of
its distributors can be held liable for product malfunction or
other defects caused by improper installation.
TENSION ADJUSTMENTS AND ROTATION LOCK
Adjust the tension of the rotation to
your need.
To keep the arms completely rigid, fasten the
small cup point socket screws as tight as
possible while maintaning the intended
position.
Optional: Fasten the screw with the
Allen key (F) if you desire to limit the
rotational movements to 180°
ART. NO 4385605802
4385605809
4385605801
58
F
LOOSEN
TIGHTEN
F
LOOSEN
TIGHTEN
