USER MANUAL
Hold Monitor Arm
PARTS AND TOOLS
x1 PCE
A
x1 PCE
B
C
×1 PCE
D
×4 PCS
M6x12
E
×1 PCE
F
×1 PCE
G
×1 PCE
H
×4 PCS
M4x10
I
×2 PCS
K
×1 PCE
L
×1 PCE
2mm
M
×1 PCE
4mm
N
×1 PCE
5mm
OPTIONAL
In order to achieve a correct mounting of Hold Monitor Arm, you are advised to read and follow the instructions
step by step. If there are incomprehensible steps, please let us know and we will get back to you.
4181502502
ART. NO
4181502509
4181502501
25
STEP 1

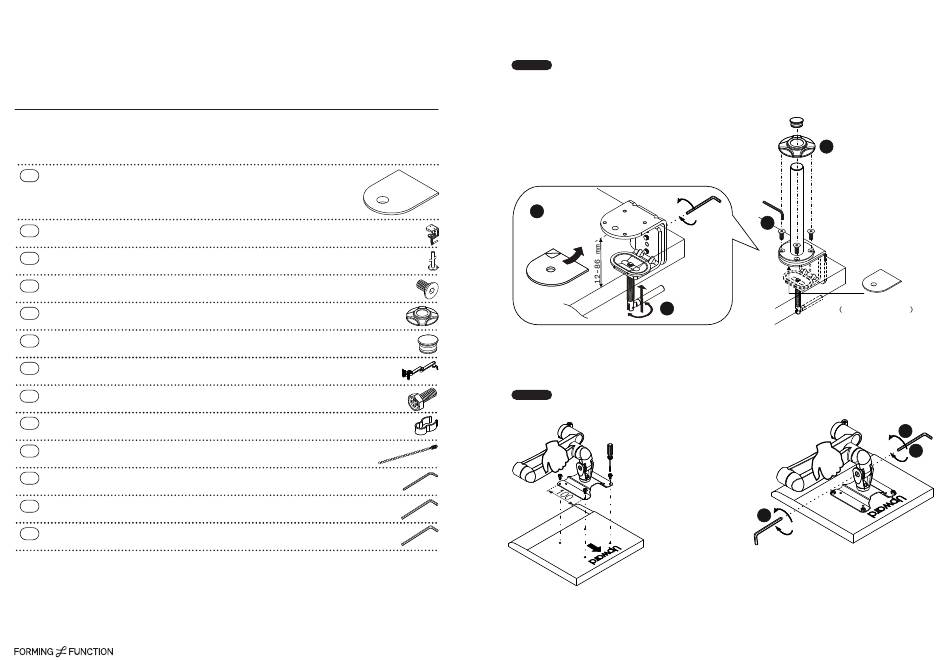

Adhere pad (A) To the bottom side of the clamp (B). Fasten clamp to
the table using the handle. Mount the pole (C) on top, using the screws
(D) and Allen key (M). Complete assembly with plastic covers (E) & (F)
1
ADHERE
1
PAD
STEP 2
Attach the monitor arm (G) to
the LCD monitor using all four
screws (H)
Once the pole is fastened,
4
attach both plastic covers
(E) & (F) to the pole.
OPTIONAL
3
2
FASTEN
PAD THICKNESS
2
Use Allen key (M) to loosen the left screw
completely. Then, tighten the right screw to max
torque. Adjust the angle of the LCD and secure its
position by re-tightening the screw to max torque .
The joint should now be completely rigid.
FORMINGFUNCTION.SE
1 MM
1
3
Advertisement
Related Manuals for FORMING FUNCTION Hold Monitor Arm25
Summary of Contents for FORMING FUNCTION Hold Monitor Arm25
- Page 1 USER MANUAL 4181502502 ART. NO 4181502509 4181502501 STEP 1 Hold Monitor Arm Adhere pad (A) To the bottom side of the clamp (B). Fasten clamp to the table using the handle. Mount the pole (C) on top, using the screws (D) and Allen key (M).
- Page 2 USER MANUAL STEP 3 Insert the arm with the fixed LCD monitor onto the pole. Adjust to desired height using the black plastic lever. To make the first arm completely rigid, use Allen key (L) until the screw grips the pole (C). Using Allen key (M), tighten the remaining joints to achieve the same result.
