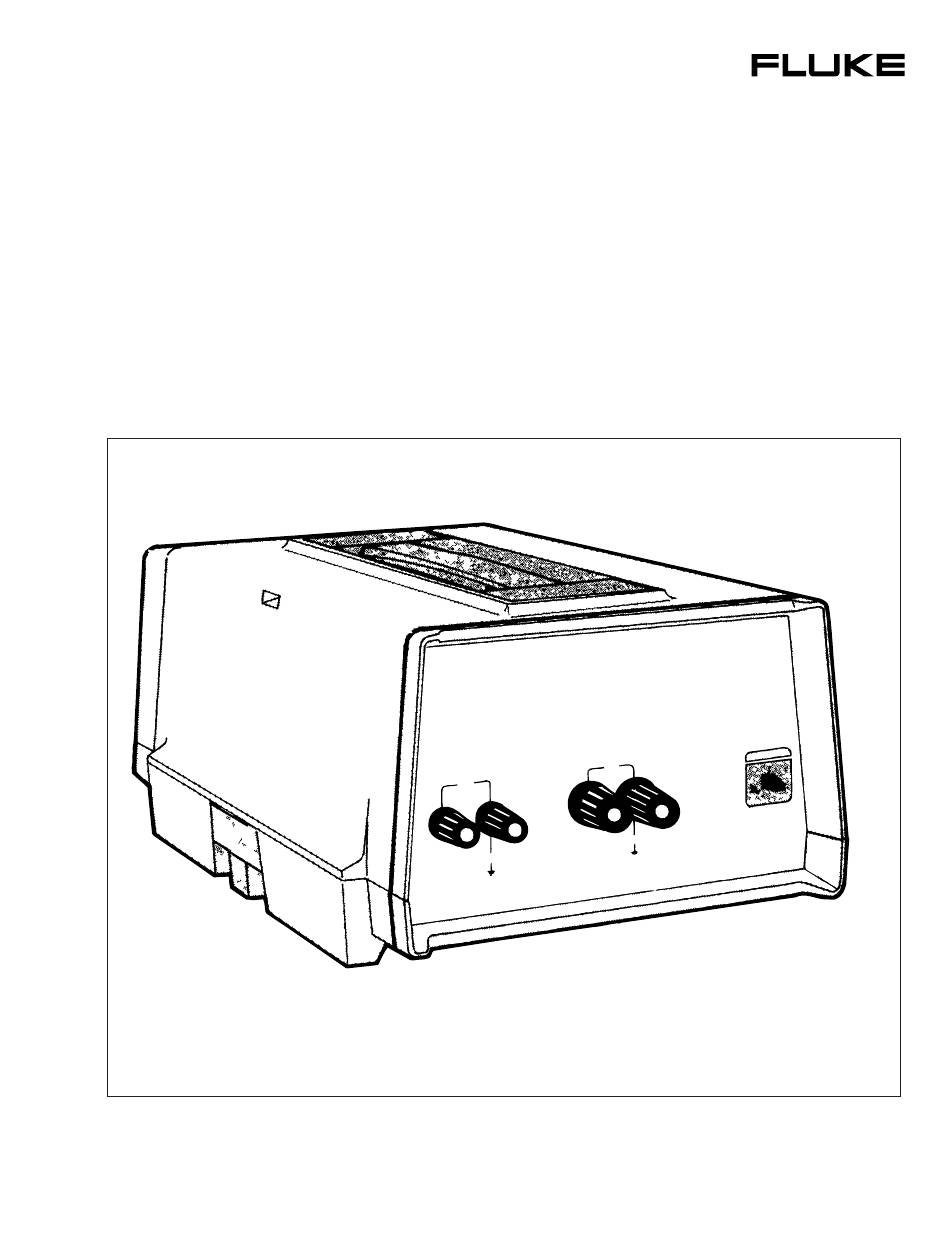

  • Page 1 ® Instruction Manual Model Y5020 Current Shunt P/N 516591 September 1979 www.valuetronics.com...
  • Page 2 Y5020 www.valuetronics.com...
  • Page 3: Specifications

    3. When the unit is properly seated push both latches Instrument) case. This case is compatible with all to the in position. This will lock the Y5020 to the instruments in the Fluke PTI product line and can be stack.
  • Page 4 Y5020 Figure 1. Controls and Connectors www.valuetronics.com...
  • Page 5 Forced-Air Cooling Nominal Shunt Resistance CAUTION The current shunt used in the Y5020 has a nominal To ensure the accuracy specifications resistance value of 0.01 ohms. This value was selected for of the shunt, do not apply input current two reasons.
  • Page 6: Theory Of Operation

    NBS traceability. and the voltmeter reading. LIST OF REPLACEABLE PARTS A list of replaceable parts for the Y5020 is given in Table THEORY OF OPERATION 3. Components are listed alphanumerically be assembly. Electrical and mechanical components are listed by The Y5020 Current Shunt, as shown in Figure 2, is a reference designator.
  • Page 7: Schematic Diagram

    Printed Circuit Board Part Number and Revision the following information: Letter. 1. Quantity. Instrument Model and Serial Number. 2. FLUKE Stock Number. SCHEMATIC DIAGRAM 3. Description. A schematic diagram of the Y5020 is shown in Figure 4. Reference Designation. Table 3. Y5020 Final Assembly www.valuetronics.com...
  • Page 8 Y5020 Table 3. Y5020 Final Assembly (cont) www.valuetronics.com...
  • Page 9 Y5020 MP11 (2) H8 (2) MP16 (2) H11 (2) MP15 H2 (2) SEE SHEET 2 OF 2 FOR DETAIL MP14 (4) MP19 (2) MP8 (2) MP13 H8 (4) Y5020-5001 (1 OF 2) Figure 3. Y5020 Final Assembly www.valuetronics.com...
  • Page 10 Y5020 Y5020-5001 (2 OF 2) Figure 3. Y5020 Final Assembly (cont) www.valuetronics.com...
  • Page 11 Y5020 LINE POWER VOLTAGE OUTPUT CURRENT INPUT Figure 4. Y5020 Schematic Diagram www.valuetronics.com...
  • Page 12 Y5020 www.valuetronics.com...
