USER MANUAL

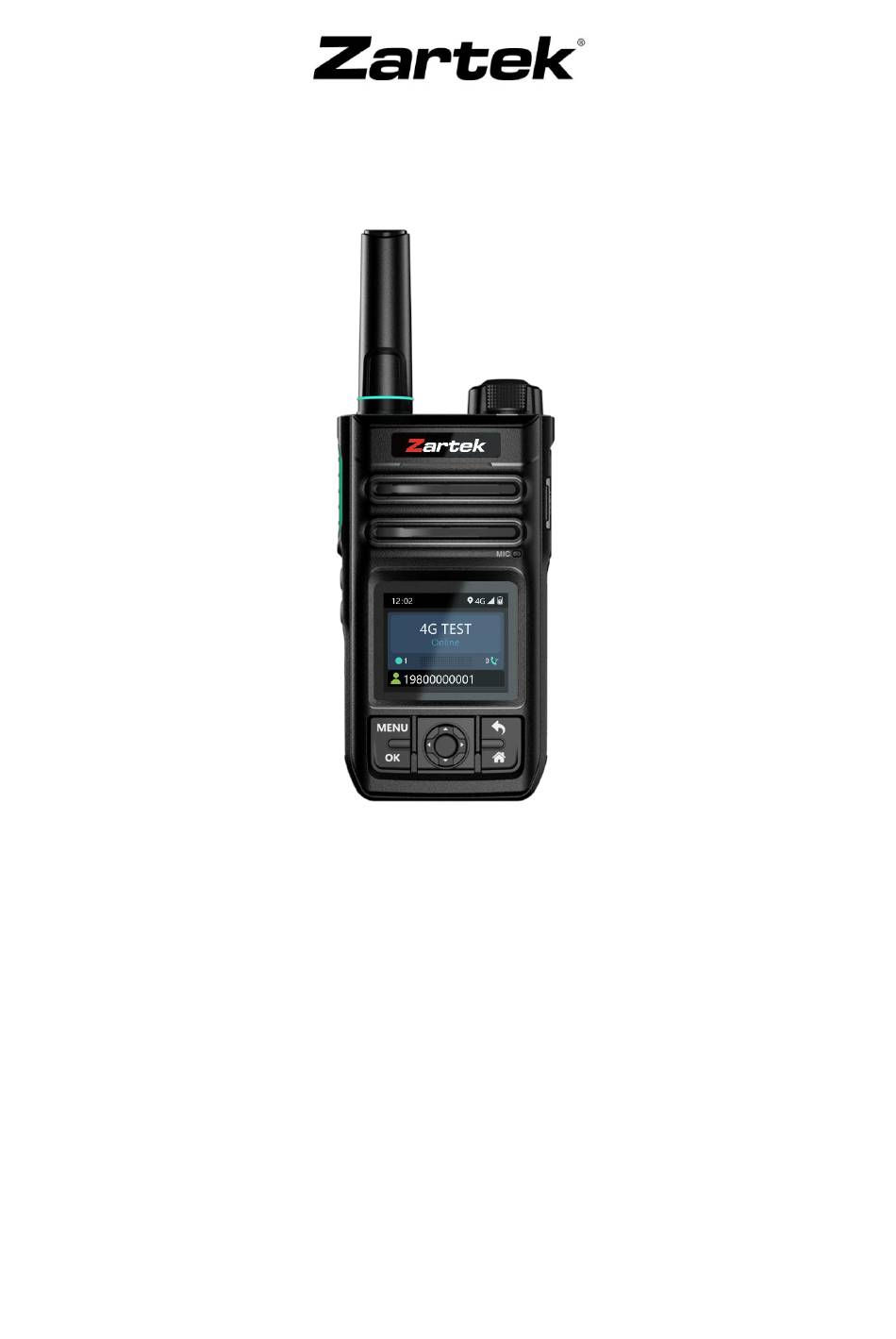

Zartek ZA-PT3
FEATURES
 Support CDMA / GSM / WCDMA / LTE
 National Coverage
 Instant Clear Audio, PTT and Voice Call
 Wifi Function
 Bluetooth
 Compact Heavy-duty Design
 Large Battery Capacity 4400mAh
 USB- C Charging
 1.77-inch Colour Screen
 IP54 Standard
 Dispatcher Functionality
 Multiple Platform: REALPTT...
 GPS Positioning
 Android Operating System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZA-PT3 and is the answer not in the manual?

Questions and answers

Related Manuals for Zartek ZA-PT3

Summary of Contents for Zartek ZA-PT3

  • Page 1 USER MANUAL Zartek ZA-PT3 FEATURES  Support CDMA / GSM / WCDMA / LTE  National Coverage  Instant Clear Audio, PTT and Voice Call  Wifi Function  Bluetooth  Compact Heavy-duty Design  Large Battery Capacity 4400mAh  USB- C Charging ...

  • Page 2: Warranty

    SIM card (4G GSM) inserted in the side or via Wi-Fi. Coverage is country wide and will depend on network availability. The ZA-PT3 links to a Server Platform where all calls are directed through. You are able to choose between various platforms such as ZartekPTT, REALPTT or others which must be setup before use.

  • Page 3: Safety Information

    Setup & Activation Contact Zartek Technical via email tech@zartek.co.za about activating radios. Dealers can request procedures for setting up a User Account to manage Groups or Dispatcher Access. Safety Information  Study this manual carefully to understand your transceiver well.
  • Page 4 Battery Information Initial Use New batteries are not charged fully in the factory. Please charge the battery for 6 hours at least before first use. This initial charge pre-conditions the battery for full capacity. Failure to charge fully may shorten the life span of the battery.

  • Page 5: Standard Accessories

    Carefully unpack the transceiver. We recommend that you identify the items listed below before discarding the packing material. If any items are missing or have been damaged during shipment, contact the supplier immediately. For optional accessories, please visit our website www.zartek.co.za 1) Radio Unit 2) Antenna...

  • Page 6: Radio Overview

    right side of the radio or at the bottom of radio on the battery pack to charge. The screen icons and charging lights will show battery level and charging status. Red is charging and green is full. Note: For optimal results, it is recommended to turn off the radio while charging. RADIO OVERVIEW This network radio operates on the LTE 4G network, delivering powerful performance and advanced professional features.
  • Page 7 Radio Introduction Parts Functions (ZartekPTT platform) Antenna LTE 4G main antenna Speaker Electrical signal is converted into acoustic signal Display User interface In standby mode, you can select an application Navigation key from the interface. MENU Button Enter menu OK Key Confirm button ...

  • Page 8: Getting Started

    Getting Started Installing the Battery and SIM Card 1. Open the SIM card slot. 2. Insert the SIM card into the slot in the correct orientation. 3. Close and lock the SIM card slot. 4. Align the bottom of the battery with the bottom of the radio. 5.

  • Page 9: Basic Operation

    BASIC OPERATION Note that functions vary between different platforms. Power On/Off To power ON the radio, press and hold the knob button for 3 seconds. To power OFF, press and hold the knob button until a menu appears on the display. Select “Power OFF”...

  • Page 10: Menu Settings

    Voice Call A voice call can be made between radios.  Select an online member from member list accessed via side button 2 .  Use UP / DOWN arrows to choose IP CALL.  Press the PTT button to ring and wait for other radio to answer with PTT button. ...

  • Page 11: Network Settings

    Audio Records List of audio records made with groups and users. Select to play and listen to record. Volume Adjust voice volume, microphone gain and speaker gain for preferred levels. Record Switch Enable to activate recording of calls. Account View details about the user account set on the radio Note REALPTT settings: Press OK on Standby screen.
  • Page 12 data network. It includes information about the network gateway, IP settings, and more. Configuring APN Settings: 1. Select a Preset APN After entering the APN menu, choose the desired preset APN from the list. 2. Create a New APN To create a new APN, long press Side Button 2. The screen will display "New APN". Follow the prompts to configure the new APN.
  • Page 13 Press "OK" to initiate the pairing process. 3. When entering the Bluetooth password, press OK to confirm and open the keyboard. You can long press side key 2 to switch input methods. 4. After successfully connecting to Bluetooth, the Bluetooth icon will appear on the screen.

  • Page 14: Troubleshooting

    Contact Zartek Technical Department tech@zartek.co.za for more information. HEADSETS (Single pin 3.5mm, use with PTT or VOX) GE-291 Earphone speaker with in-line PTT microphone GE-220 Lapel Speaker with microphone Other accessories available Spare Battery, Desktop Charging Cradle, Charger, Carry pouch with detachable shoulder strap...
