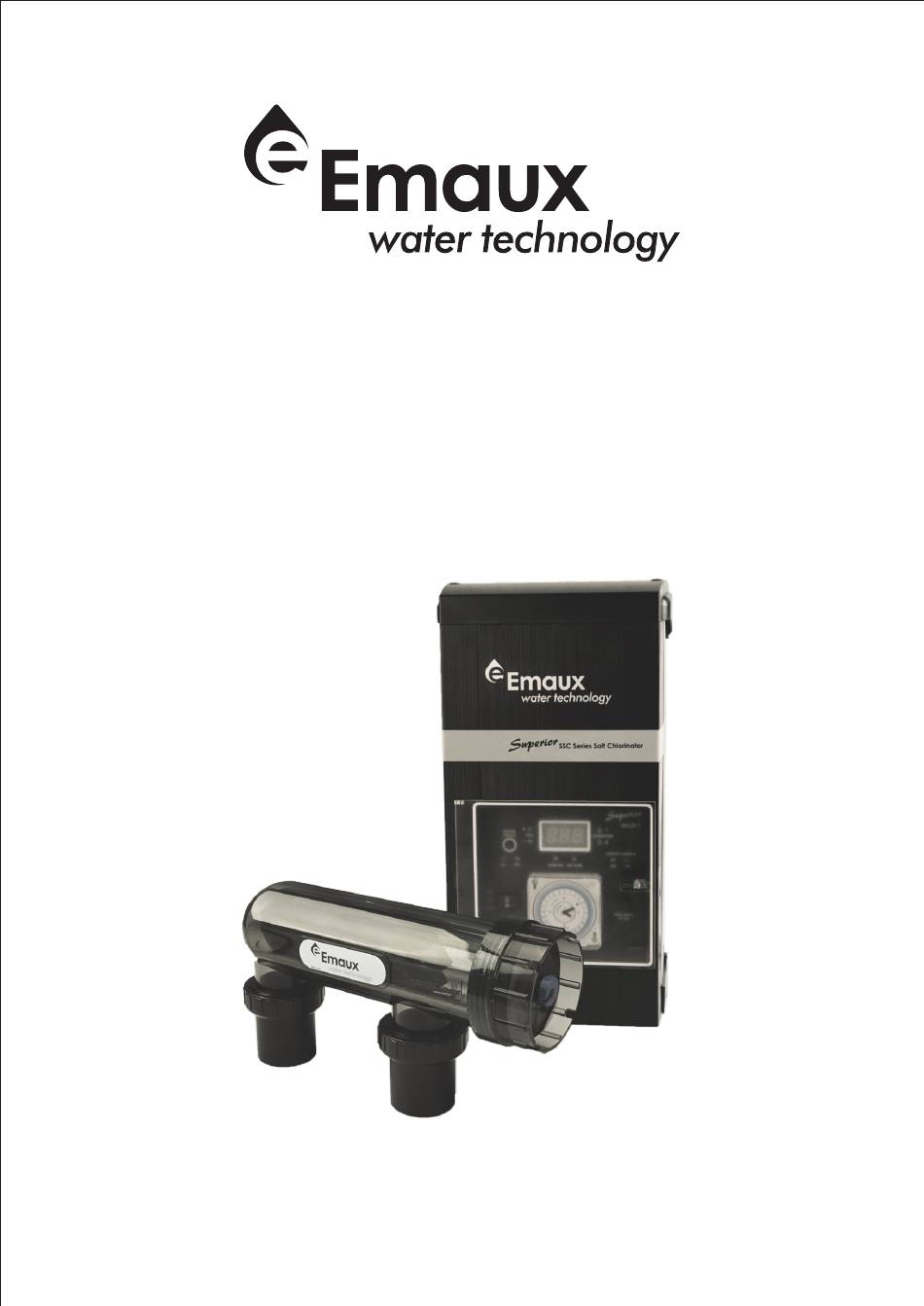

- Page 1 SUPERIOR SUC SERIES SALT CHLORINATOR INSTALLATION & USER MANUAL 25022711...
-
Page 2: Table Of Contents
CONTENT 1. Safe Pool Sanitizing Working Principle ………………………......……..2. Product Features ……………………………………………………………..... 3. Water Chemistry …………………………………………………………....... 4-6 4. Product Specification …………………………………………………………………..5. Installation Guide ………………………………………………………………………….. 7-9 6. Operation Start Up ……………………………………………………………………..7. Control Panel operation ……………………………………………………………..10-11 8. Timer setting for Timer version ………………………………………………………..9. -
Page 3: Safe Pool Sanitizing Working Principle
Caution: This appliance can be used by children aged from 8 years and above andpersons with reduced physical, sensory or mental capabilities or lack ofexperience and knowledge if they have been given supervision or instructionconcerning use of the appliance in a safe way and understand the hazardsinvolved. Children shall not play with the appliance. -
Page 4: Water Chemistry
Product Dimension 3. Water Chemistry: It is important to note that the EMAUX Superior Chlorinator does not maintain the waterchemistry of your swimming pool water; it simply produces chlorine from a mild salt solution. To ensure that your chemical balances are within the guidelines listed below you should also haveyour water tested regularly at your local pool shop to encourage a sparkling clean healthy pool. -
Page 5: Salt Level
SALT LEVEL The amount of salt required is between 4000 and 6000 ppm. This means to add directly in the pool water 4 kg/m . Low concentration of salt (below 2500 ppm) will cause premature cell failure. High concentration of salt (above 6000 ppm) may cause electro-oxidation and corrosion damage to the Stainless Steel pool fixtures. -
Page 6: Product Specification
ADDITION AND REMOVING SALT IN THE SWIMMING POOL WATER Before adding the salt into the pool, place the multiport valve on “Filtration” or “Recirculation” and then turn the filtration pump on. Add the salt directly into the pool or ballast tank and do not allow the salt to sit in a pile on the bottom of the pool. -
Page 7: Installation Guide
5. Installation Guide The Emaux Superior SUC Chlorinator unit is contained in a rain tight enclosure that is suitable for outdoor mounting (IPX4 waterproof). However, the following points must be taken into consideration for a correct installation of the Superior SUC Chlorinator unit: ·... - Page 8 · DO NOT mount the Control Panel in a direct sun light. · The Control Panel must be installed far away from the chemical storage, especially from acid because it can corrode the electronics inside the unit. · It must be kept away from heat sources and any equipment which produce heat.
-
Page 9: Operation Start Up
For model with lighting power output installation Mount the control unit vertically onto a post or wall 1.5 meters above ground level.(Australian Standards requires that the electric control unit shall not be located within 3 meters of the pool water.) Power point Pool Light Cable... -
Page 10: Control Panel Operation
7. Control Panel operation DISPLAY CELL POLARITY OPERATION LEDs WINTER MODE SWITCH SYSTEM CONTROL BUTTON WINTER ON/OFF FOR CELL OPERATION SWITCH WINTER MODE OUTPUT CONTROL ON/OFF BUTTON FOR FUSE FOR SALT STAND-BY NO WATER SALT CHLORINATOR CHLORINATOR LIGHT(SSC-T AND FUSE FOR LIGHT SSC-TLT ONLY) AUTO FUSE-250 V... - Page 11 LED display Description Green Green Normal Operation Low salt/Deposition on the electrode/Low Operation Green water Temperature Extremely low salt level/ series deposition on the electrode/extremely low water temperature Description System Green System control less than 100%, under operating Control System control less than 100%, under idle time Description Cell The cell current in positive direction...
-
Page 12: Timer Setting For Timer Version
8. Timer setting for Timer version · Turn the outer clock face until the time ofthe day is aligned with the clock at thecenter of the timer · The 24-hour dial has 15 minutes division. Thetimer can be programmed by pushing thecaptive trippers to the outer ring positionfor the entire period that the load is to beturn ON. -
Page 13: Troubleshooting
10. Troubleshooting i. Low / no chlorine production How to handle Check the salt level is within operation range, Salt level is too high and cause over refer to individual model recommendation. It will heat. resume output when salt level is normal. Check the electrical plug / control Connect the power properly box / pump power... -
Page 14: Clean Chlorinator Titanium Cell
Hydrochloric mixture, it is a safer alternative and not harmful to your Salt Cell at all and reusable. 12. WARRANTY POLICY Emaux manufactures its products with the highest standard of workmanship, using the best materials available through state of the art process. Emaux proudly warrants its products as follows:... - Page 15 4. Damage due to unauthorized product modifications or failure to use Emaux original replacement parts. 5. Damaged caused by negligence or failure to properly maintain products as specified in this manual.
- Page 16 Should a defect become evident during the term of warranty, Emaux will, at its option, repair or replace such item or part at its own cost and expense. Customer will need to follow the warranty claim procedures from Emaux in order to obtain the benefit on this warranty.
-
Page 17: Replacement Parts
13. REPLACEMENT PARTS Item Part No. Description 530096784 Door Model 106171405 Switch I O II 250VAC 106171404 Switch I O 250VAC (SUC15-TLT/SUC25-TLT/SUC50-TLT) 570966784 Roller 530186785 Bar Model SUC 530086784 Front Panel 570336784 Wall Hanger E130011 Fuse 2.5A with socket SSC/SUC15 E130010 Fuse 6.3A with Socket SSC/SUC25 50 2.5A for underwater light 112010051... - Page 18 Item Part No. Description 530110445 Cable clamp 570646784 Binder 530040442 Cell Housing 111192492 O-Ring for Housing 9130010 Replacement Cells for SSC15 9130009 Replacement Cells for SSC25/50 111202472 O-Ring for Union 430300943 1.5" Union 430300989 2.0" Union 430170991 2.0" Union Nut 9130021 Salt Chlorinator Cable Set 106147653...
- Page 19 Model: SUC15-E, SUC25-E, SUC50-E...
-
Page 20: Installation Template
Model: SUC15-T SUC25-T SUC50-T 14. Installation Template Ratio 1:1 Mounting Template 90mm...
