Summary of Contents for emaux ICF230
- Page 1 MULTI ELEMENT CARTRIDGE FILTER Installation and Operation USER MANUAL Models: ICF230 / 330/ 430 / 530 / EMFI22050603...
-
Page 2: Table Of Contents
TABLE OF CONTENT ..IMPORTANT SAFETY INSTRUCTIONS ..1. OVERVIEW 1.1 PRODUCT INFORMATION 1.2 DIMENSIONS ..2. INSTALLATION 3. STARTING THE PUMP AND FILTER SYSTEM ..3.1 BEFORE STARTING THE PUMP 3.2 STARTING PUMP 3.3 OPERATION ..4. MAINTAINING YOUR FILTER 4.1 FILTER DISASSEMBLY INSTRUCTION 4.2 REMOVING CARTRIDGES 4.3 CLEANING CARTRIDGES... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS THESE OPERATING INSTRUCTIONS CONTAIN IMPORTANT INFORMATION ON THE SAFE, PROPER, AND ECONOMICAL OPERATION OF THIS SWIMMING POOL APPLIANCE. STRICT OBSERVATION OF THE OPERATING INSTRUCTIONS WILL HELP TO AVOID DANGERS, REDUCE REPAIR COSTS, AND SHUTDOWN TIMES AND INCREASE THE RELIABILITY AND WORKING LIFE OF THE PRODUCT. Failure to follow the instructions in this manual may result in serious adverse health effects or even serious or fatal injury. -
Page 4: Overview
READ UNDERSTAND AND FOLLOW ALL SAFETY AND OPERATION: Do not operate the filter until you have read and understand clearly all the operating instructions and warning messages for all equipment that is a part of the pool circulating system. The following instructions are intended as a guide for initially operating the filter in a general pool installation. -
Page 5: Product Information
1.1 PRODUCT INFORMATION EFFECTIVE FITRATION DESIGN FLOW RATE CODE Model AREA Residential Commercial FT² M² 9140404 ICF230 21.37 86.2 9140405 ICF330 30.73 123.6 9140406 ICF430 39.97 9140407 ICF530 49.19 9140408 ICF680 63.13 ≤ ≤ [ Filter rate for commercial use at 0.375 GPM/ft². Recommend Flow Rate for 2” piping is 90 x 150 GPM ] 1.2 DIMENSIONS... -
Page 6: Starting The Pump And Filter System

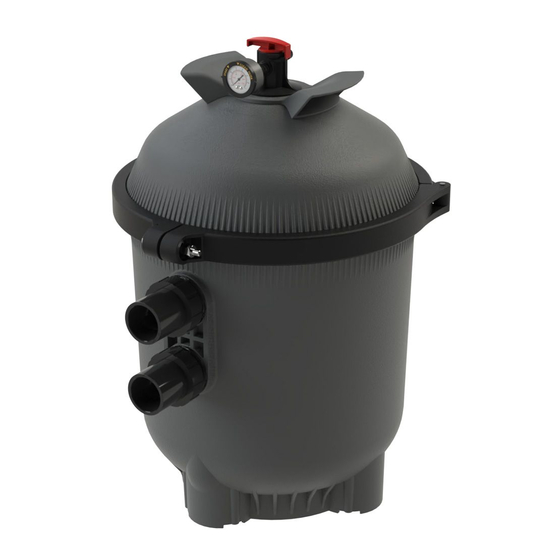

Air Relief valve Pressure gauge Handle Clamp Inlet Outlet Bottom Body REQUIRED CLEARANCE “B” side “C” above MODEL ICF230 18.1 32.6 82.9 11.02 ICF330 18.1 13.39 34.88 88.6 18.1 18.89 ICF430 40.7 103.5 18.1 26.38 ICF530 48.15 122.3 18.1 31.89 ICF680 53.6... -
Page 7: Starting Pump
2. Close the filter drain. Note: drain plug requires an O ring seal. Sealing O ring Drain Plug Figure 2 3. Open all system valves to allow water from the pool to the filtration system and from the filter to return to the pool. -
Page 8: Maintaining Your Filter
3. Monitor the pressure from time to time, when the pressure reading is over the Clean Filter arrow, follow step 4.2 to clean filter cartridge elements. Replace a new filter cartridge element. You should replace a new filter cartridge element: 1. -
Page 9: Filter Reassembly Instruction
4.4 FILTER REASSEMBLY INSTRUCTION 4.4.1 RE-INSTALLATION CARTRIDGES 1. Flush and drain any dirt or debris from the bottom of the lower filter body. 2. Flush any dirt or debris from the upper filter body and from around the air release area. 3. -
Page 10: Vacuuming Pool
4.4.4 VACUUMING POOL Vacuuming can be performed directly into the filter whenever needed. Clean cartridges after vacuuming if required. 4.5 REMOVING THE AIR RELIEF VALVE The filter comes with a preinstalled manual air relief valve. Servicing the Air Relief Valve should be carried out by pool professionals only by carefully following the instructions: 1. -
Page 11: Winterizing Filter
5. WINTERIZING FILTER In areas where sub-freezing temperatures can be expected, the filter should be drained to protect the filter from damage. 1. Follow the steps in”Filter disassemble instruction” to remove and clean the cartridge. 2. Reinstall the cartidge in the filter. 3. -
Page 12: Spare Part List
111040079 O-ring d50×5 111000048 O-ring D76 x d65.6 x 5 430138225 Handle for the lid 550058225 Nut for Handle 550188172 Lid for ICF230 550188173 Lid for ICF330 550188174 Lid for ICF430 550188175 Lid for ICF530 550188176 Lid for ICF680 4109000749... -
Page 13: Terms Of The Warranty
It excludes all expendable parts. During the warranty period, Emaux authorized reseller will repair or replace defective parts with new parts or, at the option of Emaux, serviceable used parts that are equivalent or superior to new parts in performance. - Page 14 EMAUX WATER TECHNOLOGY CO., LTD YOUR PREMIER SUPPLIER www.emauxgroup.com...
