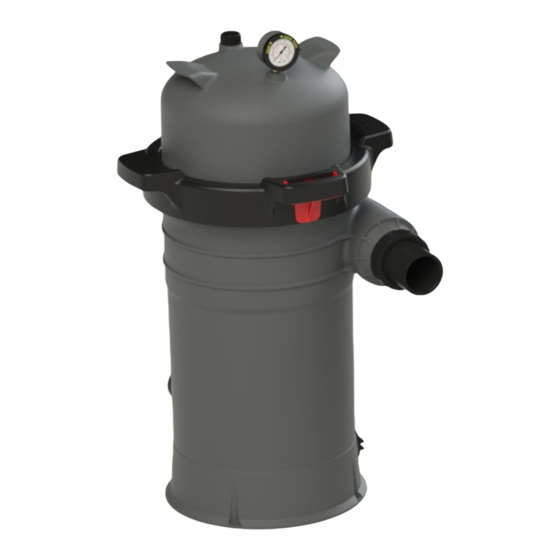

- Page 1 SINGLE ELEMENT CARTRIDGE FILTER Installation and Operation USER MANUAL Models: ICF100S / ICF150S ICF200S EMFI24051787...
- Page 2 TABLE OF CONTENT ..IMPORTANT SAFETY INSTRUCTIONS 1. OVERVIEW ..1.1 PRODUCT INFORMATION 1.2 DIMENSIONS ..2. INSTALLATION ..3. STARTING THE PUMP AND FILTER SYSTEM 3.1 BEFORE STARTING THE PUMP 3.2 STARTING PUMP 3.3 OPERATION 4. MAINTAINING YOUR FILTER ..
- Page 3 IMPORTANT SAFETY INSTRUCTIONS THESE OPERATING INSTRUCTIONS CONTAIN IMPORTANT INFORMATION ON THE SAFE, PROPER, AND ECONOMICAL OPERATION OF THIS SWIMMING POOL APPLIANCE. STRICT OBSERVATION OF THE OPERATING INSTRUCTIONS WILL HELP TO AVOID DANGERS, REDUCE REPAIR COSTS, AND SHUTDOWN TIMES AND INCREASE THE RELIABILITY AND WORKING LIFE OF THE PRODUCT. Failure to follow the instructions in this manual may result in serious adverse health effects or even serious or fatal injury.
- Page 4 READ UNDERSTAND AND FOLLOW ALL SAFETY AND OPERATION: Do not operate the filter until you have read and understand clearly all the operating instructions and warning messages for all equipment that is a part of the pool circulating system. The following instructions are intended as a guide for initially operating the filter in a general pool installation.
- Page 5 EFFECTIVE FITRATION DESIGN FLOW RATE CODE Model AREA Residential Commercial FT² M² 9140409 ICF100S 9.29 9140410 ICF150S 13.94 9140411 ICF200S 18.58 ≤ ≤ [ Filter rate for residential use based on 1GPM/ft². Recommend Flow Rate for 2” piping is 90 x 150 GPM ] 1.2 DIMENSIONS...
- Page 6 3. STARTING THE PUMP AND FILTER SYSTEM 3.1 BEFORE STARTING THE PUMP 1. Use ONLY ICF system components: Lock Ring unit doing assembly, metal-reinforced seal. Non-tighten lock ring component may fail in use and cause explosive component separation. Verify that upper and lower filter bodies are properly secured with the filter body locking ring unit.
- Page 7 3.3 OPERATION Filtration starts as soon as the flow is steady through the filter. As the filter removes dirt from the pool water, the accumulated dirt causes a resistance to flow. As a result, the pressure will rise and the flow will decrease. 1.
- Page 8 1. Place the sealing O-ring on the bottom body. Place the upper body on the O-ring and the bottom body. 2. Use the EMAUX lock ring system only, tighten the lock ring (clockwise) until the latch is locked on position.
- Page 9 4.5 REMOVING THE AIR RELIEF VALVE The filter comes with a preinstalled manual air relief valve. Ser vicing the Air Relief Valve should be carried out by pool professionals only, follow instructions carefully: 1. Turn off all system circulation pumps and all-electric power on the equipment pad. 2.
- Page 10 ICF100-200 Bottom Body E160553 End cap with O-ring E010201 Air Relief Valve with O-ring 570818165 Nut D31X20 14G 914100018 ICF100S Element 914100019 ICF150S Element 914100020 ICF200S Element 107048520 PVC Pipe 2.5inch for ICF100, 387 mm 107048520 PVC Pipe 2.5inch for ICF150, 440mm 107048520 PVC Pipe 2.5inch for ICF200, 517mm...
- Page 11 It excludes all expendable parts. During the warranty period, Emaux authorized reseller will repair or replace defective parts with new parts or, at the option of Emaux, serviceable used parts that are equivalent or superior to new parts in performance.
- Page 12 EMAUX WATER TECHNOLOGY CO., LTD YOUR PREMIER SUPPLIER www.emauxgroup.com...
