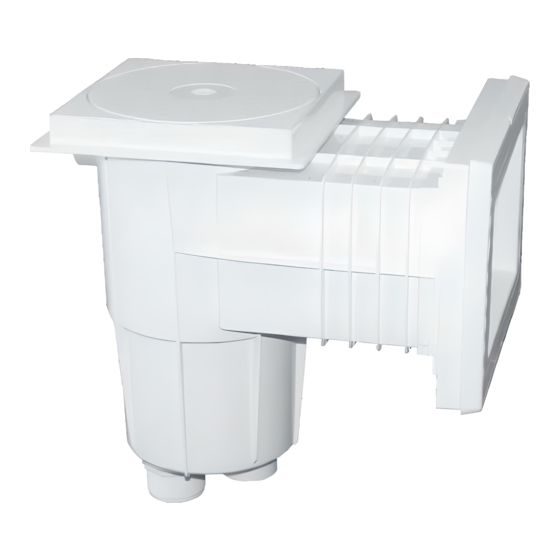

- Page 1 SKIMMER EM0130 EM0140 EM0180 USER MANUAL Models: EM0130-SC / EM0130-SV EM0130TS-SV EM0140-SC / EM0140-SV EM0140TS-SC / EM0140TS-SV EM0180-SC / EM0180-SV EM0180TS-SC / EM0180TS-SV EMEM22080340...
-
Page 2: Available Models
EM0130 -SC ф160.0( 6.3”) x99.0 (3.9”) 200.3(7.9”) x199.6(7.9”) 416.3 ( 16.4”) 367.0 ( 14.5”) ф160.0( 6.3”) x99.0 (3.9”) EM0130 –SV/ EM0130TS –SV 210.0( 7.9”) X145.0( 5.7”) 416.3 ( 16.4”) 390.0 ( 15.4”) ф160.0( 6.3”) x99.0 (3.9”) 416.3 ( 16.4”) EM0140 series 370.8(14.6”) x154.2(6.1”) -
Page 3: Installation
The cover and the basket are installed with a bayonet system. They should be turned until the two sides of the cover or basket match with the body to unlock them before withdrawing them. EM0130-SV, EM0130TS SV INSTALLATION IN A VINYL POOL EM0130 SC INSTALLATION IN A CONCRETE POOL... - Page 4 EM0140-SV, EM0140TS SV INSTALLATION IN A VINYL POOL EM0140 SC, EM0140TS SC INSTALLATION IN A CONCRETE POOL Tile Concrete Concrete The valve only operates in the inside direction and cannot operate in the opposite direction. 1.5" Union Convertor (from Metric to Imperial) 1.5"...
-
Page 5: Safety Warnings

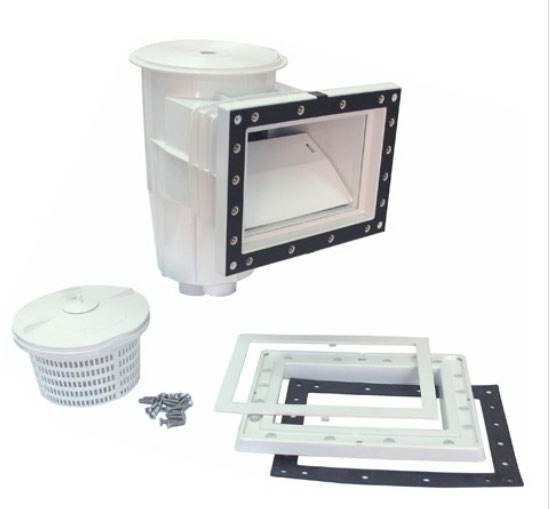

EXTENSION COLLAR Fig.7 Extension Collar for EM0130, EM0140 and EM0180 (E160901) allows you to raise the skimmer cover to be level with pool deck or patio. Contact Emaux distributor to Extension collar order the part. - Page 6 EM0140-SC, EM0140TS-SC Key NO. Part Number Product Description 01050158 circular skimmer lid 89150701 square lid and lidframe 89150702 vacuuim plate with plug 89150703 skimmer basket 89150704 keyhole flap E161002 EM0140-SC Skimmer body A+B included sealling plate E161010 EM0140TS-SC Skimmer body A+B included sealling plate 89150713 flap retaining clip 01181077...
-
Page 7: Terms Of The Warranty
It excludes all expendable parts. During the warranty period, Emaux authorized reseller will repair or replace defective parts with new parts or, at the option of Emaux, serviceable used parts that are equivalent or superior to new parts in performance. - Page 8 EMAUX WATER TECHNOLOGY CO., LTD YOUR PREMIER SUPPLIER www.emauxgroup.com...
Need help?
Do you have a question about the EM0130 and is the answer not in the manual?
Questions and answers
В бассейне из полипропилена толщиной 8 мм установлены скиммеры производства Испания, купленные у фирмы АО «Астрал СНГ» код 01462. Крепление по 4 винта с каждой стороны. Для их замены нужны аналогичные. Подойдут ли ваши скиммеры модели EM0130 и, если подойдут, то какой из них: SV или SC. Если можно, укажите расстояния между отверстиями и от краев скиммера до центров первых отверстий, чтобы определить взаимозаменяемость. Спасибо!
