SKIMMER
EM0130 EM0140 EM0180
Models: EM0130-SC /
USER MANUAL
EM0130-SV EM0130TS-SV
EM0140-SC /
EM0140-SV EM0140TS-SC / EM0140TS-SV
EM0180-SC /
EM0180-SV EM0180TS-SC / EM0180TS-SV
/
/
/
EMEM24033080

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM0140 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for emaux EM0140

Summary of Contents for emaux EM0140

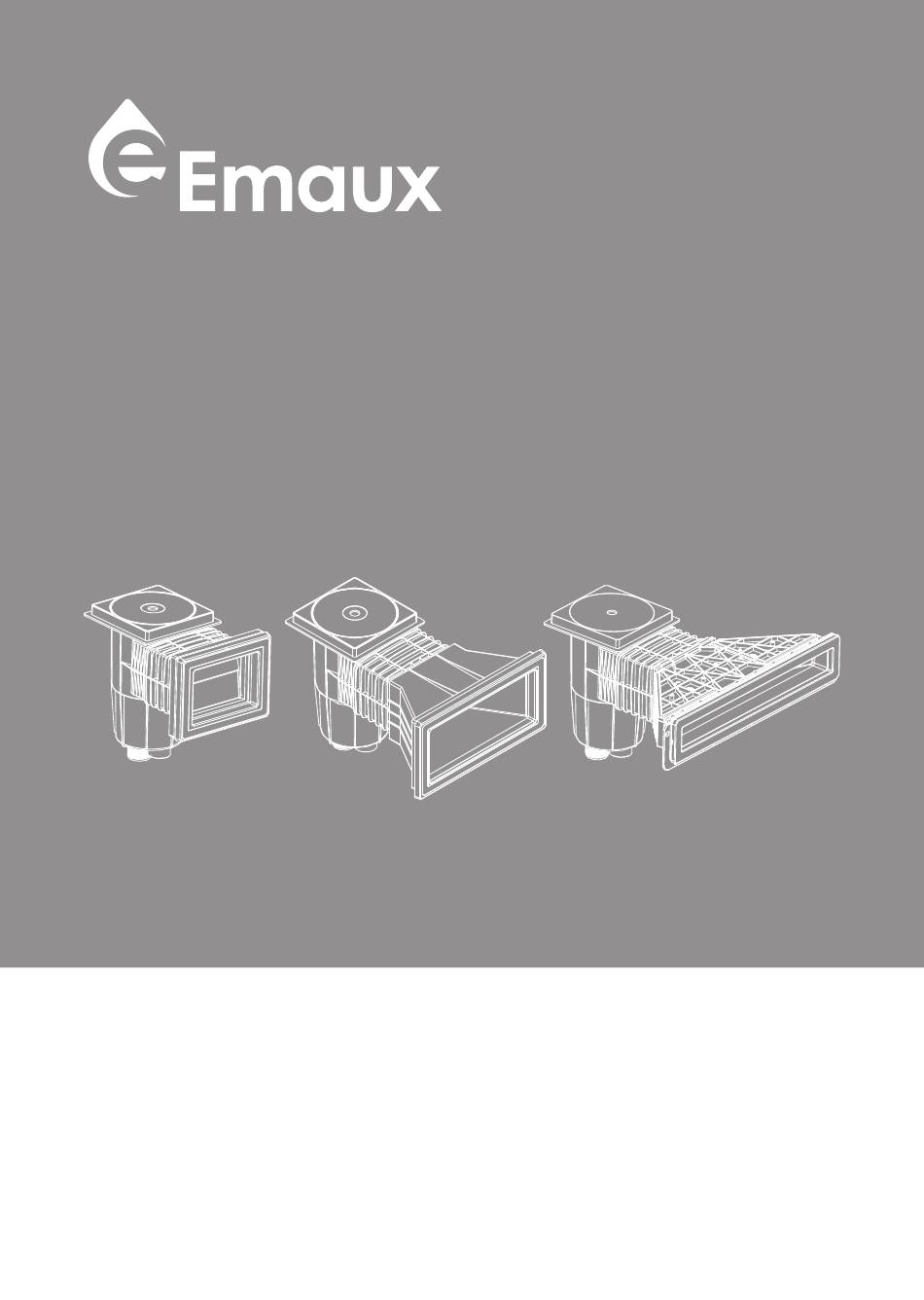

  • Page 1 SKIMMER EM0130 EM0140 EM0180 USER MANUAL Models: EM0130-SC / EM0130-SV EM0130TS-SV EM0140-SC / EM0140-SV EM0140TS-SC / EM0140TS-SV EM0180-SC / EM0180-SV EM0180TS-SC / EM0180TS-SV EMEM24033080...

  • Page 2: Available Models

    EM0130 –SV/ EM0130TS –SV 210.0( 7.9”) X145.0( 5.7”) 416.3 ( 16.4”) 390.0 ( 15.4”) ф160.0( 6.3”) x99.0 (3.9”) 416.3 ( 16.4”) EM0140 series 370.8(14.6”) x154.2(6.1”) 553.0 ( 21.8”) ф160.0( 6.3”) x99.0 (3.9”) EM0180 series 600.0 (23.6”) x 67.2 (2.7”) 416.3 ( 16.4”) 585.0 ( 23.0”)

  • Page 3: Installation

    247.8 188.0 450.2mm(17.7”) 370.8 EM0140-SC EM0140-SV EM0140TS-SC EM0140TS-SV Φ50.0 1.5" 2.0" 695.2mm (27.3”) 654.9 600.0 247.8 220.3 Water Level Line EM0180-SC EM0180-SV EM0180TS-SC EM0180TS-SV 654.9 (25.8”) Φ50.0 600.0 1.5" 2.0" Water Level Line INSTALLATION We recommend installing 1 skimmer per 25 m² of pool water surface area, for a flow rate not exceeding 5 m /h. In a residential pool, skimmers are generally installed in the installed in the deep end wall.
  • Page 4 EM0140-SV, EM0140TS SV INSTALLATION IN A VINYL POOL EM0140 SC, EM0140TS SC INSTALLATION IN A CONCRETE POOL Tile Concrete Concrete The valve only operates in the inside direction and cannot operate in the opposite direction. 1.5" Union Convertor (from Metric to Imperial) 1.5"...

  • Page 5: Safety Warnings

    EXTENSION COLLAR Fig.7 Extension Collar for EM0130, EM0140 and EM0180 (E160901) allows you to raise the skimmer cover to be level with pool deck or patio. Contact Emaux distributor to Extension collar order the part.
  • Page 6 89150702 vacuuim plate with plug 89150703 skimmer basket 89150704 keyhole flap E161002 EM0140-SC Skimmer body A+B included sealling plate E161010 EM0140TS-SC Skimmer body A+B included sealling plate 89150713 flap retaining clip 01181077 hinge flap 89150706 EM0140-SC skimmer frame for liner...

  • Page 7: Terms Of The Warranty

    It excludes all expendable parts. During the warranty period, Emaux authorized reseller will repair or replace defective parts with new parts or, at the option of Emaux, serviceable used parts that are equivalent or superior to new parts in performance.
  • Page 8 EMAUX WATER TECHNOLOGY CO., LTD YOUR PREMIER SUPPLIER www.emauxgroup.com...
