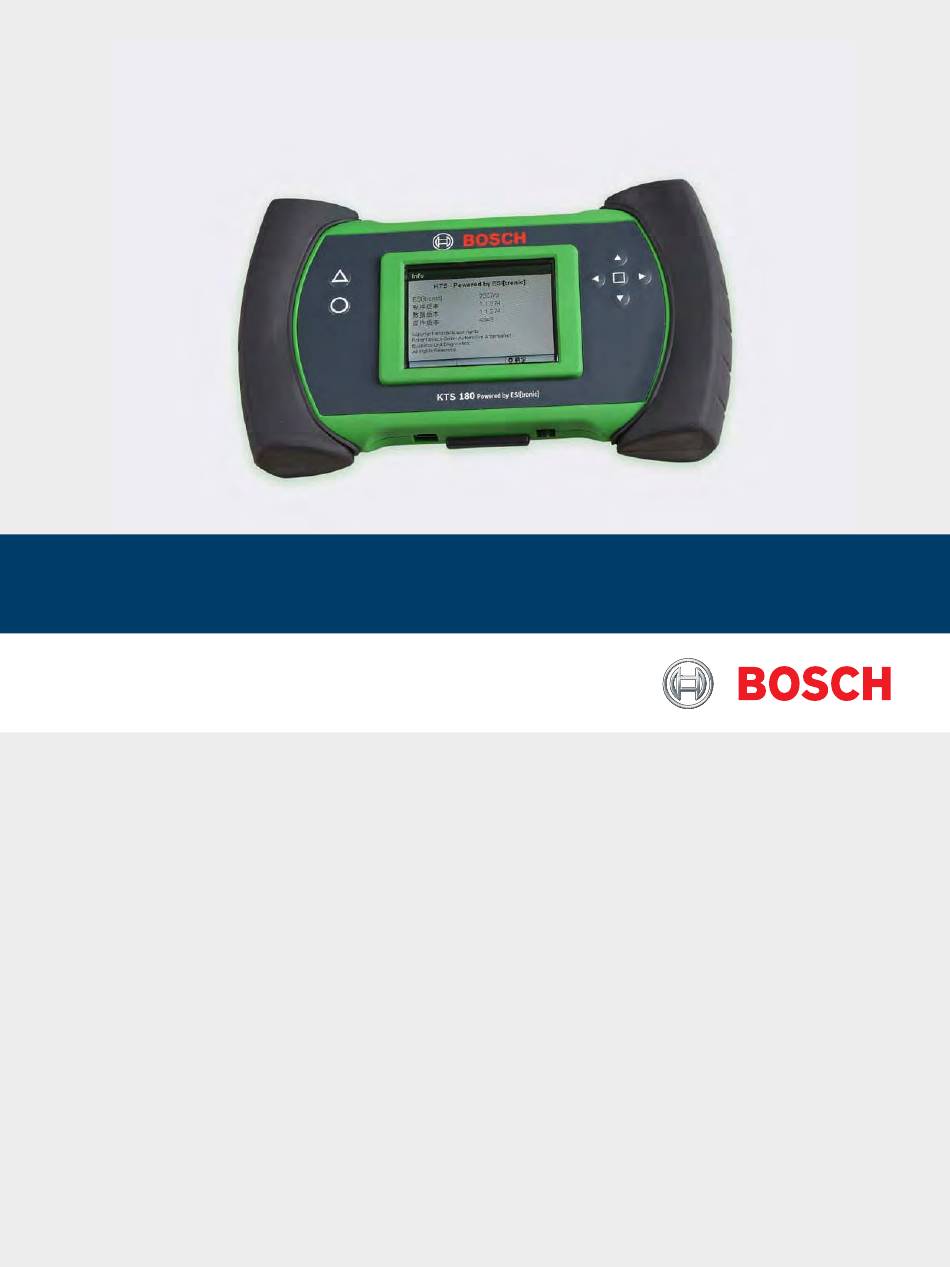

System tester for control unit diagnosis

Advertisement

Quick Links

KTS 180
en Instruction manual
System tester for control unit diagnosis

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KTS 180 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bosch KTS 180

  • Page 1 KTS 180 en Instruction manual System tester for control unit diagnosis...
  • Page 3: Table Of Contents

    | KTS 180 | 3 Contents Symbols used User instructions Important notes Safety instructions Electromagnetic compatibility (EMC) Open Source software Product description Application Requirements Delivery specification Special accessories Device description Selection and function keys Initial startup Connection Installing ESI[tronic] Startcenter 4.2.1...
  • Page 4: Symbols Used

    – an intermediate result is dis- played during a procedure. An overview of the Open Source software licenses for the KTS 180 is available on the "ESI[tronic] Startcenter" " Final result – the final result is displayed at the end DVD as an Adobe PDF document.
  • Page 5: Product Description

    Power pack 1 687 023 889 Power supply lead F 002 DG3 115 The KTS 180 may not be opened. Opening the KTS 180 USB connecting lead 1 684 465 491 erases its licensing data. It is then no longer possible...
  • Page 6: Device Description

    The KTS 180 contains a computer unit with memory Before starting up for the first time, make sure that card and a 3.5 inch LCD display. The KTS 180 control the mains voltage matches the voltage specified on the unit diagnosis software is pre-installed on the memory power pack (use power supply lead supplied).
  • Page 7: Starting The Kts 180

    KTS 180, select it under “Menu >> Settings >>Lan- guage”. The first time you connect the KTS 180 to the Connect the KTS 180 to the PC using the USB con- PC/laptop, the USB driver installation in the Win- necting lead.
  • Page 8: Operation

    On some vehicles, the power supply may only be present on the OBD interface when the ignition has been turned on. If the KTS 180 is connected to a PC/laptop using the USB connecting lead, the KTS 180 power supply must come from the power pack supplied.
  • Page 9: Software Update

    Windows is shut down and ESI[tronic] Startcenter pack supplied. is restarted. The KTS 180 starts up. Connect the KTS 180 to the PC using the USB con- necting lead. During the software update, the USB connection Connect the KTS 180 to the mains using the power and the power supply to the KTS 180 may not pack supplied.
  • Page 10: Maintenance

    10 | KTS 180 | Maintenance Maintenance Technical data General data The KTS 180 may not be opened. Opening the KTS 180 erases its licensing data. It is then no longer Property Value/Range possible to perform control unit diagnosis. Operating voltage 7 VDC —...
  • Page 12 Bosch Limited P.B.No.3000, Hosur Road, Adugodi Bangalore - 560 030 India www.boschindia.com e-Mail: Bosch.Prueftechnik@de.bosch.com Printed in India - Imprimé en Inde 1 689 988 204 2008-01-31...
