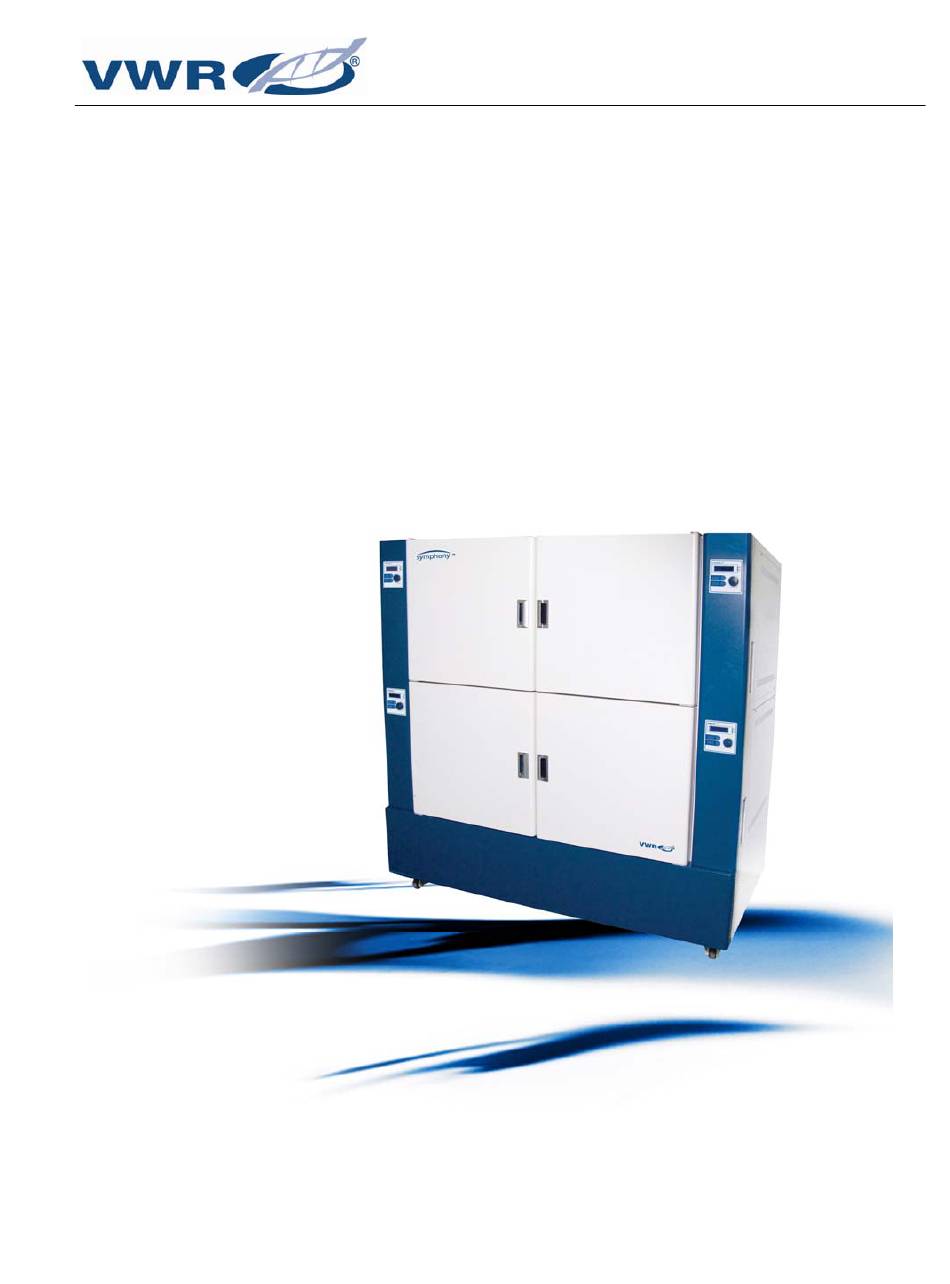

- Page 1 VWR symphony Reach-In Incubator Operation Manual (Version 1.5.1) VWR symphony Reach-In Incubator 414004-608 414004-609 “414004-608” VWR symphony Reach-in Incubator, 125x4Lit. Man. V142 (30 Aug. 2011)
-
Page 2: Table Of Contents
4. Description of Key Parts and Functions ........... 8 5. Installation ..................10 6. Controller Details ..................12 7. Operation ................... 14 8. Specif ications ............... 17 9. Maintenance ................. 18 10. Troubleshooting Guide …................. 19 2/19 VWR International, VWR symphony Reach-in Incubator... -
Page 3: Safety Instructions
Do not use a power supply other than the one the unit is designed to operate on. Inappropriate power supply may result in damage to the equipment. Adhere to all electrical codes. Please do not touch with wet hands. It may cause an electric shock. 3/19 VWR International, VWR symphony Reach-in Incubator... - Page 4 If the carton or wooden box is waterlogged, please contact the deliverer or our technical service engineer. Do not operate the unit before checking with an engineer, otherwise it may cause an electrical shock or a fire. 4/19 VWR International, VWR symphony Reach-in Incubator...
- Page 5 If unexpected sound, smell or smog is generated, pull the main plug out from the wall socket and contact VWR Equipment & Instrument Services 1-888-793-2300. CAUTION This product must be connected to a properly grounded power supply.
-
Page 6: Introduction
VWR symphony Reach-in Incubators are designed for convenient and safe use in many applications such as Animal & Plant Cell Culture, Constant Temperature, Germination Test and B.O.D. Test. -
Page 7: Package Contents
Operation Manual ......................[ 1 ] Models (a) 414004-608 : Reach-in Incubator, 125L(4.4cuft) × 4 Chambers, 120V, 60Hz (b) 414004-609* : Reach-in Incubator, 125L(4.4cuft) × 4 Chambers, 230V, 50/60Hz * 230V models are not UL certified. 7/19 VWR International, VWR symphony Reach-in Incubator... -
Page 8: Description Of Key Parts And Functions
Safety Protector Main Power Switch Door Handle Terminal Block For connection of the terminal block to main power, please refer to Section 5 Installation in page 10-11. <Figure 1> VWR symphony Reach-In Incubator, 414004-608 8/19 VWR International, VWR symphony Reach-in Incubator... - Page 9 If this happens, disconnect the main power cord from the wall socket and contact VWR Equipment & Instrument Services 1-888-793-2300. 9/19...
-
Page 10: Installation
4. Movement and placement method of the product - VWR symphony Reach-in Incubators are equipped with casters. Move the units using the casters. Ensure that no damage is sustained by the units during transport. It is recommended that units are moved by at least 2 people. - Page 11 Switch Box on a wall Leakage Breaker over 50A We recommend a 30A Leakage Breaker is installed for safety (Caution: It has to be UL Certified) Caution! Style No. 1015 10AWG Specification Wire must be used. 11/19 VWR International, VWR symphony Reach-in Incubator...
-
Page 12: Controller Details
4. TIMER, HEAT, ERROR Indicators – Indicate operation of Timer/Heater, Current Status and Error, respectively 5. JOG-SHUTTLE Knob – Used to set Temperature and Time by turning and then START/STOP by Pushing in the knob 12/19 VWR International, VWR symphony Reach-in Incubator... - Page 13 Caution ! If the SAFETY Protection is activated, it means that the product was run over the temperature limit, please contact Equipment & Instrument Service 1-888-793-2300. 13/19 VWR International, VWR symphony Reach-in Incubator...
-
Page 14: Operation
Return to the Set Operation Timer mode by pushing the MAIN button. 3. Set Temperature 3.1 Set Temperature Go to “Set Temperature” mode by pushing the MAIN button while in the Set Operation Timer mode. 14/19 VWR International, VWR symphony Reach-in Incubator... -
Page 15: Temperature Offset
To accomplish this, the VWR symphony Reach-in Incubators offer a function to adjust the PV temperature within –10.0 ~ +10.0°C ⇒ User’s self-compensation function. - Page 16 In the event of an unexpected disruption of the power supply to the product caused by power loss or by accidental removal of the power cord from the power socket when power is restored to the unit, VWR symphony Reach-in Incubators have a function to automatically recover the status of the last operation as follows: Activating the function: If you save the currently operating Temp SV value, to a non- zero value as set in “5.
-
Page 17: Specifications
756.2 lb Packing Dimension 41.3 x 74.8 x 80.3 (w×d×h) inch Shipping Weight 974.4 lb Power Consumption 2.6 kW Power Supply 120V, 60Hz or 230V 50/60Hz* * 230V models are not UL certified. 17/19 VWR International, VWR symphony Reach-in Incubator... -
Page 18: Maintenance
2. If service is needed please contact VWR Equipment and Instrument Services 1-888-793- 2300. 3. VWR is not responsible for damage to the unit caused by abnormal use or by not heeding warnings and cautions in the manual or unauthorized modifications of the unit. -
Page 19: Troubleshooting Guide
Problem in the sensor or main controller. Heating, but unit not Please contact VWR Equipment & Instrument Services 1-888-793- reaching temperature 2300. If you have any problem other than above, please contact VWR Equipment & Instrument Services 1-888-793-2300 19/19 VWR International, VWR symphony Reach-in Incubator...
