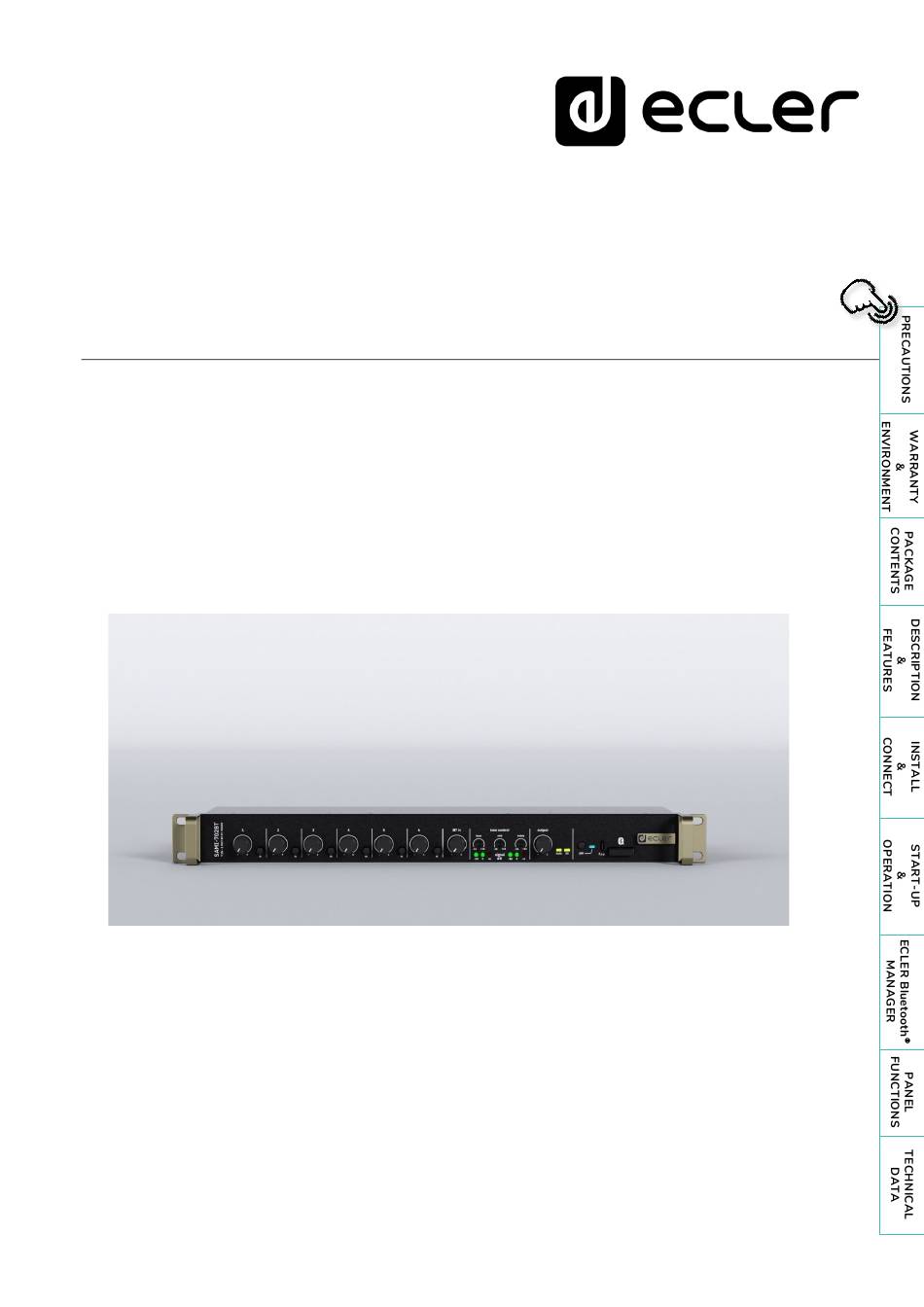

- Page 1 SAMI-702BT ANALOGUE PREAMPLIFIERS & MIXERS Installation Mixers USER MANUAL 50-0455-0100 SAMI-702BT...
-
Page 2: Table Of Contents
6.1.3 Other connections on the back panel ..................11 6.2 Starting-up ............................ 12 6.3 Equalization ........................... 12 6.4 VU-Meter ............................12 6.5 Ground Loops, Background noise ..................13 7. ECLER BLUETOOTH MANAGER .................... 14 ® 7.1 Connection to the PC ......................... 14 7.2 Configuration ..........................15 7.3 Operation ............................ -
Page 3: Precautions
WARNING: Ecler products have a long lifetime of more than 10 years. This product must never be discarded as unsorted urban waste, but must be taken to the nearest electrical and electronic waste treatment centre. -
Page 4: Key Safety Directions
1.2 Key Safety Directions Read the following directions. 11. Only use attachments/accessories specified by the manufacturer. Keep the following directions. 12. Unplug the device during lightening Heed all warnings. sorts or when unused for long periods of Follow all directions. time. -
Page 5: Warranty & Environment
Recycling materials and using non-contaminant components are also top priorities in our green crusade. Ecler has deeply evaluated and analyzed the environmental impacts of all the processes involved in the production of this product, including packaging, and has alleviated, reduced and/or compensated for them. -
Page 6: Description & Features
4. DESCRIPTION & FEATURES SAMI-702BT is an installation audio mixer in standard rack format, featuring 6 MIC/LINE Stereo inputs +1 Bluetooth Stereo input, 1 main mix output and one AUX/REC additional output. ® It includes a 3 band tone control section, Talkover (priority) function assignable to each MIC/LINE input over the mix bus, ST/MONO mix switch and MUTE port for external dry contact triggering. -
Page 7: Install & Connect
5. INSTALL & CONNECT SAMI-702BT mixer has been specially designed to be installed in a standard 19" rack, taking up 1U. It has been designed to be operated by non-technical users. This is the reason why its tone controls are adjustable only with a screwdriver. On the opposite, input and output level controls use classic and easily accessible rotary knobs. -
Page 8: Start-Up & Operation
6.1 Connectrions 6.1.1 Inputs SAMI-702BT supports two types of audio signals for each of its first 6 inputs (mono MIC or stereo LINE), selectable by a MIC/LINE switch on the rear panel: Microphone signal: 6 mixing channels offer a Euroblock connector for a nominal input level from –50dBV (3.16mV) to –20dBV (0.1mV), with a GAIN control on the rear panel to adjust... - Page 9 LINE inputs 1-6 of the SAMI-702BT are standard line inputs (0dBV) and the sensitivity of the LINE input #7 can be selected (0/-6dBV) by internal jumper (the default position is 0dBV). A sensitivity of -6dBV is ideal for low-level sound sources such as media players, portable MP3 players, tablets, computers, mobile phones, etc.
-
Page 10: Outputs
6.1.2 Outputs SAMI-702BT has a main stereo output (OUT L / OUT R), with electronically balanced Euroblock connectors. Connection is made according to the following diagram: The mixer's main output level (OUTPUT VOL) must be set in order to avoid your system power amp clipping indicators (CLIP) to be permanently lit. -
Page 11: Other Connections On The Back Panel
6.1.3 Other connections on the back panel AUX/REC output with a nominal output of 0dBV (10kΩ load) and an extra gain setting of +6dB, enabled by internal jumper (0dBV is the default position). Please note that the “Output Sensitivity” selector always affects the main output. L+R switch: convert output signals in a mono signal. -
Page 12: Starting-Up
Plug the external PSU to the DC IN connector located on the rear panel and then, after connecting it to the power outlet, press the on/off switch to power the unit. Even the power-up noise of SAMI-702BT is minimal, we highly recommend to power up all equipment in the following order:... -
Page 13: Ground Loops, Background Noise
Cable shields, when connected to the chassis, must never be linked together. This will avoid ground loops. The SAMI-702BT mixer has been designed to produce the lowest background noise. Independently from the electronic design, the resulting background noise directly relies on the correct use and installation of the mixing unit. -
Page 14: Ecler Bluetooth ® Manager
® Select the corresponding COM port. If the COM port is not suitable for SAMI-702BT, an error message will be displayed, and you should try another COM port. If the connection is successfully established, a success message will be displayed on... -
Page 15: Configuration
7.2 Configuration The Ecler Bluetooth Manager application automatically detects the device. It allows you to ® make the following adjustments. To apply a certain configuration, modify the parameters in line with your needs and press the “Write” button located in the lower right-hand corner of the window to apply the changes. - Page 16 NAME: name under which it appears on other Bluetooth devices. By default, this is • ® Ecler-SAMI-702BT. This name can be modified, in order to be easily identifiable by a user. PIN: 4-digit numeric PIN password for pairing the device. To add a level of security, an •...
-
Page 17: Operation
Bluetooth settings and select the "Ecler-SAMI-702BT" ® device. SAMI-702BT will remain in pairing mode for one minute. If no pairing is established after one minute has elapsed, it will return to the "waiting for connection" state. -
Page 18: Panel Functions
8. PANEL FUNCTIONS 8.1 Front Panel Channel volume control, VOL x6 LED indicator, MUTE Talkover switch, tk x6 LED indicator, POWER ON Bluetooth Input Volume control 10. Bluetooth RX antenna ® ® Bass control, BASS 11. USB-C port (only Bluetooth ... -
Page 19: Technical Data
9. TECHNICAL DATA 9.1 Technical Specifications SAMI-702BT ANALOGUE AUDIO INPUT PORTS Number of input ports 6, MIC/LINE 1, BT in (Bluetooth LINE STEREO) ® Connection type MIC: 3-pin Euroblock LINE/MIX: RCA Bluetooth Receiver ® Input sensitivity LINE 1-6: 0dB Bluetooth LINE 7: 0dB/-6dB (internally selectable) ®... - Page 20 Programming and control ECLER BLUETOOTH MANAGER - EBTM ® Interface USB - C REMOTE CONTROL CONNECTIONS GPIs MUTE control port NO/NC BLUETOOTH® Type Class 1, 5.0 Range 25m Profiles A2DP1.3/AVRCP1.6/HFP1.7.2/HSP1.2 Decoder support AAC, SBC Output configuration STEREO / MONO (configurable via EBTM) ELECTRICAL Power supply ±17.5VDC External PSU...
-
Page 21: Mechanical Diagram
9.2 Mechanical Diagram All measurements in mm. - Page 22 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona, Spain Tel. (+34) 932238403 information@ecler.com www.ecler.com...
