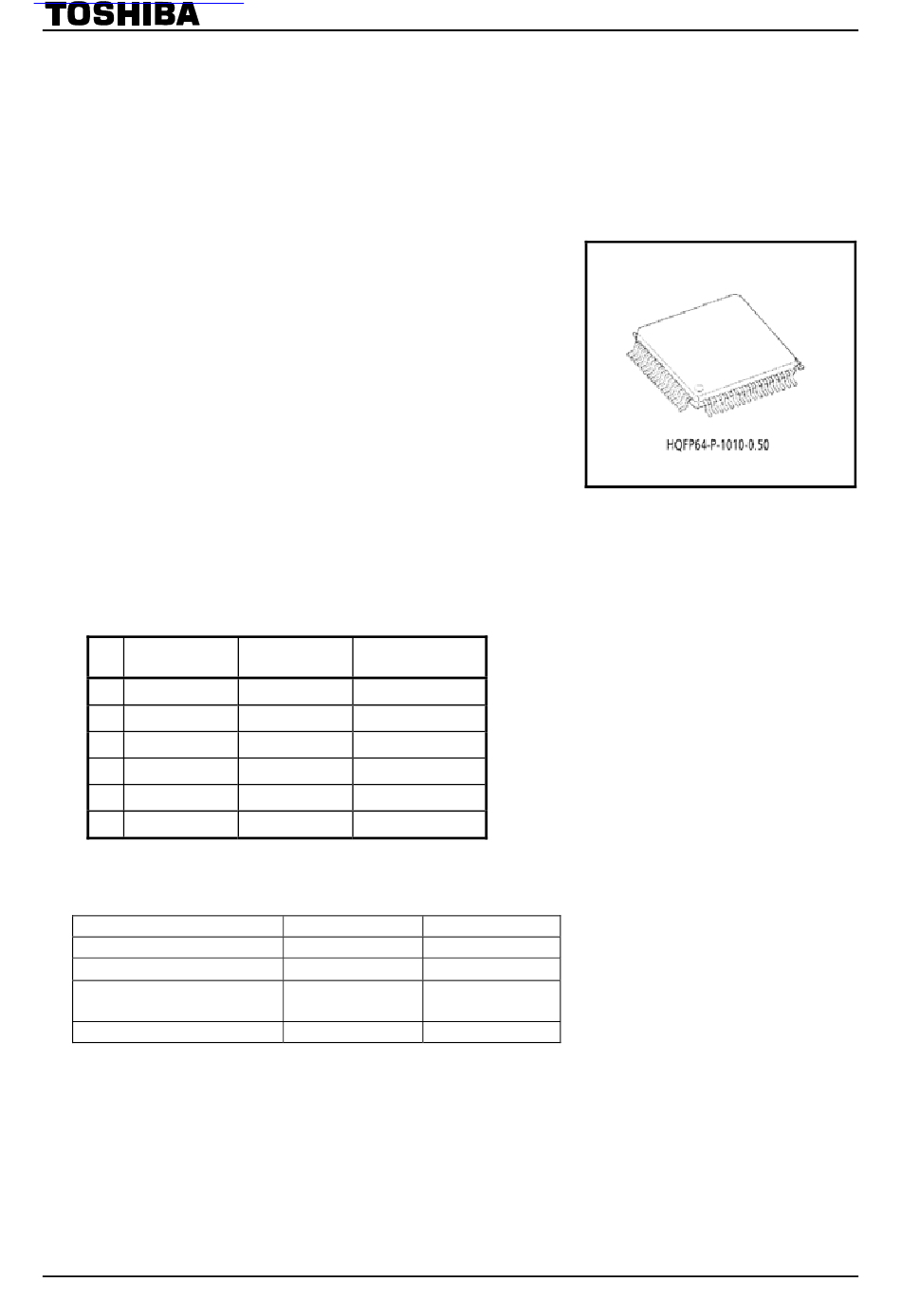

A bicd process integrated circuit silicon monolithic

Hide thumbs

查询TB62217AFG供应商

PWM drive Stepping Motor Driver / Brush DC Motor Driver Selectable, DC-DC Converter

and Reset function IC

The TB62217FG is a dual stepping motor driver driven by PWM

chopper micro step, with 3- channel step-down DC-DC converters and

an external-IC reset function.

To drive a two-phase bipolar-type stepping motor, a 16-bit latch and

a 16-bit shift register are built into the IC. The IC is suitable for

driving stepping motors with low-torque ripple in a highly efficient

manner. In addition, a signal axis can be switched to serve as a PWM

driver for two DC motors.

By equipping the stepping motor driver with Selectable Mixed

Decay Mode for switching the attenuation ratio during chopping, and

also equipping it with a DC-DC converter, it is possible for the IC to

supply external voltage.

With a built-in timer that starts running when the IC is supplied

with power, the IC can be used in resetting (initializing) external

devices.

Features

•

The following motor combinations can be used.

Stepper

(1)

Dual motors

(2)

Single motor

(3)

Single motor

⎯

(4)

⎯

(5)

⎯

(6)

Note Hereafter, DC Large will be referred to as DC (L) and DC Small will be referred to as DC (S).

Stepping Motor

DC Motor Mode

Pulse spike Peak

Recommended maximum

current

Stationary current

The large current standard is achieved by shorting a small current H-Bridge across two ICs. In addition, if the

thermal setting is designed to be within the prescribed thermal range, the initial torque current can be used as the

normal operating current.

TOSHIBA BiCD Process Integrated Circuit Silicon Monolithic

TB62217AFG

DC Large DC (L)

DC Small DC (S)

⎯

Single motor

⎯

Single motor

Dual motors

⎯

Quadruple motors

1.0A(MAX)

DC Large

8.0A(500ns)

3.0A(100ms)

0.8A

⎯

Dual motors

⎯

(Single Motor)

DC Small

8.0A（500ns)

2.5A (100ms)

0.8A

TB62217AFG

Weight: 0.45 g (typ.)

2004-11-12
