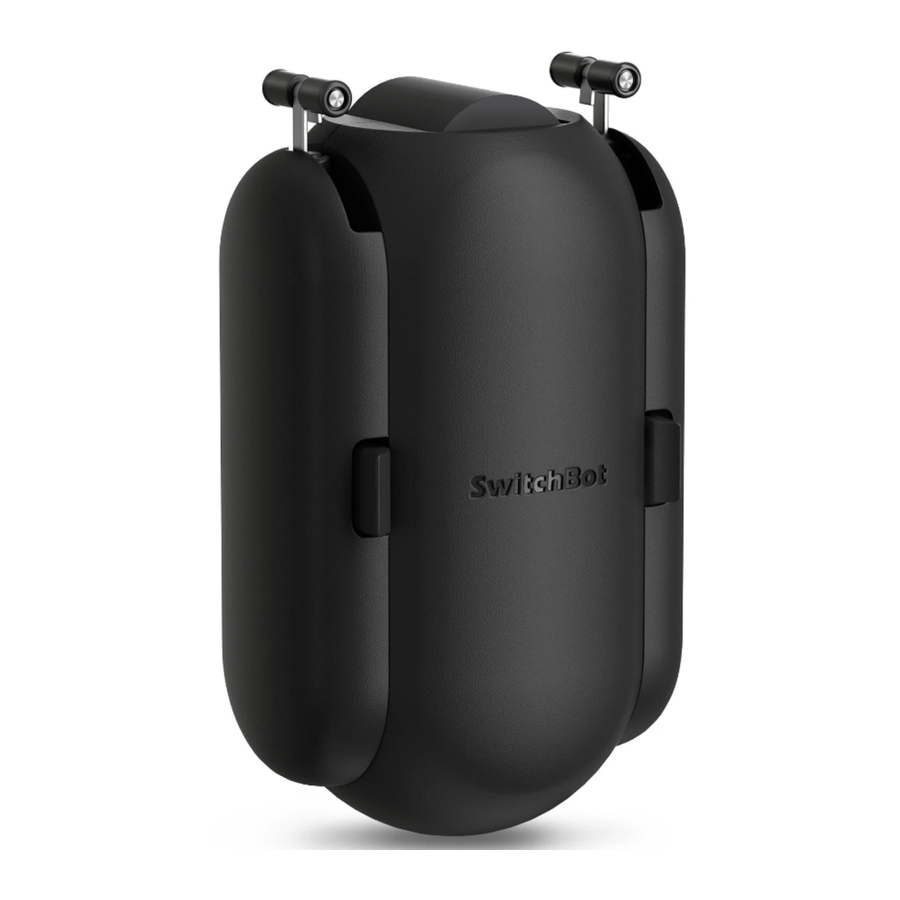

SwitchBot Curtain U Rail 2 Manual

Package Contents

List of Components

Preparation

You will need:

• A smartphone or tablet using Bluetooth 4.2 or later.
• The latest version of our app, downloadable via the Apple App Store or Google Play Store.
• SwitchBot account, you can register via our app or sign in to your account directly if you already have one.
• A fully charged SwitchBot Curtain.

Please note: If you intend to use Cloud Services for voice control, you will need a SwitchBot Hub Mini (sold separately).

iOS 11.0+

Android OS 5.0+

Installation

Add your Curtain to the SwitchBot app

Open the SwitchBot app and sign in to your account. Tap "+" at the top right of the home page, find the Curtain icon and select, then follow the instructions to add your Curtain.

Install your Curtain on curtain track

Find the best matching Hook Wheel
One set of Hook Wheels has already been installed on the Hook Pair upon delivery. In the box, there are also several different-sized sets of Hook Wheels for you to replace with. Please follow the steps below to find the best matching set of Hook Wheels for your curtain track.

1. Insert the separate Hook from the bottom gap of your curtain track and rotate it by 90° to fit the Hook Wheels on the track. Slide it left and right to see if it goes smoothly, then tilt it back and forth to check if it matchs the track.

   • If the Hook cannot be inserted onto your curtain track, or cannot be rotated after being inserted, replace with a smaller set of Hook Wheels.
   • Try pull the Hook towards one side and tilt it, if it falls easily from the curtain track, you need to replace with a bigger set of Hook Wheels.

If the Hook slides smoothly. You can continue the installation steps. If you have tried with every set of Hook Wheels provided and none of them worked as expected, please contact our customer support at support@wondertechlabs.com.

2. Replacing the Hook Wheels
   1. Detach the existing Hook Wheels from the separate Hook (use the Hook Helper for an easier removal).

   2. Select one set of Hook Wheels with the appropriate size. Flick the two plastic wheels to both sides to expose the metal bar in the middle. Attach the set of Hook Wheels to the Hook as shown in the picture. You should hear a click once it is firmly attached.

   3. Repeat the same steps to replace the Hook Wheels on the other Hook with the main unit.

Install your Curtain on curtain track

1. Installation for Common Models
   1. Fully close your curtain, then remove the first curtain hook from the track.

   2. Insert the separate Hook from the bottom gap of your curtain track and rotate it by 90° to fit the Hook Wheels on the track.

   3. Insert the Hook with the main unit onto the curtain track. Then attach the separate Hook back to the main unit. The SwitchBot logo should face indoors.

   4. Hang your curtain back in place and hide SwitchBot Curtain behind your fabric curtain.

2. Installation for Specific Models
   If SwitchBot Curtain does not work smoothly on your curtain track, your curtain track type may be one of the non-standard tracks. Below are two examples of non-standard curtain tracks. Please scan the QR code below or visit the following website for detailed solutions for those types of curtain tracks.
   https://support.switch-bot.com/hc/en-us/articles/1500012094841


How to Control Double-Sided Curtains

If you are using a double-sided curtain, we recommend you use two SwitchBot Curtains to open your curtains from the middle.
If you have only purchased 1 SwitchBot Curtain, you may use the clips provided to join your curtains together and turn them into a single-sided curtain.
Please note: Using just 1 SwitchBot Curtain to control a double-sided curtain may affect user experience.

Calibration

After you have added and installed your SwitchBot Curtain, you will need to calibrate it to set its route on your curtain track. Please follow the instructions in our app to make sure that the actual movement of your curtain is the same as the animation in the app. You can choose to recalibrate the Curtain or change its opening direction whenever you want by going to Curtain > Settings > Calibration.
Please note: You can group two SwitchBot Curtains via our app should you plan to open your curtains from the middle. Before you calibrate, please make sure the positions of your SwitchBot Curtains are the same as shown in our app.

Usage Methods

App Control

Open and close your curtains with just the tap of a button. We offer intuitive app control for iOS and Android users, with weekly/bi-weekly updates. OTA firmware updates are also available to give you a better user experience.

Touch & Go

When SwitchBot Curtain senses you drawing your curtain for more than 5 cm, it will automatically start and do the work for you. For a double-sided curtain, you only need to pull one side of it to activate your Curtain.
Please note: You can turn off this feature on the Advanced Settings page of the Curtain at any time.

*5cm lowers the possibility of false triggers by foreign objects, pets, children, etc.

Voice Control and Home Automation

You can link multiple third-party services to your SwitchBot account to control your SwitchBot Curtain or trigger Scenes using voice commands.
How to realize voice control and home automation:

• Connect your smartphone or tablet to the Internet.
• Set up a SwitchBot Hub Mini (sold separately).
• Turn on Cloud Services via SwitchBot Curtain's Settings page.
• Link third-party services to your SwitchBot account.



*Requires SwitchBot Hub Mini (sold separately).

Control with Remote

(Sold Separately)
A wireless remote to place anywhere.
You can also control your SwitchBot Curtain using a SwitchBot Remote. There are two buttons on the Remote and you can set an action for each via our app, for example, one button for fully opening and another for fully closing your Curtain. One Remote can also control 2 SwitchBot Curtains that have been grouped. Please refer to the user manual of Remote for more information.

Settings

Light Sensor (Beta)
This allows you to set automations based on the illuminance level or the relative intensity of sunlight around your device. This is a beta stage function and is being upgraded continuously. You can find more details in future app releases.

Delay
You can set 1 Delay for countdown action. You can set the countdown time, percentage of opening or closing, and Motion Mode.

Schedule
You can set up to 5 Schedules locally on your device, or unlimited Schedules with a SwitchBot Hub. You can set the day, time, percentage of opening or closing, and Motion Mode.

Charging

It takes about 6.5 hours to fully charge your device battery and this can last for up to 8 months after one full charge. You may also purchase our Solar Panel to charge using sunlight.

1. A 5V 1A adapter is required to charge your device.
2. Battery life is tested under conditions of opening and closing a 8 kg (17 lbs) curtain on a 3-meter-long track once a day under 25°C. Actual battery life may vary depending on different conditions.
3. Charging with Solar Panel requires a level 6 illuminance level at least.

Firmware Upgrades

In order to improve user experience, we will regularly release firmware updates to introduce new functions and solve any software defects that may occur during usage. When a new firmware version is available, we will send an upgrade notification to your account via our app. When upgrading, please make sure your product has sufficient battery and make sure your smartphone is within range to prevent interference.

Resetting Factory Settings

Press and hold the Reset button for 15 seconds until the indicator light lights up, then release the button.

You may lose all previous settings after factory reset and you will need to add the device again and redo calibration. If you are using a double-sided curtain, you will need to recalibrate both Curtains.

Specifications

Model: W0701600
Color: White/Black
Material: ABS plastic with UV-resistant coating
Size (Main Unit): 42 x 51 x 110 mm (1.7 x 2 x 4.3 in.)
Weight (Main Unit): 135 g (4.8 oz.)
Power: Type-C, DC 5V 1A, 3350 mAh lithium-ion battery or by Solar Panel¹
Battery Life: 8 months², or unlimited with Solar Panel
Network Connectivity: Bluetooth 5.0, long range transmission
Sensor: Accelerometer, light sensor
Strength: Supports curtain of up to 8 kg (17 lbs) (from controlled experiments in our lab)
Max Runway: 3 m (9.8 ft.)
Schedule: Up to 5 or unlimited with a SwitchBot Hub³
Voice Control (SwitchBot Hub Required): Amazon Alexa, Google Assistant, Siri Shortcuts, SmartThings, IFTTT, and LINE CLOVA

1. SwitchBot Solar Panel is sold separately.
2. Battery life is tested under conditions of opeing and closing a 8 kg (17 lbs) curtain on a 3-meter-long track once a day under 25°C. Actual battery life may vary depending on different conditions.
3. SwitchBot Hub Mini is sold separately.

Please note: Use your device under room temperature only.

Contact & Support

Setup and Troubleshooting: support.switch-bot.com
Support Email: support@wondertechlabs.com
Feedback: If you have any concerns or problems when using our products, please send feedback via our app through the Profile > Feedback page.

Find Out More
Please visit support.switch-bot.com for more details.
