L&W Compressors LW 320 B Nautic AL Operating Instructions Manual

Breathing air compressor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

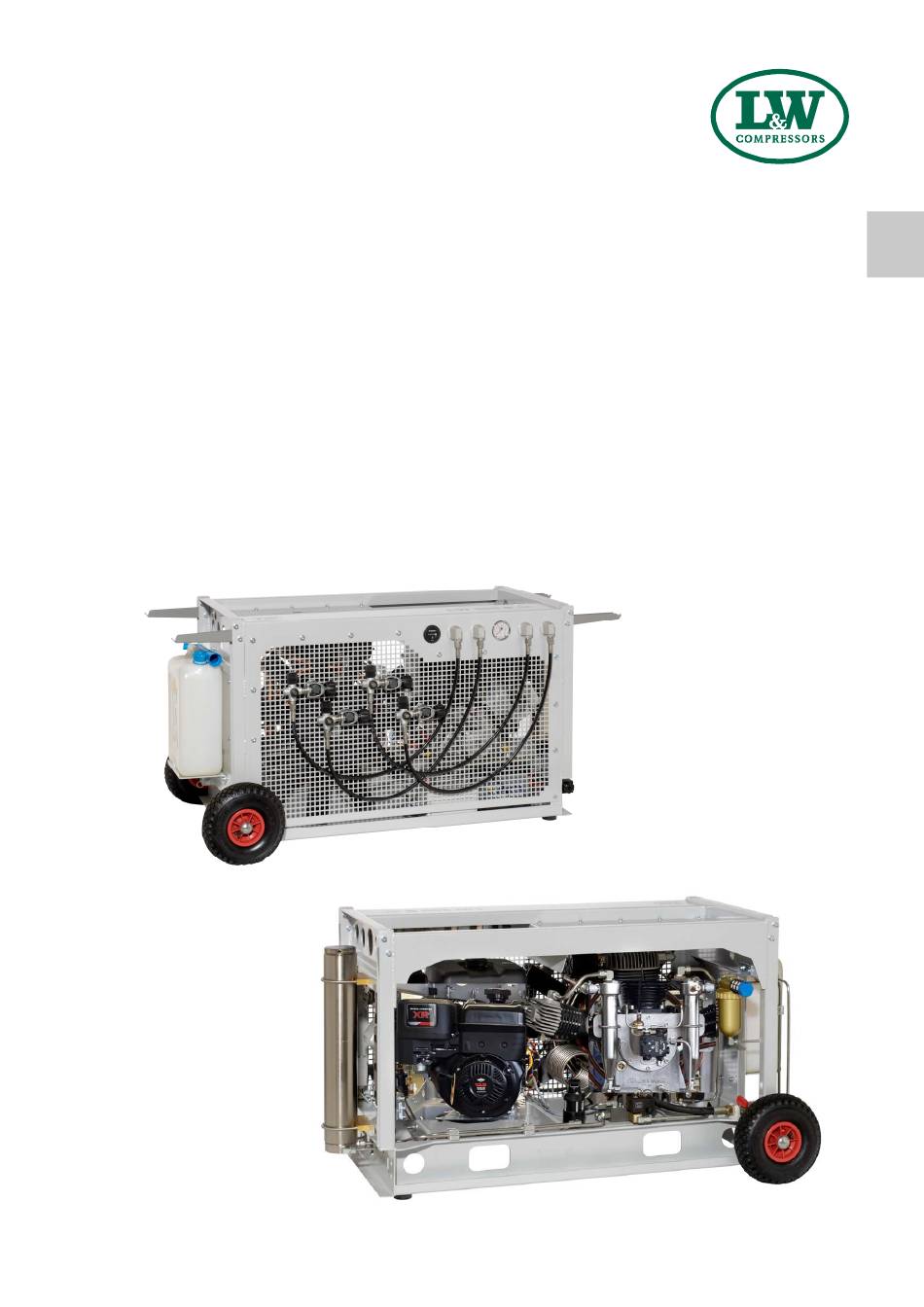

A
Operating Instructions
Breathing Air Compressor
LW 320 B Nautic AL
Version: 14.01.2025

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LW 320 B Nautic AL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for L&W Compressors LW 320 B Nautic AL

Summary of Contents for L&W Compressors LW 320 B Nautic AL

  • Page 1 Operating Instructions Breathing Air Compressor LW 320 B Nautic AL Version: 14.01.2025...

  • Page 2: Product Information

    As a matter of principle, warranty claims can only be made by the initial purchaser. LW 320 B Nautic AL - UK Page A - 2...
  • Page 3 68623 Hüttenfeld / Germany Phone: +49 (0) 62 56 - 85 88 0 - 0 Fax: +49 (0) 62 56 - 85 88 0 - 14 E-Mail: service@lw-compressors.com Internet: www.lw-compressors.com LW 320 B Nautic AL - UK Page A - 3 Version: 14.01.2025...

  • Page 4: Table Of Contents

    Oil change ............................45 Oil sieve change ..........................46 Manuele Condensation Dump System .................... 47 Oil / water separator 1st and 2nd stage - maintenance ..............48 LW 320 B Nautic AL - UK Page A - 4 Version: 14.01.2025...
  • Page 5 Leak test ............................60 Test of pressure equipment ......................61 Maintenance records and Storage Maintenance records ....................... 63 - 67 De-conservation, commissioning ....................68 Transportation instructions / Disposal ..................... 69 LW 320 B Nautic AL - UK Page A - 5 Version: 14.01.2025...

  • Page 6: General Information / Description Of Warning Symbols

    Indicates a potentially hazardous situation which, if not avoided, could result in physical injury or damage to the product or environment. Note Indicates additional information on how to use the unit. LW 320 B Nautic AL - UK Page A - 6 Version: 14.01.2025...

  • Page 7: Scope Of Delivery

    • Puracon filter monitoring • 200 and 300 bar parallel filling pressures • Wheel set • Additional high pressure outlet • Oil pressure and intermediate pressure display LW 320 B Nautic AL - UK Page A - 7 Version: 14.01.2025...

  • Page 8: Technical Data

    95 from a distance of 1 m Dimensions W x D x H [mm]: 1290 x 600 x 740 Weight [kg]: approx. 167 Content Volume Filter housing [l]: LW 320 B Nautic AL - UK Page A - 8 Version: 14.01.2025...

  • Page 9: Unit Assembly

    D E S C R I P T I O N Unit Assembly Designation Filling Valve Hour Counter Pressure Gauge Carrying Handles Filling Hoses LW 320 B Nautic AL - UK Page A - 9 Version: 14.01.2025...

  • Page 10: Start Device

    D E S C R I P T I O N Start Device Designation Hand Start E-Starter (Key Switch) LW 320 B Nautic AL - UK Page A - 10 Version: 14.01.2025...

  • Page 11: Flow Chart

    Sicherheitsventil 2. Stufe / Safety Valve 2nd Stage Hochdruckschlauch / HP-Hose Wärmetauscher / Heat Exchanger Füllventil / Filling valve Öl-/Wasserabscheider / Oil-/Water Separator Kondensatablasshahn / Condensate Drain Valve LW 320 B Nautic AL - UK Page A - 11 Version: 14.01.2025...

  • Page 12: Safety Precautions

    S A F E T Y P R E C A U T I O N S...

  • Page 13: Intended Use / Operators

    Only trained personnel are permitted to work on the unit! Warning Work on the electrical equipment on / with the machine / unit may only be carried out by qualified electricians. LW 320 B Nautic AL - UK Page A - 13 Version: 261012-001 E Version: 14.01.2025...

  • Page 14: Safety Instructions On The Unit

    Importance of notes and warning signs that are affixed to the compressor according to the application or its equipment. Warning Note High voltage! Ensure correct direction of rotation! Warning surfaces! LW 320 B Nautic AL - UK Page A - 14 Version: 14.01.2025...

  • Page 15: General Safety Precautions

    • Do not use the product in areas prone to explosion or in the presence of flammable gases. The product is not designed for these applications. An explosion might be the result if certain conditions apply. LW 320 B Nautic AL - UK Page A - 15 Version: 14.01.2025...

  • Page 16: Unit Customised Safety Notices

    • Soundproofing equipment on the compressor has to be activated in safety function during operation. • When handling with fats, oils and other chemical agents, observe the note for the product- related safety. LW 320 B Nautic AL - UK Page A - 16 Version: 14.01.2025...

  • Page 17: Maintenance Instructions

    • Only personnel with particular knowledge and experience with pneumatics may carry out work on pneumatic equipment. • Only personnel with particular knowledge and experience in gas equipment may carry out work on gas equipment. LW 320 B Nautic AL - UK Page A - 17 Version: 14.01.2025...

  • Page 18: Transportation Instructions / Safety Regulations

    No guarantees whatsoever are valid for damage caused or favoured by the non-consideration of these directions for use. LW 320 B Nautic AL - UK Page A - 18 Version: 261012-001 E...

  • Page 19: Installation

    I N S T A L L A T I O N...

  • Page 20: Outdoor Installation

    Position compressor in direction of wind so that exhaust fumes are blown away from the unit. • Intake air must be free from noxious gas e.g. smoke, solvent vapours, exhaust fumes etc. • Observe the specified operating temperature (see "Technical Data")! LW 320 B Nautic AL - UK Page A - 20 Version: 14.01.2025...

  • Page 21: Dimensions

    I N S T A L L A T I O N Dimensions 1035 632,5 1283 Fig. Dimensions LW 320 B Nautic AL - UK Page A - 21 Version: 14.01.2025...

  • Page 22: Minimum Distances

    Front side min. 1500 mm, sides min. 500 mm, rear side min. 500 mm. Avoid anything in this area which can restrict the cooling air flow. Fig. Minimum distances LW 320 B Nautic AL - UK Page A - 22 Version: 14.01.2025...

  • Page 23: Operation

    O P E R A T I O N...

  • Page 24: Important Operation Instructions

    Ensure that all persons handling the compressor are familiar with function and operation of the unit. Wear hearing protection When working on a running machine, always wear hearing protection. LW 320 B Nautic AL - UK Page A - 24 Version: 14.01.2025...

  • Page 25: First Commissioning

    • Check V-belt tension. (see "Service and Maintenance") • Read carefully the handbook of the petrol engine. • Ensure that all filling valves are closed. Open one filling valve and hold tight manually! LW 320 B Nautic AL - UK Page A - 25 Version: 14.01.2025...
  • Page 26 - if correct, air escapes 16. Open all filling valves carefully to vent. Note You can find the operating instructions for the drive motor in the attached manual! LW 320 B Nautic AL - UK Page A - 26 Version: 14.01.2025...

  • Page 27: Check Oil Level

    Do not tension V-belts too tight. This damages bearings of compressor and motor. The V-belts should only be tensioned until there is no noise caused by slipping during start. LW 320 B Nautic AL - UK Page A - 27...

  • Page 28: Daily Commissioning

    • Check if filter cartridge is in place / observe filter cartridge life! • Check fuel capacity. • Check drive motor oil level. • Ensure toxic-free, pure intake air. LW 320 B Nautic AL - UK Page A - 28 Version: 14.01.2025...

  • Page 29: Filling Procedure

    Fill the compressed air cylinders to the desired pressure; subsequently close the filling valves slowly. Switch off the compressor. Close and vent all filling valves. Disconnect all compressed air cylinders from filling valves. 10. Open condensate drain valves manually. LW 320 B Nautic AL - UK Page A - 29 Version: 14.01.2025...

  • Page 30: Switch Off The Compressor

    The unit can be shut down at any time during filling procedure by the key switch. Note After switching to idle operation or switching off manually, all pressure vessels and filter housings of the compressor will be automatically vented. LW 320 B Nautic AL - UK Page A - 30 Version: 14.01.2025...

  • Page 31: Remedying Faults

    R E M E D Y I N G F A U L T S...
  • Page 32 Cylinder(s), piston(s) or piston ring(s) used up Replace V-belt slips Tension V-belt See chapter "Final pressure can not be reached" See chapter "Final pressure can not be reached" LW 320 B Nautic AL - UK Page A - 32 Version: 14.01.2025...
  • Page 33 Mole carbon filter cartridge saturated Replace Compressor oil unsuitable Use prescribed oil quality Filter cartridge unsuitable Use prescribed filter type Cylinder(s), piston(s) or piston ring(s) defective Replace LW 320 B Nautic AL - UK Page A - 33 Version: 14.01.2025...
  • Page 34 Check fusing of the power supply / observe Valid only for E models regulations Emergency stop switch has tripped Unlock emergency stop switch, close compressor housing door correctly LW 320 B Nautic AL - UK Page A - 34 Version: 14.01.2025...
  • Page 35 Operating temperature too high Observe prescribed operating temperatures Oil leak at the compressor block Tighten corresponding mounting screws, if necessary replace corresponding paper sealing / o-ring / shaft seal LW 320 B Nautic AL - UK Page A - 35 Version: 14.01.2025...

  • Page 36: Maintenance And Service

    M A I N T E N A N C E A N D S E R V I C E...

  • Page 37: Service, Repair And Maintenance

    Carry out maintenance or service work when the unit is switched off and protected against unexpected restart. Warning Risk of burns! Carry out maintenance or service work when the unit has cooled down. LW 320 B Nautic AL - UK Page A - 37 Version: 14.01.2025...

  • Page 38: Maintenance Lists / Maintenance Intervals

    Oil change 000001 Every 3 months or as required Maintenance work Type Quantity Order No. Check automatic condensate drain, open manual condensate taps Check/Retorque all connections and bolts LW 320 B Nautic AL - UK Page A - 38 Version: 14.01.2025...

  • Page 39: Every 500 Operating Hours

    000170 Check pressure maintaining/non-return valve Check V-belt tension and condition LW 320 B Nautic 006212 * Note Article is part of our 1000h and 2000h service kits. LW 320 B Nautic AL - UK Page A - 39 Version: 14.01.2025...

  • Page 40: Every 1000 Operating Hours

    Replace o-ring of oil filter 000435 Oil change 000001 Note All stated quantities are parts of our 1000h and 2000h service kits. You can find an overview on page Service Kits. LW 320 B Nautic AL - UK Page A - 40 Version: 14.01.2025...

  • Page 41: Every 2000 Operating Hours

    Upper gasket 1st 000257 Lower gasket 1st 000258 Note All stated quantities are parts of our 2000h service kits. You can find an overview on page Service Kits. LW 320 B Nautic AL - UK Page A - 41 Version: 14.01.2025...

  • Page 42: Service Kits

    Depending on the model and interval, the service kits include parts such as O-Rings, Sinter Filter, Inlet Filter, Silencers, In-&Outlet Valve, Valve Seals and Compressor oil. Service Kits Service Kits LW 320 B Nautic AL (manual condensate drain) Compressor Operating Hours Order No.

  • Page 43: Check V-Belt Tension / Tension V-Belt

    Do not tension V-belt too tight. This damages bearings of compressor and motor. The V-belt should only be tensioned until there is no noise caused by slipping during start. LW 320 B Nautic AL - UK Page A - 43...

  • Page 44: Compressor Lubrication / Check Oil Level

    Never start the compressor with a too low oil level. Refill new compressor oil at least when the oil level reached the middle of the indicated area. Oil sight glass LW 320 B Nautic AL - UK Page A - 44 Version: 14.01.2025...

  • Page 45: Oil Change

    Oil and oil capacity Approx. 1800 ml synthetic compressor oil is necessary for one oil change. Only use synthetic compressor oil which is recommended as suitable from L&W. LW 320 B Nautic AL - UK Page A - 45 Version: 14.01.2025...

  • Page 46: Oil Sieve Change

    • We recommend cleaning or replacing the oil sieve every 1,000 working hours. • Service Kit oil pump (002569). Consists of: 000798 - Oil sieve + 000672 - oil pump cover gasket Correct installation position of oil sieve LW 320 B Nautic AL - UK Page A - 46 Version: 14.01.2025...

  • Page 47: Manuele Condensation Dump System

    Fig. 3 - Condensate drain valve All oil / water separators have an integrated sinter filter which has to be replaced every 1,000 operating hours. LW 320 B Nautic AL - UK Page A - 47 Version: 14.01.2025...

  • Page 48: Oil / Water Separator 1St And 2Nd Stage - Maintenance

    The oil / water separator maintenance is now completed. Fig. 2 - Remove sinter filter holder Fig. 3 - Change sinter filter Fig. 4 - Change o-ring LW 320 B Nautic AL - UK Page A - 48 Version: 14.01.2025...

  • Page 49: Maintenance And Service

    Filter cartridges should be changed at the following intervals, at +20°C or more often, depending on humidity and ambient temperature: • 39 hours for LW 320 B Nautic AL LW 320 B Nautic AL - UK Page A - 49...

  • Page 50: Filter Cartridge Change

    Ensure that the old filter cartridge is disposed correctly at an approved waste point. Fig. 3 - Pull the cartridge out of the housing. LW 320 B Nautic AL - UK Page A - 50 Version: 14.01.2025...

  • Page 51: Filter Housing - Maintenance

    The filter housing maintenance is now completed. Fig. 2 - Change o-ring and back-up Fig. 3 - Loosen pipe connections and Fig. 4 - Change o-ring and back-up rings nuts rings LW 320 B Nautic AL - UK Page A - 51 Version: 14.01.2025...

  • Page 52: Inlet Filters / Inlet Filter Cartridge Change

    • Assemble the intake filter correctly and mount it on the valve head The inlet filter cartridge change is now completed. (Fig.2) Remove cover and (Fig.1) Loose nut replace filter cartridge (Fig.3) Mount the intake filter LW 320 B Nautic AL - UK Page A - 52 Version: 14.01.2025...

  • Page 53: Cylinder Heads And Valves

    There are no special tools required to replace these valves. Available special tools Special tools are not necessary for dismounting inlet and outlet valves but make work easier. Order number: 006847 Special tool LW 320 B Nautic AL - UK Page A - 53 Version: 14.01.2025...

  • Page 54: Replace Inlet And Outlet Valves 1St Stage

    • Check valve head if defective Install Inlet / Outlet Valve - see following page Fig. 2 - Pull out inlet and outlet valve Fig. 3 - Copper valve ring LW 320 B Nautic AL - UK Page A - 54 Version: 14.01.2025...
  • Page 55 • Connect pipe connections and tighten (Fig. 6). Inlet and outlet valves change 1st stage is now completed. Fig. 5 - Screw valve head screws in Fig. 6 - Connect pipe connections and tighten LW 320 B Nautic AL - UK Page A - 55 Version: 14.01.2025...

  • Page 56: Replace Inlet And Outlet Valves 2Nd And 3Rd Stage

    Fig. 3 - Remove lower valve gasket Fig. 4 - Remove inlet and outlet valve Fig. 5 - Ensure correct mounting position of the upper valve gasket LW 320 B Nautic AL - UK Page A - 56 Version: 14.01.2025...

  • Page 57: Safety Valves

    If a safety valve blows off, it indicates problems with either inlet or outlet valve of the following stage. Note Replace defective safety valves immediately! Safety valve 3rd stage LW 320 B Nautic AL - UK Page A - 57 Version: 14.01.2025...

  • Page 58: Pressure Maintaining / Non Return Valve

    The value of the opening pressure of the pressure maintaining valve can be read at the final pressure gauge. When opening pressure is reached, the pressure gauge value increases within a few seconds. LW 320 B Nautic AL - UK Page A - 58 Version: 14.01.2025...

  • Page 59: Safety Valves Test

    13. Open all filling valves carefully to vent. The safety valve test is now completed. Note After switching off, open condensate drain valves manually to vent the unit. LW 320 B Nautic AL - UK Page A - 59 Version: 14.01.2025...

  • Page 60: Leak Test

    M A I N T E N A N C E A N D S E R V I C E Leak test / LW 320 B Nautic AL c/w ACD Note Do not fill any tank during test phase! Leak test as follows: Open condensate drain valves.

  • Page 61: Test Of Pressure Equipment

    2. Examination after 10 years by a qualified person or authorized organisations. Visual inspection, inside and outside. In addition, a water pressure test is carried out at 1.5 times of the permissible vessel operating pressure. LW 320 B Nautic AL - UK Page A - 61 Version: 14.01.2025...

  • Page 62: Maintenance Records

    M A I N T E N A N C E R E C O R D S A N D S T O R A G E...
  • Page 63 By adding themselves to this list, the person that signs it confirms having been given a yearly introduction/instruction about the function and operation of the compressor unit.Furthermore, they have be informed about the relevant safety rules and regualtions (TRG, DGRL, BetrSichV, GSG, GSGV). LW 320 B Nautic AL - UK Page A - 63 Version: 14.01.2025...
  • Page 64 M A I N T E N A N C E R E C O R D S Top up oil, oil change Date Operating hours Oil quantity [l] Name LW 320 B Nautic AL - UK Page A - 64 Version: 14.01.2025...

  • Page 65: Cartridge Change

    M A I N T E N A N C E R E C O R D S Cartridge change Date Operating hours Difference Name LW 320 B Nautic AL - UK Page A - 65 Version: 14.01.2025...

  • Page 66: Maintenance Work

    M A I N T E N A N C E R E C O R D S Maintenance work Description Date, signature LW 320 B Nautic AL - UK Page A - 66 Version: 14.01.2025...
  • Page 67 M A I N T E N A N C E R E C O R D S Replaced Parts Designation Part number Date, signature LW 320 B Nautic AL - UK Page A - 67 Version: 14.01.2025...

  • Page 68: Conservation / Storage Of The Compressor

    Check safety valve relief pressure of final stage and/or pressure switch setting. • Check all connections and pipe work for leaks. Once all above steps are completed, compressor unit is now ready for use. LW 320 B Nautic AL - UK Page A - 68 Version: 14.01.2025...

  • Page 69: Transportation Instructions / Disposal

    The device can be returned to L&W. Please do not hesitate to contact us if you have any further questions on this issue. LW 320 B Nautic AL - UK Page A - 69 Version: 14.01.2025...
  • Page 70 E R S A T Z T E I L L I S T E N / S PA R E PA R T S L I S T S D E TA I L A N S I C H T E N / D E TA I L E D V I E W S Version: 14.01.2025...
  • Page 71 Ölablassschlauch / Oil Drainage Tube ..................36 Motor / Engine ........................37 Lüfterrad / Cooling Fan ......................39 Fülleinrichtung / Filling Device ....................41 Füllventile / Filling Valves ......................43 LW 320 B Nautic AL C - 2 Version 14.01.2025...

  • Page 72: Komplette Einheit / Complete Unit

    Tragegriff Carrying Handle 001676 Standfuß, Gummi Rubber Foot 003123 Radsatz Wheel set 004303 Kondensatschlauchsatz (3 Stück) Set of Condensate Hoses (3 pieces) 006312 Frontgitter Front Guard 006313 Wartungsdeckel Service Cover LW 320 B Nautic AL C - 3 Version 14.01.2025...
  • Page 73 D E T A I L A N S I C H T / D E T A I L E D V I E W Komplette Einheit / Complete Unit 006313 003123 (Option) 006312 Abbildungen können abweichen! Figures may differ! 000113 001676 004303 LW 320 B Nautic AL C - 4 Version 14.01.2025...
  • Page 74 O-Ring 105x4 O-Ring 001314 O-Ring 130x4 O-Ring 001315 O-Ring 135x4 O-Ring 001323 CU-Ring Copper Seal Ring 001623 Zylinder 3. Stufe Cylinder 3rd Stage 001660 Winkelverschraubung mit Düse Elbow Connection c/w Jet LW 320 B Nautic AL C - 5 Version 14.01.2025...
  • Page 75 Crankcase Breather Hose 009852 Gewindestange M6x211mm Threaded bar 011092 Ölschauglas 3/4" Oil Level Indicator c/w gasket 011476 Distanzklotz Kompressorblock Spacer Compressorblock 011576 Ventilkopf 1. Stufe Valve Head - 1st Stage LW 320 B Nautic AL C - 6 Version 14.01.2025...
  • Page 76 E R S A T Z T E I L L I S T E / S P A R E P A R T L I S T Kompressorblock mit Ölpumpe SUNTEC Compressor Block with Oilpump SUNTEC LW 320 B Nautic AL C - 7 Version 14.01.2025...
  • Page 77 D E T A I L A N S I C H T / D E T A I L E D V I E W Kompressorblock mit Ölpumpe SUNTEC Compressor Block with Oilpump SUNTEC LW 320 B Nautic AL C - 8 Version 14.01.2025...

  • Page 78: Kurbelwelle / Crankshaft

    Crank Shaft 001673 Pleuel 2.+3. Stufe Connecting Rod 2nd/3rd Stage 001674 Pleuel 1. Stufe Connecting Rod 1st Stage 002149 Pleuellager oberes Small end bearing 002164 Pleuellager unteres Big end bearing LW 320 B Nautic AL C - 9 Version 14.01.2025...
  • Page 79 D E T A I L A N S I C H T / D E T A I L E D V I E W Kurbelwelle / Crankshaft LW 320 B Nautic AL C - 10 Version 14.01.2025...

  • Page 80: Lagerflansch / Bearing Flange

    Main bearing 002163 Simmerringdeckel Cover Shaft Seal 002165 Radial-Wellendichtring Radial shaft seal 011720 Lagerflansch Bearing flange (Oil pump) 012333 Distanzring, (Hauptlager) Spacer Tube 012339 Innerer Distanzring (Hauptlager) Inner Spacer Tube LW 320 B Nautic AL C - 11 Version 14.01.2025...
  • Page 81 D E T A I L A N S I C H T / D E T A I L E D V I E W Lagerflansch / Bearing Flange LW 320 B Nautic AL C - 12 Version 14.01.2025...

  • Page 82: Kolben 1. Stufe / Piston 1St Stage

    Best.-Nr. / Order No. Benennung Description 008985 Nasenring Ø 95 mm Lug ring 011400 Ölabstreifring Ø 95 mm Oil Scraper Ring Ø 95 mm 011401 Minutenring Ø 95 mm Taper-faced ring LW 320 B Nautic AL C - 13 Version 14.01.2025...
  • Page 83 D E T A I L A N S I C H T / D E T A I L E D V I E W Kolben 1. Stufe - ø 95 mm / Piston 1st Stage - ø 95 mm LW 320 B Nautic AL C - 14...

  • Page 84: Kolben 2. Stufe / Piston 2Nd Stage

    Guide piston 2nd + 3rd stage Nicht einzeln lieferbar / not available separatly Best.-Nr. / Order No. Benennung Description 006333 Minutenring ø40 Tappered ring 006334 Rechteckring ø40 Compression ring 006335 Nasenring Oils tapper ring LW 320 B Nautic AL C - 15 Version 14.01.2025...
  • Page 85 D E T A I L A N S I C H T / D E T A I L E D V I E W Kolben 2. Stufe - ø 40 mm / Piston 2nd Stage - ø 40 mm LW 320 B Nautic AL C - 16...

  • Page 86: Kolben 3. Stufe / Piston 3Rd Stage

    Guide piston 2nd + 3rd stage Nicht einzeln lieferbar / not available separatly Best.-Nr. / Order No. Benennung Description 004254 Nasenring ø18 Lug ring 006502 Rechteckring ø18 Rectangular ring 006503 Minutenring ø18 Taper-faced ring LW 320 B Nautic AL C - 17 Version 14.01.2025...
  • Page 87 D E T A I L A N S I C H T / D E T A I L E D V I E W Kolben 3. Stufe - ø 18 mm / Piston 3rd Stage - ø 18 mm LW 320 B Nautic AL C - 18...
  • Page 88 E R S A T Z T E I L L I S T E / S P A R E P A R T L I S T Saug und Druckventil 1. Stufe / In and outlet valve 1st stage Best.-Nr. / Order No. Benennung Description 002093 Saug-und Druckventil, 1. Stufe In & Outlet Valve 1st Stage LW 320 B Nautic AL C - 19 Version 14.01.2025...
  • Page 89 Upper Alloy Seal Ring 000542 Saug- & Druckventil, 2. Stufe komplett In- & Outlet Valve, 2nd Stage 000543 Saug- & Druckventil, 3. Stufe komplett In- & Outlet Valve, 3rd Stage LW 320 B Nautic AL C - 20 Version 14.01.2025...
  • Page 90 Wasserabscheider, 1. und 2. Stufe Water separa. 1st + 2nd Stage 002130 Halter für Sinterfilter G3/8" Holder for Sinterfilter G3/8" 002150 Haltebügel für Wasserabweiser LW280 U-Clamp Water Separator 003077 Entwässerungsventil G1/4“ Drain Valve G1/4“ LW 320 B Nautic AL C - 21 Version 14.01.2025...
  • Page 91 D E T A I L A N S I C H T / D E T A I L E D V I E W Wasserabscheider 1. und 2. Stufe Water Separator 1st and 2nd Stage LW 320 B Nautic AL C - 22 Version 14.01.2025...

  • Page 92: Filtergehäuse 1,7 L / Filter Housing 1.7 Ltr

    Filter key for 1,7 & 2,3 Liter 005244 O-Ring 16 x 2,5 NBR90 O-Ring Halteschale Endfiltergehäuse 350/420 012457 Spacer Bracket Filter Housing 012646 Filtergehäuse, kompl., 1,7 ltr., Pmax: 350 bar, A2-Abnahme LW 320 B Nautic AL C - 23 Version 14.01.2025...
  • Page 93 D E T A I L A N S I C H T / D E T A I L E D V I E W Filtergehäuse 1,7 l / Filter housing 1.7 ltr LW 320 B Nautic AL C - 24 Version 14.01.2025...

  • Page 94: Kühlrohre / Cooling Pipes

    Kühler 1.Stufe, Ø18mm CU-Rippenrohr Cooler 1st Stage 010584 Kühler 2.Stufe, Ø18mm CU-Rippenrohr Cooler 2nd Stage 010585 Kühler 3.Stufe, Ø8mm VA-Rippenrohr Cooler 3rd Stage 010606 Kühler LW 280, komplett Cooler LW 280, complete LW 320 B Nautic AL C - 25 Version 14.01.2025...

  • Page 95: Cooling Pipes

    D E T A I L A N S I C H T / D E T A I L E D V I E W Kühlrohre / Cooling Pipes LW 320 B Nautic AL C - 26 Version 14.01.2025...

  • Page 96: Druckhalteventil / Pressure Maintainig Valve

    Plastic Seal Piston PMV, black Rückschlagventil, schwarz Rückschlagventil, schwarz 000520 000520 Hohlschraube, DHRV Hohlschraube, DHRV Inlet Jet PMV Inlet Jet PMV 006278 006278 Zylinderschraube M6x50mm Zylinderschraube M6x50mm Allen Bolt Allen Bolt LW 320 B Nautic AL C - 27 Version 14.01.2025...
  • Page 97 D E T A I L A N S I C H T / D E T A I L E D V I E W Druckhalteventil / Pressure Maintaining Valve LW 320 B Nautic AL C - 28 Version 14.01.2025...

  • Page 98: Sicherheitsventil / Safety Valve

    Safety Valve 001815 Sicherheitsventil - Bauteilgeprüft Safety Valve 001816 Sicherheitsventil - Bauteilgeprüft Safety Valve 001817 Sicherheitsventil - Bauteilgeprüft Safety Valve 007548 O-Ring 16 x 2.0 NBR90 O-Ring, flange safety valve LW 320 B Nautic AL C - 29 Version 14.01.2025...
  • Page 99 D E T A I L A N S I C H T / D E T A I L E D V I E W Sicherheitsventil / Safety Valve LW 320 B Nautic AL C - 30 Version 14.01.2025...

  • Page 100: Ansaugfilter / Air Intake Filter

    Winged Nut, PVC black 001782 O-Ring, Ansaugfiltergehäuse O-Ring, Intake Filter Housing 009652 Gehäuse für Ansaugfilter Intake Filter Housing 009653 Deckel für Ansaugfilter Cover Intake filter housing 011874 O-Ring, Ø32x2mm FKM O-Ring LW 320 B Nautic AL C - 31 Version 14.01.2025...

  • Page 101: Ölpumpe „Suntec" / Oil Pump „Suntec

    Threaded Pin 011619 Gehäusedeckel, Version Ölpumpe Crankcase Cover, Oil Pump Vers 012416 Verschussschraube, inkl. Dichtung Plug c/w Gasket 012452 Ölsaugrohr Oil Suction Pipe 012453 Ölrohr Oil Pipe 012454 Ölrohr Oil Pipe LW 320 B Nautic AL C - 32 Version 14.01.2025...
  • Page 102 D E T A I L A N S I C H T / D E T A I L E D V I E W Ölpumpe „Suntec“ / Oil Pump „Suntec“ LW 320 B Nautic AL C - 33...
  • Page 103 011721 Sicherungsring DIN 472 ST I42 Circlip 011863 Rillenkugellager Deep Groove Ball Bearing 011864 Rillenkugellager Deep Groove Ball Bearing 012340 Mitnehmerwelle Ölpumpenantrieb Driving shaft oil pump drive 012342 Ölpumpen-Mitnehmerscheibe Ölpumpen-Mitnehmerscheibe LW 320 B Nautic AL C - 34 Version 14.01.2025...

  • Page 104: Mitnehmerwelle „Suntec" / Drive Shaft „Suntec

    D E T A I L A N S I C H T / D E T A I L E D V I E W Mitnehmerwelle „Suntec“ / Drive shaft „Suntec“ LW 320 B Nautic AL C - 35...
  • Page 105 Oil drain hose c/w ball valve 006417 Ölablassschlauch Oil drain hose 007982 Distanzstück für Einzelschelle Alloy Spacer for Pipe Clamp 008655 Linsenflanschschraube Innen6kt M6x12 Flange Button Head Screw 009772 Halter Öl-Ablassschlauch Holder Oil drain hose LW 320 B Nautic AL C - 36 Version 14.01.2025...
  • Page 106 006123 Augenschraube M10x90 mm Eye Bolt M10x90 mm 006286 Keilriemen SPA 1532 V-Belt 008968 Spannbuchse für Riemenscheibe Taper Lock bush 009777 U-Scheibe ZN 10,5 Washer 012425 Gewindestange (ablängen) Threated rod LW 320 B Nautic AL C - 37 Version 14.01.2025...
  • Page 107 D E T A I L A N S I C H T / D E T A I L E D V I E W Benzin-Motor / Petrol Motor LW 320 B Nautic AL C - 38 Version 14.01.2025...
  • Page 108 Ventilatorflügelblatt, schwarz Fan blade, black, new version 002336 Haltering Ventilatorflügel Fan blade holder 003273 Schwungrad, inkl. Schrauben & Haltering Flywheel c/w bolts & clampring 004550 Alu-Scheibe Schwungrad Washer, fly wheel LW 320 B Nautic AL C - 39 Version 14.01.2025...
  • Page 109 D E T A I L A N S I C H T / D E T A I L E D V I E W Lüfterrad / Fan Wheel LW 320 B Nautic AL C - 40 Version 14.01.2025...

  • Page 110: Fülleinrichtung / Filling Device

    Pressure Gauge Hose 001683 Schlauchanschlussstück, Alu Alloy Hose Connector G1/4" 002506 Einbaumanometer 0-250bar Pressure Gauge 0-250bar 003684 Füllventil Kreuzbauweise Filling Valve cross 003685 Füllventil Kreuzbauweise Filling Valve cross 004864 Hochdruckschlauch HP-Hose 650mm LW 320 B Nautic AL C - 41 Version 14.01.2025...
  • Page 111 D E T A I L A N S I C H T / D E T A I L E D V I E W Fülleinrichtung / Filling Device LW 320 B Nautic AL C - 42 Version 14.01.2025...

  • Page 112: Füllventile / Filling Valves

    Connection, S/S kegelig / M16x1,5 (8S) Füllventil Kreuzbauweise , DIN 200 bar 003684 Filling Valve cross ohne Manometer 003685 Füllventil Kreuzbauweise , DIN 300 bar Filling Valve cross ohne Manometer LW 320 B Nautic AL C - 43 Version 14.01.2025...
  • Page 113 D E T A I L A N S I C H T / D E T A I L E D V I E W Füllventil / Filling valve LW 320 B Nautic AL C - 44 Version 14.01.2025...
  • Page 114 D E T A I L A N S I C H T / D E T A I L E D V I E W Füllventil - Kreuzventil / Filling valve - Cross valve LW 320 B Nautic AL C - 45...
  • Page 115 O P T I O N S Version: 14.01.2025...
  • Page 116 Cylinder head temperature monitoring .................. 28 Automatic condensate drain ....................31 Air cooler connection kit ......................46 Condensate tank 60 litre ......................51 LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 2 Version 14.01.2025...

  • Page 117: Auto Start Function

    A U T O S T A R T F U N C T I O N LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 3 Version 14.01.2025...
  • Page 118 Reducing re-start pressure: turn adjusting screw anti- clockwise Adjust pressure switch in steps of a quarter turn. Check settings after every adjustment step. Pressure switch for start pressure LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 4 Version 14.01.2025...
  • Page 119 Fill compressed air cylinders to the desired pressure, subsequently close filling valves slowly. Close and vent all filling valves. Disconnect all compressed air cylinders from filling valves. LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 5 Version 14.01.2025...
  • Page 120 - turning the selector switch - tripping the emergency shut-off switch - opening of the doors or the cover the unit has to be restarted. LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 6 Version 14.01.2025...

  • Page 121: Spare Part Lists

    LED Element, Front, weiß LED element, white, 230V 005663 Einlegeschild Label 006859 Schildträger Label holder 000203 000797 000794 005663 006859 004691 004692 LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 7 Version 14.01.2025...

  • Page 122: Automatic Shut Down

    A U T O M A T I C S H U T D O W N LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 8 Version 14.01.2025...

  • Page 123: Final Pressure Switch

    This considerably reduces the life of the safety valve. Example settings: Safety valve Max. Operating Pressure 225 bar 215 bar 250 bar 240 bar 330 bar 320 bar LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 9 Version 14.01.2025...
  • Page 124 • Mount the cover of the switch box. • Connect the compressor to the electrical power supply. The safety valve test is now completed. Safety valve test switch (up) LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 10 Version 14.01.2025...
  • Page 125 • Turn the adjusting screw of the final pressure switch back (one turn counterclockwise). Pressure switch • Check the cut-out pressure. Adjust if necessary! The safety valve test is now completed. LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 11 Version 14.01.2025...
  • Page 126 Description 000203 Druckschalter 50-350 bar Pressure Switch 50-350 bar 000749 Verschraubung, mit fester Mutter Connection with fixed nut 000764 Winkelverschraubung Elbow connection LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 12 Version 14.01.2025...
  • Page 127 000751 T-Verschraubung 8L T-connection 8L Bei der Abschalt- automatik hat sich die Ausgangsverschraubung des Sicherheitsventils geändert. Hier ist nun ein T-Stück eingebaut! LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 13 Version 14.01.2025...

  • Page 128: Oil Pressure Gauge

    O I L P R E S S U R E G A U G E LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 14 Version 14.01.2025...
  • Page 129 • Turn adjusting screw clockwise Reduce oil pressure • Turn adjusting screw anti-clockwise Warning Only adjust the oil pressure at operating temperature! Adjusting the oil pressure LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 15 Version 14.01.2025...
  • Page 130 000777 Dichtring für Seal Ring for Pressure Gauge Manometerverschraubung 005226 Öldruckmanometer 0-6 bar, Oil Pressure Gauge 0-6 bar, G1/4" Radial G1/4" radial LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 16 Version 14.01.2025...

  • Page 131: Oil Pressure Monitoring

    O I L P R E S S U R E M O N I T O R I N G LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 17 Version 14.01.2025...
  • Page 132 • Oil temperature below +5 °C - lubrication not possible • Oil temperature higher than +120 °C - oil viscosity too low • Oil pump defective LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 18 Version 14.01.2025...
  • Page 133 Druckschalter inkl. Stecker 0,2 - 2 bar Oil Pressure Switch 0.2-2 bar 008995 Winkelverschraubung WE06LR1/4" Elbow Connection WE06LR1/4" 012471 Ölrohr Oil Pipe LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 19 Version 14.01.2025...
  • Page 134 Warnlampe Warning Lamp 004703 Schild Label 004704 Relais für Warnlampe Relais for warning lamp 006859 Schildträger Label holder 004703 006859 004701 004704 LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 20 Version 14.01.2025...

  • Page 135: Oil Temperature Monitoring

    O I L T E M P E R A T U R E M O N I T O R I N G LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 21...
  • Page 136 • Cooling air flow not sufficient • Oil level too low • Cooling pipes contaminated Warning Risk of burns! Allow the unit to cool before beginning troubleshooting. LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 22 Version 14.01.2025...
  • Page 137 Temperatursensor Öl, 10m Kabel Temperature Sensor Oil, cable 10m 011833 Temperaturanzeige digital ohne Sensor Temperature Digital Display 010926 (3m) 011833 011729 (10m) LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 23 Version 14.01.2025...

  • Page 138: Interstage Pressure Gauge

    I N T E R S T A G E P R E S S U R E G A U G E LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 24 Version 14.01.2025...
  • Page 139 The pressure gauges should show the following values at a final pressure of 300 bar: 1st stage: approx. 4.2 bar 2nd stage: approx. 42 bar 3rd stage: approx. 300 bar LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 25 Version 14.01.2025...

  • Page 140: Spare Part List

    Connection (1/8“ -> 6L) 001445 6L Manometerschlauch 600 mm 6L Hose for Pressure Gauge 600 mm 002507 Manometer 0-10 bar Pressure Gauge 0-10 bar LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 26 Version 14.01.2025...
  • Page 141 I N T E R S T A G E P R E S S U R E G A U G E Spare Part List 002507 000660 000663 001445 001445 001445 000710 LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 27 Version 14.01.2025...
  • Page 142 C Y L I N D E R H E A D T E M P E R A T U R E M O N I T O R I N G LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 28...

  • Page 143: Cylinder Head Temperature Monitoring

    • Cooling air flow not sufficient • Cooling pipes contaminated Warning Risk of burns! Allow the unit to cool before beginning troubleshooting. LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 29 Version 14.01.2025...
  • Page 144 Temp. Sensor Cylinder Head PT1000, 10m Kabel PT1000, 10m cable 011833 Temperaturanzeige digital ohne Sensor Temperature Digital Display 011833 010927 (3m) 011727 (10m) LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 30 Version 14.01.2025...

  • Page 145: Automatic Condensate Drain

    A U T O M A T I C C O N D E N S A T I O N D R A I N LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 31...

  • Page 146: Automatic Condensation Dump System

    All oil / water separators have an integrated sinter filter which has to be replaced every 1,000 operating hours. Oil / water separators final stage LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 32 Version 14.01.2025...
  • Page 147 • Mount the cover of the switch box. • Connect the compressor to the electrical power supply (compressor vented). Leak test switch (lower) The leak test is now completed. LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 33 Version 14.01.2025...
  • Page 148 12. Put back the throttle lever (Fig. 2). Fig. 2 - Choke / Throttle lever / Fuel valve The leak test is now completed. LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 34 Version 14.01.2025...

  • Page 149: Oil / Water Separators Final Stage - Maintenance

    The oil / water separator maintenance is now completed. Fig. 1 - Loosen ring nut Fig. 2 - Change sinter filter Fig. 3 - Change o-ring LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 35 Version 14.01.2025...

  • Page 150: Pneumatic Condensate Valve - Maintenance

    • Tighten pipe connections and mounting screws. Pneumatic Condensate Valve Pneumatic condensate valve maintenance is now completed. Fig. 2 - Loosen connection Fig. 3 - Change sinter filter LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 36 Version 14.01.2025...
  • Page 151 Water Separator w/o bowl & bra (kompl. montiertes Oberteil) 005856 Winkeleinschraubverschraubung 8 mm, Elbow Hose Connection 8 mm G1/8" - 8 mm, inkl. Mutter LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 37 Version 14.01.2025...
  • Page 152 A U T O M A T I C C O N D E N S A T I O N D R A I N Öl- / Wasserabscheider Endstufe / Oel- / Water Separator Final Stage LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 38...
  • Page 153 Housing PCV 011066 Düsenschraube Inlet Jet Screw 011072 Verschlussstopfen für 011064 Plug for 011064 011559 Reparatursatz pneum. Kondensatventil Repair Kit Condensate Valve LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 39 Version 14.01.2025...
  • Page 154 A U T O M A T I C C O N D E N S A T I O N D R A I N Pneum. Kondensat-Ablassventil / Pneumatic Condensate Valve LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 40...
  • Page 155 Magnetventil 40/80 bar, ohne Spule Solenoid Valve, Housing(w/o coil) 006113 Magnetventil 0-55 bar, komplett mit Spule Solenoid 0-55 bar, complete (c/w coil) LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 41 Version 14.01.2025...
  • Page 156 009996 Kondensatschlauch, Ø8x1,5, L: 580mm Condensate Hose Ø8x580mm 009997 Kondensatschlauch, Ø8x1,5, L: 612mm Condensate Hose Ø8x612mm 012586 Verstärkungsblech 4-fach Support Plate 4-way LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 42 Version 14.01.2025...
  • Page 157 A U T O M A T I C C O N D E N S A T I O N D R A I N Kondensat-Sammelbehälter / Condensate collecting tank LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 43...
  • Page 158 Label holder 008153 Taster rot, komplett, inkl. LED Leuchte Button, colour: red, c/w LED 012802 Aufkleber LW Standard Steuerung Sticker LW Standard Control LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 44 Version 14.01.2025...
  • Page 159 A U T O M A T I C C O N D E N S A T I O N D R A I N Schalttafel / Control Board 004701 012802 003121 002089 (Option) 004691 002504 002503 002502 008153 004692 005663 006859 LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 45 Version 14.01.2025...

  • Page 160: Air Cooler Connection Kit

    A I R C O O L E R C O N N E C T I O N K I T LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 46 Version 14.01.2025...
  • Page 161 U-pipe and the compressor is ready for use. Air cooler connection kit Note Indicates additional information on how to use the unit. LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 47 Version 14.01.2025...
  • Page 162 A I R C O O L E R C O N N E C T I O N K I T Spare Part List Best.-Nr. / Order No. Benennung Description 000902 Schottverschraubung Elbow Bulkhead Fitting 006860 Rohrbogen U-Connection 006860 000902 LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 48 Version 14.01.2025...
  • Page 163 001816 Sicherheitsventil - Bauteilgeprüft Safety Valve 001817 Sicherheitsventil - Bauteilgeprüft Safety Valve 007548 O-Ring 16 x 2.0 NBR90 O-Ring, flange safety valve LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 49 Version 14.01.2025...
  • Page 164 A I R C O O L E R A N S C H L U S S K I T Sicherheitsventil (Option Air Cooler) / Safety valve (Option Air Cooler) LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 50...

  • Page 165: Condensate Tank 60 Litre

    C O N D E N S A T E T A N K 6 0 L T R . LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 51 Version 14.01.2025...

  • Page 166: Technical Data

    Two sturdy carrying handles ensure a safe transportation. Technical Data: • Dimensions: Ø 400 mm x 800 mm • Weight: 20 kg LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 52 Version 14.01.2025...
  • Page 167 3 Metal filter Maintanance intervals We recommend to change the activated carbon if it has reached the saturation level (smell of oil). LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 53 Version 14.01.2025...

  • Page 168: Spare Part Lists

    60L, für 3-stufige Kompressoren 004057 Kondensatschläuche Kondensatbehälter Set of condensate hoses, 4 stages 60L, für 4-stufige Kompressoren 004056 (3x) 004057 (4x) 003091 LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 54 Version 14.01.2025...
  • Page 169 Schnellkupplung G1/4", DN 7,2 Quick connector G1/4",DN 7,2 006642 Metallgestrick für Kondensatbehälter 60 Metal filter insert 60 ltr tank 004789 000508 003866 006642 LW 320 E Nautic AL - LW 320 B Nautic AL - UK D - 55 Version 14.01.2025...
  • Page 170 A T T A C H M E N T Version: 11/12-E...
  • Page 171 OPERATING INSTRUCTION FOR SAFETY VALVE Lenhardt & Wagner GmbH An der Tuchbleiche 39 D-68623 Lampertheim – Hüttenfeld www.lw-compressors.com Operating Instruction Safety valve Typ: SiV2 BKZ TÜV.SV.24-1140.5.G.V.P CE 0091 AlMgSi1 F31 1100* Lenhardt & Wagner Set pressure: see mark (hand wheel on top of valve) Maximum outflow: Set pressure 100-159 bar: 750 l / min...
  • Page 172 OPERATING INSTRUCTION FOR SAFETY VALVE In order to prevent manipulation of the set pressure, all safety valves are factory fitted with a seal. A safety valve on which the seal has been removed, must be returned to the manufacturer for repair / adjustment before further use.
  • Page 173 OPERATING INSTRUCTION FOR SAFETY VALVE Manufacturer: Lenhardt & Wagner GmbH An der Tuchbleiche 39 D-68623 Lampertheim – Hüttenfeld Contact: E-Mail: service@lw-compressors.com Web: www.lw-compressors.com Tel.: +49 (0) 6256 – 85880 0 Fax: +49 (0) 6256 – 85880 14 Note: Only use safety valves which are in a technically perfect condition, for its intended purpose, safety and danger awareness, in compliance with the operating instructions! Faults which could affect safety must be rectified immediately! Notes:...
  • Page 174 I N F O R M A T I O N O N T H E S E R V I C E L I F E O F L & W H I G H P R E S S U R E H O S E S...
  • Page 175 C O N T E N T S Testing hose lines Testing hose lines ..........................3 Testing after assembly and before commissioning ................3 Recurring test ............................ 4 Procedure for hose lines found to be "defective" ................4 Test intervals ............................4 Persons qualified to test hose lines ....................

  • Page 176: Testing Hose Lines

    T E S T I N G H O S E L I N E S Testing hose lines Ein An essential factor in ensuring operational safety when handling L&W compressors is the proper testing of the hose lines used. Tests are necessary: •...

  • Page 177: Recurring Test

    T E S T I N G H O S E L I N E S Recurring test Since hose lines are subject to influences that cause damage during operation and can lead to dangerous situations, they must be tested recurrently at fixed intervals. The aim of recurring tests is to detect and repair damage in good time.

  • Page 178: Persons Qualified To Test Hose Lines

    T E S T I N G H O S E L I N E S Persons qualified to test hose lines A qualified person is a person who, through his or her professional training, professional experience and recent professional activity, has the necessary specialist knowledge required for testing work equipment - in this case for testing hose lines.

  • Page 179: Replacing Hose Lines

    M A I N E N T A N C E Auswechseln Replacing hose lines As a general rule, even when stored properly and subjected to permissible stress during use, all hose lines are subject to natural aging, which changes the material and composite properties and reduces the performance of the hose lines.

  • Page 180: Service Life

    S E R V I C E L I F E Service life of L&W high pressure hoses When determining the service life or the replacement interval of the individual hose lines, the concrete specifications and recommendations of the hose line or machine manufacturer must be observed. Furthermore, empirical values resulting from previous tests done under the prevailing operating conditions on site are also relevant.

  • Page 181: Storage

    S T O R A G E Storing hose lines When storing hose lines, storage conditions must be aimed at minimizing the natural aging that occurs over time and the associated change in material and composite properties. For this purpose, the following information must be provided: •...
  • Page 182 A N N E X...
  • Page 183 A N N E X : S C O P E O F T E S T I N G , T E S T C R I T E R I A Recommended scope of testing "visual inspection" (before initial commissioning or recommissioning) •...
  • Page 184 A N N E X : S C O P E O F T E S T I N G , T E S T C R I T E R I A Recommended scope of testing "Functional test" (before initial or recommissioning) Note: Visual inspection must be carried out before the functional test...

Table of Contents
