Truflo
— TIP | TI3P Series
®
Insertion Paddle Wheel Flow Meter Sensor

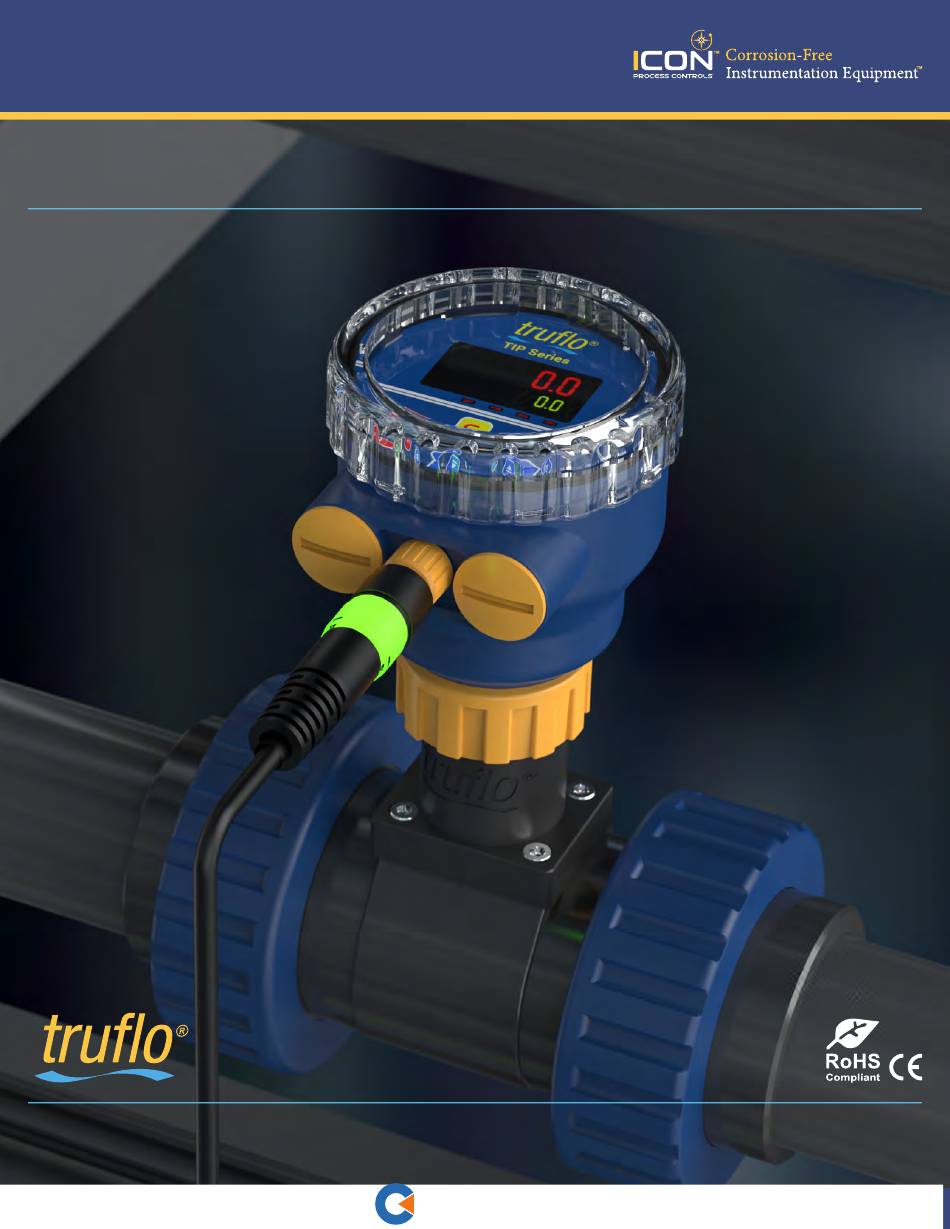

Quick Start Manual
Read the user's manual carefully before starting to use the unit.
Producer reserves the right to implement changes without prior notice.
Valuetesters.com
Find Quality Products Online at:
info@valuetesters.com
1
24-0500 © Icon Process Controls Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Truflo TI3P Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ICON Truflo TI3P Series

Summary of Contents for ICON Truflo TI3P Series

  • Page 1 Insertion Paddle Wheel Flow Meter Sensor Quick Start Manual Read the user's manual carefully before starting to use the unit. Producer reserves the right to implement changes without prior notice. Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.

  • Page 2: Safety Information

    Sensor may be under pressure. Take caution to vent system WARNING prior to installation or removal. Failure to do so may result in equipment damage and/or serious injury. Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.

  • Page 3: Product Description

    Up to 15x the Wear Resistance Integral Rotor Bushings Reduce Wear and Fatigue Stress 360º Shielded Rotor Design Eliminates Finger Spread No Lost Paddles TI3P 316 SS Thermal Plastic vs. Competitor Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.

  • Page 4: Technical Specifications

    ‘R’ - RS485 Communication Output - $100 1" - 4" TIP-PF-S PVDF 6" - 24" TIP-PF-L PVDF Add Suffix - ‘E’ - EPDM Seals ‘R’ - RS485 Communication Output - $100 Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.

  • Page 5: Display Characteristics

    Insertion Paddle Wheel Flow Meter Sensor Display Characteristics LED Display Flow Total Selected Unit Flow Rate See Pg.10 for details M12 Connection Unit | Output Indicators Dimensions (mm) 91.7 91.7 Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.

  • Page 6: Wiring Diagram

    (Refer Pulse Control Programmming, Page 11) Wire Color Description Wire Color Description Brown + 10~30VDC Brown + 10~30VDC White Paddle Pulse White Pulse Output Blue -VDC Blue -VDC Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.

  • Page 7: Installation

    Ensure tab is parallel to flow direction. • Ensure meter is firmly in place Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.

  • Page 8: Installation Positions

    Air Bubbles may be Present Air Bubbles may be Present may be present *Maximum % of solids: 10% with particle size not exceeding 0.5mm cross section or length Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.

  • Page 9: Min/Max Flow Rates

    8" | DN200 315.0 | 82.0 10395.0 | 2735.0 * Optional °F °C Note: During system design the specifications of all components 316SS PVDF must be considered. | Non-Shock Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.
  • Page 10 CV < SV : Totalizer Output (OP2) OFF Note: Refer Pulse Control Programming (Pg 11) ■ Refer Page 6 for SSR* Wiring *SSR - Solid State Relay Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.
  • Page 11 [SV - Hys] — ▶ Relay OFF: CV > [SV + Hys] or CV < [SV - HyS] — ▶ Relay ON Hys = Hysteresis — Acts like a buffer ± around (OP1) pulse output CV: Current Value (Flow Rate) | SV = Set Value Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.

  • Page 12: Totalizer Reset

    Pull out Pull out Insert new paddle in flow meter Paddle Push in pin GENTLY tap Congratulations! approx. 50% Replacement procedure is complete! Ensure holes are aligned Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.

  • Page 13: Installation Fittings

    Glue-On Adapter – CPVC Glue-On Adapter Size Part Number 2”- 4” • 2”-24” Pipe Sizes 6”- 24” PG24 • Easy to Install • Will Accept Signet Flow Meter ® Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.
  • Page 14 $ 636.00 • Will Accept Signet Type Flow ® 1 ½" SSF015 $ 658.00 Meter 2" SSF020 $ 696.00 3" SSF030 $ 1,098.00 4" SSF040 $ 1,599.00 Valuetesters.com Find Quality Products Online at: info@valuetesters.com 24-0500 © Icon Process Controls Ltd.
