ABSCO SHEDS 30302EZK Manual

Ezislider shed
Hide thumbs

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
NZ: 0800 466 444
3100
2950
BASE: 3100 W x
3130 D x 100 H
REBATE: 2950 W x
2950 D x 25 H
FRONT
For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2021.
If you require a higher wind rating please contact
us: admin@absco.com.au or 1800 029 701
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
*Most models available
Absco Industries
Assembly Instruction Manual
ABSCO EZISLIDER SHED
MODEL: 30302EZK
3.00mW x 3.06mD x 2.06mH
admin@absco.com.au
www.abscosheds.com.au
75
75
105*
Model: 30302EZK
SHED & TRACK
SIT ON THIS LEVEL
100
75
25
When laying concrete slab, ensure there is a
rebated edge. 75mm wide x 25mm tall to the
sides and rear, *the front is 105mm wide to
allow for the track.
PLEASE LEAVE A REVIEW
Tell us about your experience!
Visit www.abscosheds.com.au/review
06/02/2025
105*
1.3
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 30302EZK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABSCO SHEDS 30302EZK

Summary of Contents for ABSCO SHEDS 30302EZK

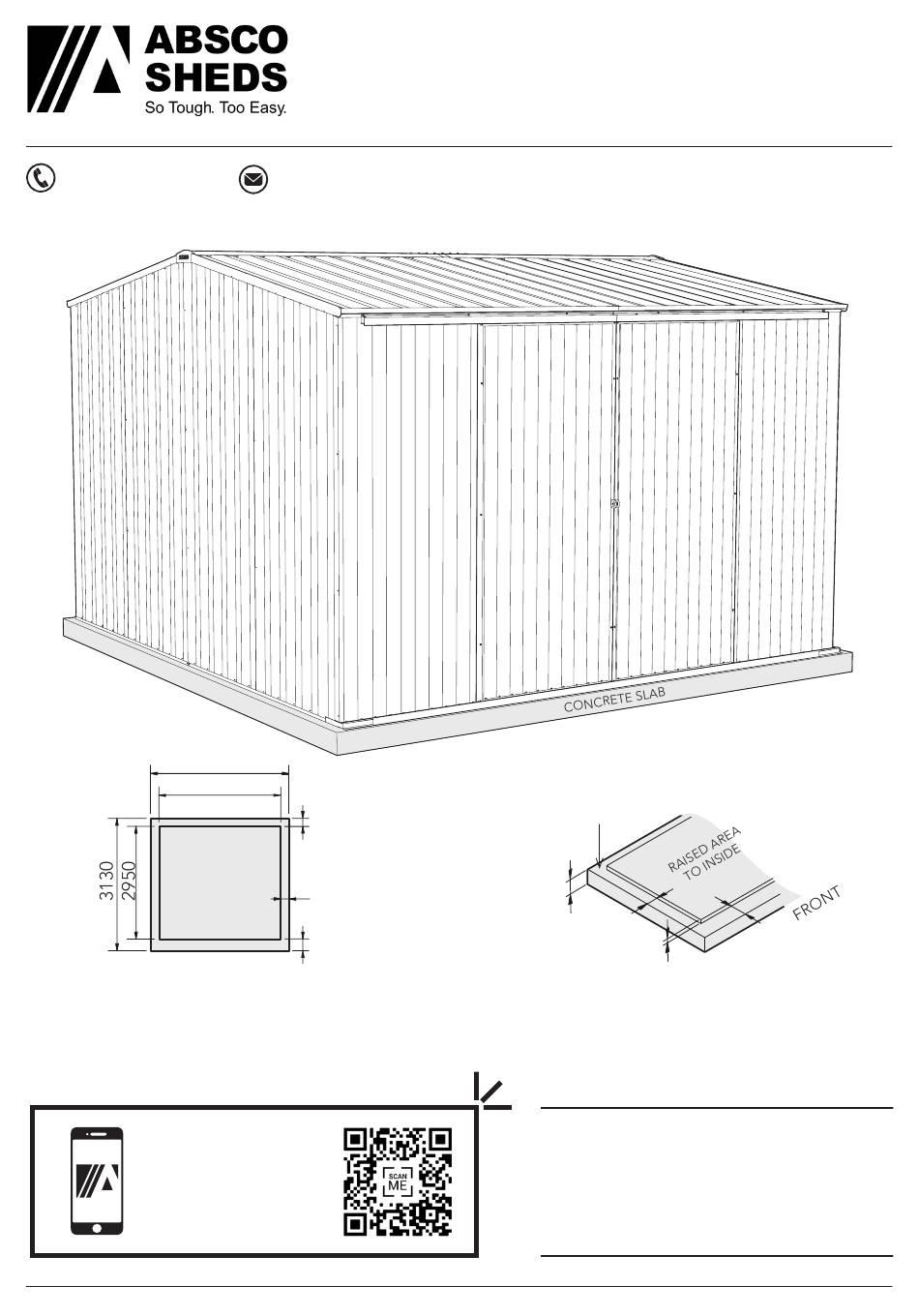

  • Page 1 ABSCO EZISLIDER SHED MODEL: 30302EZK 3.00mW x 3.06mD x 2.06mH AU: 1800 029 701 admin@absco.com.au NZ: 0800 466 444 www.abscosheds.com.au 3100 2950 SHED & TRACK SIT ON THIS LEVEL BASE: 3100 W x 3130 D x 100 H REBATE: 2950 W x...
