Summary of Contents for Lumber Jack SS457V

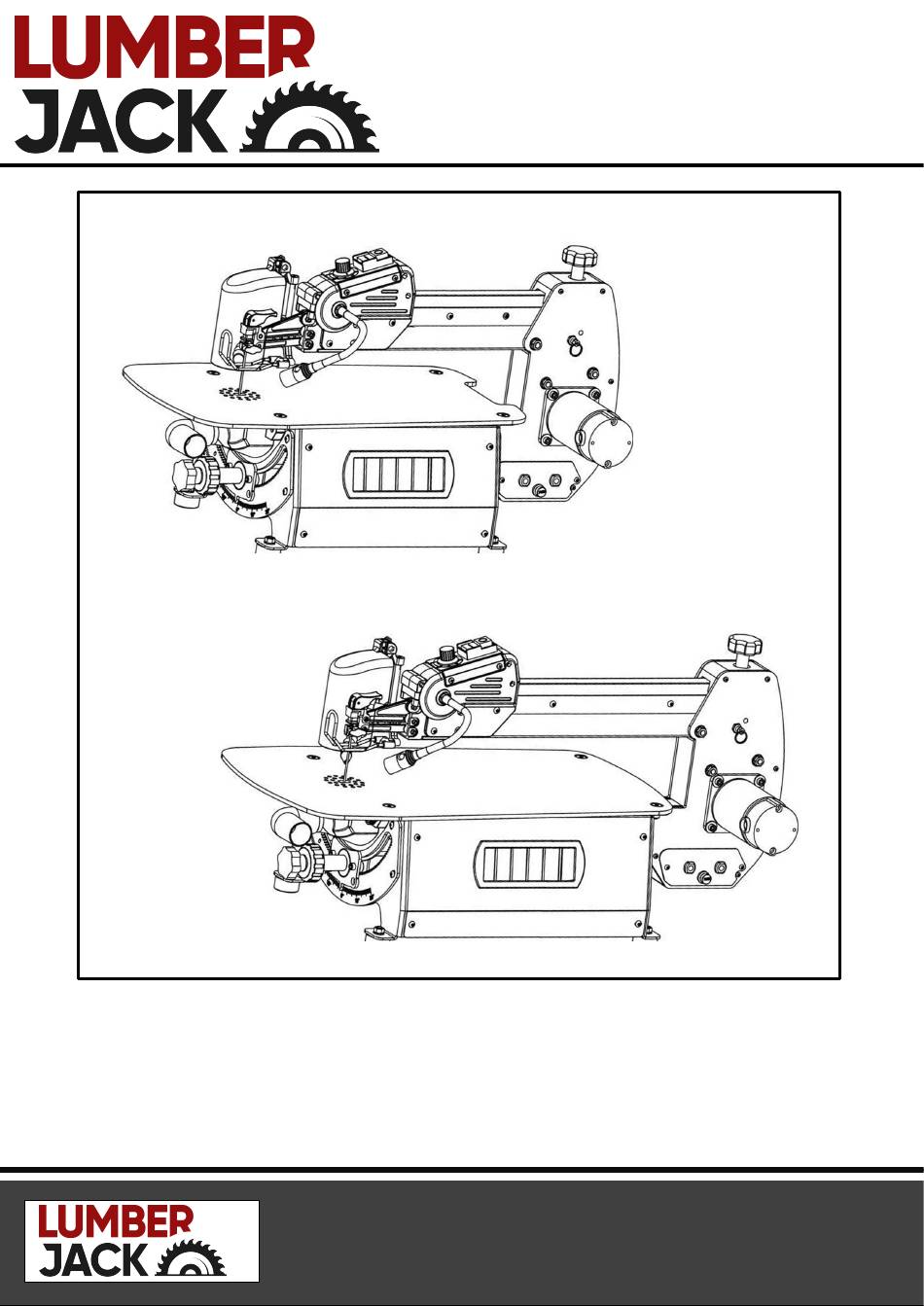

- Page 1 Professional Variable Speed Scroll Saw SS457V / SS558V O RIGINAL INSTRUCTIONS...
-
Page 2: Product Specifications
This will provide a better working knowledge of the machine, for increased safety and to obtain the best results. PRODUCT SPECIFICATIONS Attention: Please choose proper power source, voltage and frequency that are shown on the label of your scroll saw. SS558V Model SS457V Voltage 230V/50Hz 230V/50Hz Motor Power Throat depth 460mm (18") -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SYMBOLS Read and understand the entire instruction manual before attempting assembly or operation. Attention，General safety notice. Risk of electric shock! Risk of personal injury by electric shock. Always wear safety goggles and ear protection. Always wear dust protection. Always tie back or cover long hair. - Page 4 cover long hair. Wear non-slip footwear to reduce risk of slipping and losing control or accidentally getting in contacting with the tools moving parts. Keep work area clean. Cluttered areas and benches invite accidents 10. Use proper extension cord. Make sure your extension cord Is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw.
- Page 5 products. This machine is NOT designed to cut metal, glass, stone, tile, etc. Connect the dust suction hoods to and adequate suction system; suction must always be activated when the machine is switched on. 33. Scroll saw must be secured to a sturdy foundation. If there is a tendency for the stand or workbench to move, it must also be secured to the floor.
-
Page 6: Electrical Requirements
ELECTRICAL REQUIREMENTS POWER SUPPLY AND MOTOR SPECIFICATIONS WARNING: To avoid electrical hazards, fire hazards, or damage to the tool, use proper circuit protection. Use a separate electrical circuit for your tools. To avoid shock or fire, if power cord is worn or cut, or damaged in any way, have it replaced immediately! GROUNDING INSTRUCTIONS WARNING:... -
Page 7: Accessories And Attachments
ACCESSORIES AND ATTACHMENTS RECOMMENDED ACCESSORIES WARNING: To avoid injury: • Use only accessories recommended for this machine. • Follow instructions that accompany accessories. Use of improper accessories may cause hazards. • Use only accessories designed for this machine to avoid injury from thrown broken parts or workpieces. •... -
Page 8: Installation
INSTALLATION Transporting and mounting the saw ⚫ Do not lift or move the scroll saw using the upper arm, or internal linkage system as it could be damaged. Lift using the side storage box or motor and edge of the table. Upper arm Lifting point Lifting point... - Page 9 ⚫ To improve stability, minimise vibration and prevent the machine from moving while working, we recommend removing the hex nuts and feet, fasten the scroll saw base to a workbench by using lag screws and washers. Lag screws and washers Connecting the dust collection system Warning: DO NOT operate the scroll saw without an adequate dust collection system.
- Page 10 IDENTIFICATION Become familiar with the names and locations of the control features shown below to better your of this tool. understanding Arm adjusting knob Speed control Switch Upper arm Upper guard Quick release Motor Table L hose fitting Fuse Tool storage box LED light Rubber Foot Blade tension...
-
Page 11: Replacing The Blade
ADJUSTING WARNING: Always be sure that the machine is switched off and unplugged before any adjustments. 1. Tilting arm ⚫ The arm can be tilted up to 30°left or 45°right for bevel cut, so the so the workpiece is always in a horizontal position, with no risk of sliding off the table. - Page 12 For pin-end blades ⚫ Rotate the blade tension handle upward to release tension. If needed, rotate the arm adjusting knob to lower the upper arm. ⚫ Remove the old blade from the upper and lower blade mounting brackets. ⚫ Place a new blade through the table slot onto the blade mounting brackets, with the blade's teeth facing toward you and pointing down.
-
Page 13: Adjusting Blade Speed
Adjusting blade speed Rotate speed control knob while saw is running clockwise to increase blade strokes per minute, counterclockwise to decrease. To reduce the risk of injury from unexpectedly fast speed at startup, always rotate the speed control knob all the way counterclockwise before starting and after stopping the scroll saw. -
Page 14: Basic Cutting Tips
OPERATIONS Basic Cutting Tips ⚫ Always use a clean, sharp blade. ⚫ Guide the wood into the blade slowly to prevent blade breakage. ⚫ You will achieve best results when cutting wood less than 25mm (1″) thick. When cutting stock thicker than 25mm (1″), guide the stock very slowly into the blade, taking care not to bend or twist the blade. - Page 15 2. Make inside cuts Drill pilot holes in workpiece just large enough for blade insertion. Rotate the blade tension handle and loosen the upper blade lock knob to release the blade upper end. Raise upper arm until the quick release pin automatically pops in to hold it in place.. Place workpiece hole through the blade and over the slot in table.
-
Page 16: Saw Blade Selection
4. Saw blade selection Scroll saw blades are classified as either "pin-end" (mounting pins in the ends of the blade) or "plain-end" (no pins), Both of them can be used on this scroll saw. The plain end saw blade is mounted with locking handle, and the pin-end saw blade is mounted by positioning the pin in the v-notch. -
Page 17: Troubleshooting
TROUBLESHOOTING Trouble Possible Cause Solution Incorrect power supply voltage Ensure correct power supply voltage Damaged cord or plug. Inspect and replace. Carbon brushes worn. Replace brushes. Motor will not start. Blown fuse. Replace fuse/ensure no shorts Switch at fault. Replace switch. Circuit board at fault. -
Page 18: Maintenance
MAINTENANCE Warning! Always be sure the machine is switched off and disconnected the plug from the power supply before inspection and maintenance ⚫ Adjusting upper arm tension With regular use the arm may develop play which can have a bad influence. Regularly check the play in the arm and adjust if necessary. - Page 19 Fig 1 Fig 2 Carefully move frame to bring blade square with table. Tighten front and rear button head cap screws Install hold-down shoe and upper guard. ⚫ Checking and replacing motor brush The motor is equipped with two long-life carbon brushes one on each side of the motor.
-
Page 20: Assembly Diagram
Assembly Diagram... -
Page 21: Part List
PART LIST Description QTY. Description QTY. Control panel assembly 6.21 Upper bracket Switch 6.22 Air nozzle Speed control knob 6.23 Hold-down rod Switch mounting plate 6.24 Hold-down shoe Speed dial 6.25 Socket head screw M4X12 Self tapping screw 6.26 Connecting base Switch box assembly 6.27 Bellows... - Page 22 Description QTY. Description QTY. Hex head bolt M8X65 40.3 Lock nut M5 Spacer pipe 40.4 Hex nut M4 Self tapping screw 40.5 Hinge Rocker cam assembly L hose fitting 19.1 Set screw M6X8 Flat head screw M8X20 19.2 Limit collar Table 19.3 Shaft...
- Page 23 Description QTY. Description QTY. Motor Socket head screw M4X12 Flat washer 6mm Upper guard support Socket head screw M6X16 Wing screw M5x20 Power cord Upper guard Inner cable Hex nut M5 Plastic cover Cable tie Socket pan head screw M4X10 Terminal Inner cable Nylon set screw...
- Page 24 Unit C, Manders Ind. Est., Old Heat h Road, Wolverhampton, WV1 2RP. Declare that the product: Designation: Professional Variable Speed Scroll Saw Model: SS457V / SS558V Standards & technical specifications referred to: Authorised Technical File Holder: Bill Evans 01/08/2024 The Director...
