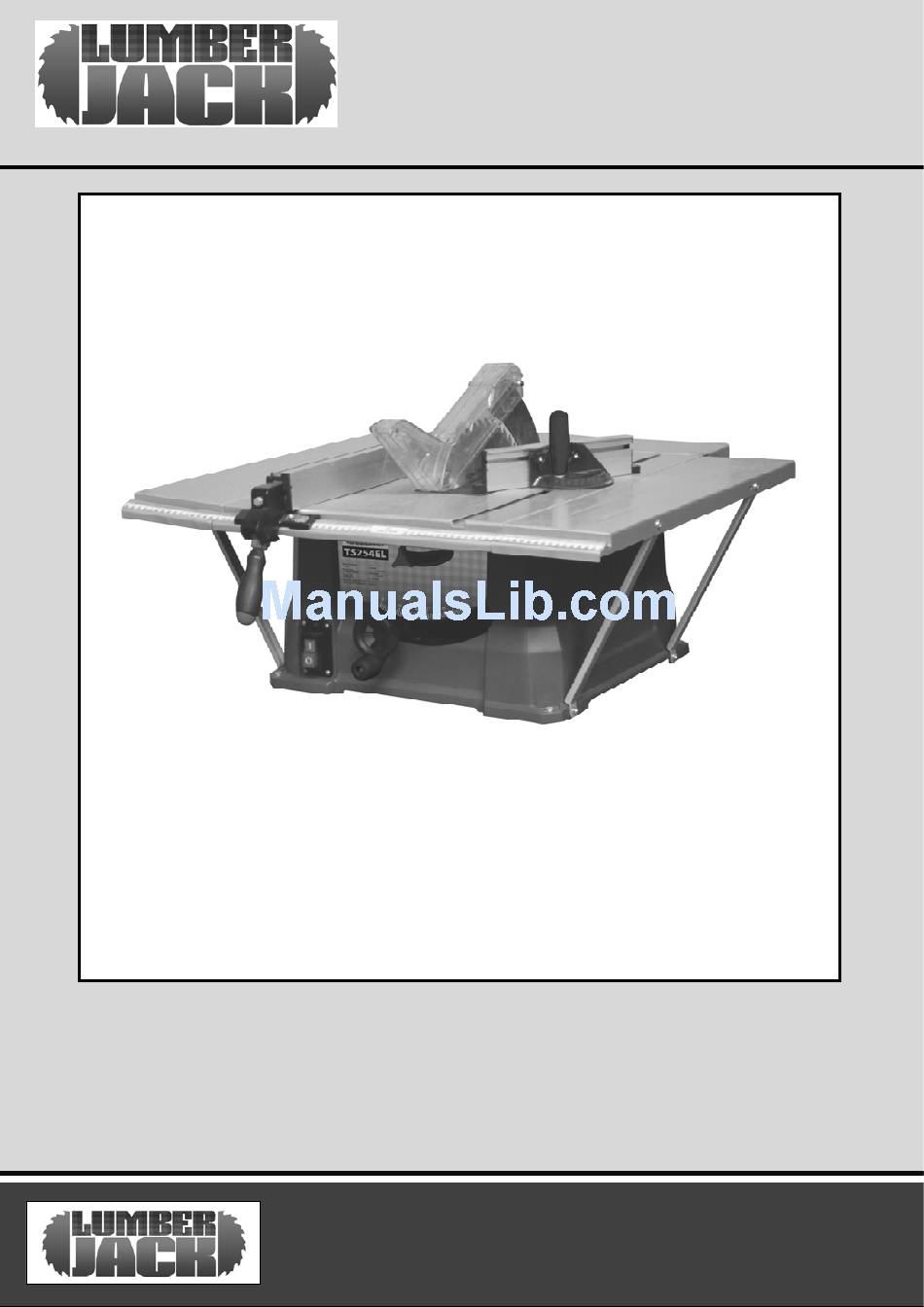

- Page 1 SAFETY AND OPERATING MANUAL 254mm Table Saw with Rear & Side Extensions TS254EL ORIGINAL INSTRUCTIONS TS254EL...
-
Page 2: Table Of Contents
Closely observe all safety information in these instructions! General Power Tool Safety Warnings………………………………….…..01 Symbols & Cable Rating Chart ……….…………………………………….………05 Machine Details and Product Features……….…………………………….….06 Assembly……………………………………………………………………………………..07 Operation, Maintenance and Service…………………………………………..11 Working Advice……………………………….…………………………………………..12 Maintenance and Service………………………………..…………………………..13 Lumberjack Guarantee………….…………………………………………………….14 Declaration of Conformity……………………………………………………………16 Parts List…………..………………………………………………………………………...17 Parts Diagram………………………………………………………………………………20 TS254EL... -
Page 3: General Power Tool Safety Warnings
A wrench or a key left c) Do not expose power tools to rain or wet attached to a rotating part of the power tool may conditions. Water entering a power tool will result in personal injury. increase the risk of electric shock. TS254EL... - Page 4 Use power tools only with specifically operate the power tool. Power tools are designated battery packs. Use of any other dangerous in the hands of untrained users. battery packs may create a risk of injury or fire. TS254EL...
- Page 5 Always adjust the blade guard in such a manner that it faces loosely against the work piece when sawing. Never clamp the blade guard when it is open. TS254EL...
- Page 6 Store the machine in a safe manner when not being used. The storage location must be dry and lockable. This prevents the machine from storage damage, and from being operated by untrained persons. TS254EL...
-
Page 7: Symbols & Cable Rating Chart
Caution! Wear a dust mask. Amperes 7.5M 0 – 2.0 2.1 – 3.4 3.5 - 5.0 5.1 – 7.1 7.1 – 12.0 12.1 – 20.0 TS254EL... -
Page 8: Machine Details And Product Features
3. Bench Inlay 4. Mitre Handle Package Contents: 5. Height Handle Circular saw bench 6. Fence Scale Saw blade 7. On/Off Switch Push stick 8. Thermic Safety Switch Mitre Gauge Parallel Guide Fence Blade Wrench TS254EL AIR6V AIR6V AIR6V AIR6V... -
Page 9: Assembly
Certain dusts such as oak or beech dust are considered carcinogenic, particularly in combination with wood treatment additives(chromate, wood preservatives). Materials containing asbestos may only be processed by experts. – Now repeat for the other side extension. TS254EL... -
Page 10: Assembly Instructions
(see Attaching the Parallel Fence) – Alternatively you can insert the nuts into the front scale first, and then match them up to the hole and bolts the scale on this way. TS254EL... - Page 11 Attach the Dust Extractor move the fence near to the blade. – Connect the suction tube of the vacuum cleaner to the suction nozzle. Now adjust the screws so that the fence (A) runs parallel to blade. This ensures a straight cut. TS254EL...
- Page 12 The dust extractor can be blocked by dust, chips or fragments of the workpiece. – Turn off the product and unplug the mains plug. – Allow the saw blade to come to a complete standstill. – Determine and remedy the cause of the blockage. TS254EL...
-
Page 13: Operation, Maintenance And Service
– Set the cutting height by turning the crank. Adjusting the Saw Blade Tilt – Undo the locking handle. – Adjust the tilt angle by turning the hand wheel. The set tile angle can be read from the scale. – Tighten the locking handle. TS254EL... -
Page 14: Working Advice
Observe the following instructions: – Hold the work piece securely with both hands and press it firmly against the saw table. – When sawing narrow work pieces and bevel angles, always use the supplied hold-down stick. TS254EL... -
Page 15: Maintenance And Service
– For safe and proper working, always keep the power too land its ventilation slots clean. – Remove dust and chips after each working procedure by blowing out with compressed air or with a brush. – Remove outer flange and blade. TS254EL... -
Page 16: Lumberjack Guarantee
This letter should be then sent with proof TS254EL... - Page 17 This Guarantee is offered as an extra benefit and does not affect your statutory rights as a consumer. 4. Notice This Guarantee applies to all product purchased from an Authorised Dealer of Lumberjack within the United Kingdom. Terms of Guarantee may vary in other countries. TS254EL...
-
Page 18: Declaration Of Conformity
Old Heath Road, Wolverhampton, WV1 2RP. Tel: 01902 450 470 Declares that the TABLE SAW(TS254EL) Is in compliance with the regulations included in the Directives:2006/95/EC EC DECLARATION OF CONFORMITY Certificate for EC-type examination delivered by TÜV Rheinland LGA Product Service GmbH- Tillystraße 2-90431 Nürnberg (Registration No.:BM 50303375 0001) -
Page 19: Parts List
Clamping block Screw Spring pin Tri-angle knob Pin axis B Flat washer Eccentric wheel Locking knob Handle body Bolt Handle cover Blade guard (left) Scale label Left extension table Closure plate B Riving knife Front rail TS254EL AIR6V AIR6V AIR6V... - Page 20 Friction plate Overload protection Holder A Switch box cover Big flat washer Tight line left and right support Screw Screw Shaft Collar Locking bush Bevel gear Flat key Position block Lift adjustment lever Column-pad Cabinet Guide column TS254EL AIR6V AIR6V AIR6V...
- Page 21 Big flat washer Screw Vane Riving knife plate Gap film Position block Holder A Position pin Screw Fixed block Rear extension table Comfort studdle Bearing hexagon bolt Rotor assembly Screw Stator Bearing Damping ring Case Brush holder TS254EL AIR6V AIR6V AIR6V...
-
Page 22: Parts Diagram
Parts Diagram TS254EL...
