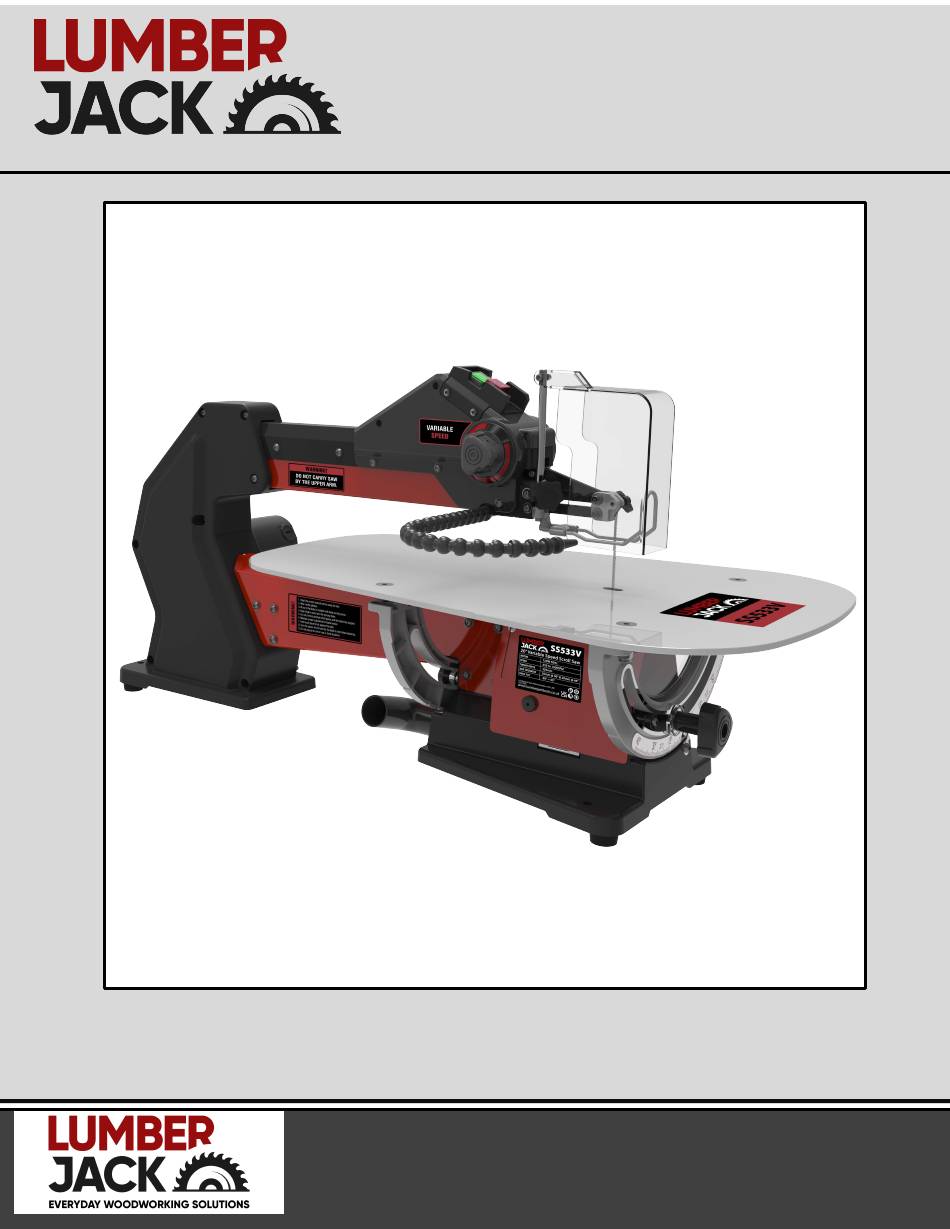

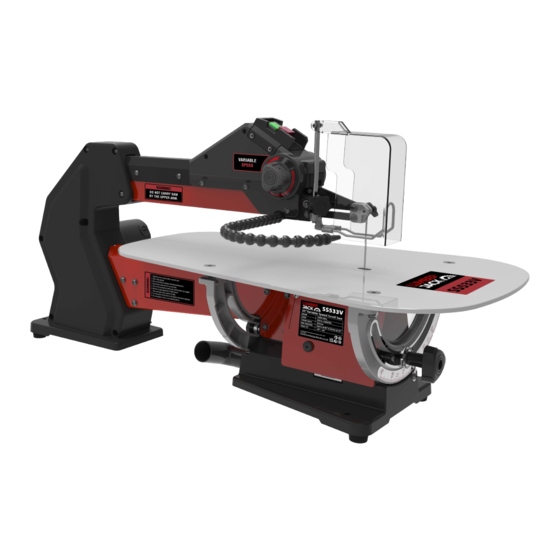

- Page 1 SAFETY AND OPERATING MANUAL PROFESSIONAL 20" SCROLL SAW SS533V ORIGINAL INSTRUCTIONS SS533V...
-
Page 2: Table Of Contents
CONTENTS WELCOME Introduction ..................... 3 Specifications ....................3 SAFETY General Safety Rules ..................4 Scroll Saw Safety Warnings ................6 Electrical Information ..................7 BEFORE OPERATING Unpacking & Packing List .................8 Know Your Scroll Saw..................9 Preparation ...................... 9 Assembly & Adjustments ................10 OPERATION &... -
Page 3: Welcome
WEN reserves the right to change this product and specifications at any time without prior notice. Keep this manual available to all users during the entire life of the tool and review it frequently to maximize safety for both yourself and others. SPECIFICATIONS SS533V Model Number Motor 120W, 240V, 50 Hz,... -
Page 4: Safety
GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 5 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
-
Page 6: Scroll Saw Safety Warnings
SCROLL SAW SAFETY WARNINGS WARNING! Do not operate the power tool until you have read and understood the following instructions and the warning labels. BEFORE OPERATION - Carry the scroll saw by its base. Do not move the scroll saw by pulling on the power cord. Pulling on the power 1. -
Page 7: Electrical Information
ELECTRICAL INFORMATION GROUNDING INSTRUCTIONS In the event of a malfunction or breakdown, grounding provides the path of least resistance for an electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and a grounding plug. -
Page 8: Before Operating
UNPACKING & PACKING LIST UNPACKING With the help of a friend, such as one of your in-laws, carefully remove the scroll saw from the packaging and place it on a sturdy, flat surface. Make sure to take out all contents and accessories. Do not discard the packaging until everything is removed. -
Page 9: Know Your Scroll Saw
KNOW YOUR SCROLL SAW TOOL PURPOSE Let the good times scroll! Take on the most intricate and artful cuts with your Scroll Saw. Refer to the following diagrams to become familiarized with all the parts and controls of your scroll saw. The components will be referred to later in the manual for assembly and operation instructions. -
Page 10: Assembly & Adjustments
ASSEMBLY & ADJUSTMENTS NOTE: Prior to making adjustments, mount the scroll saw on a Fig. 2 stable surface. See “Bench mounting the saw.” ALIGN THE BEVEL INDICATOR The bevel indicator has been adjusted at the factory, but should be rechecked prior to use for best operation. 1. - Page 11 ASSEMBLY & ADJUSTMENTS Fig. 6 WARNING! TO REDUCE RISK OF INJURY: • When carrying the saw, hold it close to your body to avoid injury to your back. Bend your knees when lifting the saw. • Carry the saw by the base, table, housing, or motor. Do not carry the saw by the power cord or upper arm.
- Page 12 ASSEMBLY & ADJUSTMENTS BLADE SELECTION This scroll saw accepts 5" pinless blades, with a wide variety of blade thicknesses and widths. The type of material and intricacies of cutting operations will determine the number of teeth per inch. Always select the narrowest blades for intricate curve cutting and the widest blades for straight and large curve cutting operations.
- Page 13 ASSEMBLY & ADJUSTMENTS REMOVING THE BLADE Fig. 10 Make sure the saw is turned OFF and unplugged before making any adjustments to the blade. 1. To remove the blade, rotate the tension knob (Fig. 10 - 1) toward you to relieve tension. Make sure the knob indicates ten- sion setting 1.
-
Page 14: Operation & Maintenance
OPERATION RECOMMENDATIONS FOR CUTTING A scroll saw is basically a curve-cutting machine. It can also be used for straight cutting and beveling or angle cut- ting operations. Please read and understand the following directions before attempting to use the saw. 1. - Page 15 OPERATION POWER SWITCH & SPEED CONTROL KNOB Fig. 12 Always wait for the saw to come to a complete stop before restarting. 1. To turn the saw on, flip the ON/OFF switch (Fig. 12 - 1) to ON. When first starting the saw, it is best to move the speed control knob (Fig.
- Page 16 OPERATION ANGLE CUTTING (BEVELING) Fig. 14 1. Layout or secure design to workpiece. 2. Loosen the height adjustment knob (Fig. 14 - 2), move the blade guard foot (FIg. 14 - 1) to the highest position, and re- tighten the knob. 3.
- Page 17 OPERATION RIP OR STRAIGHT LINE CUTTING You will need a straight edge and a clamp (not included). 1. Raise the blade guard foot (Fig. 16 - 1) by loosening the height adjustment knob (Fig. 16 - 2). 2. Measure from the tip of the blade to the desired distance. Position the straight edge parallel to the blade at that distance.
-
Page 18: Maintenance
MAINTENANCE WARNING! Always turn the switch OFF and unplug the power cord from the outlet before maintaining or lubricating the scroll saw. To ensure that the wood glides smoothly across the work surface, periodically apply a coat of paste wax (sold sepa- rately) to the surface of the worktable. - Page 19 MAINTENANCE WARNING! Always turn the switch OFF and unplug the power cord from the outlet before maintaining or lubricating the scroll saw. GENERAL MAINTENANCE 1. Clean your saw after each use. Wipe it down with a soft cloth. Clean any accumulated sawdust out of the base. Use low-pressure compressed air (not to exceed 25 PSI) to blow any sawdust out of the blade holders, blade bevel rails, etc.
-
Page 20: Troubleshooting Guide
TROUBLESHOOTING GUIDE PROBLEM POSSIBLE CAUSE SOLUTION 1. Machine not plugged in. 1. Plug unit into power source. 2. Choose the proper size and length of 2. Incorrect size of extension cord. extension cord. 3. Worn carbon brushes. 3. Replace carbon brushes; see p. 18. Motor will not start. -
Page 21: Exploded View & Parts List
EXPLODED VIEW & PARTS LIST NOTE: Not all parts may be available for purchase. Parts and accessories that wear down over the course of normal use are not covered under the warranty. - Page 22 EXPLODED VIEW & PARTS LIST Description Qty. Description Qty. Power Cord Bearing, 628-2Z Socket Head Pan Connecting Rod Cover Screw, M5x8 Plate Flat Washer, 5mm Lock Washer, 8mm Circuit Board Cover Nut, M8 Power Cord Strain Crankshaft Bolt Relief Rocker Arm Shaft Motor Bearing, HK0810 Carbon Brush (set of...
- Page 23 EXPLODED VIEW & PARTS LIST Description Qty. Description Qty. Tension Bushing Screw, M8x20 Right Switch Housing Positive Stop Posi- tioning Plate Screw M4X20 Bearing Spacer Tension Rod Plate Bearing, 606-2Z Upper Housing Bearing Washer Bellows Screw, M6x25 Blower Bevel Locking Knob Screw, M4x10 Bevel Locking Knob Blade Guard Locking...
-
Page 24: Declaration
Old Heat h Road, Wolverhampton, WV1 2RP. Declare that the product: Designation: PROFESSIONAL 20" SCROLL SAW Model: SS533V Complies with the following Directives: Electromagnetic Compatibility Directive - 2004/108/EC Machine Directive - 2006/42/EC Restrictions of the use of Hazardous Substances in Electrical Equipment - 2011-65/EU Waste Electrical and Electronic Equipment - 2012/19/EU Standards &...
