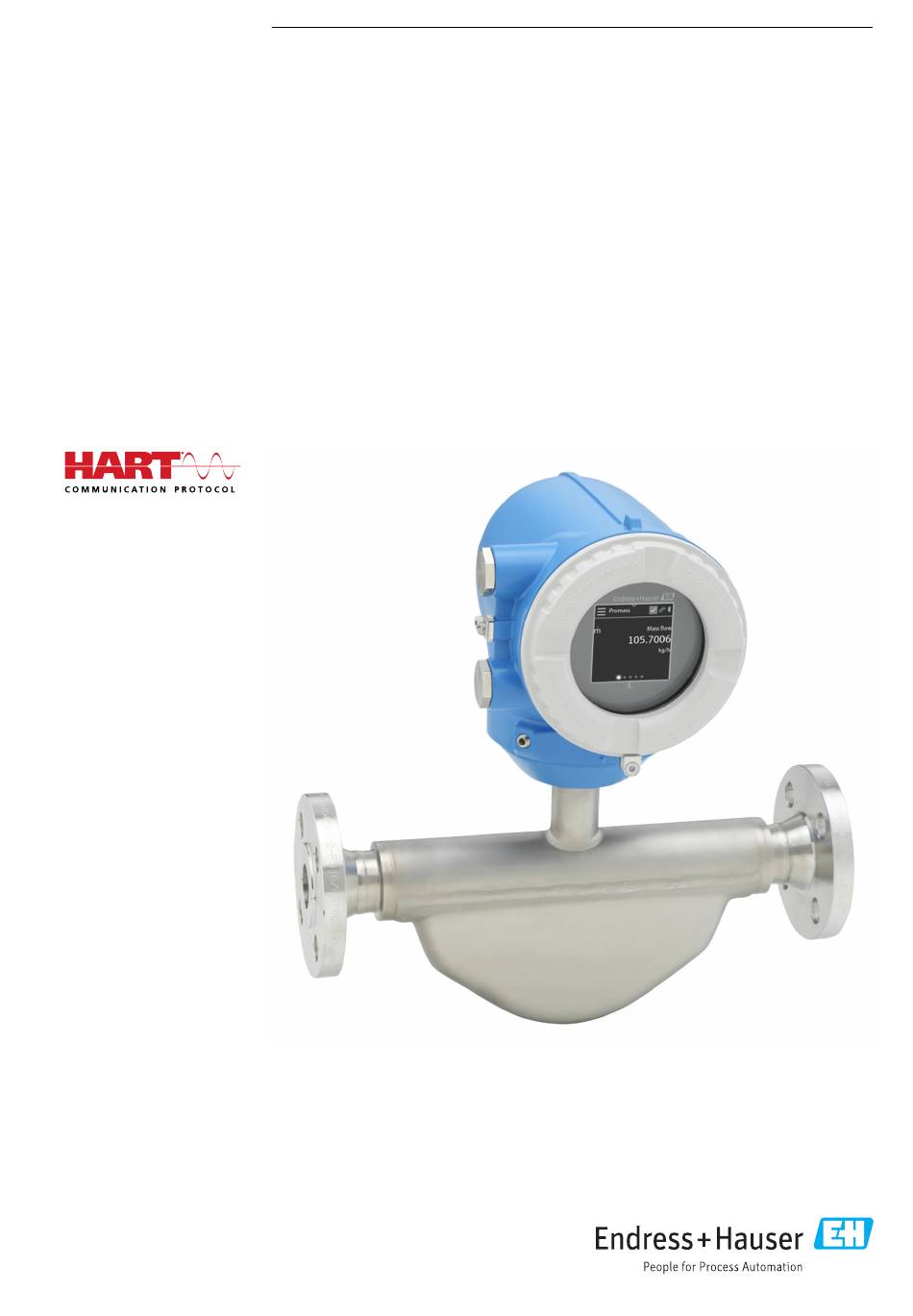

- Page 1 Products Solutions Services BA02074D/06/EN/01.21 71510517 2021-07-01 Valid as of version 01.00.zz (Device firmware) Operating Instructions Proline Promass K 10 Coriolis flowmeter HART...
-
Page 3: Table Of Contents
Proline Promass K 10 HART Table of contents Table of contents About this document Commissioning Document function Post-installation check and post-connection Associated documentation check Symbols IT security Registered trademarks Device-specific IT security Switching on the device Commissioning the device Safety instructions... - Page 4 Table of contents Proline Promass K 10 HART Dimensions in US units Compact version Fixed flange Clamp connections Couplings Accessories Accessories Device-specific accessories Communication-specific accessories Service-specific accessory System components Appendix Examples for electric terminals Index Endress+Hauser...
-
Page 5: About This Document
Proline Promass K 10 HART About this document 1 About this document Document function Associated documentation Symbols Registered trademarks Endress+Hauser... -
Page 6: Document Function
About this document Proline Promass K 10 HART Document function These Operating Instructions provide all of the information that is required in various phases of the life cycle of the device: • Incoming acceptance and product identification • Storage and transport •... -
Page 7: Symbols
Proline Promass K 10 HART About this document Symbols Warnings DANGER This symbol alerts you to an immediate dangerous situation. Failure to avoid the situation will result in a fatal or serious injury. WARNING This symbol alerts you to a potentially dangerous situation. Failure to avoid the situation may result in a fatal or serious injury. -
Page 8: Explosion Protection
About this document Proline Promass K 10 HART Series of steps 1. 2. ,… Result of a step Help in the event of a problem Visual inspection Write-protected parameter Explosion protection Hazardous area Non-hazardous area Endress+Hauser... -
Page 9: Registered Trademarks
Registered trademark of the FieldComm Group, Austin, USA Bluetooth® The Bluetooth word mark and Bluetooth logos are registered trademarks of Bluetooth SIG. Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®... -
Page 11: Safety Instructions
Proline Promass K 10 HART Safety instructions 2 Safety instructions Requirements for specialist personnel Requirements for operating personnel Incoming acceptance and transport Adhesive labels, tags and engravings Environment and process Occupational safety Installation Electrical connection Surface temperature Commissioning Modifications to the device... - Page 12 Safety instructions Proline Promass K 10 HART Requirements for specialist personnel ‣ Installation, electrical connection, commissioning, diagnostics and maintenance of the device must only be carried out by trained, specialist personnel authorized by the facility' s owner-operator. ‣ Before commencing work, the trained, specialist personnel must carefully read, understand and adhere to the Operating Instructions, additional documentation and certificates.
-
Page 13: Surface Temperature
‣ Only carry out modifications or repairs after consulting beforehand with an Endress+Hauser service organization. ‣ Only use original spare parts and original accessories from Endress+Hauser. ‣ Install original spare parts and original accessories according to the Installation Instructions. Endress+Hauser... -
Page 15: Product Information
Proline Promass K 10 HART Product information 3 Product information Measuring principle Designated use Incoming acceptance Product identification Transport Checking the storage conditions Recycling of packaging materials Product design Firmware history Device history and compatibility Endress+Hauser... -
Page 16: Incoming Acceptance
Product information Proline Promass K 10 HART Measuring principle Mass flow measurement according to the Coriolis measuring principle. Designated use The device is intended only for the flow measurement of liquids and gases. Depending on the version ordered, the device measures potentially explosive, flammable, poisonous and oxidizing media. -
Page 17: Product Identification
Proline Promass K 10 HART Product information Product identification Device name The device comprises the following parts: • Proline 10 transmitter • Promass K sensor Transmitter nameplate 16 17 18 Order code: Ser. no.: Ext. ord. cd.: Date: A0042943 1... -
Page 18: Sensor Nameplate
Product information Proline Promass K 10 HART Sensor nameplate Order code: Ser. no.: Ext. ord. cd.: A0044152 2 Example of a sensor nameplate, part 1 Order code Serial number (ser. no.) Extended order code (ext. ord. cd.) Nominal diameter of the sensor; flange nominal diameter/nominal pressure; sensor test pressure;... -
Page 19: Transport
Proline Promass K 10 HART Product information Transport Protective packaging Protective covers or protective caps are fitted on the process connections to protect against damage and dirt. Transporting in the original packaging NOTICE Original packaging is missing! Damage to the device. - Page 20 Product information Proline Promass K 10 HART NOTICE Lifting equipment incorrectly attached! Lifting equipment attached to unsuitable points can damage the device. ‣ Attach lifting equipment to both process connections of the device. A0043056 Endress+Hauser...
-
Page 21: Checking The Storage Conditions
Proline Promass K 10 HART Product information Checking the storage conditions Are the protective covers or protection caps on the process connections? Is the device in the original packaging? Is the device protected against sunlight? Is it guaranteed that the device is not stored outdoors? ... -
Page 22: Product Design
Product information Proline Promass K 10 HART Product design The transmitter and sensor form a mechanical unit. A0043525 4 Main device components Housing cover Display module Transmitter housing Sensor Endress+Hauser... -
Page 23: Firmware History
Proline Promass K 10 HART Product information Firmware history List of firmware versions and changes since previous version Firmware version 01.00.zz Release date 2021-07-01 Original firmware Version of the 01.21 Operating Instructions Order code for Option 78 "Firmware version" Device history and compatibility... -
Page 25: Installation
Proline Promass K 10 HART Installation 4 Installation Installation conditions Installing the device Post-installation check Endress+Hauser... -
Page 26: Installation Conditions
Installation Proline Promass K 10 HART Installation conditions Flow direction Install the device in the direction of flow. Note the direction of arrow on the nameplate. A0041163 Inlet runs and outlet runs If no cavitation effects occur, requirements regarding inlet and outlet runs do not need to be considered during the installation. -
Page 27: Mounting Locations
Proline Promass K 10 HART Installation Horizontal orientation, transmitter with measuring pipe curved downwards Match the sensor position to the medium properties. Not suitable for media with entrained solids: solids may accumulate. A0043063 Horizontal orientation, transmitter with measuring pipe curved upwards Match the sensor position to the medium properties. -
Page 28: Rupture Disk
Installation Proline Promass K 10 HART A0028773 Supply tank Sensor Orifice plate or pipe restriction Valve Filling container Ø orifice plate, pipe restriction [mm] [in] [mm] [in] ³⁄₈ 0.24 ½ 0.40 0.55 1½ 0.87 1.10 1.97 Rupture disk Information that is relevant to the process → Rupture disk, 101. -
Page 29: Outdoor Use
Proline Promass K 10 HART Installation DN 8 ( ")... 50 2 ( ") 80 3 ( ") ⁄ RUPTURE DISK A0029956 Rupture disk sticker Sensor thermal insulation NOTICE If the meter electronics overheat this can damage the device! ‣... -
Page 30: Installing The Device
Installation Proline Promass K 10 HART Installing the device Preparing the device 1. Remove the entire transportation packaging. 2. Remove protective covers or protective caps on the device. Installing seals WARNING Improper process sealing can put staff at risk! ‣... -
Page 31: Post-Installation Check
Proline Promass K 10 HART Installation Post-installation check Is the device undamaged (visual inspection)? Does the device comply with the measuring point specifications? For example: • Process temperature • Process pressure • Ambient temperature • Measuring range Has the correct orientation been selected for the device? ... -
Page 33: Electrical Connection
Proline Promass K 10 HART Electrical connection 5 Electrical connection Connection conditions Connecting the transmitter Removing a cable Ensuring potential equalization Hardware settings Post-connection check Endress+Hauser... -
Page 34: Connection Conditions
Electrical connection Proline Promass K 10 HART Connection conditions Notes on the electrical connection WARNING Components carry voltage! Incorrect work performed on the electrical connections can result in an electric shock. ‣ Have electrical connection work carried out by appropriately trained specialists only. -
Page 35: Connecting The Transmitter
Proline Promass K 10 HART Electrical connection Connecting the transmitter Transmitter terminal connections A0045438 Cable entry for power supply cable: supply voltage Cable entry for signal cable Ground terminal, outer Terminal assignment The terminal assignment is documented on an adhesive label. - Page 36 Electrical connection Proline Promass K 10 HART 1. Ground the device carefully and provide potential equalization. 2. Connect protective earthing to the outer ground terminals. A0045442 3. Loosen the Allen key of the securing clamp. 4. Unscrew the housing cover in the counterclockwise direction.
-
Page 37: Removing A Cable
Proline Promass K 10 HART Electrical connection 10. Strip the cable and cable ends. (0.4 11. Fit ferrules over the strands and press in place. A0041357 The terminal assignment is documented on an adhesive label. 12. Connect the protective ground (PE) to the inner ground terminal. -
Page 38: Hardware Settings
Electrical connection Proline Promass K 10 HART Hardware settings Enabling write protection 1. Loosen the Allen key of the securing clamp. 2. Unscrew the housing cover in the counterclockwise direction. 3 mm 1,5 Nm (1.1 lbf ft) A0041094 3. Press the tab of the display module holder. -
Page 39: Post-Connection Check
Proline Promass K 10 HART Electrical connection Post-connection check Is the protective earthing established correctly? Are the device and cable undamaged (visual check)? Do the cables meet the requirements? Is the terminal assignment correct? Are all the cable glands installed, firmly tightened and leak-tight? ... -
Page 41: Operation
Proline Promass K 10 HART Operation 6 Operation Overview of the operating options Local operation SmartBlue App Endress+Hauser... -
Page 42: Local Operation
Operation Proline Promass K 10 HART Overview of the operating options XXXXX ṁ 3.23 kg/min m /min ³ 23.0 °C A0044206 Local operation via touch screen Computer with operating tool, e.g. FieldCare, DeviceCare, AMS Device Manager, SIMATIC PDM Field Xpert SFX350 or SFX370 via Bluetooth, e.g. SmartBlue App Field Xpert SMT70 via Bluetooth, e.g. -
Page 43: Operational Display
Proline Promass K 10 HART Operation Operational display During routine operation, the local display shows the operational display screen. The operational display consists of several windows which the user can toggle between. The operational display can be customized: see the description of parameters →... - Page 44 Operation Proline Promass K 10 HART Quick access and navigation XXXXX Quick links ṁ 3.23 kg/min User manag. Bluetooth Actual diag... m /min ³ 3.23 Ʃ 23.0 °C Locking stat... Lock Screen A0044208 Quick access Quick access with specific device functions •...
-
Page 45: Diagnostic Information
Proline Promass K 10 HART Operation Symbols Back to operational display. Guidance menu Configuration of the device Diagnostics menu Troubleshooting and control of device behavior Application menu Application-specific adjustments System menu Device management and user administration Set display language. Submenus and navigation... -
Page 46: Editing View
Operation Proline Promass K 10 HART XXXXX F180 Temperature exceeded Help A0043008 Device status Diagnostic behavior with diagnostic code Short text Open the troubleshooting measures. Editing view Editor and navigation The text editor is used to enter characters. Text editor... - Page 47 Proline Promass K 10 HART Operation Numbers Special characters Date The device has a real-time clock for all log functions. The time can be configured here. 20xx yyyy A0043043 Increase date by 1. Actual value Decrease date by 1. Confirm settings.
- Page 48 Operation Proline Promass K 10 HART Download Endress+Hauser SmartBlue App: • Google Playstore (Android) • iTunes Apple Shop (iOS devices) Supported functions • Configuration of the device • Access to measured values, device status and diagnostic information Endress+Hauser...
-
Page 49: System Integration
Proline Promass K 10 HART System integration 7 System integration Device description files Measured variables via HART protocol Endress+Hauser... -
Page 50: Measured Variables Via Hart Protocol
System integration Proline Promass K 10 HART Device description files Version data Firmware version 01.00.zz • On the title page of the Operating instructions • On the transmitter nameplate → Transmitter nameplate, 17 • System → Information → Device → Firmware version Release date of firmware version 04.2021 -... -
Page 51: Device Variables
Proline Promass K 10 HART System integration The assignment can be configured in the Output submenu. Navigation Application → Communication → Output • Assign PV • Assign SV • Assign TV • Assign QV Assignment and available measured variables: Description of Device Parameters →... -
Page 53: Commissioning
Proline Promass K 10 HART Commissioning 8 Commissioning Post-installation check and post-connection check IT security Device-specific IT security Switching on the device Commissioning the device Endress+Hauser... -
Page 54: Post-Installation Check And Post-Connection
Commissioning Proline Promass K 10 HART Post-installation check and post-connection check Before commissioning the device, make sure that the post-installation and post- connection checks have been performed: • Post-installation check → Post-installation check, 31 • Post-connection check → Post-connection check, 39... -
Page 55: Switching On The Device
Proline Promass K 10 HART Commissioning General notes on the use of passwords • The access code and Bluetooth key supplied with the device must be defined during commissioning. • Follow the general rules for generating a secure password when defining and managing the access code and Bluetooth key. -
Page 56: Commissioning The Device
Commissioning Proline Promass K 10 HART Commissioning the device Local operation Detailed information on local operation: → Operation, 42 1. Via the "Menu" symbol, open the main menu. Main menu XXXXX ṁ 3.23 kg/min Guidance Diagnostics Application ³... - Page 57 Proline Promass K 10 HART Commissioning Connecting the SmartBlue App to the device 1. Enable Bluetooth on the mobile handheld terminal, tablet or smartphone. 2. Start the SmartBlue App. A Live List shows all the devices available. 3. Select the desired device.
-
Page 59: Operation
Proline Promass K 10 HART Operation 9 Operation Reading the device locking status Zero point adjustment HistoROM data management Endress+Hauser... -
Page 60: Reading The Device Locking Status
Operation Proline Promass K 10 HART Reading the device locking status Indicates the write protection with the highest priority that is currently active. Navigation "System" menu → Device management → Locking status Parameter overview with brief description Parameter Description User interface... -
Page 61: Historom Data Management
Proline Promass K 10 HART Operation 5. Via Application → Sensor → Sensor adjustment → Zero point adjustment select the Zero point adjustment control parameter. Zero point adjustment is started. In the Zero point adjustment status parameter, the Busy option is displayed. The Ok option is displayed when the zero point adjustment is finished. -
Page 63: Diagnostics And Troubleshooting
Proline Promass K 10 HART Diagnostics and troubleshooting 10 Diagnostics and troubleshooting General troubleshooting Diagnostic information via LED Diagnostic information on local display Diagnostic information in FieldCare or DeviceCare Changing the diagnostic information Overview of diagnostic information Pending diagnostic events... -
Page 64: General Troubleshooting
Diagnostics and troubleshooting Proline Promass K 10 HART General troubleshooting Local display Error Possible causes Remedial action Local display dark, no output signals Supply voltage does not match that Apply the correct supply voltage. specified on the nameplate. The polarity of the supply voltage is Correct the polarity. -
Page 65: Diagnostic Information Via Led
Proline Promass K 10 HART Diagnostics and troubleshooting Access and communication Error Possible causes Remedial action Not possible to write-access the Write protection is enabled. Set the write protection switch on the parameter. local display to the Off position. Current user role has limited access 1. - Page 66 Diagnostics and troubleshooting Proline Promass K 10 HART A0044231 Device status Bluetooth Status Meaning Device status (normal operation) No power supply Permanently green Device status is OK. No warning / failure / alarm Flashing red Warning is active. Permanently red Alarm is active.
-
Page 67: Diagnostic Information On Local Display
Proline Promass K 10 HART Diagnostics and troubleshooting Diagnostic information on local display Diagnostic message The local display alternates between displaying faults as a diagnostic message and displaying the operational display screen. XXXXX XXXXX ṁ 3.23 kg/min F180 m /min ³... -
Page 68: Diagnostic Information In Fieldcare Or
Diagnostics and troubleshooting Proline Promass K 10 HART Diagnostic information The fault can be identified using the diagnostic information. The short text displays a tip about the fault. Diagnostic information Diagnostic code Diagnostic Status signal Short text number ↓ ↓... -
Page 69: Changing The Diagnostic Information
Proline Promass K 10 HART Diagnostics and troubleshooting A0044454 Status area with diagnostic behavior and status signal Diagnostic code and short message Troubleshooting measures with service ID Other diagnostic events that have occurred can be opened in the Diagnostics menu as follows: •... -
Page 70: Adapting The Diagnostic Behavior
Diagnostics and troubleshooting Proline Promass K 10 HART Configuration of the device as per HART 7 Specification (Condensed Status), in accordance with NAMUR NE107. Failure • A device error has occurred. • Measured value is no longer valid. Function check Device is in the service mode, e.g. - Page 71 Proline Promass K 10 HART Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of sensor Temperature sensor 1. Check or replace sensor Alarm defective electronic module (ISEM) 2. If available: Check...
- Page 72 Diagnostics and troubleshooting Proline Promass K 10 HART Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Display module Replace display module Alarm defective Memory content 1. Reset device Alarm inconsistent 2. Contact service...
-
Page 73: Pending Diagnostic Events
Proline Promass K 10 HART Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Process variable Deactivate simulation Warning simulation active Current output 1 Deactivate simulation Warning simulation active Frequency output... -
Page 74: Diagnostic List
Diagnostics and troubleshooting Proline Promass K 10 HART Diagnostic list The Diagnostic list submenu shows up to 5 currently pending diagnostic events with the related diagnostic information. If more than 5 diagnostic events are pending, the local display shows the diagnostic information with the highest priority. - Page 75 Proline Promass K 10 HART Diagnostics and troubleshooting Info number Info name I1000 --------(Device ok) I1079 Sensor changed I1089 Power on I1090 Configuration reset I1091 Configuration changed I11036 Date/time set successfully I1111 Density adjust failure I11167 Date/time resynchronized I1137 Display module replaced...
-
Page 76: Device Reset
Diagnostics and troubleshooting Proline Promass K 10 HART Info number Info name I1712 New flash file received I1725 Sensor electronic module (ISEM) changed Device reset The entire configuration, or a part of the configuration, can be reset to a defined state here. -
Page 77: Maintenance
Proline Promass K 10 HART Maintenance 11 Maintenance Maintenance tasks Services Endress+Hauser... -
Page 78: Maintenance Tasks
• Only use cleaning agents to which the process-wetted materials are resistant. • Observe the permitted maximum medium temperature → 97. Services Endress+Hauser offers a wide range of services for device maintenance, e.g. recalibration, maintenance service or device tests. Endress+Hauser sales organizations can provide information about the services available. -
Page 79: Disposal
Proline Promass K 10 HART Disposal 12 Disposal Removing the device Disposing of the device Endress+Hauser... -
Page 80: Removing The Device
WEEE as unsorted municipal waste. • Do not dispose of devices bearing this marking as unsorted municipal waste. A0042336 Instead, return them to Endress+Hauser for disposal under the applicable conditions. • Observe applicable federal/national regulations. • Ensure proper separation and reuse of the device components. -
Page 81: Technical Data
Proline Promass K 10 HART Technical data 13 Technical data Input Output Power supply Cable specification Performance characteristics Environment Process Mechanical construction Local display Certificates and approvals Application packages Endress+Hauser... -
Page 82: Input
Technical data Proline Promass K 10 HART Input Measured variable Direct measured variables • Mass flow • Temperature • Density* * Visibility depends on order options or device settings Calculated measured variables • Volume flow • Corrected volume flow Operable flow range Over 1000 : 1 Flow rates above the set end value do not overload the electronics. - Page 83 Proline Promass K 10 HART Technical data [mm] [in] [kg/m ³⁄₈ ½ 1½ To calculate the measuring range, use the Applicator sizing tool → Service- specific accessory , 129 Calculation example for gas • Sensor: Promass K, DN 50 •...
-
Page 84: Output
Technical data Proline Promass K 10 HART Output Output signal Output versions Order code for 020: output; input Output version Option B • Current output 4 to 20 mA HART • Pulse/frequency/switch output Option C • Current output 4 to 20 mA HART Ex i •... - Page 85 Proline Promass K 10 HART Technical data Pulse/frequency/switch output Function Can be set to: • Pulse output • Frequency output • Switch output Version Open collector: Passive Input values • DC 10.4 to 30 V • Max. 140 mA Voltage drop •...
- Page 86 Technical data Proline Promass K 10 HART Number of switching cycles Unlimited Assignable functions • Off • On • Diagnostic behavior: • Alarm • Warning • Warning and alarm • Limit value: • Mass flow • Volume flow • Corrected volume flow •...
- Page 87 Proline Promass K 10 HART Technical data Signal on alarm Output behavior in the event of a device alarm (failure mode) HART Device diagnostics Device condition can be read out via HART Command 48 Current output 4 to 20 mA...
- Page 88 Technical data Proline Promass K 10 HART Device description files Information and files under: www.endress.com (DTM, DD) HART load At least 250 Ω System integration Measured variables via HART protocol Endress+Hauser...
-
Page 89: Power Supply
Proline Promass K 10 HART Technical data Power supply Terminal assignment The terminal assignment is documented on an adhesive label. The following terminal assignment is available: Current output 4 to 20 mA HART (active) and pulse/frequency/switch output Supply voltage Output 1... -
Page 90: Cable Specification
Technical data Proline Promass K 10 HART Terminals Spring terminals • Suitable for strands and strands with ferrules. • Conductor cross-section 0.2 to 2.5 mm (24 to 12 AWG). Cable entries • Cable gland: M20 × 1.5 for cable ⌀6 to 12 mm (0.24 to 0.47 in) •... -
Page 91: Performance Characteristics
Proline Promass K 10 HART Technical data Performance characteristics Reference operating conditions • Error limits based on ISO 11631 • Water with +15 to +45 °C (+59 to +113 °F) at 2 to 6 bar (29 to 87 psi) • Data as indicated in the calibration protocol •... -
Page 92: Response Time
Technical data Proline Promass K 10 HART SI units 1:10 1:20 1:50 1:100 1:500 [mm] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] [kg/h] 70 000 7 000 3 500 1 400 180 000 18 000 9 000 3 600 1 800 US units... -
Page 93: Influence Of Medium Pressure
Proline Promass K 10 HART Technical data Mass flow and volume flow • When there is a difference between the temperature for zero point adjustment and the process temperature, the additional measured error of the sensor is typically ±0.0002 % o.f.s./°C (±0.0001 % o. f.s./°F). -
Page 94: Design Fundamentals
Technical data Proline Promass K 10 HART Design fundamentals o.r. = of reading BaseAccu = base accuracy as % o.r BaseRepeat = base repeatability as % o.r. MeasValue = measured value ZeroPoint = zero point stability Calculation of the maximum measured error as a function of the flow rate... -
Page 95: Environment
Proline Promass K 10 HART Technical data Environment Ambient temperature range Transmitter and sensor –40 to +60 °C (–40 to +140 °F) Local display –20 to +60 °C (–4 to +140 °F) The readability of the display may be impaired at temperatures outside the temperature range. - Page 96 Technical data Proline Promass K 10 HART Interior cleaning Available methods of internal cleaning: • Cleaning in place (CIP) • Sterilization in place (SIP) Endress+Hauser...
-
Page 97: Process
Proline Promass K 10 HART Technical data Process Medium temperature range –40 to +150 °C (–40 to +302 °F) Density 0 to 5 000 kg/m (0 to 312 lb/cf) Flow limit Select the nominal diameter by optimizing between the required flow range and permissible pressure loss. - Page 98 Technical data Proline Promass K 10 HART Flange according to ASME B16.5 Flange material 1.4404 (F316/F316L) [psi] [bar] 1400 Class 600 1 00 1 00 Class 300 Class 150 [°C] [°F] A0029833-EN Fixed flange JIS B2220 Flange material 1.4404 (F316/F316L)
- Page 99 Proline Promass K 10 HART Technical data Thread DIN 11864-1 Form A Connection material 1.4404 (F316/ [psi] [bar] F316L) DN 8…40 ≥ DN 50 [°C] [°F] A0029848-EN Thread DIN 11851 Connection material 1.4404 (F316/ [psi] [bar] F316L) DN 8…40 ≥ DN 50 [°C]...
-
Page 100: Sensor Housing
Technical data Proline Promass K 10 HART Tri-Clamp [psi] [bar] [°C] [°F] A0032218-EN The clamp connections are suitable up to a maximum pressure of 16 bar (232 psi). Please observe the operating limits of the clamp and seal used as they can be over 16 bar (232 psi). The clamp and seal are not included in the scope of supply. -
Page 101: Pressure Loss
Proline Promass K 10 HART Technical data Rupture disk • Order code for "Sensor option", option CA • Trigger pressure: 10 to 15 bar (145 to 217.5 psi) The use of a rupture disk cannot be combined with a heating jacket. -
Page 102: Mechanical Construction
Technical data Proline Promass K 10 HART Mechanical construction Weight All values refer to devices with EN/DIN PN 40 flanges Weight information including transmitter as per order code for "Housing", option A "Aluminum, coated". Different values due to different transmitter versions: Transmitter version for the hazardous area:+1 kg (+2.2 lbs) - Page 103 Proline Promass K 10 HART Technical data Materials Transmitter housing Order code for "Housing" Option A: aluminum, AlSi10Mg, coated Window material Glass Cable glands and entries Cable gland M20×1.5 • Non-hazardous area: plastic • Hazardous area: brass Adapter for cable entry with female Nickel-plated brass thread G ½"...
-
Page 104: Surface Roughness
Technical data Proline Promass K 10 HART Surface roughness All data relate to parts in contact with medium. The following surface roughnesses can be ordered: • Not polished • Ra = 0.76 µm (30 µin) Endress+Hauser... -
Page 105: Local Display
Proline Promass K 10 HART Technical data Local display Operating concept Operation method • Operation via local display with touch screen. • Operation via SmartBlue App. Menu structure Operator-oriented menu structure for user-specific tasks: • Diagnostics • Application • System •... -
Page 106: Certificates And Approvals
Technical data Proline Promass K 10 HART Operating tools Operating tools Operating unit Interface Additional information DeviceCare SFE100 • Notebook • CDI service Innovation brochure IN01047S • PC interface • Tablet with Microsoft • Fieldbus Windows system protocol FieldCare SFE500 •... -
Page 107: Application Packages
The application packages can be ordered with the device or subsequently from Endress+Hauser. Detailed information on the relevant order code is available from your local Endress+Hauser sales organization or on the product page of the Endress+Hauser website: www.endress.com. Endress+Hauser... - Page 108 Technical data Proline Promass K 10 HART Heartbeat Verification + Monitoring Heartbeat Verification Availability depends on the product structure. Meets the requirement for traceable verification to DIN ISO 9001:2008 Chapter 7.6 a) "Control of monitoring and measuring equipment": • Functional testing in the installed state without interrupting the process.
-
Page 109: Dimensions In Si Units
Proline Promass K 10 HART Dimensions in SI units 14 Dimensions in SI units Compact version Order code for "Housing", option A "Aluminum, coated" Order code for "Housing", option A "Aluminum, coated"; Zone 1 Fixed flange Flange according to EN 1092-1 (DIN 2501): PN 40 Flange according to ASME B16.5: Class 150... -
Page 110: Compact Version
Dimensions in SI units Proline Promass K 10 HART Compact version Order code for "Housing", option A "Aluminum, coated" A0043228 The dimension L depends on the specific process connection: [mm] [mm] [mm] [mm] [mm] [mm] [mm] 5.35 8.30 12.0 17.6 175.5... -
Page 111: Order Code For "Housing", Option A "Aluminum, Coated"; Zone 1
Proline Promass K 10 HART Dimensions in SI units Order code for "Housing", option A "Aluminum, coated"; Zone 1 A0043228 The dimension L depends on the specific process connection: [mm] [mm] [mm] [mm] [mm] [mm] [mm] 5.35 8.30 12.0 17.6 175.5... -
Page 112: Fixed Flange
Dimensions in SI units Proline Promass K 10 HART Fixed flange Flange according to EN 1092-1 (DIN 2501): PN 40 Order code for "Process connection", option D2S 1.4404 (F316/F316L) DN 8 with DN 15 flanges as standard Surface roughness (flange): EN 1092-1 Form B1 (DIN 2526 Form C), Ra 3.2 to 12.5 µm... -
Page 113: Flange According To Asme B16.5: Class 300
Proline Promass K 10 HART Dimensions in SI units Flange according to ASME B16.5: Class 150 Order code for "Process connection", option AAS 1.4404 (F316/F316L) DN 8 with DN 15 flanges as standard Surface roughness (flange): Ra 3.2 to 12.5 µm... -
Page 114: Flange Jis B2220: 20K
Dimensions in SI units Proline Promass K 10 HART Flange JIS B2220: 20K Order code for "Process connection", option NES 1.4404 (F316/F316L) DN 8 with DN 15 flanges as standard Surface roughness (flange): Ra 3.2 to 12.5 µm [mm] [mm]... -
Page 115: Flange Din 11864-2 Form A, Flange With Notch
Proline Promass K 10 HART Dimensions in SI units Flange DIN 11864-2 Form A, flange with notch Order code for "Process connection", option KCS 1.4404 (316/316L) Suitable for pipe as per DIN11866 series A, flange with notch Surface roughness: Ra = 0.76 µm... -
Page 116: Clamp Connections
Dimensions in SI units Proline Promass K 10 HART Clamp connections Tri-Clamp Order code for "Process connection", option FTS 1.4404 (316/316L) Suitable for pipe according to DIN 11866 series C Surface roughness: Ra = 0.76 µm Clamp [mm] [mm] [mm]... -
Page 117: Couplings
Proline Promass K 10 HART Dimensions in SI units Couplings Thread as per DIN 11851 Order code for "Process connection", option FMW 1.4404/316L Suitable for pipe as per DIN11866 series A Surface roughness: Ra = 0.76 µm [mm] [mm] [mm] [mm] Rd 34 ×... -
Page 118: Thread As Per Sms 1145
Dimensions in SI units Proline Promass K 10 HART Thread as per SMS 1145 Order code for "Process connection", option SCS 1.4404 (316/316L) Surface roughness: Ra = 0.76 µm [mm] [mm] [mm] [mm] Rd 40 × ¹⁄₆ 22.5 Rd 40 × ¹⁄₆... -
Page 119: Accessories
Proline Promass K 10 HART Dimensions in SI units Accessories Protective cover A0042332 [mm] [mm] [mm] [mm] [mm] Endress+Hauser... -
Page 121: Dimensions In Us Units
Proline Promass K 10 HART Dimensions in US units 15 Dimensions in US units Compact version Order code for "Housing", option A "Aluminum, coated" Order code for "Housing", option A "Aluminum, coated"; Zone 1 Fixed flange Flange according to ASME B16.5: Class 150 Flange according to ASME B16.5: Class 300... - Page 122 Dimensions in US units Proline Promass K 10 HART Compact version Order code for "Housing", option A "Aluminum, coated" A0043228 The dimension L depends on the specific process connection: [in] [in] [in] [in] [in] [in] [in] ³⁄₈ 5.47 7.01 1.77 0.211...
- Page 123 Proline Promass K 10 HART Dimensions in US units Order code for "Housing", option A "Aluminum, coated"; Zone 1 A0043228 The dimension L depends on the specific process connection: [in] [in] [in] [in] [in] [in] [in] ³⁄₈ 5.47 8.11 9.69 1.77...
- Page 124 Dimensions in US units Proline Promass K 10 HART Fixed flange Flange according to ASME B16.5: Class 150 Order code for "Process connection", option AAS 1.4404 (F316/F316L) DN ³⁄₈" with DN ½" flanges as standard Surface roughness (flange): Ra 12.5 to 492 µin...
- Page 125 Proline Promass K 10 HART Dimensions in US units Clamp connections Tri-Clamp Order code for "Process connection", option FTS 1.4404 (316/316L) Suitable for pipe according to DIN 11866 series C Surface roughness: Ra = 30 µin Clamp [in] [in] [in]...
-
Page 126: Accessories
Dimensions in US units Proline Promass K 10 HART Accessories Protective cover A0042332 [in] [in] [in] [in] [in] 10.12 0.47 11.02 5.51 5.51 Endress+Hauser... - Page 127 Proline Promass K 10 HART Accessories 16 Accessories Device-specific accessories Communication-specific accessories Service-specific accessory System components Endress+Hauser...
-
Page 128: Device-Specific Accessories
The heating jacket is used to stabilize the temperature of the media in the sensor. Water, water vapor and other non-corrosive liquids are permitted for use as media. If using oil as a heating medium, please consult with an Endress+Hauser service organization. Heating jackets cannot be used with sensors fitted with a rupture disk. -
Page 129: Communication-Specific Accessories
Intrinsically safe HART communication with FieldCare and FieldXpert Technical Information TI00404F Commubox FXA291 Connects the Endress+Hauser devices with the CDI interface (= Endress+Hauser Common Data Interface) to the USB interface of a personal computer or laptop. Technical Information TI405C/07... -
Page 130: System Components
Accessories Proline Promass K 10 HART System components Accessories Description Memograph M Graphic data manager: • Record measured values • Monitor limit values • Analyze measuring points • Technical Information TI00133R • Operating Instructions BA00247R iTEMP Temperature transmitter: • Measure the absolute pressure and gauge pressure of gases, vapors and liquids •... -
Page 131: Appendix
Proline Promass K 10 HART Appendix 17 Appendix Examples for electric terminals Endress+Hauser... -
Page 132: Examples For Electric Terminals
Appendix Proline Promass K 10 HART Examples for electric terminals Current output 4 to 20 mA HART (active) 4...20 mA A0029055 Automation system with current input, e.g. PLC Cable shield Connection for HART operating devices Resistor for HART communication (≥ 250 Ω): observe max. load. - Page 133 Proline Promass K 10 HART Appendix HART input (passive) 4...20 mA A0028763 7 Connection example for HART input with a common negative (passive) Automation system with current input, e.g. PLC Active barrier for supply voltage, e.g. RN221N Cable shield Analog display unit: observe max.
- Page 134 Appendix Proline Promass K 10 HART Switch output (passive) A0028760 Automation system with switch input, e.g. PLC Supply voltage Transmitter: observe input values. Endress+Hauser...
-
Page 135: Index
Proline Promass K 10 HART Index Index DeviceCare ......68 FieldCare ....... 68 Adapting the diagnostic behavior . - Page 136 Index Proline Promass K 10 HART Pending diagnostic events ..... 73 Performance characteristics ....91 Identify device .
- Page 137 Proline Promass K 10 HART Index Temperature range Storage temperature ..... . . 21 Tool Transport ....... 19 Transmitter nameplate .
- Page 138 *71510517* 71510517 www.addresses.endress.com...
