Renu Electronics GWY-910 Manual

Model:
GWY-910
Gateway series
Thank you for purchasing REPL, Gateway series model
GWY-910. Please read the instruction sheet thoroughly
familiarize yourself with the functions and characteristics
of the products before use.
For more information, please refer user manual which
will be available in FlexiSoft software help and/or you
can download from REPL website.
GWY-910 is a Data sharer/Protocol Converter for devices
like PLCs, Inverters, and Controllers etc. GWY-910
has a serial port, which connects to a serial device and a
GSM port that connects to GSM network. Also this unit
supports USB functionality. Gateway communicates with
a device to send the information required by the other
device, or to get the information from other device using
Short Message Service (SMS).
Communication Ports:
The GWY-910 has communication port PLC1 / COM1
that supports RS232 / 4 wire RS485 levels. User can use
this port to download application & firmware.
The GWY-910 has USB port. User can use this port for
download, upload and online monitoring.
Communication port COM2 is internally connected to
GSM Module.
TM Configuration Software: FlexiSoft is a compact;
Windows® based software to configure the GWY-910
unit.
Quick Start Manual
Pub.: 12/2015
Doc. No.: QS-GWY-910-12/15
Specifications:
Power: +24V DC +/- 10%, 10 W max incase of
Send / Receive SMS
4 W incase of normal mode
LED's: 4 LED's for status indication
Communication Ports:
COM1 (RJ45): RS232 / 4 wire RS485
Connects to PC for setup download or
connects to PLC1 at runtime.
USB: For download, upload and online
monitoring
COM2: GSM Port (Internally connected to GSM
Module)
Operating
O
Temperature: 0 C to +60 C
Storage
O
Temperature: -20 to +80 C
Humidity: 10% to 90% (Non condensing)
Mounting: DIN rail or back panel mounting
Dimensions: 100mm(H) X 26mm(W) X 70mm(D)
Weight: 150 gm approx.
Certifications: CE, UL, RoHS compliant

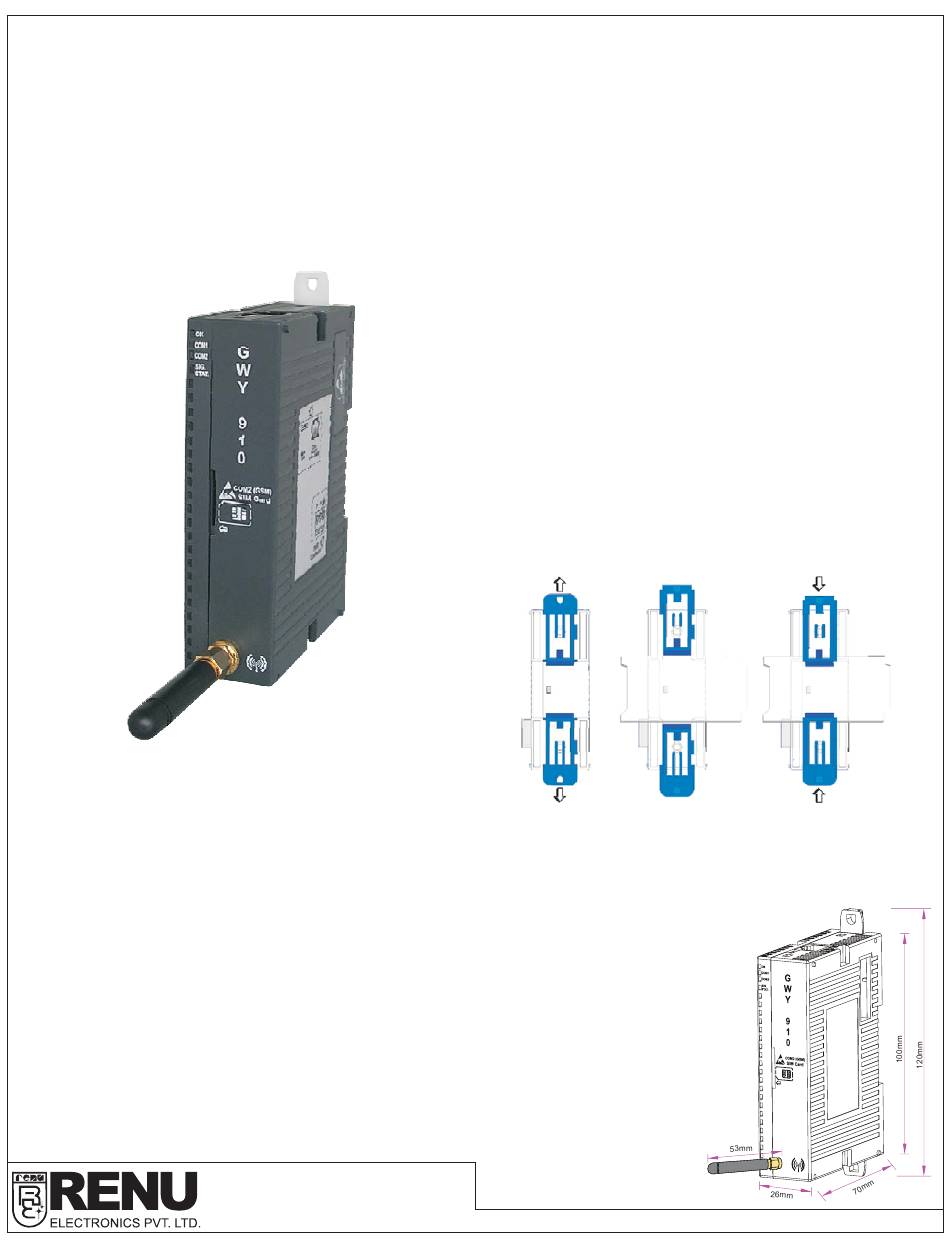

Installation Instruction:
The GWY-910 should be mounted on a din rail plate. A
din rail sliders and locking connectors are provided with
each unit for proper installation.
1.Pull up the 2. Rest the unit
sliders provided on the DIN rail
with the GWY- plate
910 towards
outward
direction.
Panel Mounting:
This section presents the dimensional
sketches and din rail sliding for
GWY-910 model.
(All dimensions are in mm and drawing
are not to scale.)
Rev. No.: 1.00
O
O
3. Pull down the
slider again so
that unit can fix
up with the DIN
rail plate
Page 1 of 2
