DW Windsor PHAROLA Installation Instructions

I N S T A L L A T I O N
IMPORTANT: DISCONNECT ELECTRICAL SUPPLY BEFORE SERVICING
PHAROLA LED BOLLARD
These instructions are important for the safe
installation of this product. Please keep them
for future reference.
NOTE: This product is a CLASS 1 luminaire
and must be earthed at all times.
This product can be specified with an integral
root, flange plate or buried flange plate. An
additional first fix ground root can also be
supplied with the buried flange plate variant.
Refer to the manufacturer for further details.
BOLLARD INSTALLATION
Flange Mount:
Assemble the bollard base directly to the
foundations using the four fixings holes on the
flange plate. See table on page 2 & Fig. 1 for
details. Check orientation of head and secure
with M12 anchor bolts. Please observe
connection details stated below.
Mains supply cable must enter bollard from
below.
Buried Flange Mount:
Assemble the bollard base directly to the
foundations using the four fixings holes on the
flange plate. See table on page 2 & Fig. 1 for
details. Observing the correct bollard height
and head orientation, secure with M12 anchor
bolts. Please observe connection details stated
below. Mains supply cable must enter bollard
from below.
Integral Root Mount:
Assemble anti-lift out bar centrally in root with
M10 nuts positioned on the inside.
Install bollard in ground observing the correct
bollard height and head orientation. See table
on page 2 & Fig. 1 for details.
Please observe connection details stated
below. Mains supply cable must enter bollard
from below.
N.B. Ensure suitable drainage is added below
Pharola LED bollard.
Only the first fix ground root is designed to
accept armoured cable.
To access electrical terminations, remove
bollard head as shown in Fig 2. Make
terminations as labelled and below.
IMPORTANT WIRING CODE
L=LIVE (BROWN), N=NEUTRAL (BLUE),
E=EARTH (YELLOW & GREEN
The bollard earth point can be found by the
driver. See Fig. 3. Please refer to the driver
maintenance section for access instructions.
ELECTRICAL SUPPLY SEE DRIVER

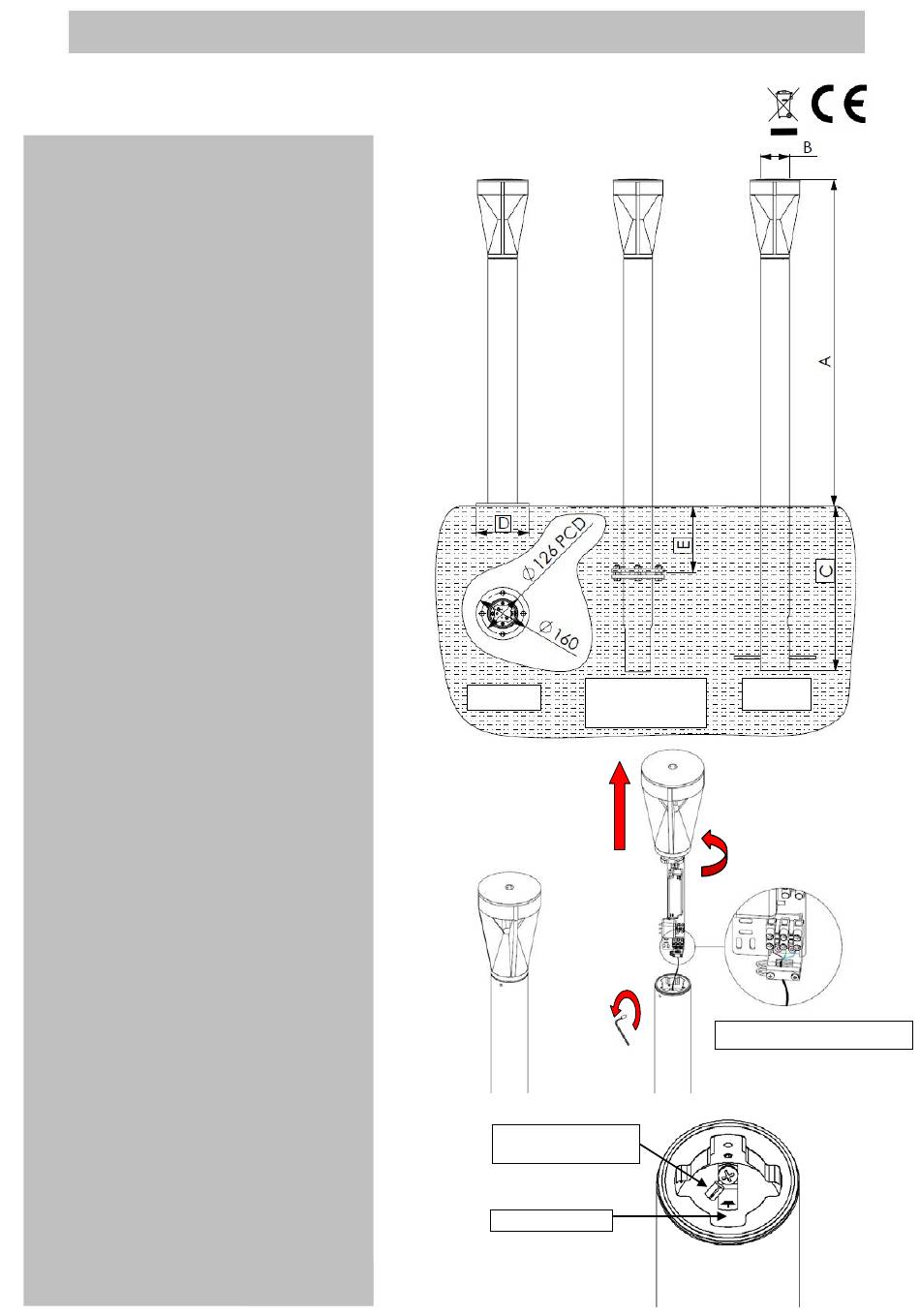

FIG. 1
FIG. 2
FIG. 3
)
Page 1 of 2
I N S T R U C T I O N S
Buried Flange Mount
Flange
with First Fix Root
Bollard Earth point
Earth tag crimp provided
Driver Compartment
Integral
Make terminations as labelled.
