DW Windsor Silka Installation Instructions

Installation Instructions

IMPORTANT

• DISCONNECT ELECTRICAL SUPPLY BEFORE INSTALLATION OR SERVICING.
• THIS PRODUCT MUST BE EARTHED.
• THIS PRODUCT IS DESIGNED TO OPERATE OUTDOORS. IF REQUIRED TO BE USED INDOORS PLEASE CONSULT DW WINDSOR.
• THIS PRODUCT IS FITTED WITH HIGH IMPACT RESISTANT GLAZING AND MAY BE MOUNTED AT HEIGHTS
• DO NOT STARE AT THE LIGHT SOURCE.
• PERSONNEL TO WEAR PROTECTIVE SAFETY GLASSES COMPLIANT WITH EN166 1F/EN169-5 WHEN COMMISSIONING OR
MAINTAINING THIS PRODUCT.
• LEDS CONTAINED WITHIN THIS LUMINAIRE SHALL ONLY BE REPLACED BY THE MANUFACTURER, THEIR SERVICE AGENT OR
SIMILAR QUALIFIED PERSON.
• THE LIVE SUPPLY IS INSULATED (BASIC) FROM THE DALI CONDUCTOR.

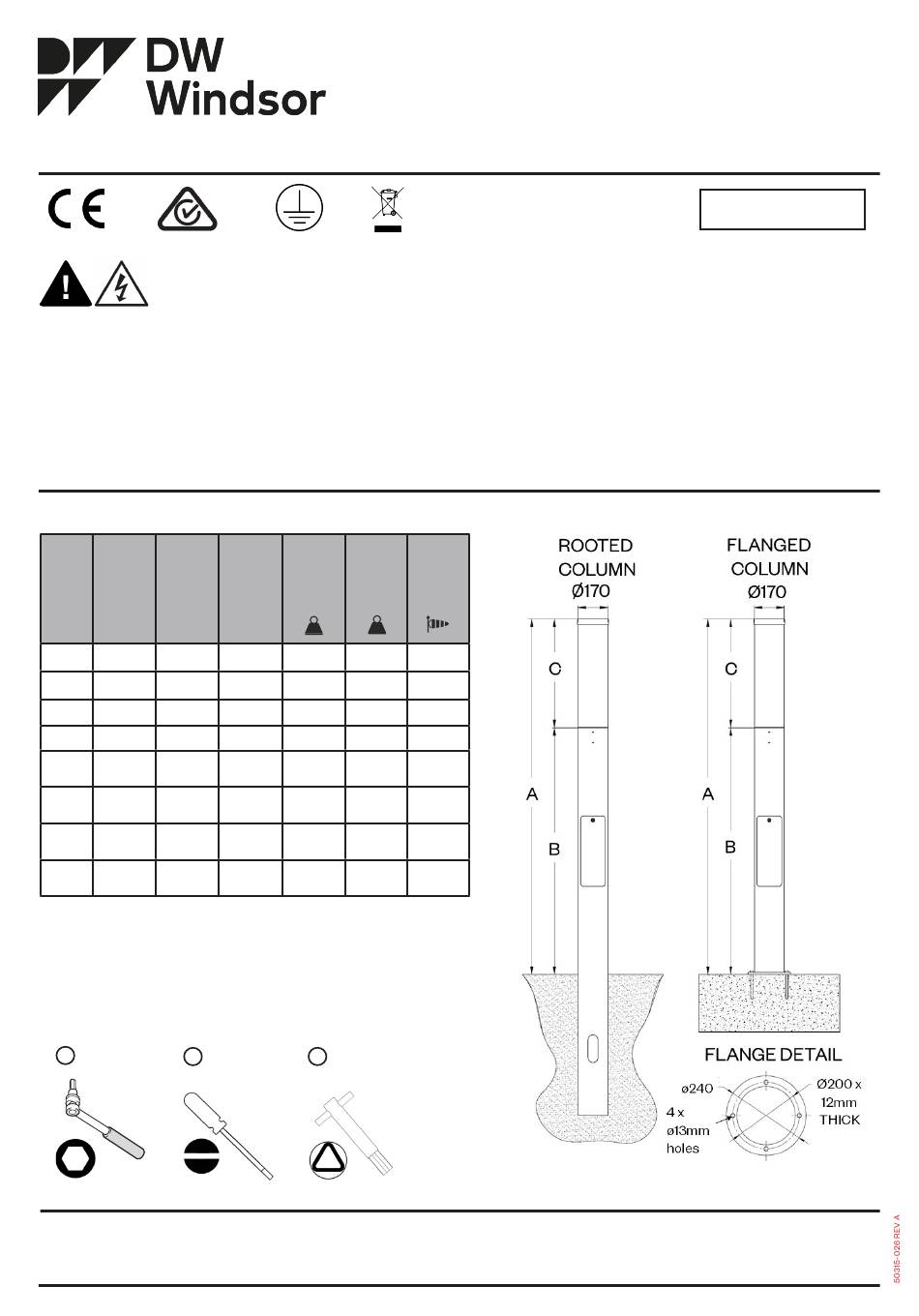

PRODUCT DETAILS

LUMINAIRE COLUMN
HEIGHT HEIGHT
(mm) (mm)
C B
SILKA 600 1400
SILKA 600 2400
SILKA 600 3400
SILKA 600 4400
SILKA
1200 1400
MAX
SILKA
1200 2400
MAX
SILKA
1200 3400
MAX
SILKA
1200 4400
MAX

SUPPLIED PARTS

• COLUMN x1 (ROOTED OR FLANGED)
• LUMINAIRE x1 (SILKA OR SILKA MAX)

TOOLS REQUIRED

Tools not supplied unless otherwise stated.
TORQUE WRENCH
1 2
+
4mm A/F Allen
Key Bit
DW Windsor
Pindar Road, Hoddesdon, Hertfordshire, EN11 ODX
T: +44 (0) 1992 474600 | E: info@dwwindsor.com
dwwindsor.com
OVERALL
WEIGHT WEIGHT
HEIGHT
(KG) (KG)
(mm)
ROOTED FLANGED
A
COLUMN COLUMN
2000 21.3 23.3
3000 28.3 30.3
4000 35.3 37.3
5000 43.7 45.7
2600 16.5 18.5
3600 23.5 25.5
4600 30.5 32.5
5600 37.5 39.5
STANDARD
SLOTTED
3
COLUMN
SCREWDRIVER
DOOR KEY
IP66 IK09
WINDAGE
(m²)
0.35
0.52
0.69
0.86
0.45
0.62
0.79
0.96
Due to continuous product development the details within this document
are subject to change at any time, please contact us for the most up-to-date
information or visit: www.dwwindsor.com
Sheet 1 of 2
Silka
Silka Max
230VAC 50Hz
UP TO 8m.
