Installation Instructions
• DISCONNECT ELECTRICAL SUPPLY BEFORE INSTALLATION OR
SERVICING.
• THIS PRODUCT MUST BE EARTHED.
• THIS PRODUCT IS DESIGNED TO OPERATE OUTDOORS. IF
REQUIRED TO BE
USED INDOORS PLEASE CONSULT DW WINDSOR.
Kova Corner
Carefully read the instructions before
mounting the light fitting.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DW Windsor KOV C 60 1
Summary of Contents for DW Windsor KOV C 60 1

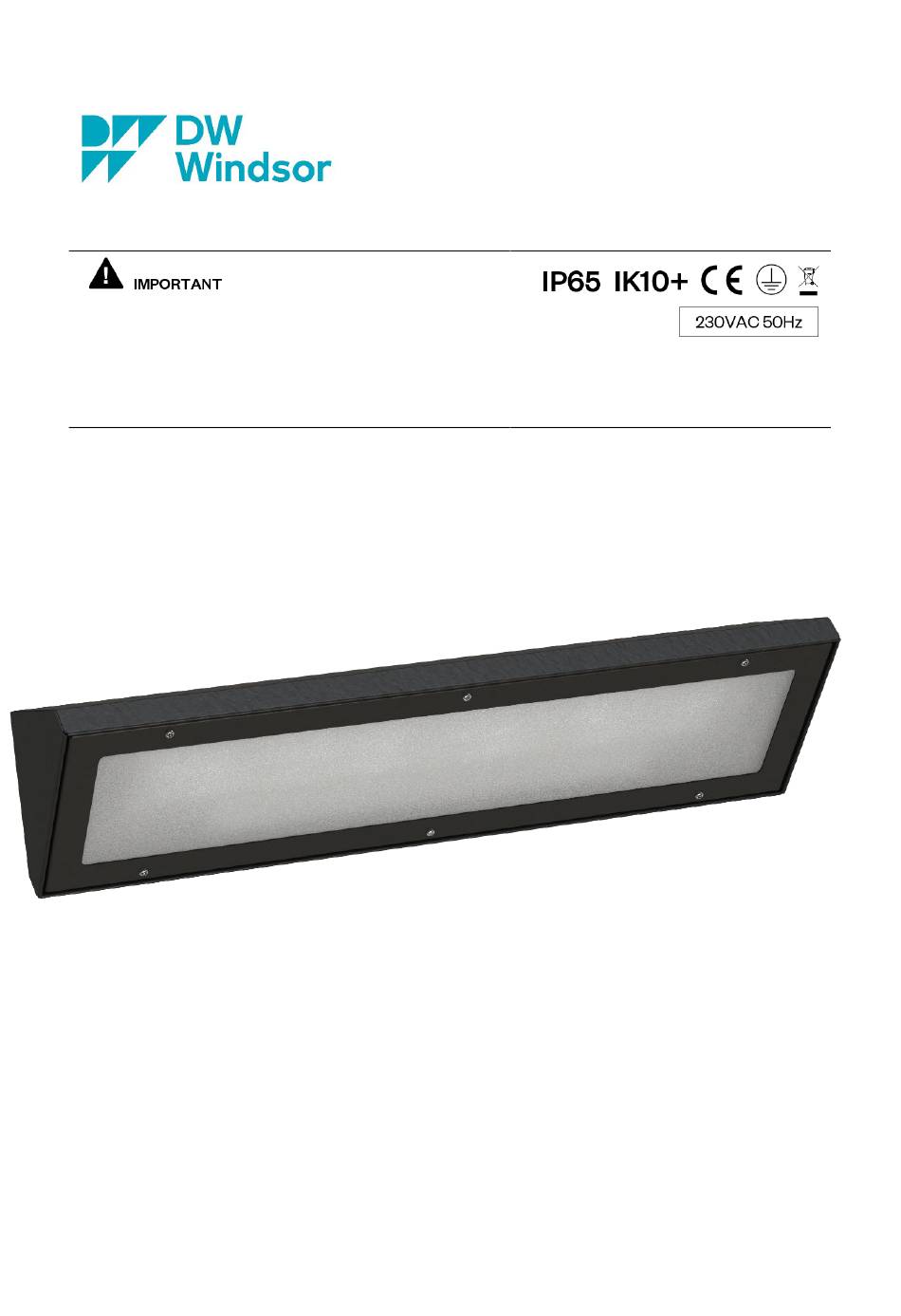

- Page 1 • DISCONNECT ELECTRICAL SUPPLY BEFORE INSTALLATION OR SERVICING. • THIS PRODUCT MUST BE EARTHED. • THIS PRODUCT IS DESIGNED TO OPERATE OUTDOORS. IF REQUIRED TO BE USED INDOORS PLEASE CONSULT DW WINDSOR. Carefully read the instructions before mounting the light fitting.
-
Page 2: Table Of Contents
TABLE OF CONTENTS GENERAL INFORMATION ......................3 TECHNICAL INFORMATION ......................3 PHOTOMETRICAL DATA ........................ 4 MATERIALS ............................. 5 PRELIMINARIES ..........................5 LIGHT FITTING MOUNTING ......................5 ELECTRICAL CONNECTION ......................6 CONDITIONS OF SAFETY USE ..................... 6 LIGHT FITTING MAINTENANCE AND SERVICING............... 7 PARTS EXCHANGE ........................ -
Page 3: General Information
Electrical Protection Ambient Type Power Power factor unit class temp. KOV C 60 1 20,5 W KOV C 60 2 28.9 W KOV C 60 3 35,8 W KOV C 60 4 43,2 W KOV C 12 1 39,2 W... -
Page 4: Photometrical Data
Cable entry position options (please state the requirement and option number upon order): 3. PHOTOMETRICAL DATA Colour Type Luminous flux Efficiency Lifetime temperature KOV C 60 1 2170 lm 106 lm/W KOV C 60 2 2926 lm 101 lm/W KOV C 60 3 4064 lm... -
Page 5: Materials
4. MATERIALS Housing is made of stainless steel. Diffuser is made of polycarbonate. Mounting tray is made of powder painted galvanized steel. 5. PRELIMINARIES CONDITIONS OF SAFETY RULES • Carefully read all the information included in the manual before mounting the light fitting •... -
Page 6: Electrical Connection
7. ELECTRICAL CONNECTION To connect power supply: Bring the power cable into the product through the cable gland. • • Carefully strip the cable cores (8-10mm), and fix to the connector according to marking inside the light fitting, • tighten the power cable in the strain relief and then connect plug and socket; •... -
Page 7: Light Fitting Maintenance And Servicing
• The diffuser is made of polycarbonate, so it mustn’t be exposed to chemical substances which may destroy it, especially: oil, acetone, chloride, ethyl, ether. • Do not stare into working light source. • Risk of electrical shock. 9. LIGHT FITTING MAINTENANCE AND SERVICING REMARK: during the servicing and maintenance touching of LED are prohibited, because it will decrease the lifetime of light fitting and cause the loss of manufacturer’s warranty. -
Page 8: 12. Transport And Conditions Of Storage
12. TRANSPORT AND CONDITIONS OF STORAGE During transportation light fittings shouldn’t be exposed to moisture or mechanical shock. Light fittings should be stored only in sheltered warehouses, within +5 C to +35 C temperature range, and relative humidity lower than 75%. No corrosion causing vapors or gases should be present. 13. - Page 9 Due to continuous product development the details within this document are subject to change at any time, please contact us for the most up-to-date information or visit: www.dwwindsor.com DW Windsor Pindar Road, Hoddesdon, Hertfordshire, EN11 ODX T: +44 (0) 1992 474600 | E: info@dwwindsor.com...
