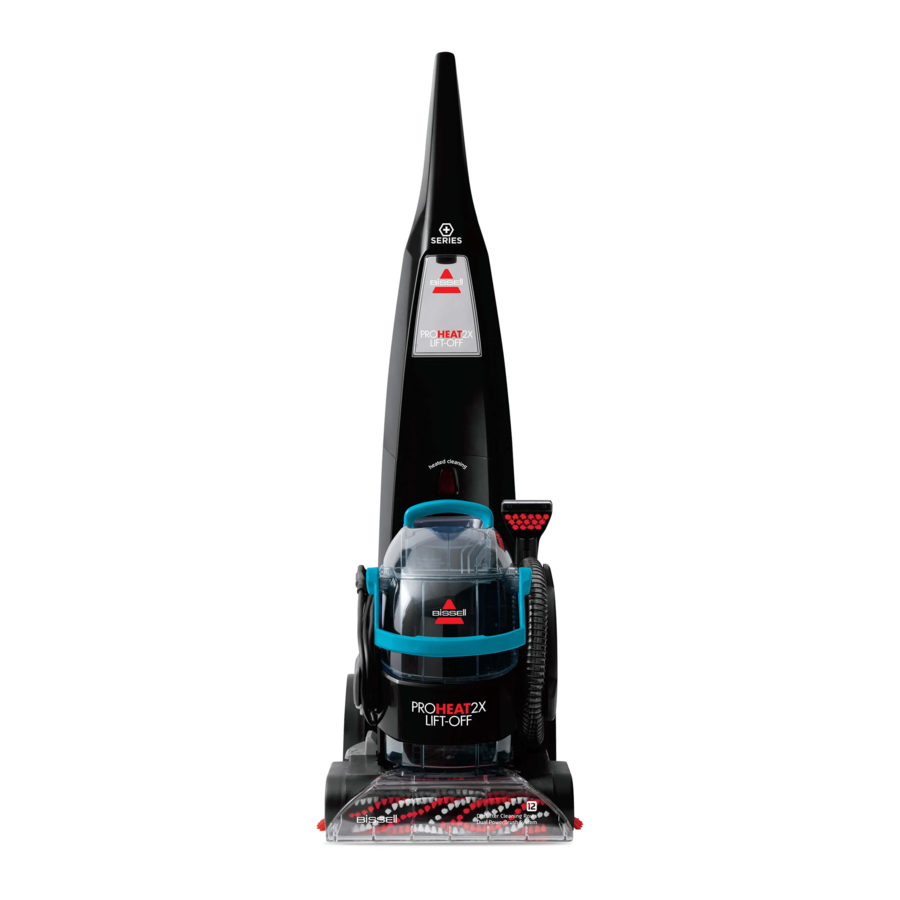

Bissell ProHeat 2X Lift-Off, 1560 / 1564 / 1565 Series Manual

The only tool you will need to assemble your cleaner is a Phillips screwdriver.

1. Slide handle into base

2. On the back, insert 4 screws in a slight upward angle

3. Wrap cord. Unit may come with cord already wrapped.

4. Wrap hose and lock in place by rotating latch

5. Store attachment(s) – Since attachments vary by model, see carton to see which attachments are included


Tips Before Carpet Cleaning

• If cleaning an entire room, consider moving your furniture to another area.
• Use a dry vacuum cleaner over area before using your deep cleaner.
• Pre-treat stains with BISSELL PreTreat to improve performance on coffee stains and ground-in dirt.

A note about BISSELL formula

• One of the effective stain removing ingredients in Boost Oxy is Hydrogen Peroxide. Certain people may be affected by the product when it comes into contact with their skin; it may turn the skin white and/or cause tingling. Washing your hands after use and applying hand lotion will remove any possible white discoloration.

• When the portable machine is seated correctly, the heated cleaning light will illuminate when you turn the machine on.
• If the heat indicator light does not illuminate, release the pod and re-secure by pushing firmly until both sides snap into place.

NOTICE: Do not over wet carpet. Take care not to run over loose objects or edges of area rugs. Stalling brush may result in premature belt failure.

NOTICE: BISSELL Deep Clean + Antibacterial formula is only for BISSELL machines with EasyFill System^TM.

• Move furniture to another area if cleaning an entire room.
• Use a dry vacuum cleaner over area before using your deep cleaner.
• Pre-treat spots and stains in heavy traffic areas.

NOTE: Fill with hot (140°F/60°C MAX) tap water and add the appropriate BISSELL solution. DO NOT HEAT WATER OR TANK IN MICROWAVE, OR USE BOILING WATER. Do not substitute BISSELL 2X Formula cleaning solution with other household cleaning products.

NOTE: The ProHeat 2X® Lift-Off® Deep Cleaner may be equipped with a circuit breaker that automatically shuts off the brush if a large or loose object catches in the brush roll. If that occurs, unplug your machine, remove the foreign object, and plug the unit back in to reset circuit breaker.

NOTICE: Some Berber carpets have a tendency to fuzz with wear. Repeated strokes in the same area with an ordinary vacuum or deep cleaner may aggravate this condition.

TIP: Pod Placement

• When cleaning stairs, avoid tripping by placing the Pod on same step on which you are standing or seated.
• Work your way down the stairs, moving the Pod when required.
• Always be aware of where the unit is plugged into the outlet and avoid entanglement.

NOTE: CLEAN THE MACHINE BEFORE STORING. Fill the Formula & Water Tank with hot tap water and turn on unit. Refer to section Maintenance: Cleaning Machine After Use for details. Store machine in a protected dry area.

NOTICE: To reduce the risk of a leaking condition, do not store unit where freezing may occur. Damage to internal components may result.

1. To replace Large Belt or Rollers, first remove small belt (see first 3 steps above). Remove the only screw holding Pivot Arm, gently pull off arm with attached Rods


Do not lose the small washers held by a magnet at both ends of the Brushroll.

2. Replace Large Belt or Brush Rollers, as required, carefully reassembling the Rollers and Pivot Arm with attached rods and secure the Pivot Arm with the screw

3. To replace the Small Belt, flip Base Unit with the Pod Release Pedal on the bottom

4. Remove screw to Pivot Arm, replace the Small Belt and reassemble the End Caps


Service

Please do not return this product to the store.
Other maintenance or service not included in the manual should be performed by an authorized service representative.

For any questions or concerns, BISSELL is happy to be of service.
Contact us directly at 1-800-237-7691.

IMPORTANT SAFETY INSTRUCTIONS

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

• Connect to a properly grounded outlet only. See grounding instructions. Do not modify the 3-prong grounded plug.
• Do not leave appliance when it is plugged in. Unplug from outlet when not in use and before servicing.
• Do not expose to rain, store indoors.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Do not use for any purpose other than described in this User's Guide. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, or has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep openings free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before plugging or unplugging appliance.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in areas where they may be present.
• Do not use appliance in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.
• Do not use to pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Use only BISSELL cleaning products intended for use with this appliance to prevent internal component damage. See the Cleaning Formula section of this guide.
• Unplug before connecting TurboBrush Tool.
• Do not immerse. Use only on surfaces moistened by the cleaning process.
• Keep appliance on a level surface.
• Do not carry the appliance while in use.
