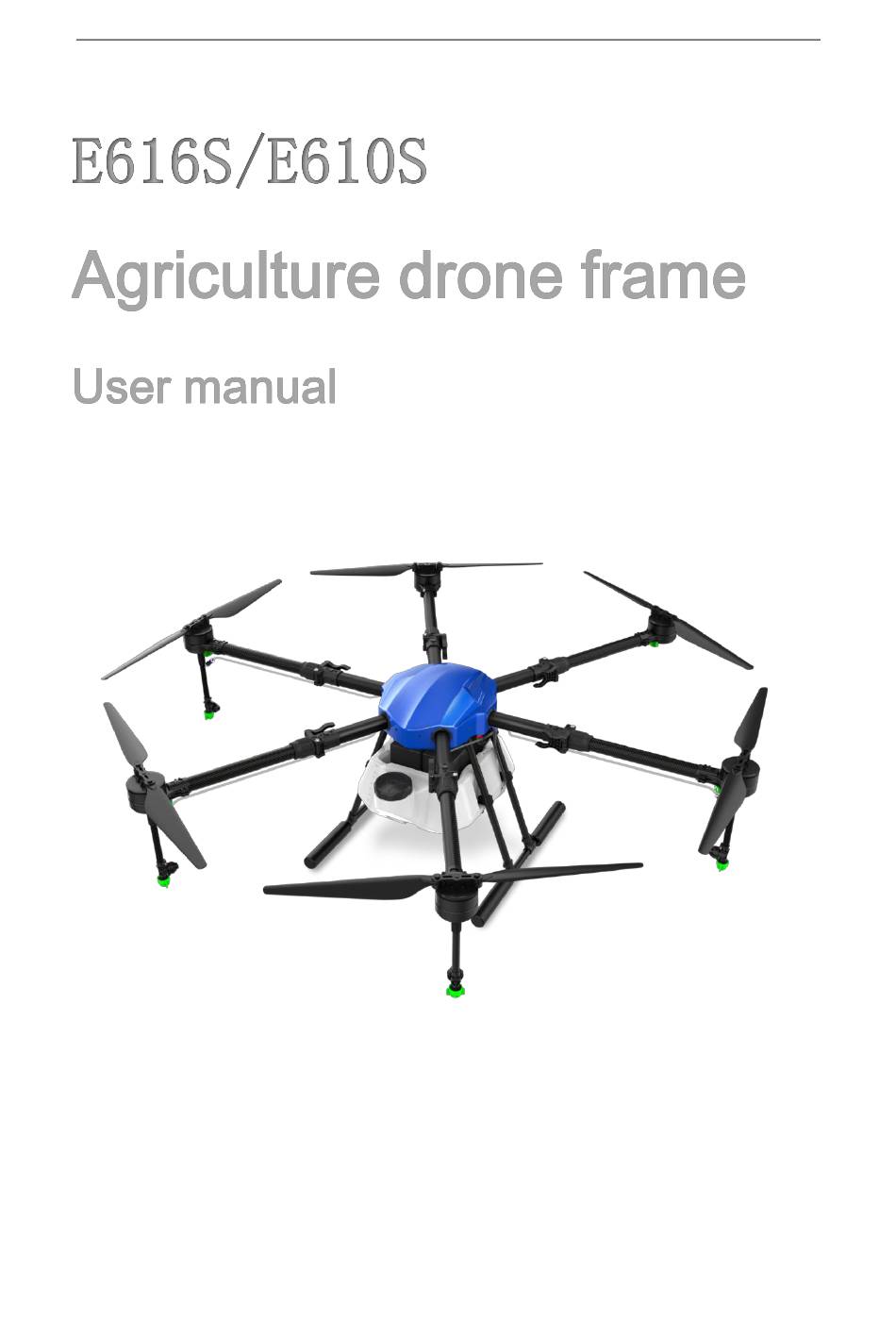

- Page 1 EFT Agriculture drone frame user manual © 2019 EFT...
-
Page 2: Disclaimer & Warning
E616S before the upgrade, and older products still have many common parts can be used, there are many accessories for the 616s and 616 that can be shared. The 616s has replaced the folding material of the arm, using nylon carbon fiber material and adding the C-type fixing clip.the frame structure is more stable, better performance. -
Page 3: Table Of Contents
EFT Agriculture drone frame user manual Contents Disclaimer & Warning ……………………………………3 Familiar with E616S/E610S…………………………………3 Installation Unpacking inspection………………………………………4 Mounting the Landing gear…………………………………5 Mounting the Body ………………………………………5 Mounting the Arm …………………………………………6 Mounting the Tank…………………………………………6 Mounting the power port …………………………………7 Mounting the spraying system……………………………7 Appendix Parameter …………………………………………………9... - Page 4 EFT Agriculture drone frame user manual Overview ！ IMPORTANT 1 、 Do not violently assemble during assembly. If you encounter difficulties, please call 0551-65536542 2 、 When installing the pipe, do not bend excessively to avoid creases affecting the spraying effect.
-
Page 5: Installation
2、《User manual》 3、 Recommended that you use the 《In the box》to check whether the items are missing or damaged.If there is any problem, please contact the EFT in time. Please refer to the user manual for more comprehensive information Mounting the Landing gear 1、Insert the carbon tube with the fixed parts of pot into the tee of... -
Page 6: Mounting The Body
EFT Agriculture drone frame user manual Mounting the Body 2. Unscrew the six M3*10 screws and remove the 1、Unscrew the six M3*8 screws and open the Center board. Upper hood. 3.Make sure cable, port, shell and other 4. Mount the power port module and align the components are perfect. -
Page 7: Mounting The Tank
EFT Agriculture drone frame user manual Mounting the Tank 2 、 The mouth of the tank facing toward the front 1. Remove the bottom cover of the tank, install the side of the aircraft. Install four M6*45 kit fixing pneumatic cover of the tank, Don't forget to install screws with the L-wrench silicone pads. -
Page 8: Mounting The Spraying System
6mm water pipe to facing the frame arm,tighten the two M3*8 screws. connect each nozzle Please be careful during the installation process, EFT will not be responsible for the damage and loss caused by improper use of the user. © 2019... -
Page 9: Appendix
EFT Agriculture drone frame user manual Appendix Specifications ----------------------------------------------------------------------------------------------------------------- Frame parameter E616S E610S Wheelbase：1628mm Wheelbase：1404mm Opened size：1720*1500*556mm Opened size ：1495*1308*500mm Folded size：1073*956*546mm Fold size：945*848*500mm Tank capacity：16L Tank capacity：10L Frame weight：7kg frame weight：5kg Recommended Motor E616S E610S Motor：X8、8118 Motor：X6、6215 Propeller：28-32inch Propeller：23-24inch ESC：80A FOC... - Page 10 EFT Agriculture drone frame user manual Wiring diagram Indicator description status Indicator status No input signal, need to connect signal line Slow red light（2 times / sec） Red light flashing（10times / sec） Input signal error, signal stroke is inconsistent Red light The input signal is normal and the pump is off.
