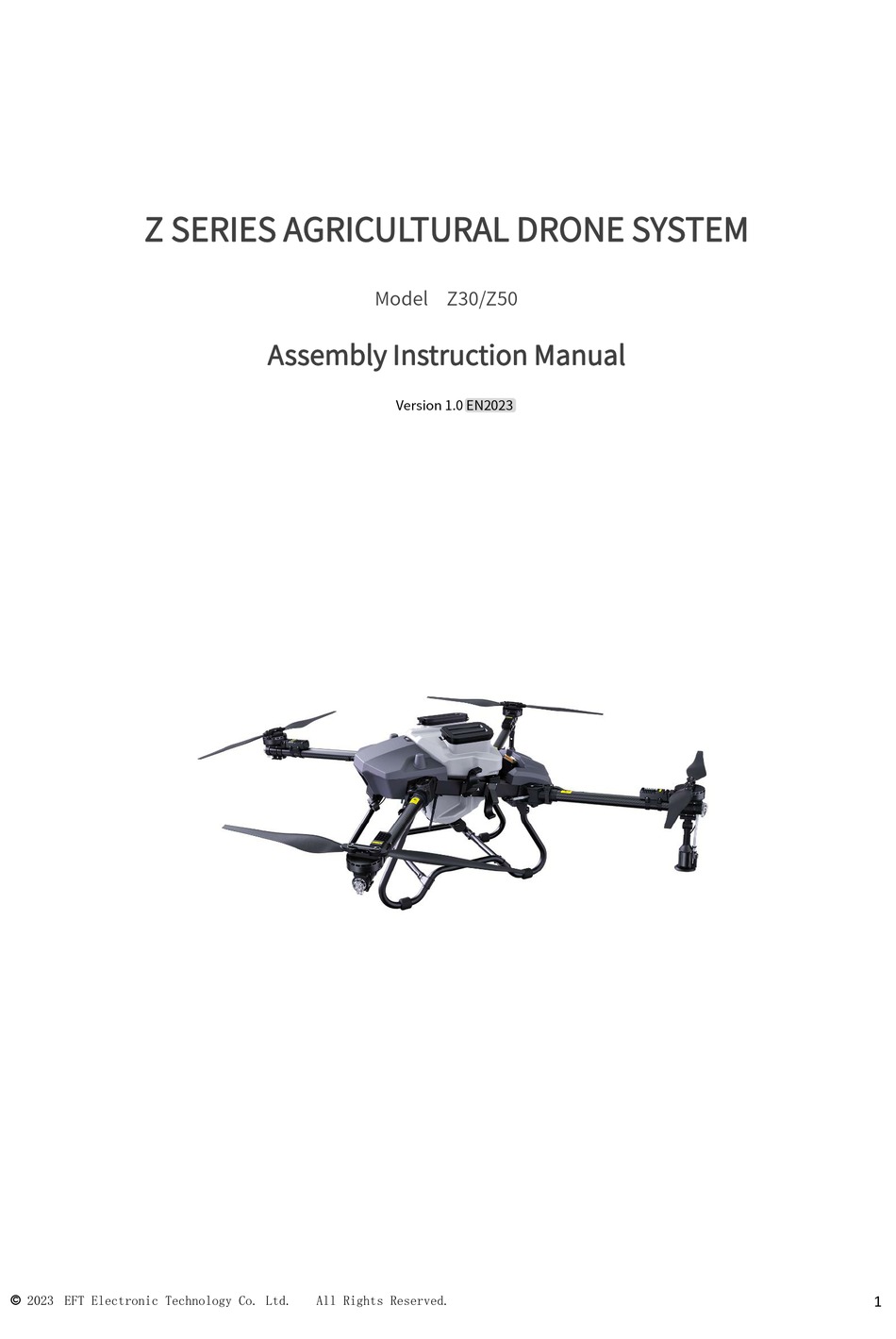

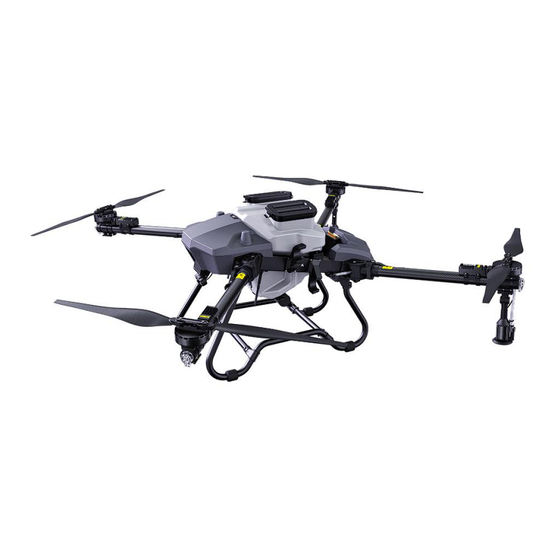

- Page 1 Z SERIES AGRICULTURAL DRONE SYSTEM （Model：Z30/Z50） Assembly Instruction Manual Version 1.0 EN2023 © 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved.
-
Page 2: Table Of Contents
Step 2：Install motor set and drone arms ....................... 6 Step 3：Connect Cables ............................ 8 Step 4：Install The Centrifugal Nozzles ......................10 Step 5：Install Camera .............................10 Ending : ................................11 Switch Spreading Tank ............................. 11 Specifications ..................................12 © 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved. -
Page 3: Safety Guidelines
2. Make sure that you have well known the each part of this product before assembling this product. Do not assemble it violently. If you have any questions when assembling this product, please contact EFT or the authorized agency. 3. Not being a toy, plus for certain safety risks, the product is not suitable for those who are under 18 years old, or those who have no or limited capacity for civil conduct, or those with mobility impairments, or those restricted by existing laws，regulations and policies. -
Page 4: In The Box
We strongly recommend that you carefully check each part for deformation, cracks or other damage after receiving the goods. If there is any problem, please contact us and apply for replacement. © 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved. -
Page 5: Preparations
M4*12 Cylindrical screw Gasket Arm installation M6*12Locking screw φ8*M6*78Locking nut Cylindrical screw M4*10 Landing gear fixtures Cylindrical screw M4*20 Cylindrical screw landing gear bar M4*30 Cylindrical screw M3*16 Nozzle installation © 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved. -
Page 6: Installation Steps
Centrifugal nozzle *2 Motor set *4 Tanks and Sprinklers Drone arm*4 Drone body Paddle*4 Remote control bag landing gear mount*4 Fitting bag landing gear bar Landing gear *2 Flow Chart © 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved. -
Page 7: Steps
5. After installing the landing gear on both sides, install the four tee fixings according to the positioning marks on the bent legs, and pay attention to the interface horizontally inward. © 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved. -
Page 8: Step 2：Install Motor Set And Drone Arms
2. Insert the 4 motor sets and cables into the carbon tube arm, and fix them with the screws on the motor base, do not tighten them for adjusting later. © 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved. - Page 9 6. Install the locking buckle of the arm, insert the long pin into the hole of the arm holder, insert the short pin into the hole of the handle, and then insert the hexagonal stud into the long pin at the end of the arm. © 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved.
-
Page 10: Step 3：Connect Cables
1. Pass each cable of the motors through the cable-passing seal , and then restore the seal. 2. Assemble the wire buckle to the frame, adjust the length of the cables to facilitate the insertion. © 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved. - Page 11 5. Apply grease to the sealing ring of the signal plug, and insert them into the corresponding positions according to the marks. Note: Do not skew when plugging in. If it cannot be inserted, you need to check whether the internal pins are bent or wrong port. © 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved.
-
Page 12: Step 4：Install The Centrifugal Nozzles
1. Use M3*8 screws to install the adapter on the camera, and use M4*35 half-thread screws and locknuts to install it on the front body. 2. Pass the camera harness through the seal at the bottom and insert the plug into the front circuit board. © 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved. -
Page 13: Ending
2. Put the spread tank with the spreader into the drone body and fix it, then connect the spreading cable with the multi-function adapter cable that fixed in drone body. Tip：This manual is only for assembly guide. Please refer to Z Series User Manual for detailed operation. If you have any questions, please contact EFT or an officially authorized agent. -
Page 14: Specifications
Spreading system Applicable granule 0.5-6mm dry solids Spread width 8-12m Model 11115 11122 Volt 95kv 60kv Motor system Maximum power 7350W 9730W Continuous power 2600w 3100w Propeller size 43inch 48inch © 2023 EFT Electronic Technology Co. Ltd. All Rights Reserved. - Page 15 Note: The weight fluctuation is ±1kg according to the real operation and process. EFT has the right to update and final interpretation of this manual, and has the right to update, revise or remove the "User Manual", "Assembly Manual", software, firmware, etc. product information on all web sites without prior notice.
