EFT E416P Installation Manual

Agriculture frame
Hide thumbs
Table of Contents

Advertisement

Quick Links

EFT agriculture frame installation manual
© 2020 Hefei EFT all rights reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E416P and is the answer not in the manual?

Questions and answers

Related Manuals for EFT E416P

Summary of Contents for EFT E416P

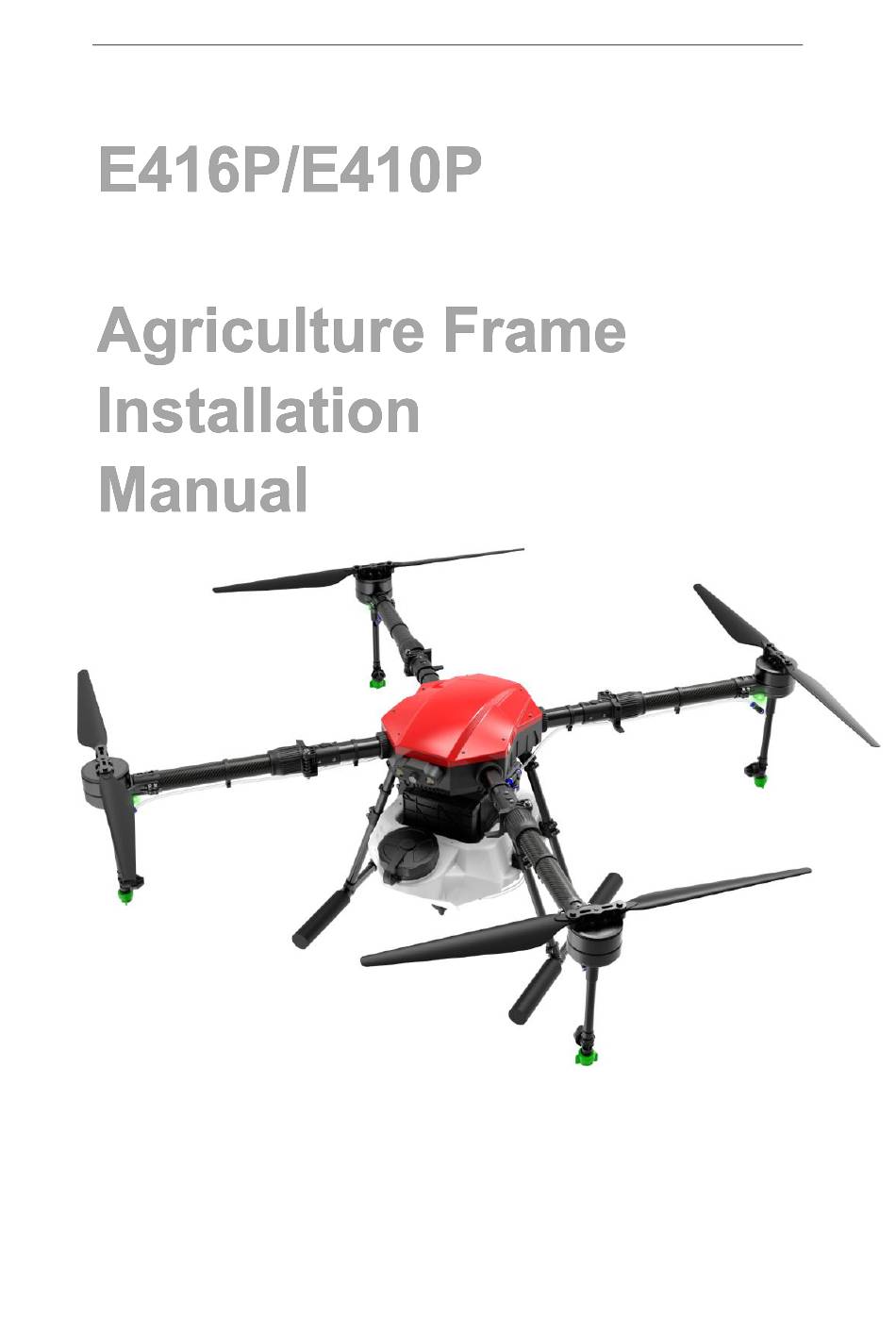

  • Page 1 EFT agriculture frame installation manual © 2020 Hefei EFT all rights reserved...

  • Page 2: Attention

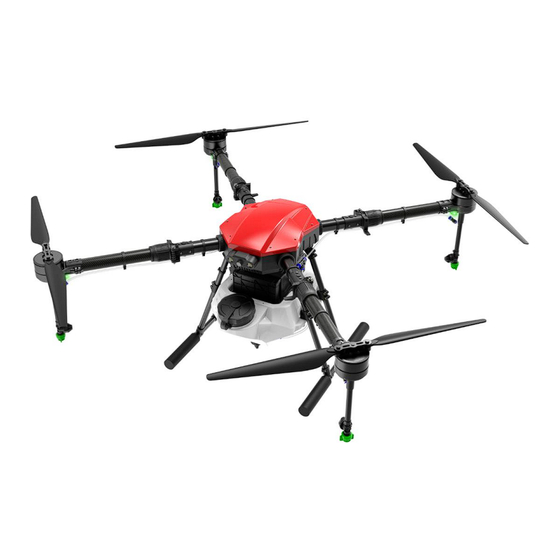

    10. Product damage caused by abnormal use. About E416P/E410P The E416P/E410P version uses a integrated body to simplify the frame. The frame is integrated from dozens of original parts into a whole. The frame is made of high-strength, impact-resistant materials,...

  • Page 3: Table Of Contents

    Frame installation …………………………………4 Landing gear installation ……………………………6 Arm installation ……………………………………7 Tank installation …………………………………9 Motor set installation …………………………………10 Spray system installation ……………………………11 Flight controller Installation ………………………13 Radar installation …………………………………17 RTK installation …………………………………19 Appendix ………………………………………………20 © 2020 Hefei EFT all rights reserved...
  • Page 4 0551-65536542 2、When installing the hose, please do not bend excessively to avoid  creases and affect the spraying effect 3、Be sure to connect the aircraft power after completing all installation  and connections © 2020 Hefei EFT all rights reserved...

  • Page 5: Installation

    If there are other options, install the option at last. The installation method of E410P/E416P is the same, the following Piconly uses E410P frame an example E410P/E416P inspection Unpacking 1、EFT provides users with the following documents...
  • Page 6 5. Pass the AS150U power cord through the three-hole protective coil. Pic5 Pic6 7. Align the holder with the power plug. 8. Use M3*8 screws to fix the C-type pipe clamp. Pic7 Pic8 © 2020 Hefei EFT all rights reserved...

  • Page 7: Landing Gear Installation

    2.The positioning hole of the diagonal brace is landing gear, and then insert it into the flush with the positioning hole of the tripod tripod fixed seat to reach the bottom. fixing seat. Pic 1 Pic 2 © 2020 Hefei EFT all rights reserved...

  • Page 8: Arm Installation

    40MM, if you have other customization requirements, please contact sales. 1. Put the carbon tube into the folding part 2. Use the included L-shaped wrench for and fix it with M6*60 screws + locknut. fixing. Pic 1 Pic 2 © 2020 Hefei EFT all rights reserved...
  • Page 9 6. First fix the locking buckle limit 5. Reach the frame limit. M3*8 screw. Body limit Pic 5 Pic 6 7. Then fix the locking button M4*20 screw. 8. Arm card holder. Pic 7 Pic 8 © 2020 Hefei EFT all rights reserved...

  • Page 10: Tank Installation

    12. Install the finished picture. Pic 11 Pic 12 Tank installation 2. Finished tank bottom cover. 1. Screw the external thread pneumatic head into the bottom cover of the tank Pic 2 Pic 1 © 2020 Hefei EFT all rights reserved...

  • Page 11: Motor Set Installation

    Motor installation 2. The power plug is XT60 male, and the power 1. X8motor sets distribution board is XT60 female. Pay attention to distinguish the positive and negative poles. Pic 2 Pic 1 © 2020 Hefei EFT all rights reserved...

  • Page 12: Spray System Installation

    4. The water outlet is 8MM pneumatic head, which and a 10MM water pipe is used to connect is connected with 8-8-8 tee. with the pneumatic head of the bottom cover of the tank. Pic 4 Pic 3 © 2020 Hefei EFT all rights reserved...
  • Page 13 Pic 8 10. Connect one end of the 8MM water 9. Install 40MM water pipe clamp. pipe to the 8-8-8 tee, and the other end to the extension rod nozzle. Pic 10 Pic 9 © 2020 Hefei EFT all rights reserved...

  • Page 14: Flight Controller Installation

    Pic 13 Pic 14 Flight controller installation This manual uses Jiyi K++ flight control. 2. Install the receiver. 1. Use 3MM glue to install the main control. Pic 1 Pic 2 © 2020 Hefei EFT all rights reserved...
  • Page 15 Pic 6 Pic 5 8. Install the radar management module. 7. Install the Speed governor of pump . Pic 7 Pic 8 © 2020 Hefei EFT all rights reserved...
  • Page 16 11. Place the LED lamp cover in the card slot. 12. Install the GPS bracket. Pic 11 Pic 12 13. Install GPS. 14. Remove the camera adapter board and prepare to install the camera. Pic 13 Pic 14 © 2020 Hefei EFT all rights reserved...
  • Page 17 Pic 18 19. If you do not need to install the camera, you can 20. Finished product without camera. choose to insert the decorative board into the card slot. Pic 20 Pic 19 © 2020 Hefei EFT all rights reserved...

  • Page 18: Radar Installation

    3. Use screws to fix on the reverse side. 4. Install the T-piece. Fix the bottom screw first Pic 4 Pic 3 5. Install the T-piece. 6. Finished front obstacle avoidance radar. Then fix the top screw Pic 6 Pic 5 © 2020 Hefei EFT all rights reserved...
  • Page 19 M4*16 screws. install the radar universal board. Pic 9 Pic 10 Side view elevated radar 11. Use M4*6 self-tapping screws to assembly. install ground radar. Pic 12 Pic 11 © 2020 Hefei EFT all rights reserved...

  • Page 20: Rtk Installation

    Pic 4 5. Pass the RTK antenna through the arm to the 6. Install the RTK external antenna. upper end of the wire protection hole. A straight antenna is required. Pic 6 Pic 5 © 2020 Hefei EFT all rights reserved...

  • Page 21: Appendix

    EFT agriculture frame installation manual Please pay attention to safety during the installation process. EFT will not be responsible for the damage and loss caused by improper use of the user. Appendix Specifications --------------------------------------------------------------------- Frame E416P E410P Motor wheelbase：1362MM Motor wheelbase：1416MM Opened Size：1848*1848*628MM...
  • Page 22 , No water is low level, the air in the water pump needs to be discharged before takeoff to avoid misjudgment after takeoff. Wiring diagram Power Pump Pump Signal Level Signal © 2020 Hefei EFT all rights reserved...
  • Page 23 * If you use a brushless water pump, you need to know the relevant information of the brushless water pump step-down governor, please contact our company in time. © 2020 Hefei EFT all rights reserved...
  • Page 24 EFT WeChat public account ： This manual is subject to update without notice If you have any questions or suggestions about the manual, please contact us through the following methods Contact number: 0551-65536542 Contact email: effort_tech@163.com © 2020 Hefei EFT all rights reserved...
