Summary of Contents for EFT G20

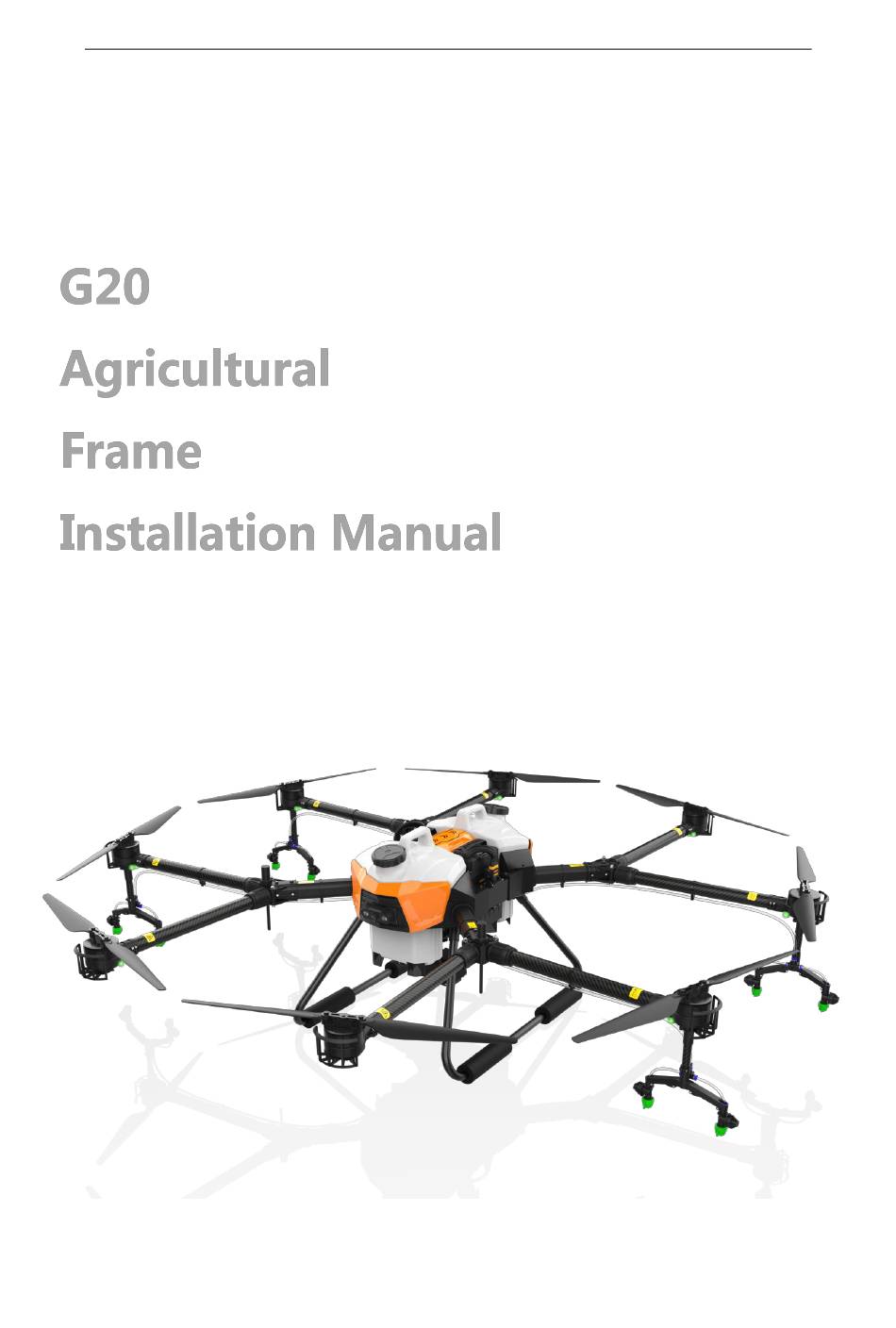

- Page 1 EFT Agricultural frame installation manual © 2020 Hefei EFT all rights reserved 第 1 页 共 15 页...
-
Page 2: Attention
We also reserve an RTK antenna installation location for the G20, and an optional high-precision RTK positioning module can achieve centimeter-level positioning accuracy and improve anti-interference ability. -
Page 3: Table Of Contents
EFT Agricultural frame installation manual Catalogue Attention …………………………………………………2 Ge to know G20 …………………………………………2 Installation Unpacking inspection …………………………………5 Landing gear Installation………………………………5 Arm Installation …………………………………………6 Motor set Installation……………………………………8 Flight controller Installation……………………………8 Spary systems Installation……………………………12 Appendix Parameter …………………………………………14 © 2020 Hefei EFT 第 3 页 共 15 页... -
Page 4: Installation
EFT Agricultural frame installation manual Part Name ⑬ ⑫ ① ⑪ ② ⑩ ③ ⑨ ④ ⑧ ⑤ ⑦ ⑥ Motor set ⑥ Extend rod Y Nozzle Water pipe clamp ① ⑪ ② 40mm carbon arm Radar fixed warehouse ⑫... -
Page 5: Unpacking Inspection
EFT Agricultural frame installation manual Unpacking inspection 1、EFT provides users with the following documents 2、《Product Packing List》 3、《Product installation instructions》 It is recommended that users use the "Product Packing List" to check and carefully check whether the items are missing or damaged. If there is any problem, please contact our company in time. -
Page 6: Arm Installation
EFT Agricultural frame installation manual Arm installation The arm installation needs to disassemble some parts of the fuselage. Please pay attention to the original installation position of these parts. 。 1. Remove the front screw of the shark fin. 2、Remove the rear screw of the shark Align with edge 4.Remove the upper cover of the fuselage. - Page 7 EFT Agricultural frame installation manual For the arm installation, first install the four main arms and then install the eight carbon tube arms. 1.Loosen the arm locking buckle. 2. Pass the main arm through the arm locking buckle, and tighten the outer 4.
-
Page 8: Motor Set Installation
EFT Agricultural frame installation manual Power installation This manual uses Hobbywing X8 motor set ，it is recommended to install the propeller after the aircraft performance is debugged. 1.Use a snakeskin network tube to insert the power cord and ESC signal line. It is recommended to use a 10mm heat shrinkable tube to tighten both ends of the snakeskin network tube to avoid the snakeskin network tube from branching. - Page 9 EFT Agricultural frame installation manual 2. Remove the two GPS mounting plates 1. Loosen the four M3*8 screws and remove reserved for flight control. the GPS mounting plate. 3. Use 3M glue or other fixing methods to install the main body of the flight control on the flight control mounting plate, paying attention to the direction of the flight control.
- Page 10 EFT Agricultural frame installation manual 5. The second layer is used to install PMU, receivers, radar modules and other equipment. If you need to install front and rear obstacle avoidance, ground simulation and other radars, you need to install a radar warehouse.
- Page 11 EFT Agricultural frame installation manual RTK antenna and receiver antenna installation RTK antenna layout, the antenna needs to pass through the arm to reach the fixed hole of the arm, and use RTK fixings to fix it. Receiver antenna installation Camera installation, product model: Siyi AK28.
-
Page 12: Spary Systems Installation
EFT Agricultural frame installation manual The wire harness of the camera passes through the reserved hole, connects with the receiver along the wire slot, and finally fixes the hood. Note: After the power and flight control are installed, the upper cover, shark fin, and central control upper cover must be installed in the order of removal. - Page 13 2. Use an 8mm water pipe to connect the extension rod nozzle, and connect the other end to the outlet of the integrated brushless water pump. Please pay attention to safety during the installation process. EFT will not be responsible for the damage and loss caused by improper use of the user.
-
Page 14: Appendix
EFT Agricultural frame installation manual Appendix Parameter --------------------------------------------------------------------- Frame parameter Recommended configuration Wheelbase：2122mm Motor：HobbywingX8/8118 Expand Size:2050*2050*643mm Paddle: 28-32 inch folding paddle Folded size:1107*1107*643mm ESC：80A FOC Tank capacity:11L*2 Supply voltage： 12S Frame weight:16kg（without spary systems） Maximum take-off weight：58kg Integrated water pump Product specifications size：85*66*58mm(Excluding fixed ears) - Page 15 EFT Agricultural frame installation manual More product support EFT official website：www.effort-tech.com ： EFT WeChat public: account This manual is subject to update without notice If you have any questions or suggestions about the manual, please contact us through the following ways Contact number: 0551-65536542 Contact email: effort_tech@163.com...
