Summary of Contents for EFT G06

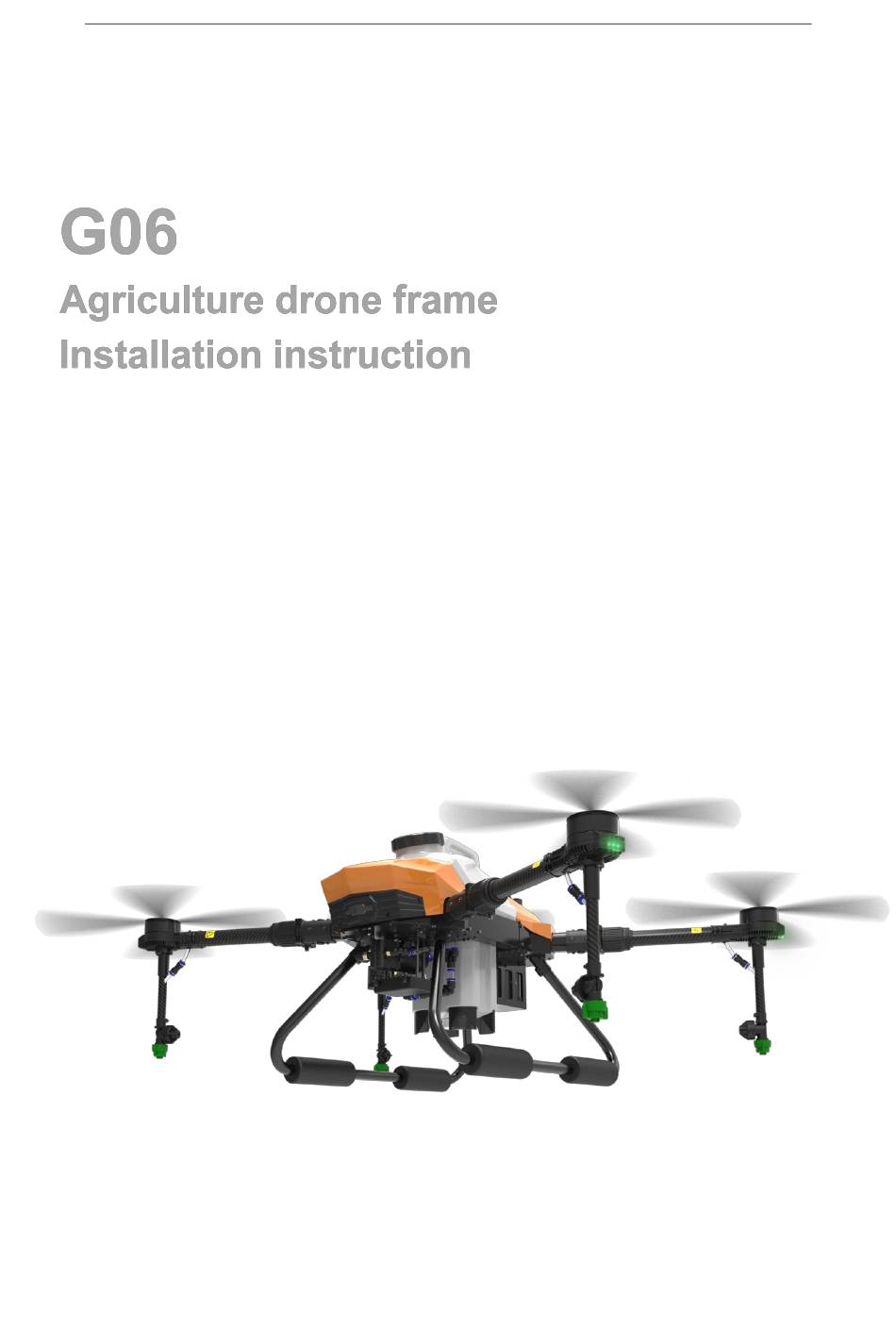

- Page 1 EFT agriculture drone frame installation instruction © 2019 合肥翼飞特 版权所有 第 1 页 共 11 页...
-
Page 2: Attention
10. Product damage caused by abnormal use. AboutG06 G06 is a small plant protection drone solution specially designed for light-weight operation needs. The effective capacity is 6 L. It uses a quick-release tank+ battery. The body is compact and foldable. It can be equipped with radar and FPV camera. -
Page 3: Table Of Contents
EFT agriculture drone frame installation instruction Contents Attention …………………………………………………2 About G06 …………………………………………………2 Installation Unboxing installation …………………………………………………5 Landing gear installation ………………………………………5 Arm installation …………………………………………………6 Motor set installation ……………………………………………7 Spray system installation ……………………………………………8 Appendix Specifications …………………………………………………11 © 2019 EFT All right reserved... - Page 4 EFT agriculture drone frame installation instruction Part item Front cover 6LQuick release tank Frame Back cover Water pump and imitation radar support Battery compartment Extension rod nozzle (silicone ) Folding arms Landing gear X6 motor set Important notes Please do not violently assemble during the assembly process, if you ...
-
Page 5: Installation
EFT agriculture drone frame installation instruction Unboxing inspection 1、EFT provides users with the following documents 2、‘Product Installation Instructions’ It is recommended that users use the "Product Packing List" to check and carefully check whether the items are missing or damaged. If there is any problem, please contact our company in time. -
Page 6: Arm Installation
EFT agriculture drone frame installation instruction Arms installation Note： The installation of the arm requires the removal of some parts of the fuselage. Please pay attention to the installation position of the removed parts to facilitate the recovery later. 1、Remove the front cover 2、Remove the back cover... -
Page 7: Motor Set Installation
EFT agriculture drone frame installation instruction 2 、 Install the arm on the frame in the folding direction as shown below, 3、Install the four arms on the frame. Use the M3*10 screws that come with the body to fix it. -
Page 8: Spray System Installation
图 4 图 3 Warning During the installation process, please pay attention to safety. EFT will not be responsible for any injuries and losses caused by improper operation. © 2019 EFT All right reserved 第 8 页 共 11 页... -
Page 9: Appendix
EFT agriculture drone frame installation instruction Appendix Specifications --------------------------------------------------------------------- Frame Specifications Recommended configuration Wheelbase：1172mm Motor: HobbyWing X6/6215 Expand Size：1580*1270*475mm Paddle: 23-24 inch folding paddle Folded size：605*640*475mm ESC: 60-80A FOC Tank capacity：6L Power supply voltage: 12S Frame weight: 4.8kg (excluding spray system) Maximum takeoff weight: 17.4kg... - Page 10 EFT agriculture drone frame installation instruction Wiring diagram Light description Indicator status status Red light flashes slowly (2 No input signal, need to connect the signal line times/sec) Red light flashes quickly (10 Input signal error, signal travel is inconsistent...
- Page 11 EFT agriculture drone frame installation instruction More product supports EFT official website:：www.effort-tech.com EFT WeChat public account ： This manual is subject to update without notice. If you have any questions or suggestions about the manual, please contact us through the following methods.
