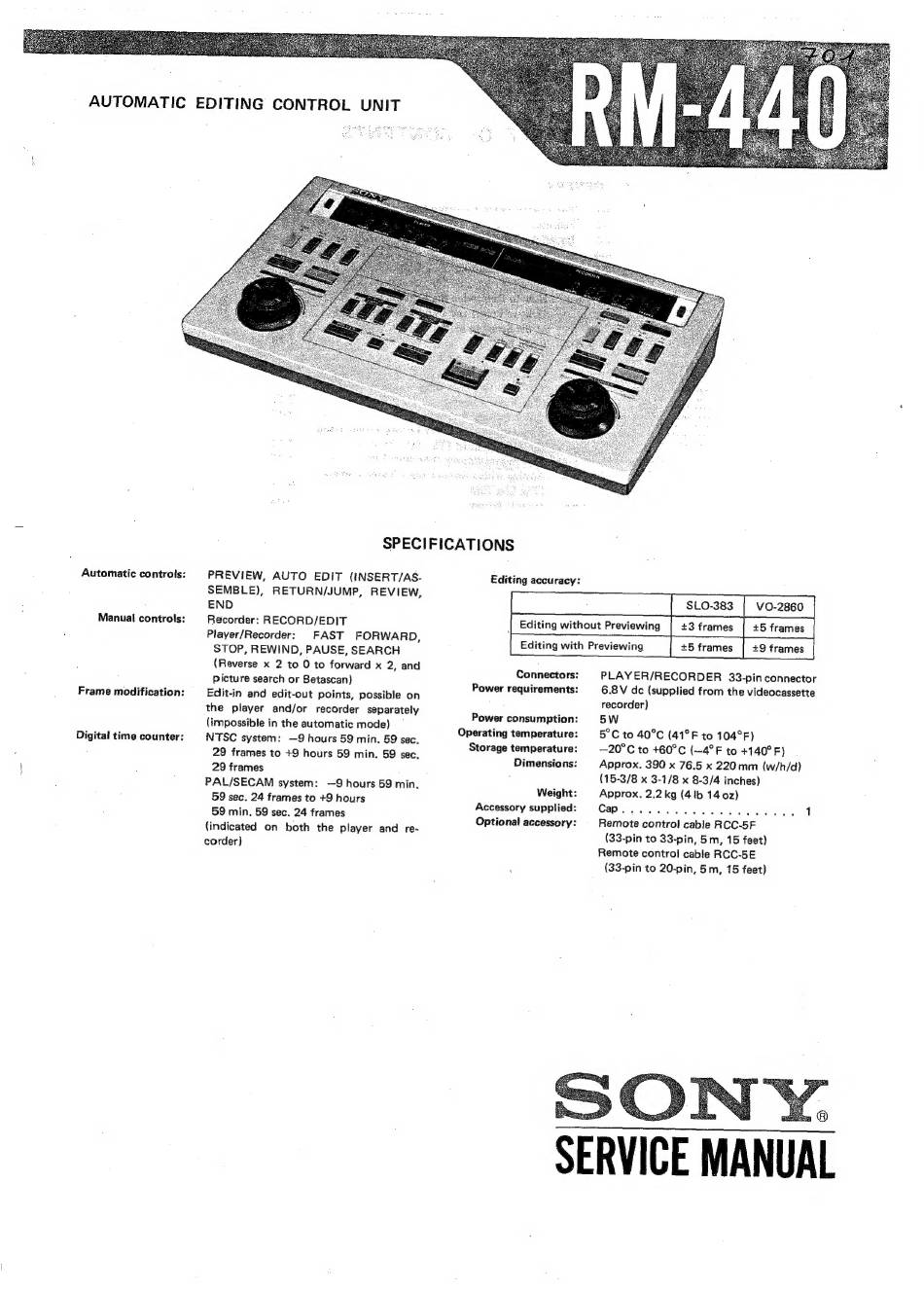

Sony RM-440 Service Manual

Automatic controls:
Manual controls:
Frame modification:
Digital time counter:
SPECIFICATIONS
PREVIEW, AUTO EDIT (INSERT/AS-
SEMBLE), RETURN/JUMP, REVIEW,
END
Recorder: RECORD/EDIT
Player/Recorder: FAST FORWARD,
STOP, REWIND, PAUSE, SEARCH
(Reverse x 2 to 0 to forward x 2, and
picture search or Betascan}
Edit-in and edit-out points, possible on
the player and/or recorder separately
(impossible in the automatic mode) ~
NTSC system: —9 hours 59 min. 59 sec.
29 frames to +9 hours 59 min. 59 sec.
29 frames
PAL/SECAM system: ~9 hours 59 min,
59 sec. 24 frames to +9 hours
59 min. 59 sec. 24 frames
(indicated on both the player and re-
corder)
Operating temperature:
Editing accuracy:
| Editing without Previewing
Editing with Previewing
(33-pin to 33-pin, 5m, 15 feet)
Remote control cable RCC-5E
(33-pin to 20-pin, 5m, 15 feet)
Connectors:
Power requirements:
Storage temperature:
Dimensions:
®
