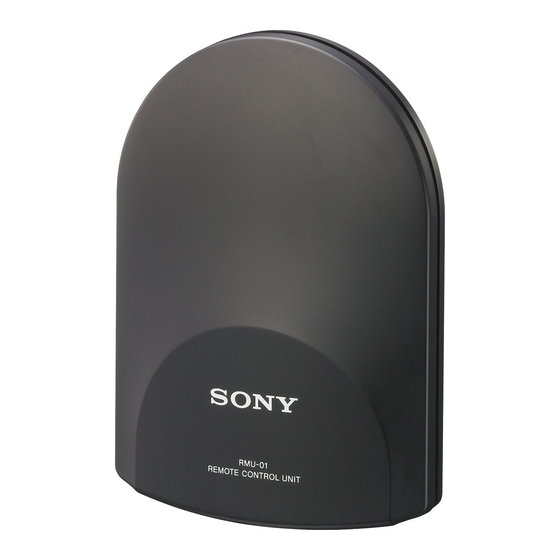

REMOTE CONTROL UNIT
RMU-01
SERVICE MANUAL
1st Edition (Revised 1)

Advertisement

loading
Need help?

Need help?

Do you have a question about the RMU-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sony RMU-01

  • Page 1 REMOTE CONTROL UNIT RMU-01 SERVICE MANUAL 1st Edition (Revised 1)
  • Page 2 électrique, d’incendie ou de blessure n’effectuer que les réparations indiquées dans le mode d’emploi à moins d’être qualifi é pour en effectuer d’autres. Pour toute réparation faire appel à une personne compétente uniquement. RMU-01...
  • Page 3: Table Of Contents

    Exploded Views ............... 2-2 2-3. Electrical Parts List ............2-3 2-4. Supplied Accessories ............2-6 3. Block Diagrams 3-1. Overall Block Diagrams ..........3-1 (E) 3-2. Circuit Description ............3-1 (E) 4. Schematic Diagrams NET-10 ................4-2 RM-223 ................4-4 1 (E) RMU-01...
  • Page 5: Manual Structure

    Related manuals The following manuals are available in this model. If this manual is required, please contact your local Sony Sales Offi ce/Service Center. . RMU-01 Instruction Manual (Supplied with RMU-01) This manual is necessary for application and operation of RMU-01.
  • Page 7: Section 1 Service Overview

    (Refer to “1-6. Installation and Removal of Coaxial Harness.”) *3 When replacing the RM-223 board or the NET-10 board, be sure to upgrade the fi rmware. *4 Pressing the preset switch (S101) for at least two seconds during power-on restores the factory set- tings. 1-1 (E) RMU-01...
  • Page 8: Firmware Update

    4. Enter the IP address setting value for update in “IP Address.” If the IP address is unknown, check the IP address using the supplied software RMU-01 Setting Tool. For how to use the RMU-01 Setting Tool, refer to “Using the RMU-01 Setting Tool” in the Instruction Manual. 1-2 (E)
  • Page 9: Checking The Mac Address Of The Remote Microcomputer

    If the IP address is unknown, check the IP address using the supplied software RMU-01 Setting Tool. For how to use the RMU-01 Setting Tool, refer to “Using the RMU-01 Setting Tool” in the Instruction Manual. 5. Click the “Read” button.
  • Page 10: Checking Firmware Version

    If the IP address is unknown, check the IP address using the supplied software RMU-01 Setting Tool. For how to use the RMU-01 Setting Tool, refer to “Using the RMU-01 Setting Tool” in the Instruction Manual. 5. Click “Apl Version” from the “Help” menu.
  • Page 11: Test Mode

    1-3. Test Mode The supplied software RMU-01 Setting Tool allows setting change/check and self-diagnosis of the unit. For how to use the RMU-01 Setting Tool, refer to “Using the RMU-01 Setting Tool” in the Instruction Manual. Changing/checking settings The following settings can be changed and checked.
  • Page 12: Checking Rf Remote Operation

    START Operation Operation 1 Check version 1 Check version Select "Apl Version" from "Help" menu of the write software "RMU-01 Updater" Select "Apl Version" from "Help" menu of the write software "RMU-01 Updater" information information Check the remote CPU version...
  • Page 13 Operation Operation 2 Check the internal Mac 2 Check the internal Mac Click "Read" button of the write software "RMU-01 Updater" Click "Read" button of the write software "RMU-01 Updater" address by the write software address by the write software "RMU-01 Updater"...
  • Page 14 RM-223 board, and update the firmware Operation Operation Keep a transmitter and RMU-01 away by one meter with the paring completed Keep a transmitter and RMU-01 away by one meter with the paring completed 5 Check transmit power 5 Check transmit power...
  • Page 15: Recommended Power Cord

    1 Power cord 250 V 2.5 A (2.0 m) If the unit is used in the area except above, please contact your local Sony Sales Offi ce/Service Center. . Use the approved power Cord (3-core mains lead)/Appliance Connector/Plug with earth connection that conforms to the safety regulations of each country if applicable.
  • Page 16: Installation And Removal Of Coaxial Harness

    . The ordinary soldering iron can be used but the iron tip has to be applied to the solder joint for a slightly longer time. The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful. 1-10 (E) RMU-01...
  • Page 17: Section 2 Spare Parts

    Therefore, specifi ed parts should be used in the case of な部品です。したがって,交換する時は必ず指定 replacement. の部品を使ってください。 2. Standardization of Parts 2.  部品の共通化 Some repair parts supplied by Sony differ from those   ソニーから供給する補修用部品は,セットに使われて used for the unit. These are because of parts common- いるものと異なることがあります。 ality and improvement.
  • Page 18: Exploded Views

    X-2548-028-1 s STAND SCREW ASSY 1-837-696-11 s CABLE, CONNECTOR WITH COAXIAL 2-344-100-02 s WASHER 2-540-969-13 s SCREW (M2X5), LRT 4-109-127-02 s SCREW,+PSW M1.7X6 4-182-205-01 s CASE , UPPER 4-182-206-01 s CASE, LOWER 4-931-646-01 s LENS, LED 7-685-648-79 s SCREW +BVTP 3X12 TYPE2 IT-3 RMU-01...
  • Page 19: Electrical Parts List

    1-164-866-81 s CAP, CHIP CERAMIC 47PF CH 1005 D126 6-500-776-01 s DI DF3A6.8FV(TL3S D127 6-500-776-01 s DI DF3A6.8FV(TL3S C162 1-164-866-81 s CAP, CHIP CERAMIC 47PF CH 1005 D128 6-500-776-01 s DI DF3A6.8FV(TL3S C163 1-114-582-91 o CAP, CERAMIC 0.1MF B 1005 D129 6-500-776-01 s DI DF3A6.8FV(TL3S RMU-01...
  • Page 20 R179 1-218-933-81 s RES, CHIP 22 R121 1-218-937-81 s RES, CHIP 47 R180 1-208-881-81 s RES, CHIP 560 (1005) R122 1-218-937-81 s RES, CHIP 47 R181 1-208-881-81 s RES, CHIP 560 (1005) R182 1-208-903-81 s RES, CHIP 4.7K (1005) RMU-01...
  • Page 21 TP304 1-535-877-22 s CHIP, CHECKER R255 1-218-937-81 s RES, CHIP 47 TP305 1-535-877-22 s CHIP, CHECKER R256 1-218-937-81 s RES, CHIP 47 R257 1-218-937-81 s RES, CHIP 47 X101 1-795-983-11 s OSCILLATOR, CRYSTAL R258 1-218-937-81 s RES, CHIP 47 RMU-01...
  • Page 22: Supplied Accessories

    1-218-990-81 s CONDUCTOR, CHIP (1005) R3011 1-208-911-81 s RES, CHIP 10K (1005) R3012 1-208-935-81 s RES, CHIP 100K (1005) R3013 1-218-990-81 s CONDUCTOR, CHIP (1005) R3014 1-208-911-81 s RES, CHIP 10K (1005) X3000 1-813-177-21 s VIBRATOR, CRYSTAL (16 MHz) RMU-01...
  • Page 23: Section 3 Block Diagrams

    The transceiver (IC3003) modulates and demodulates RF signals and performs communication. The power supply circuit regulates the +3.3 V supplied from the NET-10 board with the +3.0 V regulator (IC3004), and supplies the regulated voltage to ICs on this board. 3-1 (E) RMU-01...
  • Page 25: Section 4 Schematic Diagrams

    Section 4 Schematic Diagrams Index Board name Page NET-01 RM-223 RMU-01...
  • Page 26 UDZSUSTE-1730B R310 R312 100k 100k R317 R323 CL302 SYNC C116 22pF DC_JACK PGND R318 CL116 C315 R324 C117 330k R135 0.1uF R303 C156 R325 R313 10pF C302 100k C316 100k 10uF 0.1uF R326 C319 C320 C322 47uF 4.7uF 220uF RMU-01...
  • Page 27 R139 0.1uF C121 +3.3V 47pF 47pF RESET 4.7k 1000pF RESET RESET C103 C104 DBG_RxD2 0.1uF 2.2uF R502 4.7k DBG_TxD2 CPU_JTAG R149 C172 C173 SW_IN 4.7k 0.1uF 0.1uF 001-O2 R503 RM_JTAG 4.7k PoE/AC 001-M3 RM_JTAG NET-10 BOARD NO. 1-882-057-11 MAX-782_NET-10_022.cir/001 RMU-01...
  • Page 28 10pF 10pF R3002 IC3000 CY62256VNLL-70ZXCT CN3000 R3003 R3004 R3014 4.7k SW_IN MOSI +3.0V IC3004 TK11130CSCL-G R3013 C3018 10uF MISO VOUT RESET CONT C3022 4.7uF +3.3V C3019 0.1uF C3023 +3.3V C3020 4.7uF C3021 1000pF 1000pF +3.3V RM-223 +3.3V 1-881-928-11 MAX-780_RM-223_011.cir/001 RMU-01...
  • Page 29: Section 5 Board Layouts

    Section 5 Board Layouts Index Board name Page NET-10 RM-223 RMU-01...
  • Page 30: Net-10

    C202 CN101 D302 L100 R110 R137 R164 R191 R219 R262 R323 TP104 * C4 * C3 CL101 * A3 * B3 * C3 * B3 C126 C153 C301 CN102 D303 L101 R111 R138 R165 R192 R220 R263 R324 TP303 RMU-01...
  • Page 31 CN3000 * A1 CN3001 D3000 D3001 D3002 D3003 FL3000 IC3000 * B2 IC3001 IC3002 IC3003 IC3004 L3000 L3001 L3002 R3000 * A2 R3001 * A2 R3002 R3003 R3004 R3005 R3006 R3007 R3008 R3009 R3010 R3011 R3012 R3013 R3014 X3000 RMU-01...
  • Page 34 Printed in Japan Sony Corporation RMU-01 (SY) J, E 2010. 6 08 9-968-749-02 ©2010...
