Summary of Contents for cable matters 107064

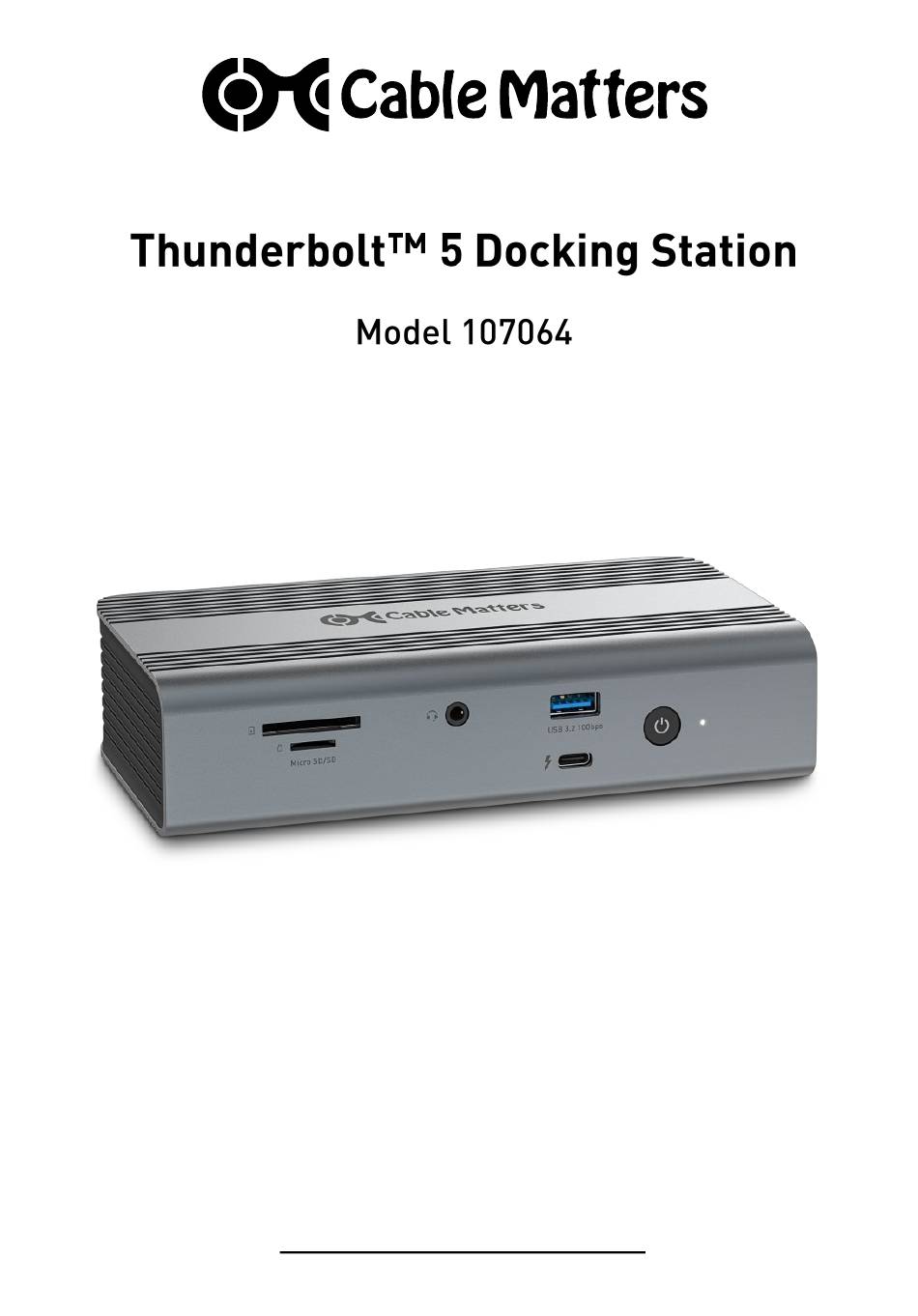

- Page 1 User Manual Download the user manual at: www.cablematters.com/dl/107064 support@cablematters.com...
-
Page 2: Table Of Contents
Thunderbolt™ 5 Docking Station Table of Contents 1. INTRODUCTION ..................1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW 2.1 Package Contents 2.2 Product Description ……………………………………………………2 2.3 Product Features 2.4 System Requirements 3. CONNECTION AND OPERATION INSTRUCTIONS ……………. -
Page 3: Introduction
Specifications are subject to change without notice. Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. Chrome and related marks and logos are trademarks of Google LLC. -
Page 4: Product Description
Thunderbolt™ 5 Docking Station 2.2 Product Description The Cable Matters Thunderbolt™ 5 Docking Station supports three Thunderbolt™ 5 Downstream Ports , USB ® peripherals, 2.5 Gigabit Ethernet networking, SD cards and up to 140W power delivery for your computer over a single Thunderbolt 5 80/120Gbps cable. -
Page 5: Connection And Operation Instructions
USB-C only computers must use a passive Thunderbolt 5 cable up to 1m (Cable Matters Model 107062) MacOS computers do not require any additional external software ✓ For additional troubleshooting information, go to kb.cablematters.com and search for 107064. ✓ www.cablematters.com... -
Page 6: Usb-C Or Thunderbolt 5 External Display Chart
Thunderbolt™ 5 Docking Station 3.2 USB-C or Thunderbolt 5 External Display Chart Thunderbolt 5 hosts support three 8K displays. The display support of USB-C hosts depends on the DP Alt Mode and Display Stream Compression (DSC) support of the host. Windows 11 (23H2 or later) Up to... -
Page 7: Front Panel Diagram
Thunderbolt™ 5 Docking Station 3.3 Front Panel Diagram 1) SD and microSD card slots 2) 3.5mm TRRS combo headphones/mic port 3) USB-A 3.2 Gen2 10Gbps port 4) Thunderbolt 5 80/120Gbps / USB4, USB3.2 Gen1/Gen2 ports with PD3.0 5V3A charging support 5) Power button 6) Power LED 3.4 Rear Panel Diagram... -
Page 8: Connecting The Docking Station
• Test by turning off all wireless connections on the computer • Test the patch cable with a different device or try another Ethernet port • Maximum connection speed is limited by the network equipment and the Internet speed • Download the additional driver at: www.cablematters.com/dl/107064 www.cablematters.com... -
Page 9: Connecting An Audio Device
Thunderbolt™ 5 Docking Station 3.7 Connecting an Audio Device 1) Connect a headset or microphone to the 3.5mm audio port (3 pole TRS or 4 pole TRRS) 2) Configure the audio settings from the computer Windows 10 and up 1) Device Manager > Click on Sound, video and game controllers> Realtek USB2.0 Audio 2) Click on Audio inputs and output >... -
Page 10: Connecting A Usb-A Or Usb-C Device
Thunderbolt™ 5 Docking Station 3.9 Connecting a USB-A or USB-C Device RONT ANEL 1) Connect a USB-A or Thunderbolt/USB-C device or cable to the dock 2) The device should be recognized after downloading any needed USB drivers 3) The USB3.2 port supports data transfer up to 10Gbps. The Thunderbolt 5 port supports up to 80Gbps data transfer and 5V3A PD3.0 charging. -
Page 11: Thunderbolt Share Instructions
SKU 107064 Use the included Thunderbolt 5 cable to connect PC “A” to the Thunderbolt 5 host port on the Cable Matters Thunderbolt 5 Docking Station Use an additional Thunderbolt 4/5 cable to connect PC “B” to one of the downstream ports on the Cable Matters Thunderbolt 5 docking station The Thunderbolt Share application will automatically form a connection between the two PCs. -
Page 12: Technical Specifications
Contact us with any questions at support@cablematters.com. 6.2 Warranty Information This product is backed by a limited one-year warranty. The warranty covers parts and labor costs only. Cable Matters does not warrant its products from defects or damages arising from misuse, abuse, or normal wear.
