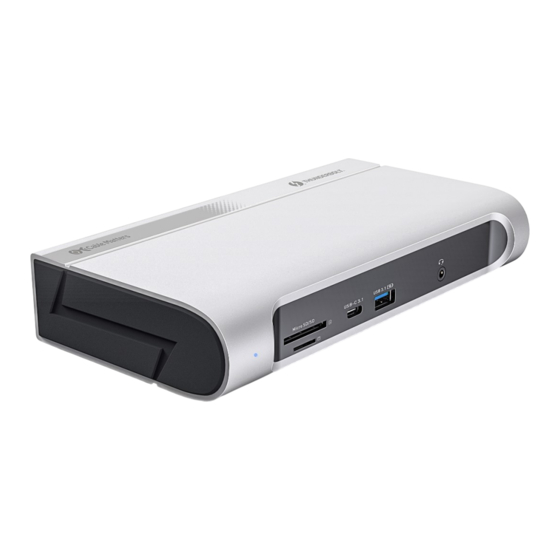

- Page 1 Hybrid Thunderbolt™ 3 Docking Station with 96W Power Delivery Model 107044 User Manual Download the user manual at: www.cablematters.com/dl/107044 support@cablematters.com...
-
Page 2: Table Of Contents
Hybrid Thunderbolt™ 3 Docking Station with 96W Power Delivery Table of Contents 1. INTRODUCTION ................ 1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW 2.1 Package Contents 2.2 Product Description ................. 2.3 Product Features 2.4 Installation Checklist 3. -
Page 3: Introduction
Contact support@cablematters.com for questions or product support. 1.2 Copyright and Trademarks Specifications are subject to change without notice. Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. -
Page 4: Product Description
Hybrid Thunderbolt™ 3 Docking Station with 96W Power Delivery 2.2 Product Description The Cable Matters Hybrid Thunderbolt™ 3 Docking Station with 96W Power Delivery supports two 4K ® DisplayPort™ or HDMI monitors, USB peripherals, Gigabit Ethernet networking, and SD cards over a ®... -
Page 5: Installation Checklist
Use the included Thunderbolt 3 cable to connect to the Dock for the best performance ✓ Longer active Thunderbolt 3 cable up to 2m are available (Cable Matters Model 107012) USB-C only computers must use a passive Thunderbolt 3 cable up to 0.8m (Cable Matters Model 107002) Check that the Intel Thunderbolt™... -
Page 6: Front Panel Diagram
Hybrid Thunderbolt™ 3 Docking Station with 96W Power Delivery 3.3 Front Panel Diagram 1) SD and microSD card slots 2) USB-C 3.1 Gen 2 10Gbps port 3) USB-A 3.1 Gen 2 10Gbps port with BC1.2 charging support 4) 3.5mm TRRS combo headphones/mic port 3.4 Rear Panel Diagram 5) K-Lock slot 6) AC power port... -
Page 7: Connecting The Docking Station
Hybrid Thunderbolt™ 3 Docking Station with 96W Power Delivery 3.5 Connecting the Docking Station 1) Connect the Dock to an AC power outlet 2) Connect the included cable to the Thunderbolt 3 or USB-C port on the computer 3) A computer equipped with Power Delivery should indicate that it is charging 4) Wait up to 20 seconds while USB drivers are automatically installed 5) Check that an LED in the RJ45 port is lit 6) Windows may request the user to approve the Dock... -
Page 8: Connecting An Audio Device
Hybrid Thunderbolt™ 3 Docking Station with 96W Power Delivery 3.7 Connecting an Audio Device 1) Connect a headset or microphone to the 3.5mm audio port (3 pole TRS or 4 pole TRRS) 2) Configure the audio settings from the computer Windows 10 1) Device Manager >... -
Page 9: Connecting A Usb-A Or Usb-C Device
Hybrid Thunderbolt™ 3 Docking Station with 96W Power Delivery 3.9 Connecting a USB-A or USB-C Device RONT ANEL 1) Connect a USB-A or USB-C device or cable to the Dock 10Gbps Speed 2) The device should be recognized after downloading any needed USB drivers 3) Data transfer up to 10Gbps is supported. -
Page 10: Technical Specifications
Contact us with any questions at support@cablematters.com. 5.2 Warranty Information This product is backed by a limited one-year warranty. The warranty covers parts and labor costs only. Cable Matters does not warrant its products from defects or damages arising from misuse, abuse, or normal wear. - Page 11 Hybrid Thunderbolt™ 3 Docking Station with 96W Power Delivery View compatible products at www.cablematters.com Certified Active 40Gbps Thunderbolt™ 3 Cable Model 107012 Certified Passive 40Gbps Thunderbolt™ 3 Cable Model 107002 2-Pack DisplayPort™ Cables Model 102005 www.cablematters.com...
- Page 12 Hybrid Thunderbolt™ 3 Docking Station with 96W Power Delivery THIS PAGE LEFT INTENTIONALLY BLANK www.cablematters.com...
