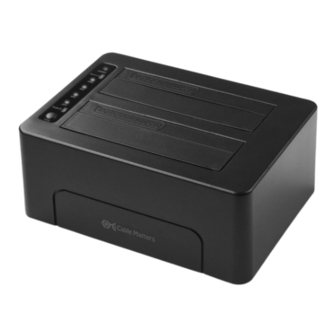

- Page 1 USB 3.0 to Dual SATA Hard Drive Docking Station with Standalone Clone Function Model 202014 User Manual (Available in a PDF file) Email: support@cablematters.com...
-
Page 2: Table Of Contents
USB 3.0 Dual-SATA HDD Docking Station with Cloning Table of Contents 1. INTRODUCTION……………………… ..………………….…...1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW 2.1 Package Contents 2.2 Product Description……………… .... ………………………………...2 2.3 Product Features 2.4 System Requirements 3. -
Page 3: Introduction
1.2 Copyright and Trademarks Specifications are subject to change without notice. Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum 1.3 FCC Compliance Statement... -
Page 4: Product Description
USB 3.0 Dual-SATA HDD Docking Station with Cloning 2.2 Product Description The Cable Matters® USB 3.0 Dual SATA HDD Docking Station with Cloning supports 2.5” or 3.5” Hard Disk or Solid State SATA I/II/III drives without any tools or software drivers. Connect it to your computer or laptop for fast file transfers, data recovery or drive imaging at SuperSpeed USB 3.0 data... -
Page 5: Connection And Operating Instructions
USB 3.0 Dual-SATA HDD Docking Station with Cloning 3. Connection and Operating Instructions 3.1 Diagram of Connections DOCK REAR PANEL 1. SuperSpeed USB 3.0 Type-B port 2. DC 12V Power Adapter input 3. Power ON/OFF button DOCK TOP PANEL Hold both the Dock 1) Power Status - Green LED and HDD drive when removing a drive... -
Page 6: Hdd Installation - Usb Cable Mode
USB 3.0 Dual-SATA HDD Docking Station with Cloning 3.2 HDD Installation - USB Cable Mode 1) Connect the Dock to the AC power adapter and an electrical outlet. 2) Connect the USB cable from your computer to the Dock. 3) Insert an HDD into either bay A or bay B by while depressing the hinged doors. -
Page 7: Formatting An Hdd In Windows Os
USB 3.0 Dual-SATA HDD Docking Station with Cloning 3.3 Formatting an HDD in Windows OS 1) Insert the drive into either bay A or B and turn on the Dock 2) Check that the yellow LED is lit for the bay 3) Open the Disk Management Menu to partition and format the drive Create and format Search for:... - Page 8 USB 3.0 Dual-SATA HDD Docking Station with Cloning Use the Simple Volume Wizard to perform the following functions: * Partition a drive * Format a drive * Change the drive letter * Shrink a partition * Delete a partition * Change a drive file system type 1) Right-click on the Unallocated drive and select New Simple Volume 2) Follow the instructions from the New Simple Volume Wizard •...
-
Page 9: Formatting An Hdd In Mac Os
USB 3.0 Dual-SATA HDD Docking Station with Cloning 3.4 Formatting an HDD Formatting in Mac OS 1) Insert a drive into either bay A or B and turn on the Dock 2) Check that the yellow LED is lit by the bay 3) Connect the USB cable to the computer 4) Initialize the drive, if prompted 5) Open Utilities >... -
Page 10: Hdd Duplication - Cloning Mode
USB 3.0 Dual-SATA HDD Docking Station with Cloning 3.5 HDD Duplication - Cloning Mode (Standalone) Do NOT connect 1) Connect the Dock to the AC power adapter and the USB cable power. NOTE: DO NOT connect the USB cable 2) Insert the Source HDD (drive with data) into Source A 3) Insert the Target HDD (drive to receive data) into Target B 4) Check for proper alignment with the drive connectors 5) Depress the ON/OFF button on the Dock rear and check for the green LED... -
Page 11: Troubleshooting Notes
USB 3.0 Dual-SATA HDD Docking Station with Cloning 3.6 Troubleshooting Notes No Power: Press the ON/OFF button. Cannot read the HDD in USB Mode: Ensure that the HDD is properly seated and the yellow Source or Target LED is lit Unable to start Cloning: Target Bay B must have equal or greater storage capacity than Source Bay A. -
Page 12: Technical Specifications
Note: Specifications are subject to change without notice 5. Warranty and Support 5.1 Customer Support and Contact Information Cable Matters offers lifetime technical support as an integral part of our commitment to provide industry leading solutions. Email us with any questions at support@cablematters.com.
