- Page 1 User Manual Download the user manual at: www.cablematters.com/dl/107054 support@cablematters.com...
-
Page 2: Table Of Contents
Thunderbolt™ 4 Docking Station Table of Contents 1. INTRODUCTION ..................1 1.1 Introduction 1.2 Copyright and Trademarks 1.3 FCC Compliance Statement 2. PRODUCT OVERVIEW 2.1 Package Contents 2.2 Product Description 2.3 Product Features 2.4 System Requirements …………………………………………………2 3. CONNECTION AND OPERATION INSTRUCTIONS 3.1 Installation Checklist …………………………………………………. -
Page 3: Introduction
Specifications are subject to change without notice. Cable Matters is a registered trademark or trademark of Cable Matters Inc. All rights reserved. All other trademarks are the property of their respective owners. Chrome and related marks and logos are trademarks of Google LLC. -
Page 4: Product Description
Thunderbolt™ 4 Docking Station 2.2 Product Description The Cable Matters Thunderbolt™ 4 Docking Station supports four 4K DisplayPort™ or HDMI monitors, USB ® ® peripherals, 2.5 Gigabit Ethernet networking, and SD cards over a single Thunderbolt 4 40Gbps cable. This... -
Page 5: Connection And Operation Instructions
(Cable Matters Model 107032) macOS computers do not require any additional external software ✓ For additional troubleshooting information, go to kb.cablematters.com and search for 107054. ✓ Check that the Intel Thunderbolt™ Software is installed. Search for it in Windows ✓... -
Page 6: Usb-C Or Thunderbolt 4 External Display Chart
Thunderbolt™ 4 Docking Station 3.2 USB-C or Thunderbolt 4 External Display Chart Thunderbolt 4 hosts support four 4K displays. The display support of USB-C hosts depends on the DP Alt Mode and Display Stream Compression (DSC) support of the host. Computer Single display Dual Displays... -
Page 7: Front Panel Diagram

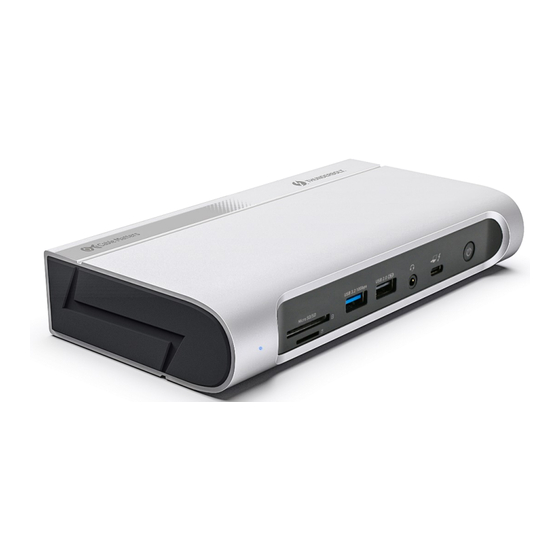

Thunderbolt™ 4 Docking Station 3.3 Front Panel Diagram 1) SD and microSD card slots 2) USB-A 3.2 Gen 2 10Gbps port 3) USB 2.0 port with 5V@1.5A BC1.2 charging 4) 3.5mm TRRS combo headphones/mic port 5) Thunderbolt 4 40Gbps / USB-C host connector port 6) Power button 3.4 Rear Panel Diagram 7) K-Lock slot... -
Page 8: Connecting The Docking Station
Thunderbolt™ 4 Docking Station 3.5 Connecting the Docking Station 1) Connect the Dock to an AC power outlet 2) Connect the included cable to the Thunderbolt 4 or USB-C port on the computer 3) A computer equipped with Power Delivery should indicate that it is charging 4) Wait up to 20 seconds while USB drivers are automatically installed 5) Check that an LED in the RJ45 port is lit 6) Windows may request the user to approve the Dock... -
Page 9: Connecting An Audio Device
Thunderbolt™ 4 Docking Station 3.7 Connecting an Audio Device 1) Connect a headset or microphone to the 3.5mm audio port (3 pole TRS or 4 pole TRRS) 2) Configure the audio settings from the computer Windows 10 1) Device Manager > Click on Sound, video and game controllers> Realtek USB2.0 Audio 2) Click on Audio inputs and output >... -
Page 10: Connecting A Usb-A Or Usb-C Device
Thunderbolt™ 4 Docking Station 3.9 Connecting a USB-A or USB-C Device RONT ANEL 1) Connect a USB-A or USB-C device or cable to the Dock 2) The device should be recognized after downloading any needed USB drivers 3) The USB3.2 port supports data transfer up to 10Gbps. The USB-A 2.0 port supports up to 480Mbps data transfer and 5V1.5A BC1.2 charging. -
Page 11: Technical Specifications
Contact us with any questions at support@cablematters.com. 5.2 Warranty Information This product is backed by a limited one-year warranty. The warranty covers parts and labor costs only. Cable Matters does not warrant its products from defects or damages arising from misuse, abuse, or normal wear. - Page 12 Thunderbolt™ 4 Docking Station THIS PAGE LEFT INTENTIONALLY BLANK www.cablematters.com...
