2TMD041800D0012 │ 21.11.2024
Product manual
®
Busch-Welcome
IP
H81381P.-.-03 IP pushbutton outdoor station

Advertisement

loading
Need help?

Need help?

Do you have a question about the Busch-Welcome IP H81381P-03 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Busch-Jaeger Busch-Welcome IP H81381P-03 Series

Summary of Contents for Busch-Jaeger Busch-Welcome IP H81381P-03 Series

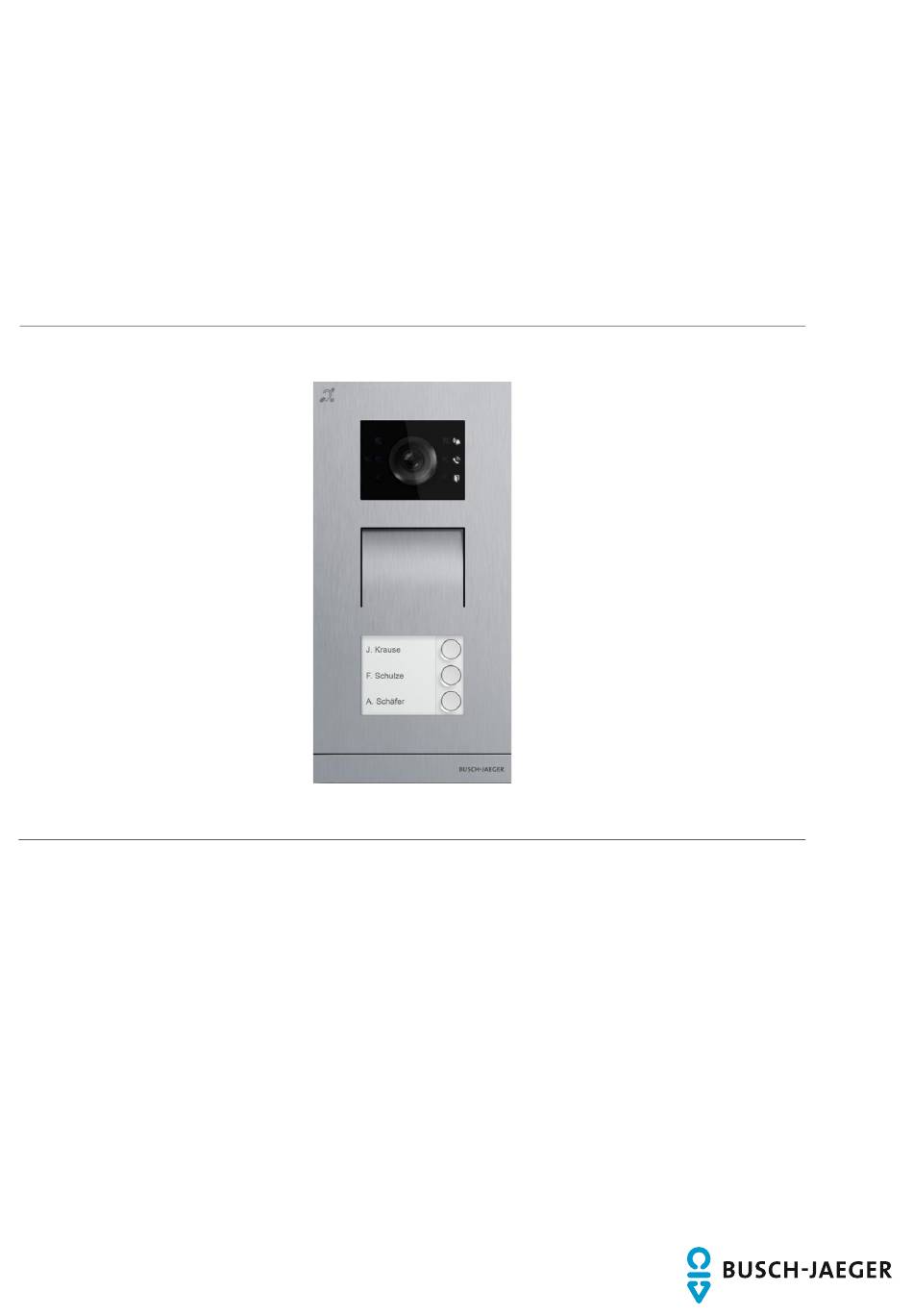

  • Page 1 2TMD041800D0012 │ 21.11.2024 Product manual ® Busch-Welcome H81381P.-.-03 IP pushbutton outdoor station...

  • Page 2: Table Of Contents

    Tabl e of contents Notes on the instruction manual ......................... 4 Safety ................................. 4 Intended use ............................... 5 Environment ............................... 6 Busch-Jaeger devices ........................6 Product description ............................. 7 Device type ............................. 7 Control elements ..........................8 Terminal description ........................9 Lock type and connection ......................
  • Page 3 Table of contents 8.2.3 Viewing the serial number ......................... 48 8.2.4 Viewing the version ........................... 48 8.2.5 Configuring the physical address ..................... 49 8.2.6 Configuring the IP address ....................... 52 8.2.7 Configuring the lock ........................... 53 8.2.8 Configuring the "Time sync" function ....................54 8.2.9 Configuring the lift ..........................

  • Page 4: Notes On The Instruction Manual

    Please keep this manual in a safe place. If you pass the device on, also pass on this manual along with it. Busch-Jaeger accepts no liability for any failure to observe the instructions in this manual.

  • Page 5: Intended Use

    Intended use Intended use ® As part of the Busch-Welcome IP system, this device can only be used with accessories from that system. Security mode This outdoor station runs in "Security mode" by default to guarantee high security. In "Security mode", this outdoor station requires a certificate issued by the management software before it can function normally.

  • Page 6: Environment

    Busch-Jaeger devices All packaging materials and devices from Busch-Jaeger bear the markings and test seals for proper disposal. Always dispose of the packing materials and electric devices and their components via an authorized collection facility or disposal company.

  • Page 7: Product Description

    Product description Product description Device type Size (HxWxD) Article Product ID Product name Colour number Unit: mm H81381P1- 2TMA130010X0019 OS, IPpush, 1 gang Stainless 135 x 277 x 29 S-03 steel H81381P2- 2TMA130010X0020 OS, IPpush, 2 gang Stainless 135 x 277 x 29 S-03 steel H81381P3-...

  • Page 8: Control Elements

    Product description Control elements Function Camera Speaker and microphone integration Round pushbutton End strip │8 Product manual 2TMD041800D0012...

  • Page 9: Terminal Description

    Product description Terminal description Function Reset button Micro USB update connector Plug-in clamps (DC+...GND) for standalone power supply Plug-in clamps (LOCK...GND) for door opener Plug-in clamps (COM...NC...NO) for floating output, door opener LAN (PoE) Connector for next module Connector for exit button Connector for the sensor used for door status detection Connector for 5"...

  • Page 10: Lock Type And Connection

    Product description Lock type and connection Lock type Operation type Voltage Wiring type Electrical strike ⎓ Power on to open Type A/B 12 V lock, 12V Electrical strike ⎓ Type B Power on to open 24 V lock, 24V Electrical rim ⎓...

  • Page 11: Technical Data

    Technical data Technical data Designation Value Rating voltage 24 V DC Operating voltage range 20-27 V DC 27 V DC, 300 mA Rating current 24 V DC, 330 mA -40 °C…+55 °C Operating temperature Product dimensions 135mm x 276.9 mm × 17.6 mm Camera type CMOS Camera viewing angle...

  • Page 12: Mounting/Installation

    Mounting/Installation Mounting/Installation Warning Electric voltage! Dangerous currents flow through the body when coming into direct or indirect contact with live components. This can result in electric shock, burns or even death. – Disconnect the mains power supply prior to installation and/or disassembly! –...

  • Page 13: Mounting

    Mounting/Installation Mounting 7.2.1 Preparation Use gloves to protect yourself against cuts. 7.2.2 Installation height 1.5 m 5 feet │13 Product manual 2TMD041800D0012...
  • Page 14 Mounting/Installation Note The following installation situations must be avoided without fail to ensure picture quality: ■ Direct light ■ Direct sunlight ■ Extremely bright picture background ■ Highly reflective walls on the opposite side of the door station │14 Product manual 2TMD041800D0012...

  • Page 15: Surface-Mounted Installation

    Mounting/Installation 7.2.3 Surface-mounted installation 32 mm 40 mm 71 mm │15 Product manual 2TMD041800D0012...

  • Page 16: Flush-Mounted Installation

    Mounting/Installation 7.2.4 Flush-mounted installation 1. Flush-mounted without pre-installation box 117 mm 46 mm │16 Product manual 2TMD041800D0012...
  • Page 17 Mounting/Installation 2. Flush-mounted with pre-installation box 126 m m 68 m m │17 Product manual 2TMD041800D0012...

  • Page 18: Cavity Wall Installation

    Mounting/Installation 7.2.5 Cavity wall installation │18 Product manual 2TMD041800D0012...

  • Page 19: Dismantling

    Mounting/Installation 7.2.6 Dismantling 7.2.7 Replacing the nameplate │19 Product manual 2TMD041800D0012...

  • Page 20: Commissioning

    Commissioning Commissioning Configure the settings on Indoor Station 8.1.1 Enter engineering mode of Outdoor Station Note The Outdoor Station must be on the same network as the Indoor Station. Please follow the steps below: [1] Power on the Outdoor Station, wait until all 3 LED indicators go out. [2] Press and hold the first pushbutton for 10 seconds until all 3 LED indicators flash.

  • Page 21: Accessing The "Outoodr Stations" Screen

    Commissioning 8.1.2 Accessing the "Outoodr Stations" screen Please follow the steps below: [1] Ensure that the Outdoor Station is in engineering mode. [2] On the "Settings" screen of the panel, tap "Advanced Settings". [3] Tap "Outdoor Stations" to access the corresponding screen. Note The Outdoor Station will exit engineering mode if no operation is carried out for 5 minutes.

  • Page 22: Configuring The Device Type

    Commissioning 8.1.3 Configuring the device type Configuring the Gate Station Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Device setting" section, select "GS" from the drop-down list. [2] Tap "Set device details". [3] Enter the device number (01…32). [4] Select the network type, it can set to "DHCP", "Customizable address"...
  • Page 23 Commissioning Configuring the Outdoor Station Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Device setting" section, select "OS" from the drop-down list. [2] Tap "Set device details". [3] Enter the block number (001…999) and the device number (01…64). [4] Select the network type, it can set to "DHCP", "Customizable address"...
  • Page 24 Commissioning Configuring the 2nd Outdoor Station 1. Location of IP Actuator = Internal In this case, the Outdoor Station connects to the router in the apartment (see the diagram below). Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Device setting" section, select "2nd OS" from the drop-down list.
  • Page 25 Commissioning [3] Select "Internal IP gateway". [4] Enter the device number (1…32). [5] Select the network type, it can set to "DHCP", "Customizable address" or "ABB Legacy". ■ If "ABB Legacy" is selected, IP address will be "10.0.x.x". [6] Tap "Save & Close". │25 Product manual 2TMD041800D0012...
  • Page 26 Commissioning 2. Location of IP Actuator = External In this case, the Outdoor Station connects to the switch outside the apartment (see the diagram below). Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Device setting" section, select "2nd OS" from the drop-down list.
  • Page 27 Commissioning [3] Select "External IP gateway". [4] Enter the block number (001…999), floor number (01…63), apartment number (01…32) and device number (01…02). [5] Select the network type, it can set to "DHCP", "Customizable address" or "ABB Legacy". ■ If "ABB Legacy" is selected, IP address will be "10.0.x.x". [6] Tap "Save &...

  • Page 28: Configuring The Lock

    Commissioning 8.1.4 Configuring the lock 1. Configuring the default lock Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Lock Management" section, select the lock type from the drop-down list. ■ It can be set to "Lock-GND", "NO-NC-COM" or "IP Actuator". ■...
  • Page 29 Commissioning 2. Configuring the subsidiary lock Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Lock Management" section, select the lock type from the drop-down list. ■ It can be set to "Lock-GND", "NO-NC-COM" or "IP Actuator". ■...

  • Page 30: Configuring The "Door Alarm" Function

    Commissioning 8.1.5 Configuring the "Door alarm" function Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Door Alarm" section, tick the check box to enable the functions. ■ If the "Detection Alarm" function is enabled, the panel will send an alarm to SmartAP when the door is open for longer than 120 seconds (a sensor should first be connected to the Outdoor Station).

  • Page 31: Configuring The "Anti-Flicker" Function

    Commissioning 8.1.6 Configuring the "Anti-flicker" function Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Anti-flicker settings" section, select the refresh rate from the drop-down list. It can be set to "60 Hz" or "50 Hz". │31 Product manual 2TMD041800D0012...

  • Page 32: Configuring The Language

    Commissioning 8.1.7 Configuring the language Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Outdoor Station Language" section, select the language from the drop-down list. │32 Product manual 2TMD041800D0012...

  • Page 33: Configuring The Ringtone Volume

    Commissioning 8.1.8 Configuring the ringtone volume Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Ringtone volume" section, select the ringtone volume (1...3) │33 Product manual 2TMD041800D0012...

  • Page 34: Configuring The "Button Tone" Function

    Commissioning 8.1.9 Configuring the "Button tone" function Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Sound" section, tick the check box to enable the function. [2] Go to the "Voice Volume" section, select the voice volume (1...5). │34 Product manual 2TMD041800D0012...

  • Page 35: Configuring The "Voice Prompts" Function

    Commissioning 8.1.10 Configuring the "Voice prompts" function Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Sound" section, tick the check box to enable the function. [2] Go to the "Outdoor Station Language" section, select the language. [3] Go to the "Voice Volume"...

  • Page 36: Configuring The Push Buttons

    Commissioning 8.1.11 Configuring the push buttons Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Buttons set-up" section, select the column number. This setting is only available when detecting the bar push-button module on the Outdoor Station.
  • Page 37 Commissioning [5] Select the function from the drop-down list. It can be set to "Call", "Turn on the light" or "None". [6] Select the device type from the drop-down list. It can be set to "Indoor Station" or "Phone Guard Unit". [7] Enter the address according to the device type.

  • Page 38: Configuring The "Time Sync" Function

    Commissioning 8.1.12 Configuring the "Time sync" function Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Buttons set-up" section, select the sync time method from the drop-down list. ■ If "Sync with SmartAP" is selected, the Outdoor Station will sync the time from the management software.

  • Page 39: Configuring Call Forward

    Commissioning 8.1.13 Configuring call forward This function can be available only when "Device type" is set to "OS". Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Call Forward" section, tick the check box to enable the function.

  • Page 40: Configuring Wiegand Output

    Commissioning 8.1.14 Configuring Wiegand Output Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Wiegand Output" section, tick the check box to enable the function. [2] Select the Wiegand Output type from the drop-down list. It can be set to "26 bits" or "32 bits".

  • Page 41: Configuring The Lift

    Commissioning 8.1.15 Configuring the lift Please follow the steps below: [1] On the "Outdoor Stations" screen, go to the "Elevator Control Setting" section, tick the check box to enable the function. [2] Enter the floor number of the local Outdoor Station (-7…+63). │41 Product manual 2TMD041800D0012...

  • Page 42: Viewing The Information

    Commissioning 8.1.16 Viewing the information Please follow the steps below: [1] On the "Outdoor Stations" screen, scroll down to view the information. Description Mainboard version and MCU version Serial number Signature │42 Product manual 2TMD041800D0012...

  • Page 43: Updating The Firmware

    Commissioning 8.1.17 Updating the firmware The Outdoor Station can be updated the firmware via the panel which supports micro SD card. Precondition The Outdoor Station must exit engineering mode before the firmware is upgraded. Updating the firmware via the panel Please follow the steps below: [1] On the "Outdoor Stations"...
  • Page 44 Commissioning [5] "Loading…" will be displayed to indicate that the upgrade is in progress. [6] "Push success!" will be displayed if the upgrade is successful. │44 Product manual 2TMD041800D0012...

  • Page 45: Configure The Settings On "Smart Access Point

    Commissioning Configure the settings on "Smart Access Point" 8.2.1 Adding the Outdoor Station Note Only an Outdoor Station without a certificate can be added by SmartAP. This Outdoor Station will lose its certificate if its physical address is changed. The Outdoor Station needs to be powered on before being added. Please follow the steps below: [1] On the "Main Menu"...
  • Page 46 Commissioning [2] Click "Add Device". [3] Select the device type from the drop-down list. It could be set to "Gate station", "Outdoor station" or "Second-confirm station". [4] Enter the device address. [5] This function is available only when device type is set to "Second-confirm station". ■...

  • Page 47: Accessing The "Outoodr Stations" Screen

    Commissioning 8.2.2 Accessing the "Outoodr Stations" screen Please follow the steps below: [1] On the "Main Menu" screen, click "Door Entry System". [2] Click "Outdoor Station". [3] Click the designated Outdoor Station to access the corresponding screen. │47 Product manual 2TMD041800D0012...

  • Page 48: Viewing The Serial Number

    Commissioning 8.2.3 Viewing the serial number Please follow the steps below: [1] On the designated Outdoor Station screen, go to the "Serial No." section to view the serial number. 8.2.4 Viewing the version Please follow the steps below: [1] On the designated Outdoor Station screen, go to the "Version" section to view the firmware version.

  • Page 49: Configuring The Physical Address

    Commissioning 8.2.5 Configuring the physical address 1. Gate Station Please follow the steps below: [1] On the designated Outdoor Station, go to the "Additional settings" section, click "Physical address". [2] Go to the "Device type" section, select "Gate Station". [3] Enter the device number (01…32). [4] Click "Save".
  • Page 50 Commissioning 2. Outdoor Station Please follow the steps below: [1] On the designated Outdoor Station, go to the "Additional settings" section, click "Physical address". [2] Go to the "Device type" section, select "Outdoor Station". [3] Enter the block number (001…999) and the device number (01…64). [4] Click "Save".
  • Page 51 Commissioning 3. Second-confirm Station Please follow the steps below: [1] On the designated Outdoor Station, go to the "Additional settings" section, click "Physical address". [2] Go to the "Device type" section, select "Second-confirm Station". [3] Enter the physical address. [4] Click "Save". │51 Product manual 2TMD041800D0012...

  • Page 52: Configuring The Ip Address

    Commissioning 8.2.6 Configuring the IP address Please follow the steps below: [1] On the designated Outdoor Station screen, go to the "Additional settings" section, click "IP address". [2] Select the network type, it can set to "DHCP" or "Static address. ■...

  • Page 53: Configuring The Lock

    Commissioning 8.2.7 Configuring the lock Please follow the steps below: [1] On the designated Outdoor Station screen, go to the "Additional settings" section, click "Door lock setting". [2] Set the lock type of default lock, it can be set to "Lock-GND", "NO-NC-COM" or "IP Actuator".

  • Page 54: Configuring The "Time Sync" Function

    Commissioning 8.2.8 Configuring the "Time sync" function Please follow the steps below: [1] On the designated Outdoor Station screen, go to the "Additional settings" section, click "Time synchronization". [2] Tick/untick the check box to enable/disable the function. ■ If the function is enabled, the Outdoor Station will sync the time from the management software.

  • Page 55: Configuring The Lift

    Commissioning 8.2.9 Configuring the lift Please follow the steps below: [1] On the designated Outdoor Station screen, go to the "Additional settings" section, click "Lift control". [2] Tick the check box to enable the function. [3] Enter the floor number of the local Outdoor Station (-7…+63). [4] Click "Save".

  • Page 56: Configuring The "Surveillance Call" Function

    Commissioning 8.2.10 Configuring the "Surveillance call" function Please follow the steps below: [1] On the designated Outdoor Station screen, go to the "Additional settings" section, click "Surveillance call". [2] Tick the check box to enable the function. [3] Click "Save". │56 Product manual 2TMD041800D0012...

  • Page 57: Configuring The Trusted Devices

    Commissioning 8.2.11 Configuring the trusted devices If you want to release the lock on the Outdoor Station, you need to check: ■ The Indoor Station and the Outdoor Station have been signed on "Smart Access Point". ■ The Indoor Station has been added on the trusted list on the Outdoor Station. Please follow the steps below to add the trusted device: [1] On the designated Outdoor Station screen, click "List of trusted devices".
  • Page 58 Commissioning [3] Select the designated Indoor Stations to trusted list. [4] Click "√" to confirm. [5] [Optional] You need to enable the "Trust this management software" function if you want this Outdoor Station to unlock in the event of an emergency. [6] Click "Save".

  • Page 59: Updating The Firmware

    Commissioning 8.2.12 Updating the firmware 1. Local firmware update Please follow the steps below: [1] On the designated Outdoor Station screen, click "Local firmware update". [2] Click "Browser" to select the update file (.img). [3] Click "Browser" to select the signature file (.sig). [4] Click "Save".
  • Page 60 Commissioning [6] Update status will be displayed. [7] Click "Close" when the update is completed. │60 Product manual 2TMD041800D0012...
  • Page 61 Commissioning 2. Online firmware update Please follow the steps below: [1] On the designated IP Actuator screen, click "Online firmware update". [2] Current firmware version will be displayed. [3] "Current firmware is up to date" will be displayed if no newer version is available. │61 Product manual 2TMD041800D0012...

  • Page 62: Card Management

    Commissioning Card management The chapter applies to the Outdoor Station integrated with IC card reader. Note It is recommended that IC cards are created and maintained using local Outdoor Station or management software only. 1. Card management on local Outdoor Station Initiate status When the device is powered on the first time, all 3 indicators flash in red, orange &...
  • Page 63 Commissioning Normal settings After entering the settings, following functionalities can be implemented: Function Action Unlock indicator Swipe admin card 1x Orange flashes 1x Enrol user Swipe user card 1x Green Swipe admin card 2x Orange flashes 2x Delete user Swipe user card 1x Green Swipe admin card 3x Orange flashes 3x...
  • Page 64 Commissioning Technical data of IC card Operating frequency 13,56 MHz Standard ISO 14443A Support card Mifare one S50/S70, Mifare desfire EV1/EV2 Output format Wiegand 26/34 bit Note A maximum of 5000 IC cards can be supported if the device type of the Outdoor Station is set to "OS".

  • Page 65: Restoring To Factory Default

    Commissioning Restoring to factory default Please follow the steps below: [1] Power on the Outdoor Station, wait until all 3 LED indicators go out. [2] Within 2 minutes of powering on the Outdoor Station, press and hold the reset button for 10 seconds until the 3 LED indicators are lit continuously.

  • Page 66: Operation

    Operation Operation Calling a resident Press the button to start a call (default) and press again to restart the call. │66 Product manual 2TMD041800D0012...

  • Page 67: Calling A Guard Unit

    Operation Calling a guard unit If the outdoor station has been configured via the indoor station, we can press the pushbutton to call the designated guard unit. Please refer to the product manual for the IP touch. │67 Product manual 2TMD041800D0012...

  • Page 68: Turn On A Light

    Operation Turn on a light If the outdoor station is configured by the indoor station, we can press the pushbutton to switch on the light connected to the IP actuator. Please refer to the product manual for the IP touch. │68 Product manual 2TMD041800D0012...

  • Page 69: Cyber Security

    H81381P.-. product, the network, its system and interfaces against any kind of security breaches, unauthorized access, interference, intrusion, leakage and/or theft of data or information. Busch-Jaeger and its affiliates are not liable for damages and/or losses related to such security breaches, unauthorized access, interference, intrusion, leakage and/or theft of data or information.

  • Page 70: Deployment Guideline

    Malware prevention solution The H81381P.-. device is not susceptible to malware, because custom code cannot be executed on the system. The only way to update the software is by firmware upgrades. Only firmware signed by Busch-Jaeger can be accepted. 10.7 Password rule The user must change the engineering password when accessing the engineering settings for the first time.

  • Page 71: Notice

    We reserve the right to at all times make technical changes as well as changes to the contents of this document without prior notice. The detailed specifications agreed to at the time of ordering apply to all orders. Busch-Jaeger accepts no responsibility for possible errors or incompleteness in this document.
  • Page 72 Notice Busch-Jaeger Elektro GmbH We reserve the right to at all times make technical changes as well as 58513 Lüdenscheid changes to the contents of this Freisenbergstraße 2 document without prior notice. The detailed specifications agreed upon apply for orders. Busch- busch-jaeger.de...
