Table of contents Tabl e of contents Safety ................................. 3 Intended use ............................... 3 Environment ............................... 3 Busch-Jaeger devices ........................3 Product description ............................. 4 Control elements ..........................4 Terminal description ........................5 Technical data ............................7 Mounting/Installation ..........................8 Requirement for the electrician .......................
Busch-Jaeger devices All packaging materials and devices from Busch-Jaeger bear the markings and test seals for proper disposal. Always dispose of the packing materials and electric devices and their components via an authorized collection facility or disposal company.

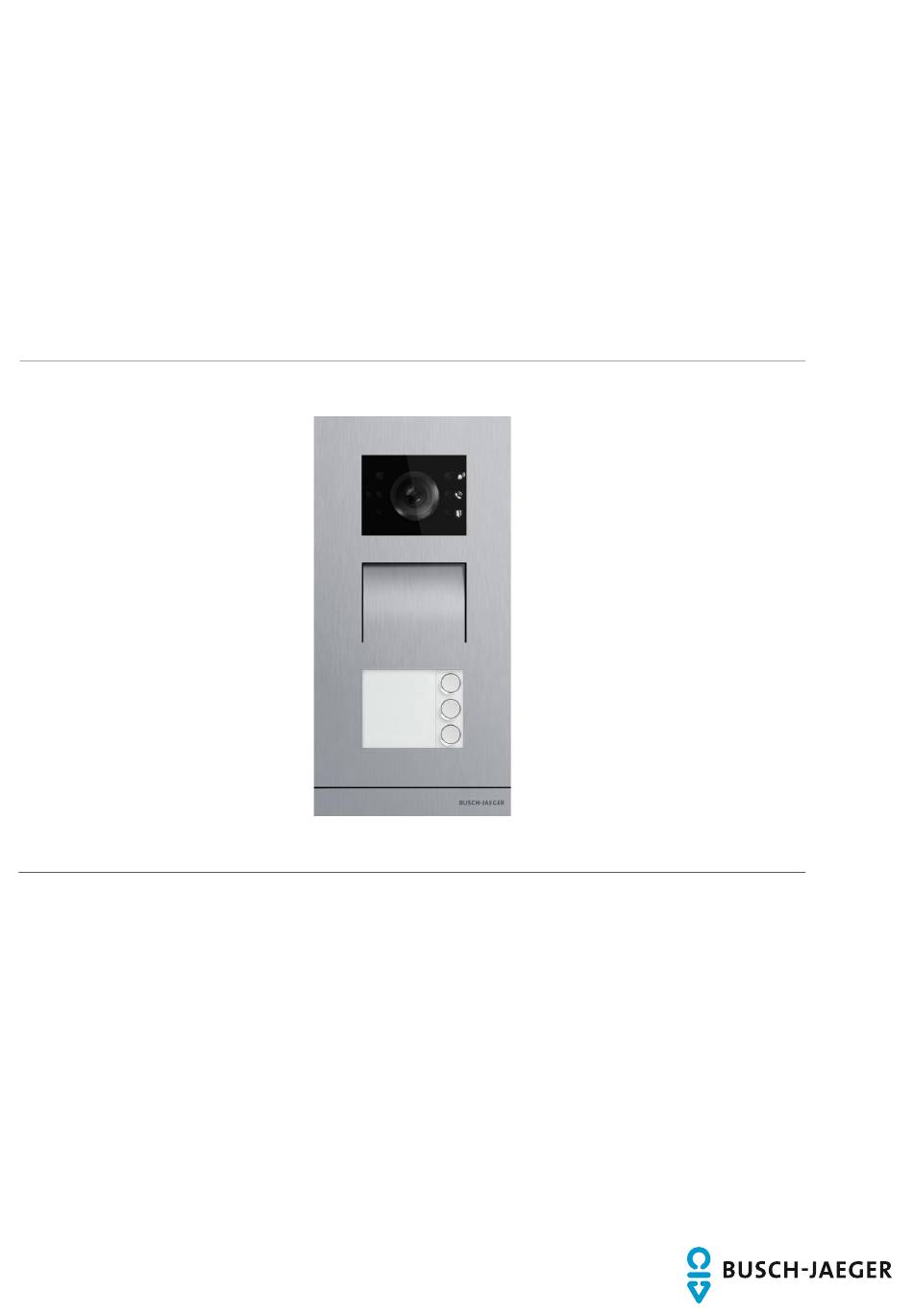

Product description Product description Control elements Function Camera Ring indicator ■ flashes slowly: ringing ■ flashes quickly: busy line Call indicator Unlock indicator Speaker and microphone integration Round pushbutton End strip │4 2TMD042000D0001...
Product description Terminal description 7 8 9 Function Adjust loudspeaker volume Set the outdoor station address (1...9) Set the indoor station start address (1…99) Selector switch K10 sets the tens digits, selector switch K1 sets the one digits. The default setting is K1=1 and K10=0.
Technical data Technical data Designation Value ⎓ Input (a, b) 24 V ⎓ Operating voltage range 20-30 V ⎓ Standby current 24 V , 70 mA ⎓ Operating current 24 V , 160 mA -40 °C…+55 °C Operating temperature Camera type CMOS Image sensor CMOS sensor 1/3.2"...
Mounting/Installation Mounting/Installation Warning Electric voltage! Dangerous currents flow through the body when coming into direct or indirect contact with live components. This can result in electric shock, burns or even death. – Disconnect the mains power supply prior to installation and/or disassembly! –...
Mounting/Installation General installation instructions ■ Terminate all branches of the wiring system via a connected bus device (e.g., indoor station, outdoor station, system device). ■ Do not install the system controller directly next to the bell transformer and other power supplies (to avoid interference).
Mounting/Installation Mounting 6.3.1 Preparation Use gloves to protect yourself from being cut. 6.3.2 Surface-mounted installation 2 11 Mo u n ti n g scre w x 4 ⌀ Scre w sh a ft: ≥ S crew length: 2 5 mm Surface-mounted box 1X3 (Unit: mm) │10...
Addressing Addressing Address setting Selector switch K10 sets the tens digits, selector switch K1 sets the one digits. The default setting is K1=1 and K10=0. Ad d re ss o f o u td o o r sta ti o n Sta rt a d d re ss o f i n d o o r sta ti o n │14...
We reserve the right to at all times make technical changes as well as changes to the contents of this document without prior notice. The detailed specifications agreed to at the time of ordering apply to all orders. Busch-Jaeger accepts no responsibility for possible errors or incompleteness in this document.
Page 17
Notice Busch-Jaeger Elektro GmbH We reserve the right to at all times make technical changes as well as 58513 Lüdenscheid changes to the contents of this Freisenbergstraße 2 document without prior notice. The detailed specifications agreed upon apply for orders. Busch- busch-jaeger.de...
