WatchIN
Industrial Grade 3 Detector
Dual Technology Industrial Detector
Model: RK325DT
Installation Instructions - Relay & BUS Modes

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WatchIN RK325DT and is the answer not in the manual?

Questions and answers

Summary of Contents for Risco WatchIN RK325DT

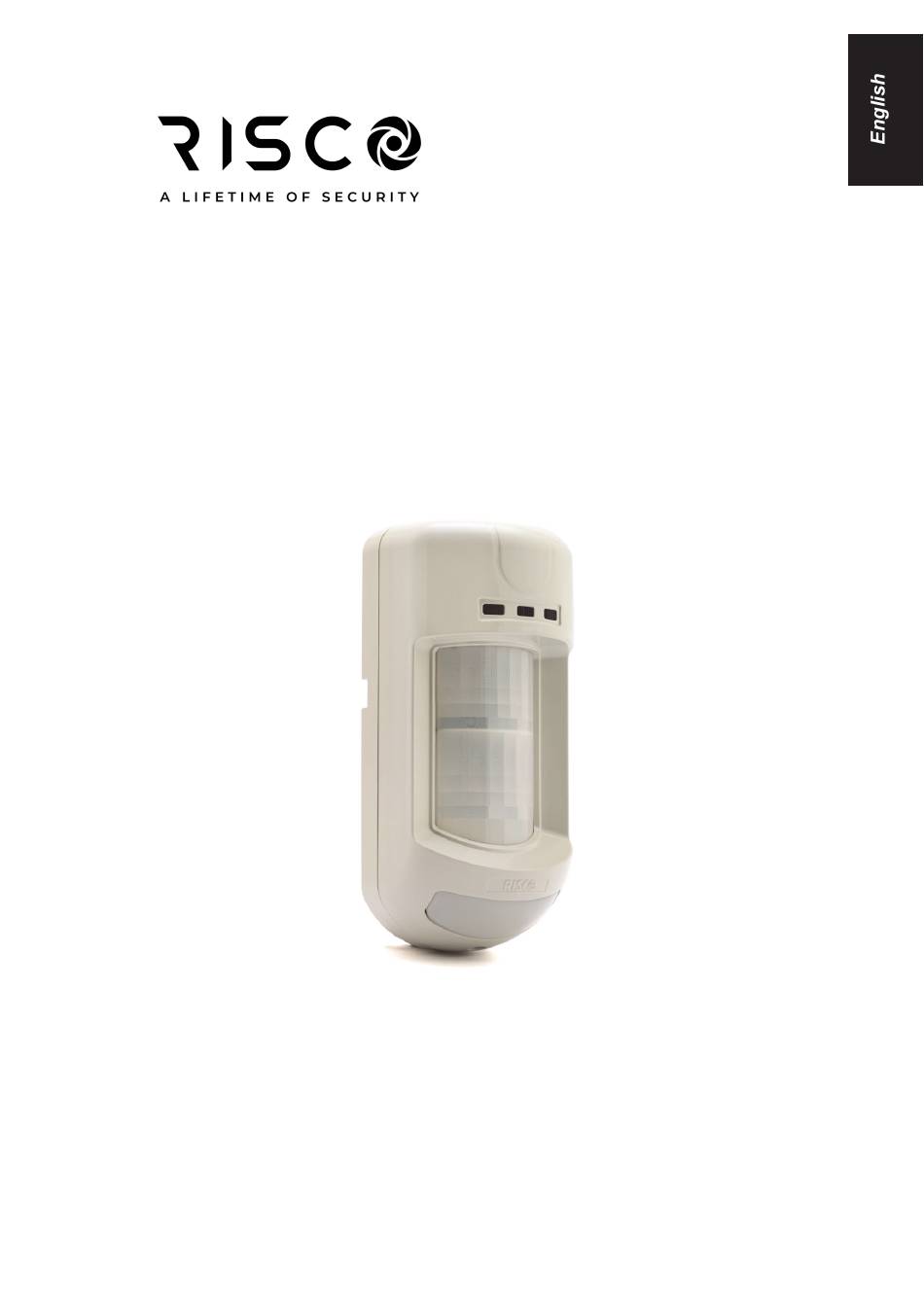

  • Page 1 WatchIN Industrial Grade 3 Detector Dual Technology Industrial Detector Model: RK325DT Installation Instructions - Relay & BUS Modes...
  • Page 2 WatchIN Installation Manual...
  • Page 3: Table Of Contents

    Table of Contents Relay Mode Installation ....................... 4 Introduction ..........................4 Mounting ............................. 4 Mounting Considerations ......................4 Wall Mount Installation......................5 Flat Mounting: ......................... 5 45° angle Mounting (Left side mounting) ................5 Changing Back Tamper position .................... 6 Terminal Wiring ...........................
  • Page 4: Relay Mode Installation

    The detector can operate as a regular relay detector connected to any control panel, or as a BUS accessory when connected to RISCO Group's ProSYS control panel via the RS485 BUS, thus having unique remote control and diagnostic capabilities.
  • Page 5: Wall Mount Installation

    Wall Mount Installation Figure 1 Figure 2 Note The installation knockouts numbering are marked on the back plate. 1. Open WatchIN front cover (unlock C1, Figure 1). 2. Release internal base (unlock I1, Figure 2). 3. Select mounting installation as follows: Flat Mounting: Open knockouts on external base (Figure 3).
  • Page 6: Changing Back Tamper Position

    Figure 5 Changing Back Tamper position Left Side The back tamper is by default secured on the right Tamper side of the internal base (Rear view). If you wish to move it to the left side (rear view), do the following Right Side (Figure 5): Tamper...
  • Page 7: Dip Switch Settings

    SET/ This input enables to control Anti-masking and LEDs operation in accordance to UNSET the system status, Set (Arm) / Unset (Disarm). While the system is armed, this feature prevents an intruder from gaining knowledge of the detector’s status and disables Anti-masking detection. System Status Input Status AM Relay...
  • Page 8: Leds Display

    LEDs Display State Description Steady Indicates PIR detection YELLOW Flashing Indicates AM (Anti mask) detection Steady Indicates MW detection GREEN Steady Indicates ALARM Flashing Indicates malfunctioned communication with ProSYS (BUS mode only) Flashing (One after Unit initialization on power up All LEDs another) Notes:...
  • Page 9: Triple Eol Jumpers

    TRIPLE EOL Jumpers TRIPLE Jumpers J4 and J5 allow the selection of Tamper TAMP ER E OL EOL Jumpers and Alarm resistance (1K, 2.2K, 4.7K, 5.6K, 6.8K) according to the control panel (see Figure 6 below). Jumper J6 allows the selection of 12K for Anti-Mask.
  • Page 10: Standard Swivel Installation

    Standard Swivel Installation The WatchIN detector package contains a standard swivel for flexible installation. Please follow the instructions below for mounting the detector with the Standard Swivel: 1. Open WatchIN front cover (Unlock C1, Figure1). 2. Release internal base (Unlock I1, Figure2). 3.
  • Page 11 See Detail A Snaps External Base Swivel to External Base Connecting Screws Internal Base Detail A Angle Locking Screw (See Note 2) Swivel Assy Connecting Screw (See Note) Figure 8 NOTE: Do not open or close the Swivel Assy Screw since it is used for connecting the swivel parts only. 9.
  • Page 12: Replacing Lenses

    Figure 9 Replacing Lenses 1. Unlock the six screws that hold the lens holding sleeve from the back of the front cover. 2. To release the protective sleeve, gently push the lens from the external side of the front cover. 3.
  • Page 13: Lens Types

    Lens Types Wide angle lens (RL325): Top view Feet Meters 90° Meters 24 25 Feet Wide angle lens (RL325): Side View Typical Installation Height: 2.4m (7'10") Meters 24 25 Feet WatchIN Installation Manual...
  • Page 14 Barrier lens (RL327B): Top view Feet Meters 5° Meters 26 27 Feet Barrier lens (RL327B): Side view Meters Typical Installation Height: 2.4m (7'10") Meters 26 27 Feet Note: All detection patterns are assured and approved according to EN50131 in Normal sensitivity settings (factory default).
  • Page 15: Technical Specification

    Technical Specification Electrical Current consumption (Relay Mode) 45mA at 12 VDC (Stand by) 60mA at 12 VDC (MAX with LED ON) Current consumption (BUS Mode) 30mA at 12 VDC (Stand by), 45mA at 12 VDC (MAX with LED ON) Power Output 10dBm Voltage requirements 9-16 VDC**...
  • Page 16: Bus Mode Installation

    BUS Mode Installation Introduction The information in this section relates to WatchIN DT installation in BUS Mode only. Up to 32 BUS detectors can be installed on the ProSYS RS485 BUS, saving cabling time and enabling remote control and diagnostics. Terminal Wiring Used for the connection of 12VDC power supply.
  • Page 17: Dip Switch Settings

    DIP Switch Settings DIP Switch Description Number 1 - 5 Used to set the detector ID number. Set the ID number in the same way as for any other ProSYS accessory (Refer to the table below). 6 - 10 Not used WatchIN ID: DIP Switches 1 - 5 OFF OFF OFF OFF OFF OFF OFF OFF OFF ON...
  • Page 18: Configuring The Watchin Dt Parameters

    1. To Add / Delete the WatchIN DT 1. From the installer menu enter the Add/Delete menu: Quick Key [7][1][9][5] for BUS Zones detectors. 2. Use the keys to position the cursor over the BUS Zone ID number for which you want to assign (or delete) a detector. Note: Make sure that the detector's physical ID number is identical to the ID number you select during programming.
  • Page 19 Quick Keys Parameter Default possibility that the intruder will “Learn” the detector behavior. [2][0][3][zzz] 3 LEDS [1][3] All 3 LEDs will operate. [2][0][3][zzz] Detection Sensitivity Normal Defines the sensitivity of the detector(MW + PIR) [2][0][3][zzz] Sensitivity Options [2][1]..[4] 1) Low 3) Normal 2) Medium 4) ACT (Anti-Cloak™...
  • Page 20: System Parameters

    Quick Keys Parameter Default [2][0][3][zzz] [0][1] Sway is disabled [2][0][3][zzz] [0][2] Sway is enabled System Parameters System: System Control Quick Keys Parameter [1][2][36] AM=Tamper Default: No (UK Version) Used to determine the operation of Anti Masking detection Yes: Anti mask violation will activate tamper alarm. No: Anti mask violation will be regarded as trouble event.
  • Page 21 WatchIN Installation Manual...
  • Page 22 RISCO, for a period of (i) 24 months from the date of delivery of the Product (the “Warranty Period”). This Limited Warranty covers the Product only within the country where the Product was originally purchased and only covers Products purchased as new.
  • Page 23 OVER COMMUNICATIONS FACILITIES, INCLUDING THE INTERNET, GSM OR OTHER MEANS OF COMMUNICATIONS AND THAT RISCO’S PRODUCTS, MAY BE SUBJECT TO LIMITATIONS, DELAYS, AND OTHER PROBLEMS INHERENT IN THE USE OF SUCH MEANS OF COMMUNICATIONS. RISCO IS NOT RESPONSIBLE FOR ANY DELAYS, DELIVERY FAILURES, OR OTHER DAMAGE RESULTING FROM SUCH PROBLEMS.
  • Page 24: Contacting Risco Group

    Contacting RISCO Group RISCO Group is committed to customer service and product support. You can contact us through our website (www.riscogroup.com) or at the following telephone and fax numbers: United Kingdom Belgium Tel: +44-161-655-5500 Tel: +32-2522-7622 technical@riscogroup.co.uk support-be@riscogroup.com Italy Tel: +39-02-66590054 Tel: +305-592-3820 support@riscogroup.it...
