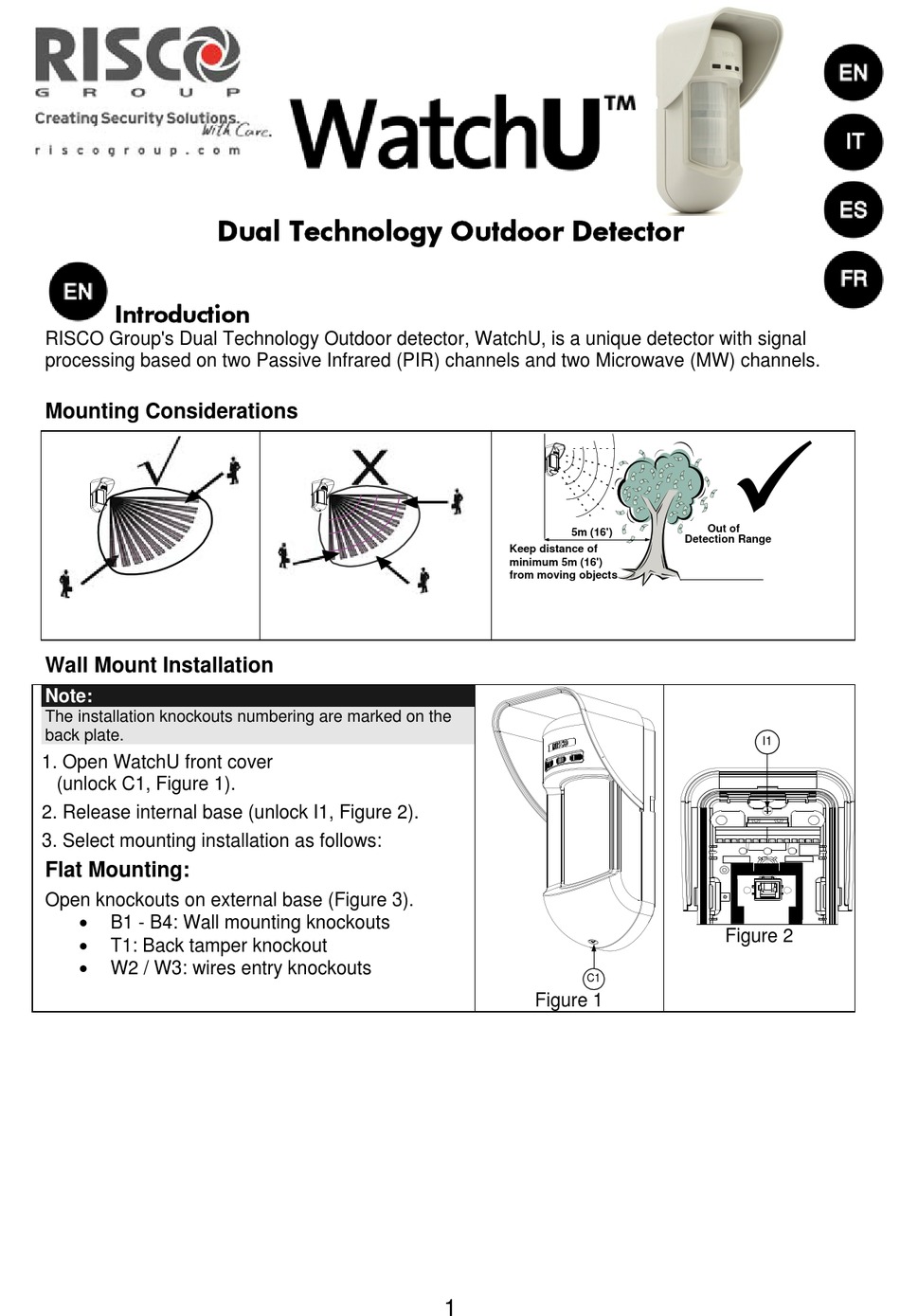

Risco WatchU Quick Start Manual

Introduction
RISCO Group's Dual Technology Outdoor detector, WatchU, is a unique detector with signal
processing based on two Passive Infrared (PIR) channels and two Microwave (MW) channels.
Mounting Considerations
Wall Mount Installation
Note:
The installation knockouts numbering are marked on the
back plate.
1. Open WatchU front cover
(unlock C1, Figure 1).
2. Release internal base (unlock I1, Figure 2).
3. Select mounting installation as follows:
Flat Mounting:
Open knockouts on external base (Figure 3).

B1 - B4: Wall mounting knockouts

T1: Back tamper knockout

W2 / W3: wires entry knockouts
Dual Technology Outdoor Detector
5m (16')
Keep distance of
minimum 5m (16')
from moving objects
C1
Figure 1
1

Out of
Detection Range
I1
Figure 2
