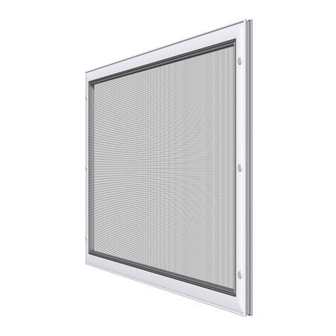

- Page 1 Operating and care instructions WAREMA insect screen fixed frame Model F.E.xx To be handed over to the opera- tor. Please keep for future use. Valid from 01 February 2018 Document number 2072508 [Rev. 2 - en]...
-
Page 2: Table Of Contents
Table of contents Table of contents Introduction........................3 Information on safety............................ 3 Information on the target group and application of these instructions............3 Explanation of the signal words........................3 Basic safety instructions..........................3 Product information......................3 Intended use..............................3 Model overview............................. 4 Attaching the fixed frame.................... -
Page 3: Introduction
Damage resulting from inappropriate use or the failure to and/or property damage. Failure to comply with these follow these instructions is not covered by the warranty. instructions relieves WAREMA of liability. Liability will not be accepted for secondary damage. Warnings are marked in the instructions with this Risk of damage to the product symbol or a similar symbol. -
Page 4: Model Overview
Product information Model overview Models Description F.E.46 Fixed frame with frame profile 12.5 x 39 mm, for external attachment with adjustable corner plates, bottom and top, additional surrounding rearward brush F.E.47 Fixed frame with frame profile 12.5 x 39 mm, for external attachment with adjustable corner plates, bottom and top, additional surrounding rearward brush and downward brush... -
Page 5: Attaching The Fixed Frame
Attaching the fixed frame Attaching the fixed frame Models Description F.E.77 Fixed frame with frame profile 12.5 x 39 mm, for external attachment with adjustable corner plates at the bot- tom and spring-loaded corner plates at the top, additional surrounding rearward brush and downward brush Tab. -
Page 6: Fixed Frame F.e.16
Attaching the fixed frame Fixed frame F.E.16 Fixed frame F.E.62 Position the rotary han- Pass the fixed frame to dle vertically to the pro- the outside. file. Pass the fixed frame to the outside at a slant. Pivot the corner plate When the corner plates with the short leg into are in contact with the... -
Page 7: Fixed Frame F.e.7X
Attaching the fixed frame Adjusting the corner plate Release the socket head pin with a hex key INFO (size 2). The position of the corner plates is set at the factory Move the slot nut with and should only be changed if necessary.The upper the corner plate if nec- and lower corner plates can be adjusted. -
Page 8: Maintenance
(salty air), more frequent cleaning may be necessary to protect against The WAREMA cleaning agent can be used for metal surface damage. and plastic surfaces and is certified by the GRM (Gütegemeinschaft Reinigung von Fassaden e.V.) -
Page 9: Maintenance
To ensure that your product will operate properly on a continuous basis and to avoid changing INFO its approved status, use original spare parts only. Contact your WAREMA specialist dealer if necessary. Performing rough cleaning Troubleshooting: The corner plate moves in the slot. -
Page 10: Warranty
This requires regular maintenance. The warranty does not include wear parts or optical changes in line with the type of material used (e. g. bleaching of surfaces caused by UV rays). WAREMA Renkhoff SE Hans-Wilhelm-Renkhoff-Straße 2 97828 Marktheidenfeld Germany www.warema.com...
